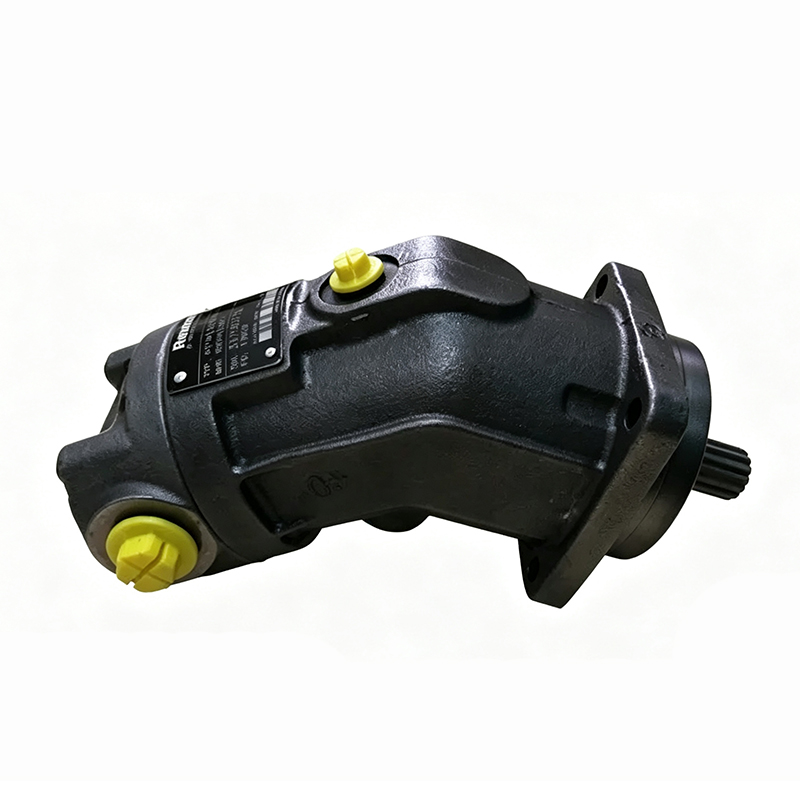

Designing mobile machinery requires balancing immense power and limited space. A wrong fluid power choice often creates severe headaches down the line. Misapplying a hydraulic circuit type in mobile machinery leads to chronic overheating, sluggish response times, or excessive footprint claims by oversized reservoirs. Selecting the correct fluid power architecture at the design or replacement stage dictates machine efficiency, maintenance intervals, and lifecycle productivity. Making a poor choice hurts performance and strains maintenance budgets. This article provides an evidence-based breakdown of open versus closed circuit hydraulic systems. We evaluate them strictly on spatial constraints, thermal management, precision, and application-specific demands for heavy-duty mobile equipment. You will learn how to match pump dynamics to specific tasks effectively. We also examine contamination risks, evaluate top industry options, and offer a clear decision framework. Let us dive right in and optimize your heavy equipment design.
Understanding fluid dynamics helps you make informed design choices. We must trace the fluid path to see how each system operates. The core difference lies in where the oil goes after doing its work. Recognizing this flow path is the first step in matching components to machine workloads.
Fluid starts its journey in a large, atmospheric reservoir. An open circuit hydraulic pump draws this fluid under standard atmospheric pressure. It then pressurizes the oil and sends it out into the system network. The fluid travels through directional control valves. These valves route the oil to various actuators like linear cylinders or rotary motors. After extending a cylinder or turning a motor, the fluid returns directly to the tank.
This architecture relies heavily on raw fluid volume. The system requires significant fluid volume to allow for cooling, de-aeration, and contaminant settling. Baffles inside the tank slow the returning fluid down. This pause lets trapped air bubbles escape to the surface. It also allows heavy metal particles to sink safely to the bottom. We call it "open" because the return fluid opens back up to atmospheric pressure before circulating again.
Closed circuits operate under a completely different hydraulic philosophy. Fluid flows directly from the pump to the hydraulic motor. It then returns straight back to the pump in a continuous, uninterrupted loop. It never sees the main reservoir during its primary working cycle. This creates a tightly sealed power transmission loop.
Because the loop is closed, fluid naturally leaks out through internal pump and motor clearances over time. A closed circuit hydraulic pump utilizes a secondary, smaller "charge pump" to replenish internal leakage. This integrated charge pump continuously maintains base loop pressure. It also circulates a small percentage of fluid through a dedicated cooler via a hot oil shuttle valve. Reservoir sizes drop dramatically as a result. You only need enough oil to feed this smaller charge circuit.
You cannot specify a pump without understanding the machine's primary workload. Different tasks demand different fluid control strategies. Let us evaluate how these two architectures handle precision, heat, and energy losses in heavy-duty environments.
Directional control defines machine drivability and operator comfort. Closed circuits offer seamless bidirectional control. You achieve this by swashing the pump over center. The swashplate angle directly dictates flow direction and flow volume. You never need complex directional valves to reverse the hydraulic motor. This makes closed circuits ideal for propel and drive systems. They provide hydrostatic dynamic braking without mechanical wear. When you bring the swashplate back to neutral, the hydraulic lock stops the machine smoothly.
Open circuits handle reversibility much differently. Reversing direction requires complex valving mechanisms. You must physically shift directional control valve spools to change the fluid path. This action can create pressure spikes in the lines. It feels less smooth than a direct swashplate transition. Open loops are better suited for linear actuators. Cylinders on excavator arms need this valve-driven sequence rather than continuous rotary drives.
Heat degrades hydraulic oil quickly. Managing thermal loads is a massive engineering challenge for mobile equipment designers. Open circuits rely on a massive tank. Engineers often size this tank at one to three times the pump’s per-minute flow rate. This creates a high space penalty on the vehicle frame. However, it provides naturally superior passive heat dissipation. The large surface area of the steel tank acts as a giant radiator, cooling the oil continuously.
Closed circuits are highly compact. Space savings represent their biggest physical advantage on crowded machine chassis. However, heat is actively managed via the charge circuit and dedicated coolers. You must pump hot oil out of the loop and push it through a heat exchanger. This setup demands stringent engineering of the cooling loop. If the cooler fails, thermal runaway happens rapidly. The system lacks a large oil mass to absorb sudden temperature spikes.
Energy loss means higher fuel consumption and reduced profitability. In open circuits, metering flow through control valves introduces pressure drops. These pressure drops generate friction and heat. Heat represents wasted mechanical energy. Engineers use load-sensing configurations to mitigate this issue. Load-sensing lines tell the pump exactly how much flow and pressure to provide. This reduces waste but adds plumbing complexity to the machine.
Closed circuits operate more efficiently in high-speed rotary drives. Direct power transfer from pump to motor yields higher volumetric efficiency. You do not force fluid through restrictive valve spools. The pump delivers exact flow straight into the motor housing. This direct connection makes closed loops highly favored for heavy-duty vehicle transmissions and continuous duty applications.
| Evaluation Metric | Open Circuit System | Closed Circuit System |
|---|---|---|
| Reservoir Size Requirement | Large (1 to 3 times flow rate) | Small (Sized for charge pump only) |
| Directional Reversibility | Via directional control valves | Via over-center pump swashing |
| Thermal Management Strategy | Passive cooling via large tank mass | Active cooling via charge loop exchanger |
| Primary Field Application | Linear cylinders, implement handling | Rotary motors, hydrostatic propel drives |
Theoretical performance means little if the machine constantly breaks down in the field. Real-world maintenance realities must shape your design process. Both systems carry unique vulnerabilities demanding careful engineering oversight.
Dirt acts like sandpaper inside tight hydraulic clearances. Closed loops are notoriously intolerant of fluid contamination. A failure in the pump often sends debris directly into the motor. The motor then sends its own broken metal pieces back to the pump. This closed-loop circulation results in catastrophic dual-component failure. To prevent this outcome, closed loops require premium high-pressure filtration. You must filter the charge pump flow strictly. We recommend absolute filtration ratings of 10 microns or finer to protect the system.
Open systems provide a built-in buffer against sudden failures. The massive reservoir allows heavier particles to settle to the bottom safely. It enables easier and cheaper return-line filtration. The fluid passes through a low-pressure filter before entering the tank. This setup is cheaper to maintain daily. It also isolates specific component failures. Debris from a damaged cylinder usually drops into the tank rather than instantly destroying the main hydraulic pump.
Cavitation destroys pump internals violently and rapidly. It happens when vapor bubbles form and implode under high pressure. Open circuits are highly susceptible to inlet restrictions. Cold fluid, clogged suction strainers, or poor tank placement easily lead to cavitation. Atmospheric pressure simply cannot push thick, cold oil into the pump fast enough. When the pump starves for fluid, it tears itself apart internally.
Closed circuits mitigate this risk via the pressurized charge pump. The charge pump forcibly feeds fluid into the main pump inlet. This ensures the main pump inlet is perpetually fed under pressure. It remains fully saturated even at steep machine operating angles. Mobile machinery often works on hills or rough terrain. A pressurized inlet prevents fluid starvation when gravity works against the oil supply lines.
Choosing the right tier-1 supplier dictates long-term machine reliability. Premium manufacturers engineer their units to survive brutal mobile environments. We will look at two industry leaders dominating this space.
Engineers globally recognize Bosch Rexroth for extreme durability in harsh environments. They are known for robust open-loop axial piston pumps. A REXROTH Hydraulic Pump, like the popular A10 series, is highly favored in implement circuits. You find them powering excavator booms, loader buckets, and heavy steering systems. You should evaluate them based on load-sensing capabilities and high power density. They offer excellent pressure compensator options. This allows the pump to destroke automatically when cylinders reach the end of their travel, saving vital energy.
Danfoss rules the hydrostatic transmission and propel sector. They stand as industry leaders in closed-loop hydrostatic propel systems. The H1 series represents a gold standard for off-highway vehicle drives. A DANFOSS Hydraulic Pump usually features highly integrated electro-hydraulic controls. You evaluate them based on charge pump efficiency and advanced automotive-style drive management software. Their electronic controllers interface seamlessly with engine CAN bus networks. This integration optimizes engine RPM alongside hydraulic flow, maximizing overall vehicle performance.
Standardization across a fleet carries both benefits and risks. Assess whether standardizing on one manufacturer for both open and closed circuits makes sense. It reduces spare parts inventory dramatically. It also lowers technician training overhead significantly. However, vendor lock-in reduces your future negotiating power. Mixing brands allows you to pick the absolute best pump for each specific circuit type. We advise balancing strict inventory costs against raw technical performance requirements.
We designed this framework to simplify your engineering choices. Follow these straightforward guidelines to match your circuit type to your machine's actual workload.
There is no universal superiority between open and closed circuits. Engineering excellence comes from the appropriate matching of fluid architecture to the mechanical objective. Drive and propel tasks fundamentally favor closed circuits. They provide smooth reversal and incredibly compact power delivery. Meanwhile, multi-function implement handling leans heavily toward open circuits. Open loops handle multiple cylinder sequences safely and cool fluid passively without complex electronics.
Next Steps:
A: "Open circuit" refers to the fluid returning to a reservoir. "Open center" refers specifically to the directional control valve allowing fluid to flow freely back to the tank when in the neutral position. The terms are related but address entirely different parts of the overall hydraulic system.
A: No. While both may use axial piston technology, a closed circuit pump requires specific internal porting. It needs an integrated charge pump to survive. It also requires over-center swashplate capabilities that standard open circuit pumps completely lack. You must buy a dedicated closed loop pump.
A: Closed circuits can overheat faster if the charge loop cooler fails or is undersized. They have virtually no thermal mass or reservoir to absorb sudden heat spikes. Open circuits run cooler naturally. However, they will quickly overheat if valves continuously dump fluid over the main relief valve.
