| Quantity: | |
|---|---|
101S-1-63-15-I
Xeriwell or Others
| Product: | Hydraulic Steering Unit | Brand: | Xeriwell |
|---|---|---|---|
| Displacement: | 63ml/r | Function: | Open Center |
| Valves:: | Safety Valve, Shock Valves, Check Valve | Replace: | OSPC 60 |

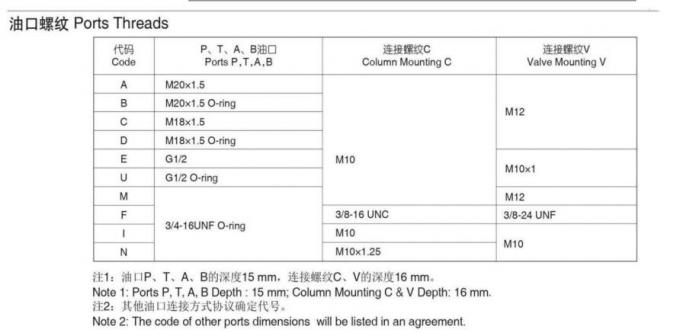

| Oil Port: | 3/4-16UNF O-ring | Mounting C:: | M10 |
| Mounting V:: | M10 | Application: | Fishing Boat |
| Highlight: | power steering valve,power steering control unit | ||

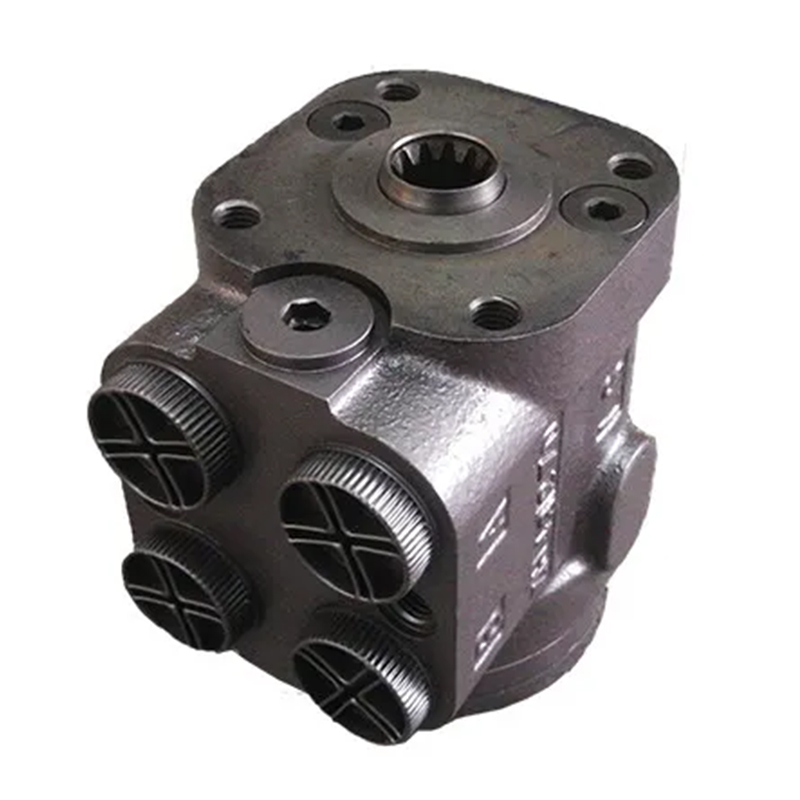

Fishing boat hydraulic steering unit helms OSPC 63 ON OSPC 100 ON
We provide replacement steering unit of Char-lynn, , 101S is a replacement steering unit of Char-lynn 3 series, 211-. OSPC, OSPB.
Specifications:
101S-1-63-15-I
displacement 63cc
function open center no reaction
safety valve pressure 15 MPa
101s = Char-lynn series 3 = Char-lynn 211-
displacement 50cc - 500cc
function ON, OR, CN, LS (5t)
we also provide the below:
| Eaton & Parker | hanjiu model crossing |
| 101-1001 | BMP46 |
| 101-1004 | BMP159 |
| 101-1022 | BMP231 |
| 101-1031 | BMP293 |
| 103-1004 | BMR166 |
| 103-1027 | BMR93 |
| 103-1030 | BMR225 |
| 103-1032 | BMR372 |
| 104-1001 | BM5-80 |
| 104-1002 | BM5-100 |
| 104-1004 | BM5-160 |
| 104-1027 | BM5-245 |
| 104-1028 | BM5-305 |
| 112-1068 | BMK6-490 |
| 119-1030 | BM8-665 |
| 119-1031 | BM8-940 |
| 119-1028 | BM8-345 |
| 119-1029 | BM8-480 |
| TE0065 | BME265 |
| TE0100 | BME2100 |
| TE0165 | BME2165 |
| TE0195 | BME2195 |
| TG0475 | BMER475 |
| TG0530 | BMER530 |
| 211-1003 | 103-120 ON |
| 211-1007 | 103-75 ON |
| 211-1008 | 103-95 ON |
| 211-1010 | 103-160 ON |
| 211-1012 | 103-230 ON |
| 211-1038 | 103-370 ON |
| 211-1158 | 103-295 ON |
| 211-1160 | 103-590 ON |
| 211-1178 | 103-460 ON |
| 213-4002 | 103-95 LS |
| 213-4044 | 103-295 LS |
| 213-4046 | 103-160 LS |
| 213-4047 | 103-230 LS |
| 213-4048 | 103-460 LS |
| 213-4049 | 103-590 LS |
| 213-4050 | 103-730 LS |
| 213-4051 | 103-370 LS |

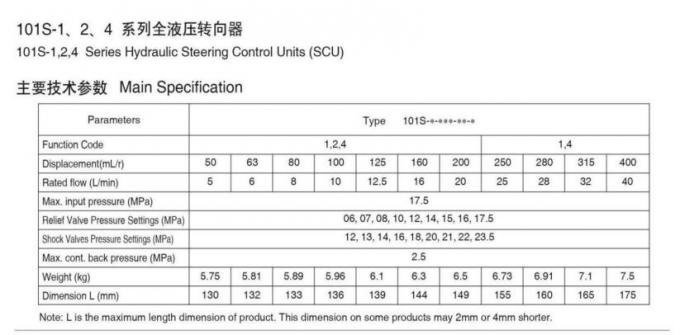

Technical data sheet:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |

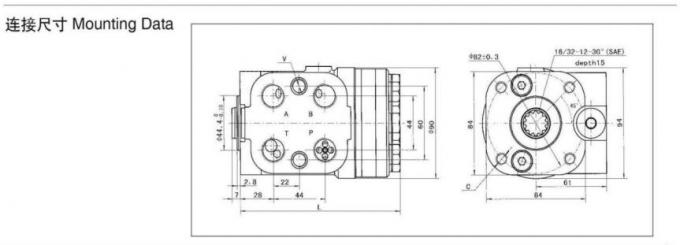

| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
