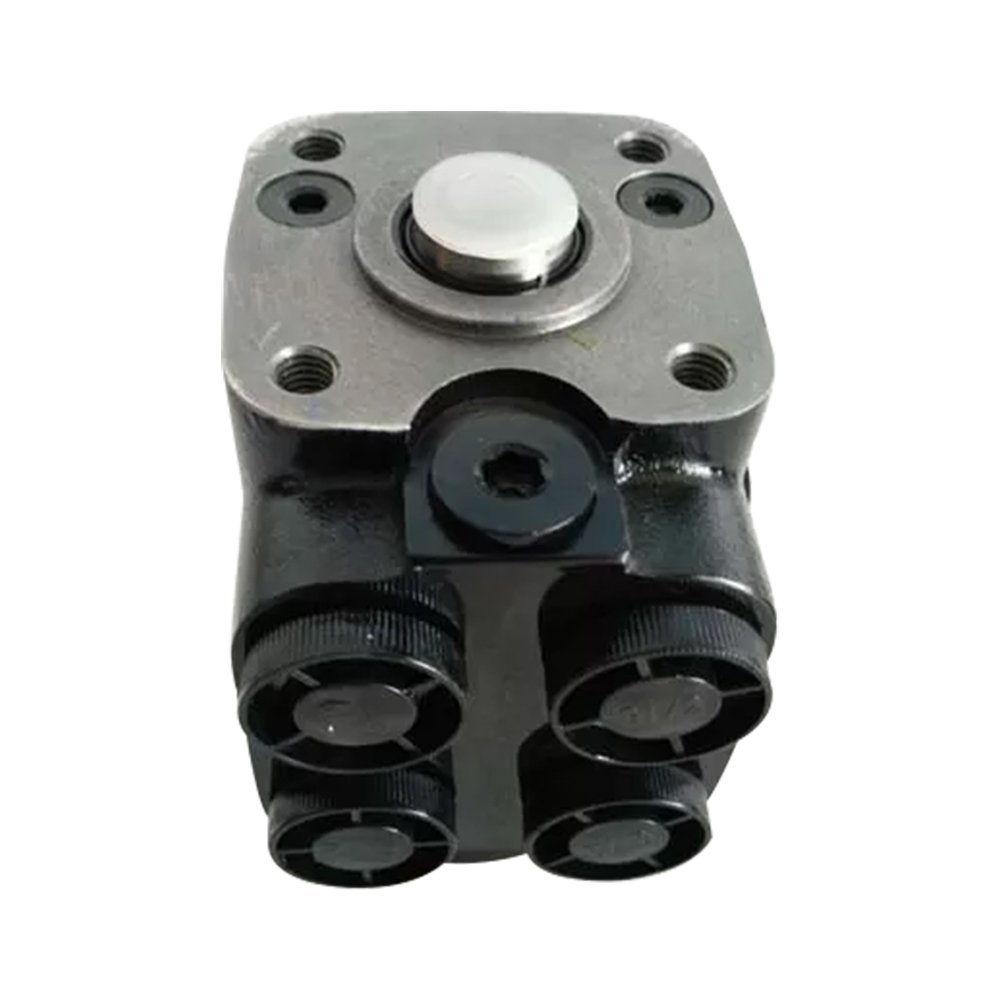

Hydraulic Steering Unit 101S
Xeriwell or Others
| Product Name: | Hydraulic Steering Pumps | Function: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing/ON/OR/CN/LS/5T |
|---|---|---|---|
| Displacement: | 50, 80, 100, 125, 160 ......400, 500 | Applications: | Walking Mechanical Steering |
| Replacement: | OSPC, M+S HKUS | Relief Valve Pressure Setting ( MPa ): | 06,07,08,10,12,14,15,16,17.5 |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||
Hydraulic Steering Unit 101S 200 Power Steering Series 41 , 2141 2541
Hydraulic Steering Unit
101S series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features :
compact and convenient
low pressure drop.
3 basic systems-open center, closed center and load sensing
Can replace OSPC , M+S HKUS .
Low hydraulic noise
Main Specifications:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| 主要技术参数 Main Specification | |||||||||||
| Parameters | Type 101-……- | ||||||||||
| Function Code | 1,2,3 | 1,3 | |||||||||
| Displacement(mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max. input pressure (MPa) | 17.5 | ||||||||||
| Max. cont. back pressure (MPa) | 2.5 | ||||||||||
| Weight (kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 133 | 136 | 139 | 144 | 149 | 155 | 160 | 165 | 175 |
| Note:L is the maximum length dimension of product. This dimension on some products may 2mm or 4mm shorter. | |||||||||||
| 油口螺纹 Ports Threads | |||||
| 代码 Code | P、T、A、B油□ Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Column Mounting V | LS油□ Post LS | LL、EL油□ Ports LL,EL |
| A | M20×1.5 | M10 | M12 | M12×1.5 | |
| B | M20×1.5 O-ring | M12×1.5 O-ring | |||
| C | M18×1.5 | M12×1.5 | |||
| D | M18×1.5 O-ring | M12×1.5 O-ring | |||
| E | G1/2 | M10×1 | G1/4 | M10×1 | |
| U | G1/2 O-ring | G1/4 O-ring | M10×1 O-ring | ||
| M | 3/4-16UNF O-ring | M12 | 7/16-20UNF O-ring | ||
| F | 3/8-16 UNC | 3/8-24 UNF | |||
| I | M10 | M10 | |||
| N | M10×1.25 | ||||
| H | ∅18.5 | M10 | M10 | M12×1.5 | |
| 注1：油□P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm，LS、LL、EL的深度12 mm。 Note 1:Ports P,T,A,B Depth:15 mm;Column Mounting C &V Depth:16 mm,LS,LL,EL Depth:12 mm. 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||||
Applications :
Hydraulic Steering Unit is widely used in the steering control system
such as the steering system of many kinds of industrial and agricultural
mobile machinery forklift,,tractor,comebine harvester, loader,roadroller , etc.
We produce the products match with the OEM number of all machines.
If you have a control system that need steering or power steering , our 101S steering units are a good option for you .
Welcome to reach us to talk Hydraulic Steering Unit .
