OMR160
Xeriwell or Others
Type: | Hydraulic Oil Motor | Brand: | Xeriwell |
---|---|---|---|
Model No.: | OMR | Displacement: | 160CC |
Speed: | 341 RPM - 372 RPM | Flow: | 55 Lpm -60 Lpm |
Pressure: | 14mpa-17.5mpa | Output: | 11.3-15.2kw |
Highlight: | integral brake hydraulic orbit motor,omr160 hydraulic orbit motor,control valve orbit hydraulic motor |

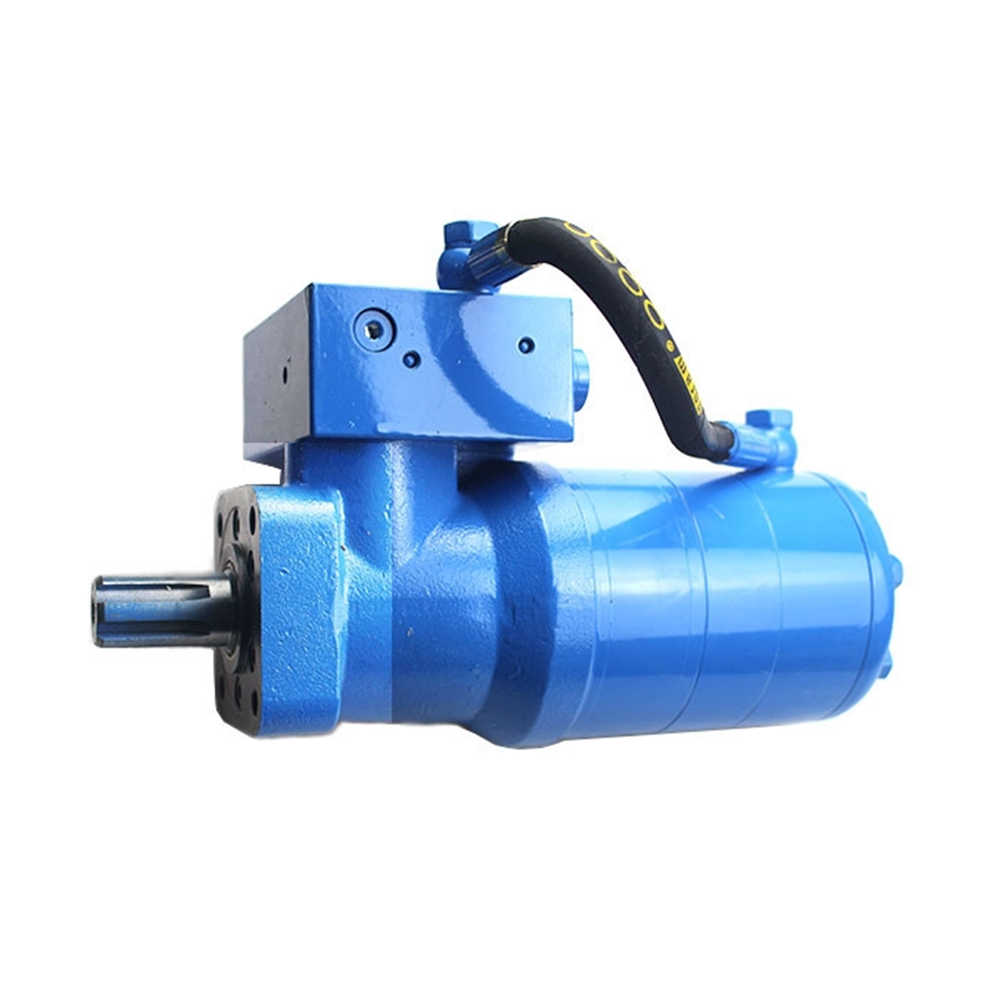

Hydraulic Orbit Motor Integral Brake Motor OMR160 With Control Valve
Specifications:
OMR160
displacement = 160cc

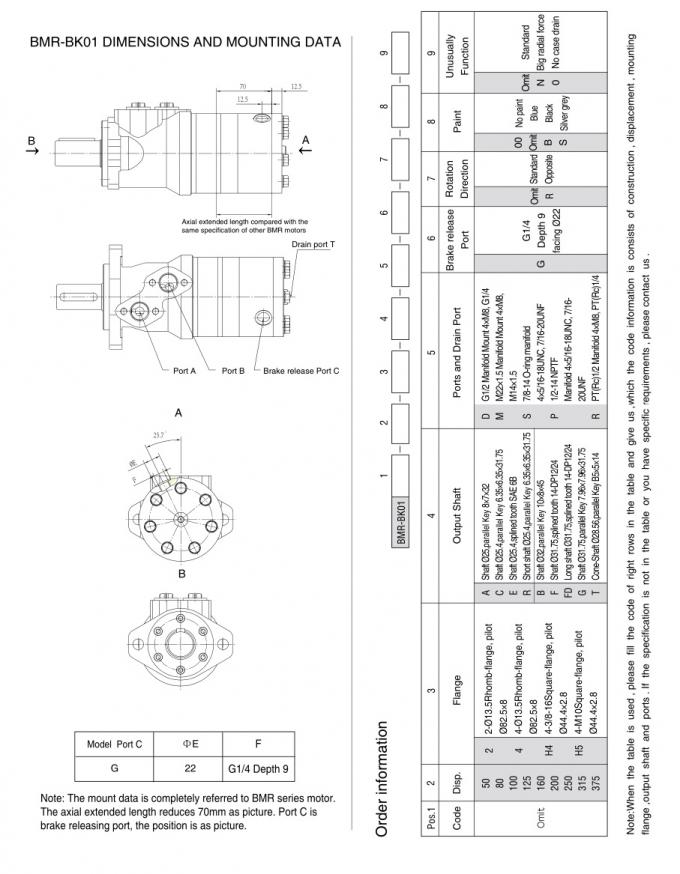

4= 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
E = SAE SHAFT
D = G1/2 Manifold Mount, 4-M8, G1/4
Specifications:
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type | BMR Bk01 36 | BMR Bk01 50 | BMR Bk01 80 | BMR Bk01 100 | BMR Bk01 125 | BMR Bk01 160 | BMR Bk01 200 | BMR Bk01 250 | BMR Bk01 315 | BMR Bk01 375 | |
Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 |
1. Advanced manufacturing equipment for Gerolor gear sets, using low pressure starting,
2. Provide smooth, reliable operation and high efficiency.
3. The shaft seal can withstand high back pressure, and the motors can be used in parallel or in series.
4. The drive connector is specially designed to prolong the service life
5. The power distribution system is specially designed to meet the low noise requirements of the unit.
