Views: 0 Author: Site Editor Publish Time: 2026-07-21 Origin: Site
Imagine a fully loaded dump trailer suddenly stuck in the raised position. A failed pump immediately halts daily operations. It also risks severe structural damage if an uneven load remains suspended in mid-air. Buyers often face a difficult challenge when fixing this common issue. They must navigate a flooded aftermarket full of unverified products. Many sellers make misleading specification claims regarding lifting power and speed. Finding reliable equipment feels overwhelming.
We want to clear this confusion and simplify your buying process. This article provides an evidence-based framework for selecting a replacement unit. We will also help you upgrade your existing 12V unit based on real-world factors. You will learn to evaluate true duty cycles, load requirements, and expected system longevity. Accurate component matching prevents expensive mid-job failures. Our guide ensures you choose equipment built for your specific operational demands.
We must first define the baseline mechanics. A typical setup relies on four primary components interacting seamlessly. The electric motor converts electrical energy into mechanical rotation. The pump uses this rotation to pull fluid from the reservoir. The pump then pushes this pressurized fluid into the lift cylinders. The cylinders convert fluid pressure back into mechanical lifting force. These components form a complete hydraulic system. They must work together perfectly to raise a heavy trailer bed safely.
Next, you must consider your payload limits and expected duty cycle. Buyers often ignore the difference between occasional residential hauling and high-frequency commercial dumping. Residential users might haul mulch or light debris once a month. Standard, budget-friendly components usually handle this light work. Commercial landscapers dump heavy gravel or wet soil ten times a day. High-frequency dumping generates immense internal heat. This heat degrades fluid viscosity and destroys internal seals over time. Commercial operators need robust cooling features and higher flow capacities.
Before buying a new unit, carefully evaluate your current failure symptoms. Many operators replace an entire assembly unnecessarily. Does your motor click loudly but fail to spin? You might just need a new starter solenoid or a fresh battery. Does the bed lift slowly while the motor whines? You could have a clogged inlet filter or dangerously low fluid levels. Check for leaking cylinder seals. Test your main electrical connections first. Rule out these simple fixes before investing in a complete replacement assembly.
Buyers must choose between single-acting and double-acting configurations. Each type serves very different operational needs. You must match the action type to your daily workflow.
Single-acting units push the bed upward using fluid pressure. They rely entirely on gravity to lower the bed back down. A simple release valve lets fluid return to the tank. This setup is best for budget-conscious buyers hauling lighter payloads. It requires simpler wiring setups because it uses fewer relays. However, single-acting units have strict limitations. Descent times remain noticeably slow. The bed often sticks in freezing temperatures because cold fluid thickens. Empty beds sometimes lack enough physical weight to lower themselves completely.
Double-acting units use fluid pressure to move the bed in both directions. A directional control valve routes pressurized fluid to either side of the cylinder piston. This setup is best for commercial users moving heavy payloads. It excels during extreme cold-weather operations. The primary advantage is precise control over your descent rate. You can force the bed down quickly. This feature proves critical if shifting debris threatens to tip the trailer over.
Review the comparison table below to understand the operational differences.
| Feature Category | Single-Acting (Gravity Down) | Double-Acting (Power Down) |
|---|---|---|
| Operating Mechanism | Fluid pressure up, gravity down | Fluid pressure both up and down |
| Descent Speed | Slow, highly dependent on bed weight | Fast, actively controlled by operator |
| Cold Weather Performance | Poor (fluid thickens, bed sticks) | Excellent (forced fluid movement) |
| Wiring Complexity | Minimal (requires fewer solenoid connections) | Moderate (requires dual relay wiring) |
You need specific engineering data to find the exact hydraulic pump for dump trailer applications. Focus heavily on four technical pillars during your evaluation.
First, evaluate the PSI (Pounds per Square Inch) rating. PSI dictates your maximum mechanical lifting force. Most dump trailers require a pressure rating around 3,200 PSI to function properly. This pressure translates directly into pushing power at the cylinder base. Avoid products boasting unverifiable peak pressure claims. Stick to units tested rigorously under continuous load conditions. Ensure the unit includes an adjustable pressure relief valve. This valve protects internal components from exploding if you accidentally overload the trailer.
Second, calculate your GPM (Gallons per Minute). Flow rate determines your cycle times. Higher GPM means much faster lifting speeds. However, increasing the fluid flow rate requires more electrical amperage from your battery. You must balance your speed demands against your available battery capacity. A pump pushing too much fluid will drain a standard battery instantly.
Third, examine reservoir capacity and material construction. You generally choose between steel and poly plastic tanks. Steel offers maximum durability against flying road debris. Poly plastic saves weight and provides easy fluid level visibility. Sizing follows a strict mathematical rule. The tank must hold enough fluid to fully extend all connected cylinders. You must also add a 10-20% safety margin. This extra margin prevents pump starvation when the bed reaches its maximum tilt angle.
Finally, account for electrical draw limitations. Direct current (DC) motors pull severe amperage under heavy loads. A poorly matched battery setup will fail quickly. You must use high CCA (Cold Cranking Amp) batteries. Standard car batteries cannot handle this stress. Deep cycle marine batteries provide the best sustained power for these demanding trailer applications.
The aftermarket is saturated with ultra-low-cost imported alternatives. These cheap direct replacements often carry hidden operational risks. Many feature inferior internal coil windings and weak solenoids. They might work adequately for a few months before failing under stress. OEM (Original Equipment Manufacturer) components guarantee exact fitment and tested durability. You should always prioritize build quality over initial purchase savings.

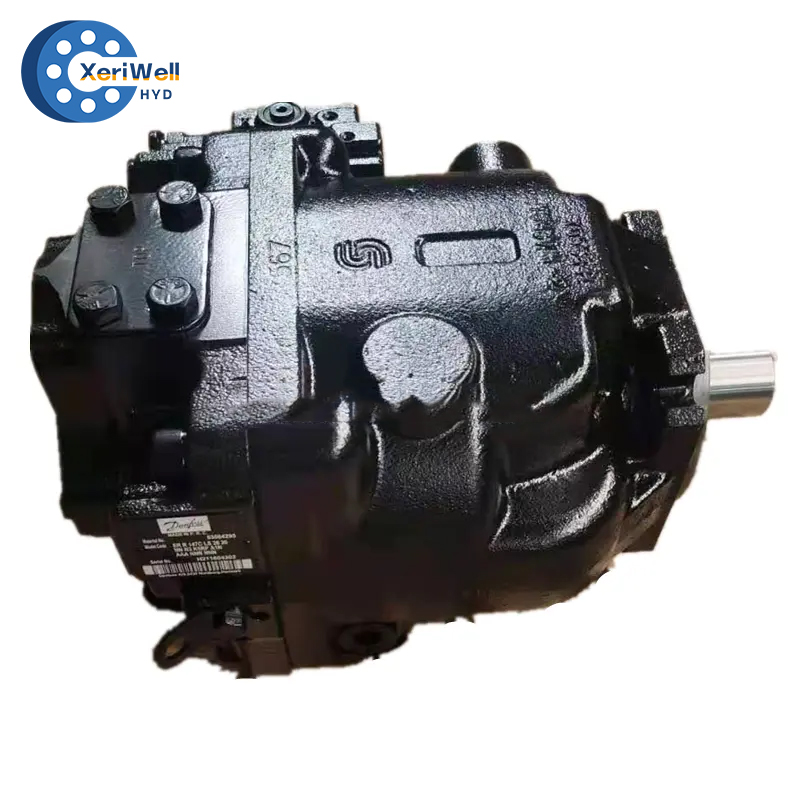

Premium internal parts make a massive difference in reliability. Systems integrating recognized, industry-standard components outlast cheap alternatives easily. For example, installing a DANFOSS Hydraulic Pump provides exceptional reliability for commercial users. High-grade gear sets resist internal metal scoring. They maintain stable pressure even when fluid temperatures spike during repeated use. Reliable internal parts eliminate frustrating mid-job breakdowns. They also utilize standard SAE or NPT port sizes. Standardized ports make replacing damaged hoses incredibly simple.
Always evaluate warranty coverage and replacement parts availability. A trustworthy manufacturer provides completely transparent customer support. They sell dedicated rebuild kits. They stock replacement solenoids and breather caps. They offer responsive technical assistance over the phone. Avoid generic brands selling disposable units. If you cannot easily find a replacement seal kit online, do not buy their product. You want a hydraulic pump designed for long-term serviceability and rugged environments.
Proper installation matters just as much as component quality. Inadequate gauge wiring causes the vast majority of new motor failures. Undersized cables running from the battery create severe voltage drops. Low voltage forces the DC motor to pull significantly more current. This excessive current rapidly burns out the internal motor windings. Always use 2-gauge or heavier copper wire for main power runs. Keep your ground wires short and secure them to bare metal.
Fluid selection directly impacts year-round performance. Your region's average operating temperatures dictate the correct fluid viscosity.
Never mix different fluid types inside the reservoir. Chemical mixing degrades internal seal integrity over time and creates sludgy deposits.
Finally, you must carefully bleed the system after installation. Trapped air pockets cause highly erratic bed operation. Air bubbles also cause cavitation. Cavitation happens when imploding air bubbles literally tear microscopic metal flakes from the gear teeth. Follow these standard commissioning steps to protect your investment:
Proper bleeding ensures smooth, powerful lifting capability from your very first job.
Selecting the perfect equipment requires logical shortlisting and attention to detail. First, prioritize your required action type based on your typical jobs. Decide if a simple single-acting or a robust double-acting model fits your daily routine best. Next, calculate your specific cylinder displacement accurately. Match your reservoir size strictly to this fluid volume, adding a proper safety margin. Finally, purchase a unit featuring verifiable PSI and GPM ratings from a trusted brand. Ignore flashy marketing language and focus entirely on core engineering specifications.
Take action today before your current setup fails completely. Consult your trailer's original OEM manual for baseline specifications. Measure your current battery capacity and inspect your main wire gauge. Ensure your electrical system can support a heavy load. If you feel unsure about the math, contact a specialized distributor. They can easily cross-reference replacement models for you. They will match a robust new unit exactly to your operating conditions, weather climate, and daily payload demands.
A: A single-acting unit pushes the trailer bed upward and relies entirely on gravity to lower it. A double-acting unit uses pressurized fluid to move the bed both up and down. This offers much better control and faster descent times, especially in cold weather.
A: Most manufacturers recommend standard AW32 hydraulic oil for general year-round use. In extremely cold climates, using ATF (Automatic Transmission Fluid) prevents the system from becoming sluggish. Always check your specific OEM manual before adding fluid.
A: You must calculate the total internal volume of your lift cylinders when fully extended. Select a reservoir holding this exact fluid volume, plus an additional 10 to 20 percent safety margin. This margin prevents starvation at maximum tilt.
A: The system most likely has trapped air or a critically low fluid level. It could also have an improperly wired directional solenoid preventing the main valve from opening. Always bleed the system fully immediately after installation.
A: A standard 12V DC motor can easily draw between 150 to 250 amps under maximum lifting load. You must use heavy-gauge wiring and a high Cold Cranking Amp (CCA) battery to handle this intense electrical draw safely.
