Hydraulic Pump Cavitation: Causes, Warning Signs, and How to Prevent Pump Damage

Cavitation is not merely a technical nuisance. It is a critical failure mode that destroys costly equipment and halts operations without warning. When fluid demand inside a system exceeds the available supply, extreme pressure drops occur. This forces the fluid to vaporize, creating temporary vacuum cavities. As these cavities travel into high-pressure zones, they violently collapse. These rapid implosions generate massive localized forces that physically strip metal away from internal components. You might not see it happening immediately, but the physical destruction it causes to hardened steel and cast iron is devastating. Identifying the exact cause early is the difference between making a simple maintenance adjustment and facing a catastrophic system failure. If left unchecked, the damage will inevitably force a complete and expensive equipment replacement. Catching the signs in time saves your system.

Key Takeaways

• Cavitation occurs when fluid demand exceeds fluid supply, creating vacuum cavities that implode and strip metal from internal components.
• The classic "marbles in a can" noise is an advanced warning sign; by the time it is heard, component wear has likely begun.
• Misdiagnosing cavitation as aeration leads to ineffective repairs; diagnosing the true root cause (e.g., suction line restriction vs. air leaks) is critical.
• Proactive strategies—such as upgrading hydraulic filtration and maintaining proper fluid viscosity—are the most cost-effective ways to protect your equipment.

The Financial and Operational Impact of Hydraulic Pump Cavitation

Unresolved cavitation causes severe cascading costs across your entire operation. First, you face unplanned downtime. Production stops entirely while maintenance crews scramble to diagnose the failure. Next, you deal with fluid contamination. As metal shavings shear off the internal components, they flood your reservoir. This debris damages downstream valves and cylinders. Eventually, you experience total pump failure. Treating hydraulic pump cavitation early prevents these massive financial losses.

Cavitation vs. Aeration

Many technicians confuse cavitation with aeration. We must clearly distinguish the two phenomena. Cavitation involves fluid vaporizing because of low pressure. It happens when the inlet cannot draw enough oil. Aeration involves external air entering the system. This usually occurs through loose fittings, damaged shaft seals, or low fluid levels. Both problems cause excessive noise. However, they require entirely different troubleshooting paths. Fixing an air leak will never solve a suction restriction.

The Physics of the Damage

Understanding the physics helps you grasp the severity of the problem. When pressure drops below the vapor pressure of the oil, bubbles form. These vapor bubbles travel into the high-pressure discharge side. The sudden pressure increase forces them to implode. These implosions generate localized micro-jets. These jets hit internal surfaces at incredibly high velocities. They erode hardened steel and cast iron with ease. Over time, this constant pitting drastically reduces the operational lifespan of your equipment.

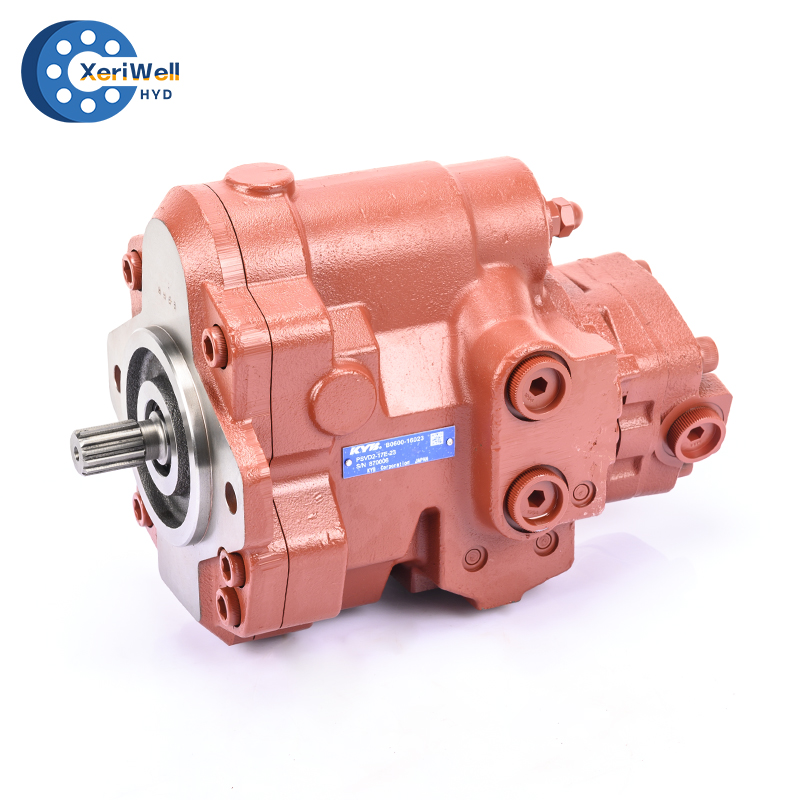

5 Warning Signs of Hydraulic Pump Cavitation

Catching the problem early requires vigilance. You must monitor your equipment for specific operational changes. Here are five clear warning signs indicating internal vapor collapse.

1. Distinctive Noise Profiles: The sound of cavitation is unmistakable. It sounds like gravel or marbles passing through the pump. This noise often scales directly with the RPMs. As the speed increases, the loud rattling becomes more intense.
2. Abnormal Heat Generation: Imploding vapor bubbles compress rapidly. This compression creates excess heat inside the casing. You will often see high-temperature alarms trigger on your control panels.
3. Erratic Actuator Movement: Fluid must remain incompressible for smooth power transmission. Vapor in the fluid stream ruins this dynamic. It causes spongy, unpredictable, or sluggish movement in your cylinders and motors.
4. Accelerated Fluid Degradation: Excessive heat breaks down oil additives prematurely. If air is also present, micro-dieseling occurs. This burns the oil, darkening it and ruining its lubricating properties.
5. Visible Metal Shavings: Finding metal flakes is a late-stage indicator. If you spot brass, bronze, or steel particles in the reservoir, erosion is severe. The internal components are actively dissolving into the fluid.

Root Causes: Why Hydraulic Pump Cavitation Occurs

You cannot prevent failure without addressing the root cause. Several specific issues restrict fluid supply and trigger vapor formation. Knowing where to look simplifies the diagnostic process.

Clogged Suction Lines and Strainers

This is the most common culprit. The pump inlet must receive an unrestricted flow of fluid. Over time, debris clogs the suction strainers. Sometimes, the interior lining of an old suction hose collapses. Any restriction here creates a massive pressure drop, directly starving the inlet and causing vapor bubbles.

Incorrect Fluid Viscosity

Using the wrong oil ruins system dynamics. Oil that is too thick struggles to flow into the inlet. This frequently happens during cold weather startups. If operators skip proper warm-up protocols, the thick fluid resists movement. The pump tries to pull the fluid, creating a vacuum that leads to immediate cavitation.

Improper Breather Maintenance

Reservoirs need to breathe. As fluid levels rise and fall, air must enter and exit. A blocked reservoir breather creates a vacuum inside the tank. This vacuum resists the gravity feed to the pump inlet. Simply replacing a dirty breather cap often restores normal operation.

Excessive Pump RPM

Fluid velocity has strict physical limits. Running a motor faster than its specified rating is dangerous. If you drive the mechanism faster than the inlet can physically supply fluid, you guarantee cavitation. Always adhere to the manufacturer's maximum RPM guidelines.

System Modifications

Improper retrofits introduce severe risks. Sometimes maintenance teams install undersized suction hoses to save money. Other times, they reposition the reservoir too far away. Extra distance and narrow hoses increase friction. This added friction restricts fluid flow and drops the inlet pressure to dangerous levels.

Diagnostic Framework: How to Troubleshoot Safely

Guesswork leads to wasted money. You need a structured diagnostic framework to isolate the exact cause. Follow these objective testing methods to protect your equipment.

Baseline Testing

Start with hard data. Install a vacuum gauge at the pump inlet. This gives you an objective measurement of the suction restriction. Compare this reading against the manufacturer's maximum allowable vacuum specifications. If the gauge shows a high vacuum, you have a physical restriction in the suction path.

Temperature Differential Checks

Heat zones tell a clear story. Use an infrared thermometer to scan the system. Map the temperature across the pump housing and the suction lines. A localized hot spot near the inlet indicates rapid bubble compression. This confirms you are dealing with vapor collapse rather than normal operational friction.

Fluid and Filter Analysis

Inspect your filters carefully. Pull the elements and look for metal particulate. Analyzing your hydraulic filtration media confirms the severity of internal wear. Bronze or brass flakes usually point to valve plate wear. Steel shavings indicate gear housing or piston barrel erosion. This helps you gauge exactly how much damage has already occurred.

Repair vs. Replace: Evaluating Damage to Hydraulic Pump Parts

Once you confirm the problem, you must decide how to fix it. Maintenance managers face a tough choice between rebuilding or replacing the unit entirely. Making the wrong choice wastes time and budget.

Below is a decision matrix for evaluating cavitated equipment.

When to Rebuild or Repair

Rebuilding makes sense under specific conditions. If you catch the problem early, you might only find minor scoring on the valve plates or wear rings. Sourcing OEM hydraulic pump parts like seal kits or replacement bearings is usually cost-effective. We recommend repairing when the total cost remains under 50% of a brand-new replacement.

When to Replace Entirely

Sometimes the damage goes too deep. If you find deep pitting in the gear housing, piston barrels, or cam rings, discard the unit. Machining these surfaces often compromises their structural integrity. Furthermore, if evidence shows metal debris has bypassed the pump and contaminated downstream proportional valves, replace it entirely to ensure system reliability.

Implementation Risks

We must emphasize one critical warning. Never replace the pump without fixing the root cause first. If you install a brand-new unit while the inlet restriction remains, the new unit will immediately begin cavitating. Always clear the suction path, clean the reservoir, and check the breather before starting a new installation.

Preventive Maintenance: Upgrading Your Fluid Power Strategy

Prevention always costs less than emergency repairs. Upgrading your maintenance strategy eliminates the conditions that cause vapor collapse. Implement these practices to extend equipment life.

Optimizing the Suction Path

Flow efficiency dictates system health. You must size suction lines correctly based on flow rate requirements. Always use the largest diameter hose practical. Furthermore, minimize elbows and sharp fittings in the plumbing. Every 90-degree turn adds friction. Straight, short, and wide suction lines provide the best protection against pressure drops.

Strategic Filtration Practices

Protect the inlet without starving it. Never use fine micron filters on the suction side. Suction strainers should only catch large debris, typically using a 100-mesh screen. Place your high-efficiency, fine micron filters on the return line. This strategy cleans the fluid thoroughly before it enters the reservoir, protecting the entire system without restricting the inlet.

Climate and Viscosity Controls

Temperature changes alter fluid dynamics drastically. If you operate in cold climates, install reservoir heaters. These heaters ensure the oil reaches proper operating viscosity before the system starts. Additionally, conduct regular fluid viscosity audits. Make sure you use the correct oil grade specified for your ambient operating temperatures.

Next-Step Actions

Do not wait for the noise to start. Schedule a professional system audit today. Conduct routine oil analysis to monitor additive breakdown and particulate levels. If you plan to modify your system, consult with an application engineer first. They will help you source the right replacement components and verify your pipe sizing.

Conclusion

The hydraulic pump serves as the beating heart of your fluid power system. Protecting its inlet conditions is absolutely non-negotiable. Ignoring the early warning signs shifts your outcome dramatically. What could have been a low-cost maintenance task quickly becomes a high-cost capital replacement.

• Always investigate unusual noises immediately to prevent metal erosion.
• Regularly check suction strainers, breathers, and fluid viscosity to maintain proper inlet flow.
• Use objective diagnostic tools like vacuum gauges to isolate the root cause before replacing parts.
• Partner with certified fluid power specialists for proactive monitoring and reliable diagnostics.

FAQ

Q: Can you fix a hydraulic pump that has cavitated?

A: It entirely depends on the depth of the metal erosion. If you catch it early, seals and minor plate wear can be easily swapped with replacement parts. However, severe housing pitting or structural damage to the piston barrels requires a total replacement. Rebuilding heavily pitted housings is unsafe.

Q: How do I test my hydraulic system for inlet restrictions?

A: The most accurate method involves installing a vacuum gauge between the reservoir and the pump inlet. Run the system at normal operating temperature. Check the vacuum reading against the manufacturer specifications. A reading higher than the allowed limit confirms a physical inlet restriction.

Q: Does hydraulic filtration cause cavitation?

A: It only causes a problem if improperly applied on the suction side. A suction strainer that is severely clogged restricts flow. Similarly, using a micron rating that is too fine for the fluid viscosity creates massive friction. Keep fine filtration on the return line to prevent this issue.
