| Quantity: | |
|---|---|
BMR 100
Xeriwell or Others
| Type: | Gerotor Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMR | Displacement: | 50ml/r |
| Mounting: | 4 - Bolt | Shat: | 25 Mm |
| Oil Port: | G 1/2 | Drain: | G 1/4 |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

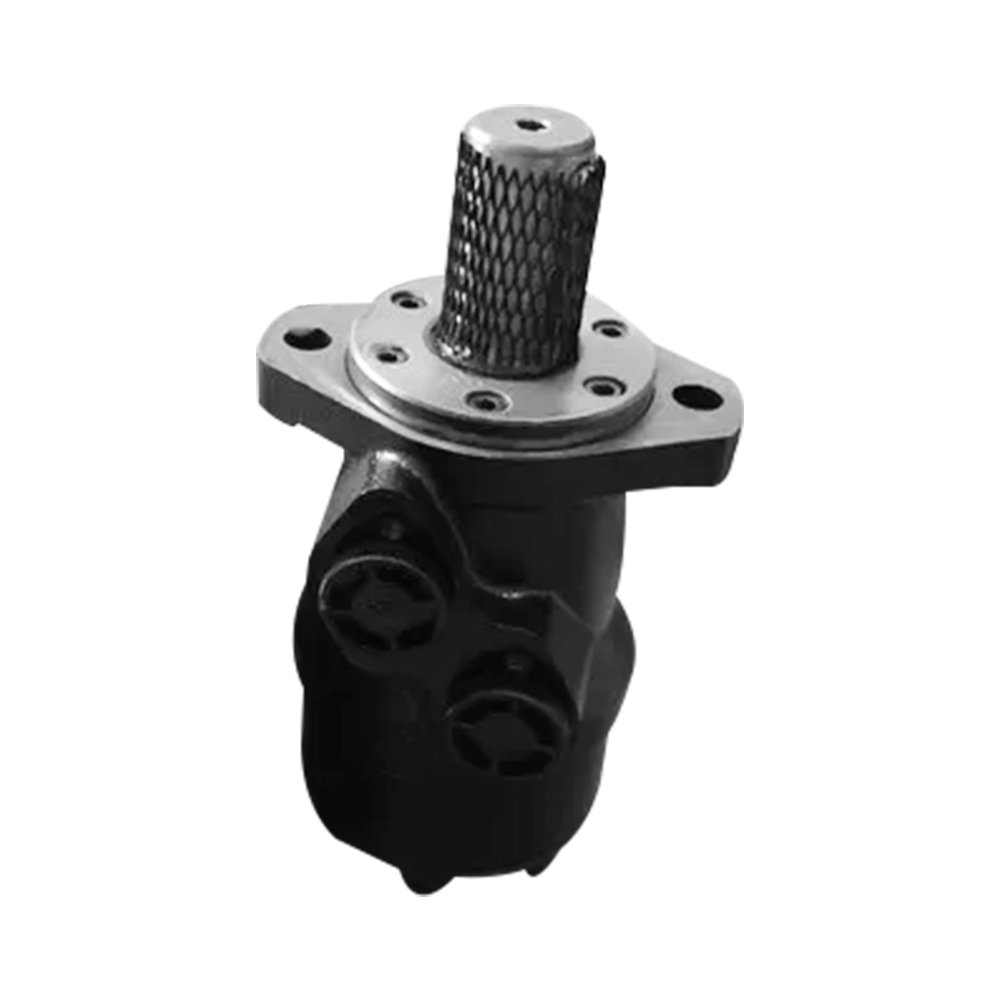

Hydraulic Motor BMR 100 cm3 for Universal (UTB) 1010, 353, 453, 533
Xeriwell produce multi type hydraulic motors for agriculture, mining, marine, forestry, construction plant, textile, food processing. This BMR 100cc motor can be used on Universal (UTB) 1010, 353, 453, 533, and many more.
Xeriwell Hydraulic Motor Features:
structure design is advanced, the power density; integral pay the stator adopts world advanced processing means, to ensure that the machine is small in size, high efficiency, high speed, long service life; shaft seal pressure is high, can be used in series, in parallel.
Model Crossing:
| MOTOR CROSS REFERENCE TABLE | ||||||||
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
| Main Specifications: |
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Technical data for BMR with 31.75 and 32 shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

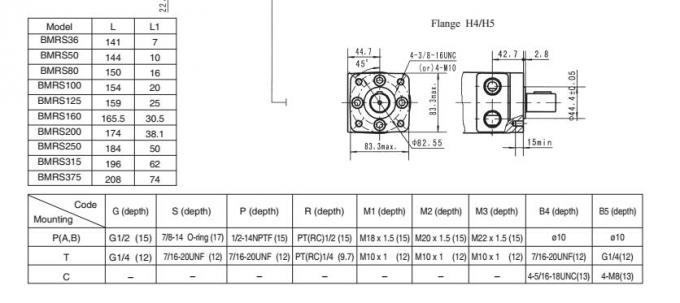

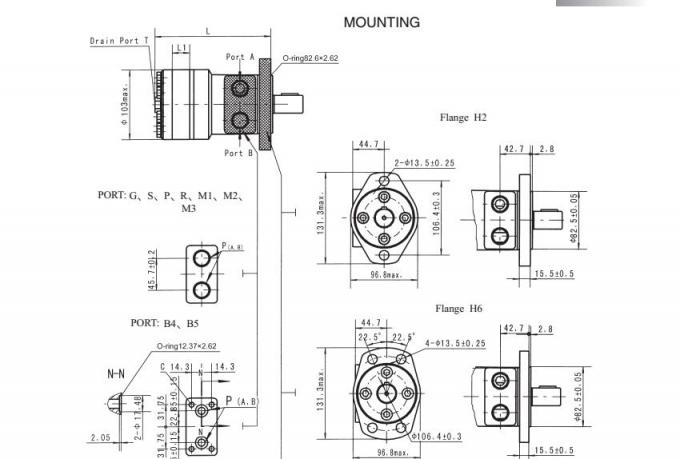

| Model | L | L1 |
| BMRS36 | 141 | 7 |
| BMRS50 | 144 | 10 |
| BMRS80 | 150 | 16 |
| BMRS100 | 154 | 20 |
| BMRS125 | 159 | 25 |
| BMRS160 | 165.5 | 30.5 |
| BMRS200 | 174 | 38.1 |
| BMRS250 | 184 | 50 |
| BMRS315 | 196 | 62 |
| BMRS375 | 208 | 74 |
| Mounting Code | G (depth) | S (depth) | P (depth) | R (depth) | M1 (depth) | M2 (depth) | M3 (depth) | B4 (depth) | B5 (depth) |
| P(A,B) | G1/2 （15） | 7/8-14 O-ring (17) | 1/2-14NPTF (15) | PT(RC)1/2 (15) | M18 x 1.5 (15) | M20 x 1.5 (15) | M22 x 1.5 (15) | ø10 | ø10 |
| T | G1/4 （12） | 7/16-20UNF (12) | 7/16-20UNF (12) | PT(RC)1/4 （9.7) | M10 x 1 （12) | M10 x 1 （12) | M10 x 1 （12) | 7/16-20UNF(12) | G1/4(12) |
| C | – | – | – | – | – | – | – | 4-5/16-18UNC(13) | 4-M8(13) |
| 类 型 | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| 排量 | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| 最高转速 (rpm) | 额定 | 1055 | 750 | 650 | 520 | 420 | 330 | 265 | 200 | 165 | 135 |
| 连续 | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 | |
| 断续 | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| 最大扭矩 (N·m) | 额定 | 69 | 100 | 160 | 200 | 250 | 320 | 330 | 352 | 360 | 420 |
| 连续 | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 | |
| 断续 | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| 峰值 | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| 最大输出功率 (kW) | 连续 | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| 断续 | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| 最高工作压差 (MPa) | 额定 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 8.5 | 8.5 |
| 连续 | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 | |
| 断续 | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| 峰值 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| 最大流量 (L/min) | 额定 | 40 | 40 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| 连续 | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| 断续 | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| 重量 (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
