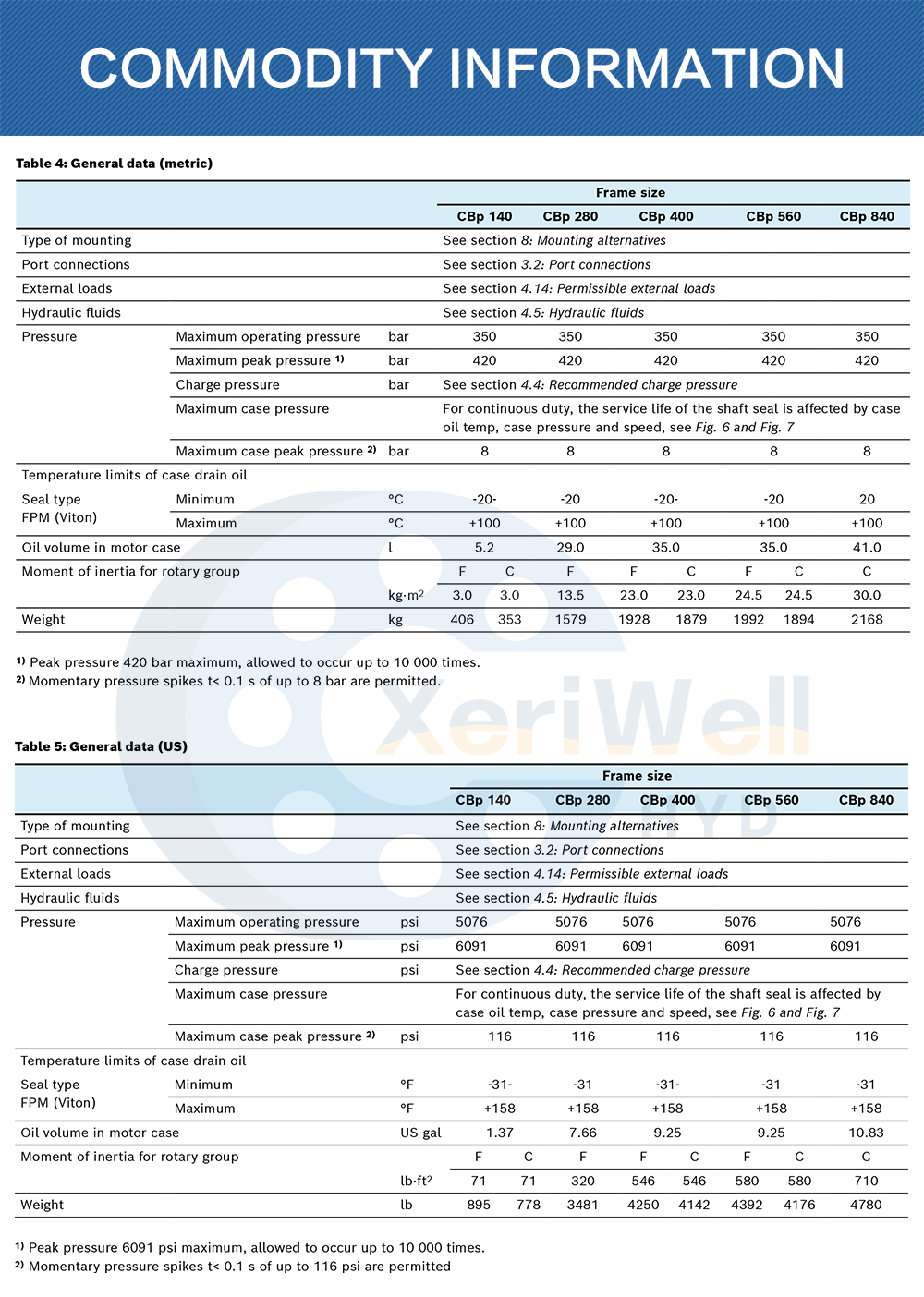

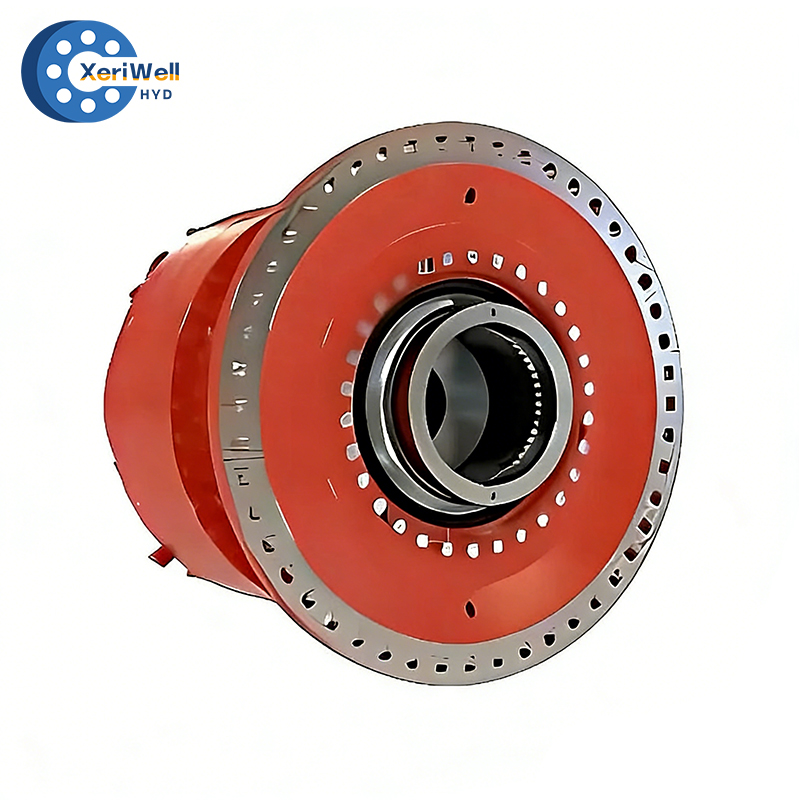

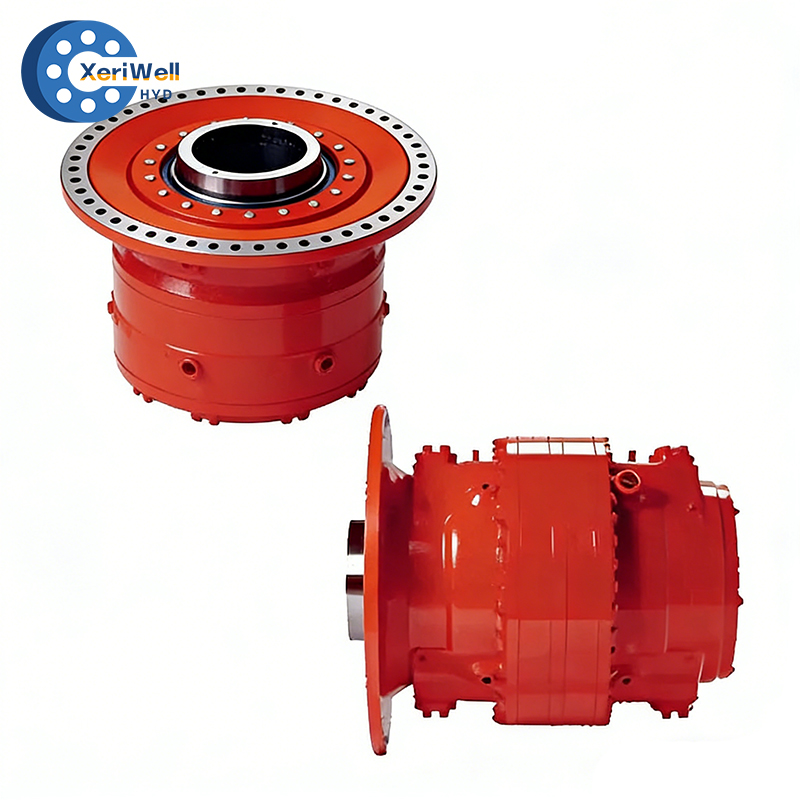

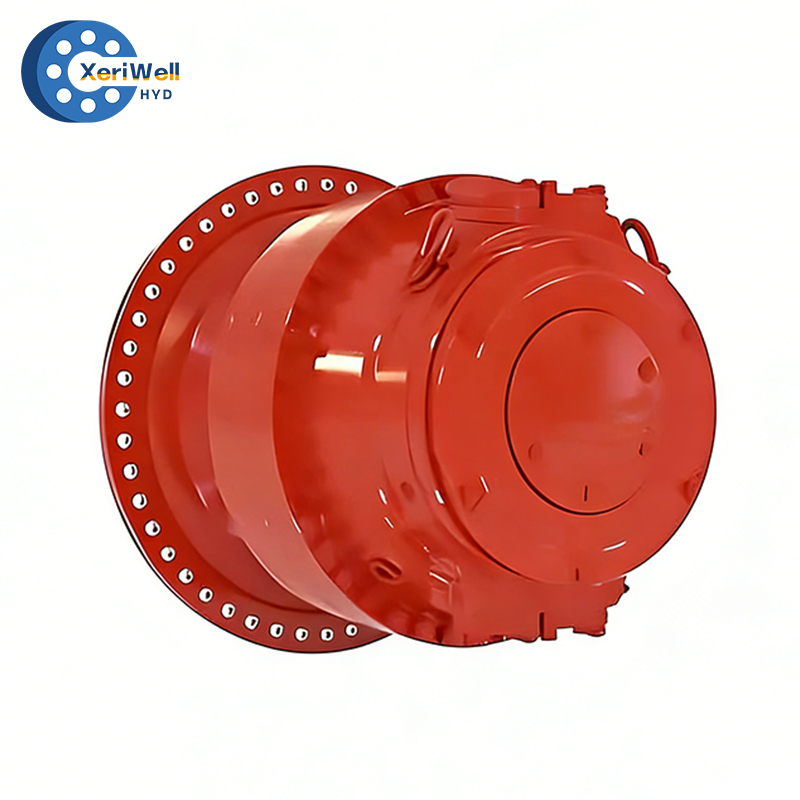

| Table 4:General data (metric) | ||||||||||
| Frame size | ||||||||||
| CBp 140 | CBp 280 | CBp 400 | CBp 560 | CBp 840 | ||||||
| Type of mounting | See section 8:Mounting alternatives | |||||||||
| Port connections | See section 3.2:Port connections | |||||||||
| External loads | See section 4.14:Permissible external loads | |||||||||
| Hydraulic fluids | See section 4.5:Hydraulic fluids | |||||||||
| Pressure | Maximum operating pressure | bar | 350 | 350 | 350 | 350 | 350 | |||
| Maximum peak pressure 1) | bar | 420 | 420 | 420 | 420 | 420 | ||||
| Charge pressure | bar | See section 4.4:Recommended charge pressure | ||||||||
| Maximum case pressure | For continuous duty,the service life of the shaft seal is affected by case oil temp,case pressure and speed,see Fig. 6 and Fig. 7 | |||||||||
| Maximum case peak pressure 2) | bar | 8 | 8 | 8 | 8 | 8 | ||||
| Temperature limits of case drain oil | ||||||||||
| Seal type FPM (Viton) | Minimum | °C | -20- | -20 | -20- | -20 | 20 | |||
| Maximum | °C | 100 | 100 | 100 | 100 | 100 | ||||
| Oil volume in motor case | l | 5.2 | 29 | 35 | 35 | 41 | ||||
| Moment of inertia for rotary group | F | C | F | F | C | C | ||||
| kg·m² | 3 | 3 | 13.5 | 23 | 23 | 30 | 30 | |||
| Weight | kg | 406 | 353 | 1579 | 1928 | 1894 | 2168 | 2168 | ||
| 1) Peak pressure 420 bar maximum,allowed to occur up to 10 000 times. 2) Momentary pressure spikes t<0.1 s of up to 8 bar are permitted. | ||||||||||
| Table 5:General data (US) | ||||||||||
| Frame size | ||||||||||
| CBp 140 | CBp 280 | CBp 400 | CBp 560 | CBp 840 | ||||||
| Type of mounting | See section 8:Mounting alternatives | |||||||||
| Port connections | See section 3.2:Port connections | |||||||||
| External loads | See section 4.14:Permissible external loads | |||||||||
| Hydraulic fluids | See section 4.5:Hydraulic fluids | |||||||||
| Pressure | Maximum operating pressure | psi | 5076 | 5076 | 5076 | 5076 | 5076 | |||
| Maximum peak pressure 1) | psi | 6091 | 6091 | 6091 | 6091 | 6091 | ||||
| Charge pressure | psi | See section 4.4:Recommended charge pressure | ||||||||
| Maximum case pressure | For continuous duty,the service life of the shaft seal is affected by case oil temp,case pressure and speed,see Fig. 6 and Fig. 7 | |||||||||
| Maximum case peak pressure 2) | psi | 116 | 116 | 116 | 116 | 116 | ||||
| Temperature limits of case drain oil | ||||||||||
| Seal type FPM (Viton) | Minimum | °F | -31- | -31 | -31- | -31 | -31 | |||
| Maximum | °F | 158 | 158 | 158 | 158 | 158 | ||||
| Oil volume in motor case | US gal | 1.37 | 7.66 | 9.25 | 9.25 | 10.83 | ||||
| Moment of inertia for rotary group | F | C | F | F | C | C | ||||
| lb·ft⊃2; | 71 | 71 | 320 | 546 | 580 | 710 | ||||
| Weight | lb | 895 | 778 | 3481 | 4250 | 4142 | 4392 | 4176 | 4780 | |
| 1) Peak pressure 6091 psi maximum,allowed to occur up to 10 000 times. 2) Momentary pressure spikes t<0.1 s of up to 116 psi are permitted | ||||||||||
