MVX MFX
Xeriwell or Others

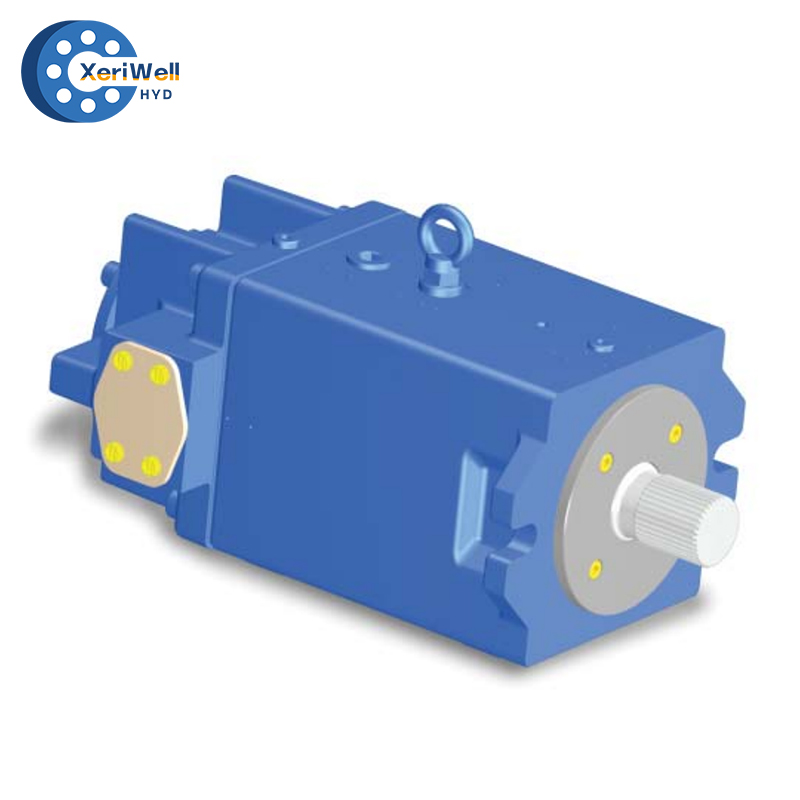

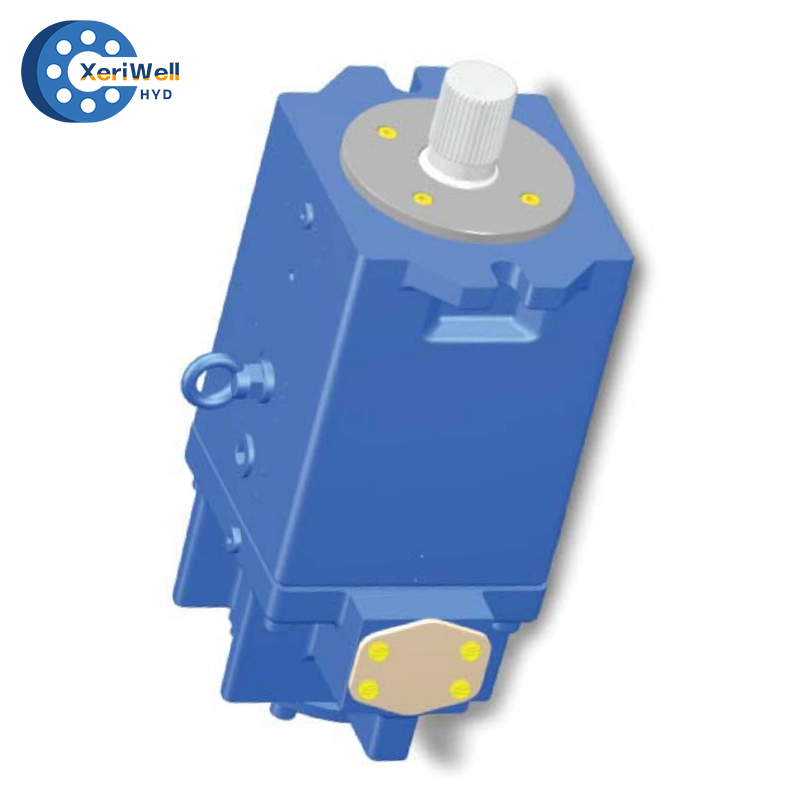

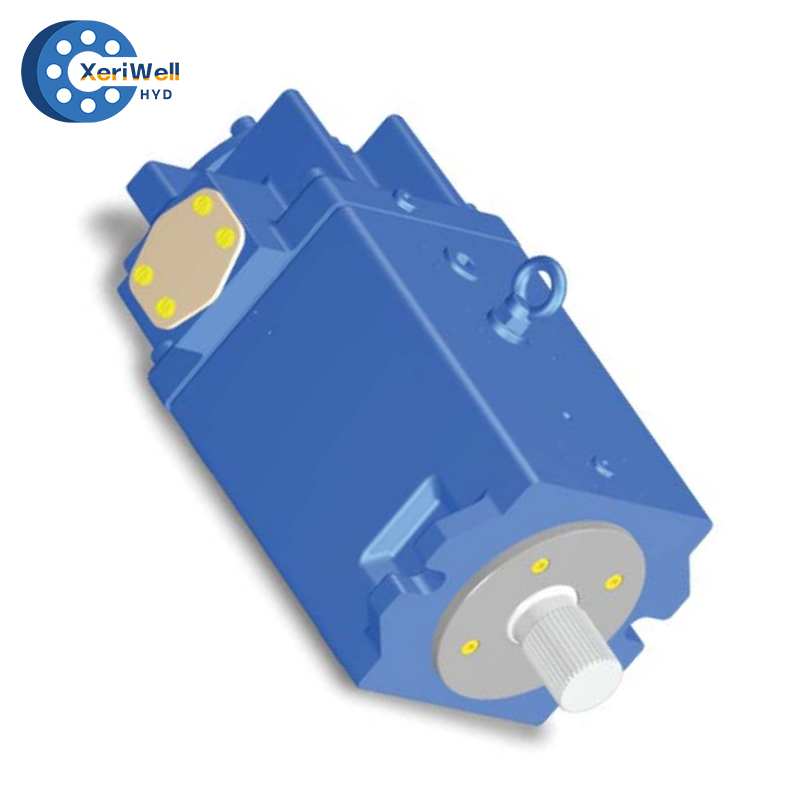

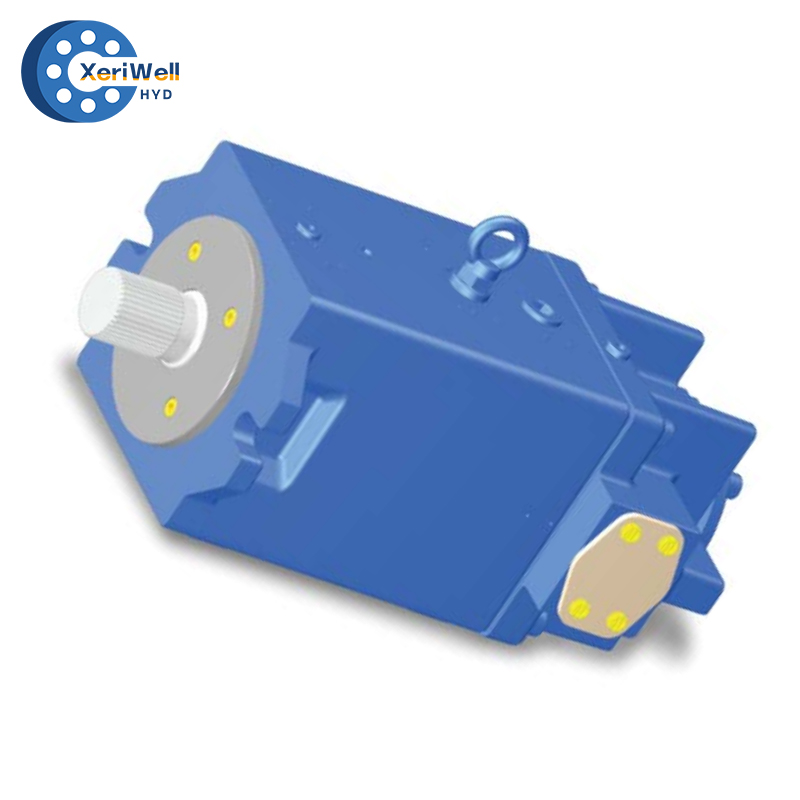

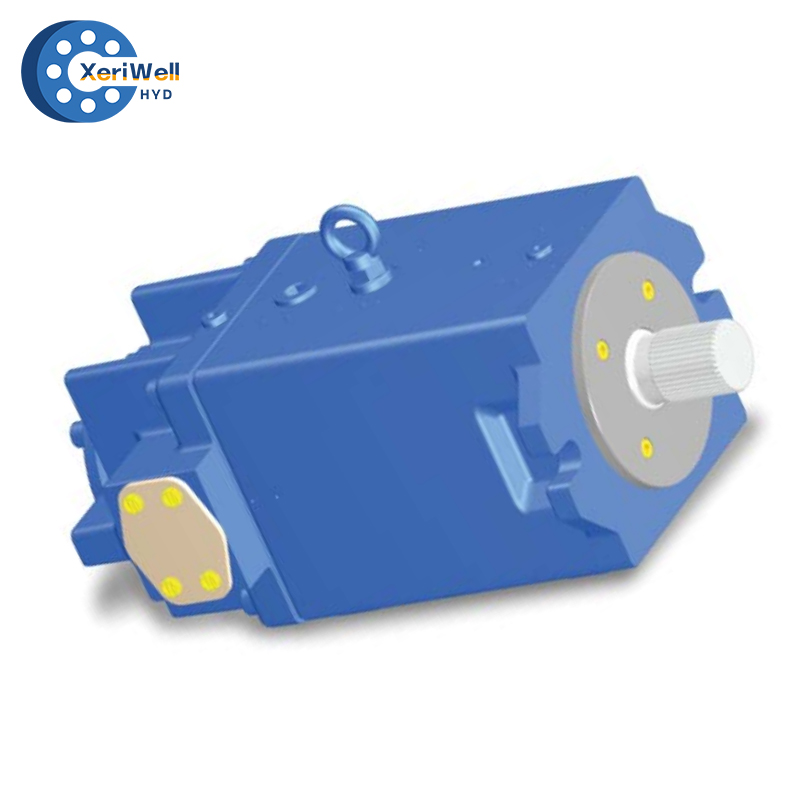

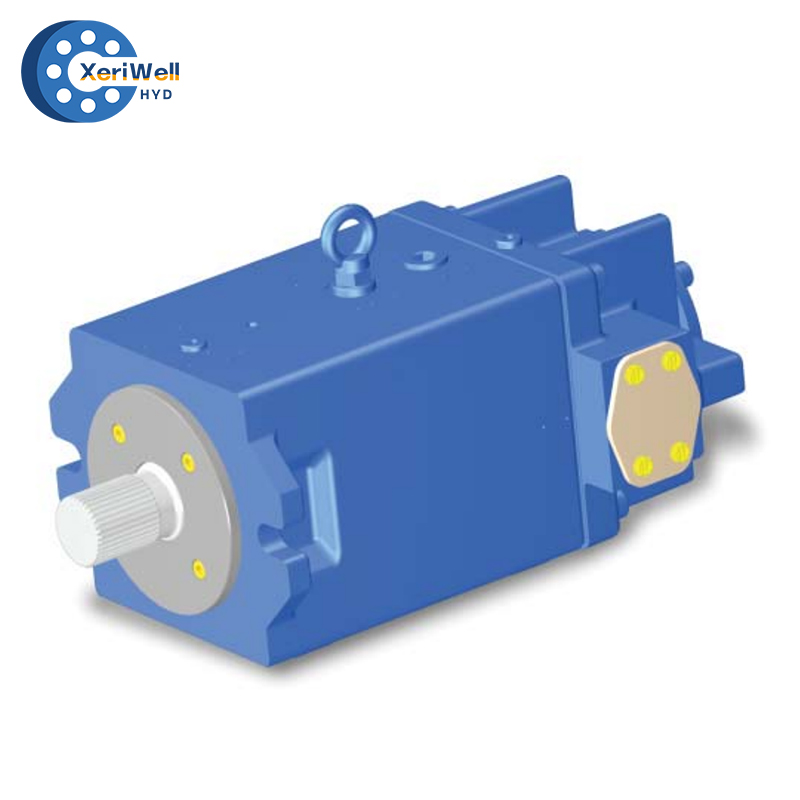

Eaton's MVX and MFX series hydraulic motors are engineered for high-pressure, high-performance applications in industries like marine, mining, and heavy machinery. These motors are designed for reliability and efficiency in demanding environments.
MVX Series Hydraulic Motors:
1)High Pressure Capability: The MVX series is rated for up to 350 bar, making it suitable for high-pressure applications where performance is critical.
2)Large Shaft Bearings: These motors feature large shaft bearings that enhance durability and enable full through-drive capabilities, extending their service life.
3)Wide Fluid Compatibility: The MVX series is compatible with various fluids, including water-glycol mixtures, offering versatility in different operating conditions.
4)Full Overcenter Capability: These motors can be equipped with overcenter controls, improving their adaptability in varying load conditions.
5)Efficient Power Transfer: Designed with a high-efficiency swashplate mechanism, the MVX motors ensure smooth operation and reduced energy consumption in demanding applications.
MFX Series Hydraulic Motors:
1)Versatile Displacement Range: The MFX series offers a range of displacements from 66 cc/rev to 180 cc/rev, allowing for flexibility in system designs.
2)Pressure Rating up to 350 Bar: Like the MVX, the MFX motors are rated for up to 350 bar, ensuring reliable performance in high-pressure environments.
3)Optimized for High Durability: The MFX motors are designed with large shaft bearings, which support high torque loads and ensure long-lasting performance under tough conditions.
4)Low Noise Operation: The MFX series benefits from a swashplate design that reduces noise, making it ideal for noise-sensitive applications.
5)Automatic Wear Compensation: These motors feature automatic pressure balancing and wear compensation, maintaining performance even in challenging conditions.
Both series are built for high performance, efficiency, and durability, offering solutions for industries requiring reliable hydraulic power in harsh environments.
Type: MVX066, MVX090, MVX130, MVX180, MVX250
MFX066, MFX090, MFX130, MFX180, MFX250
Eaton's MVX and MFX series hydraulic motors are engineered for high-pressure, high-performance applications in industries like marine, mining, and heavy machinery. These motors are designed for reliability and efficiency in demanding environments.
MVX Series Hydraulic Motors:
1)High Pressure Capability: The MVX series is rated for up to 350 bar, making it suitable for high-pressure applications where performance is critical.
2)Large Shaft Bearings: These motors feature large shaft bearings that enhance durability and enable full through-drive capabilities, extending their service life.
3)Wide Fluid Compatibility: The MVX series is compatible with various fluids, including water-glycol mixtures, offering versatility in different operating conditions.
4)Full Overcenter Capability: These motors can be equipped with overcenter controls, improving their adaptability in varying load conditions.
5)Efficient Power Transfer: Designed with a high-efficiency swashplate mechanism, the MVX motors ensure smooth operation and reduced energy consumption in demanding applications.
MFX Series Hydraulic Motors:
1)Versatile Displacement Range: The MFX series offers a range of displacements from 66 cc/rev to 180 cc/rev, allowing for flexibility in system designs.
2)Pressure Rating up to 350 Bar: Like the MVX, the MFX motors are rated for up to 350 bar, ensuring reliable performance in high-pressure environments.
3)Optimized for High Durability: The MFX motors are designed with large shaft bearings, which support high torque loads and ensure long-lasting performance under tough conditions.
4)Low Noise Operation: The MFX series benefits from a swashplate design that reduces noise, making it ideal for noise-sensitive applications.
5)Automatic Wear Compensation: These motors feature automatic pressure balancing and wear compensation, maintaining performance even in challenging conditions.
Both series are built for high performance, efficiency, and durability, offering solutions for industries requiring reliable hydraulic power in harsh environments.
Type: MVX066, MVX090, MVX130, MVX180, MVX250
MFX066, MFX090, MFX130, MFX180, MFX250
