BMV MOTOR
Xeriwell or Others
| Application: | Construction Machines, Marine Machines | Displacement: | 630cc |
|---|---|---|---|
| Max.speed(rpm): | Cont.320rpm/int.380rpm | Max.torque(N.m): | Cont.1660N.m/int.1940N.m |
| Max.pressure Drop: | Cont.18mpa/int.21Mpa | Flow: | Cont200/int240l/min |
| Viscosity: | 42-74mm2/s | ||
| Highlight: | 630cc marine hydraulic motor,Danfoss marine hydraulic motor,151B3103 marine hydraulic motor | ||

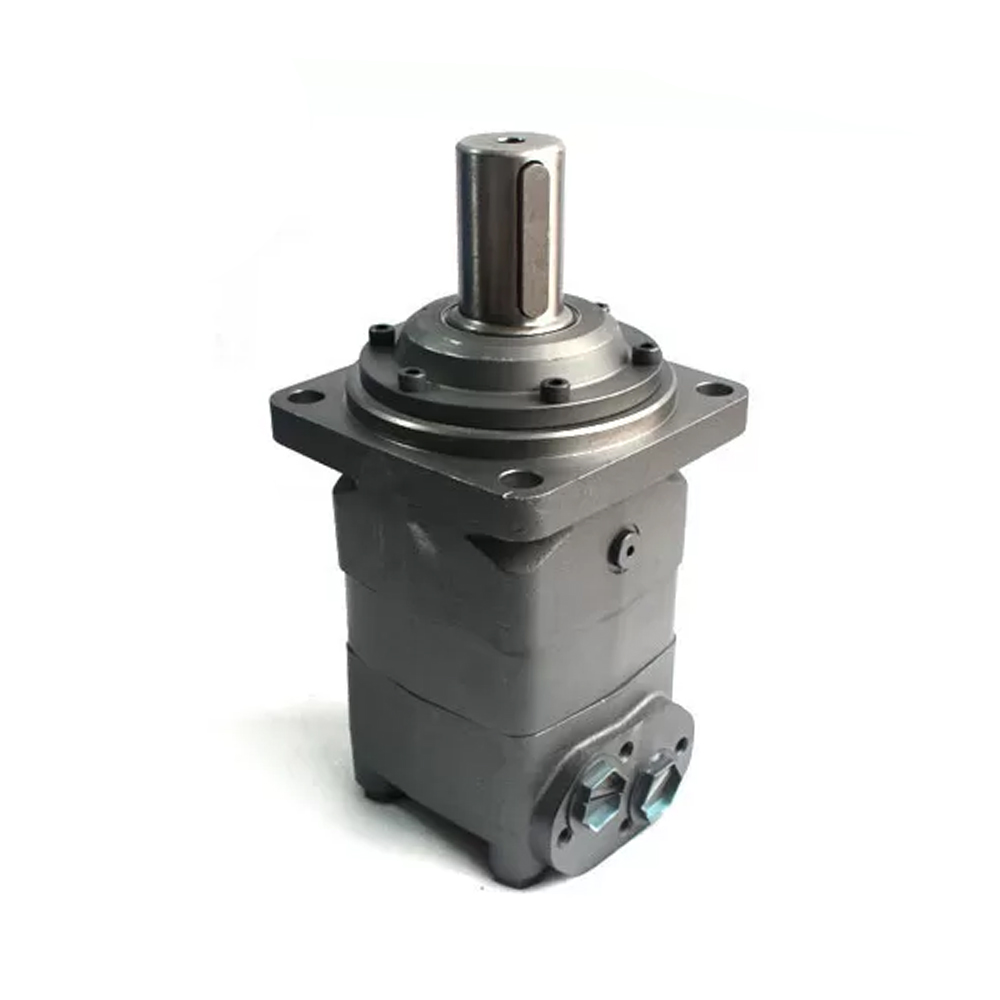

Danfoss 151B3103 OMV BMV 630 marine hydraulic motor
| Description |
| Manufacturer: Xeriwell |
| Country of origin: CHINA |
| Condition: NEW packaging |
| Materialnumber: 151B3103 |
| Modelcode: BMV |
| Motorseries: O-Series |
| Displacement: 630 |
| Mounting Flange: Standard |
| Mounting Thread Dimension: None |
| Shaft Style: Cylindrical |
| Shaft Size: 50 mm ; M12 x 1,75 tap |
| Shaft Key: A14 x 9 x 70 mm (DIN 6885) |
| Port Size: Side port |
| Port Dimension: G 1 |
| Drain Port Style: Standard |
| Drain port Dimension: G 1/4 |
| Brake Release Port: None |
| Brake Release Port Dimension: None |
| Painted: BLACK |
| Special Features External 1: None |
| Special Features External 2: None |
| Special features External 3: None |
| Dust Seal: Standard |
| Shaft Seal: NBR - Standard |
| Front bearing: Tapered roller bearing |
| Rear bearing: Tapered roller bearing |
| Gear wheel set: Standard |
| Check valve: Yes |
| Valve function: None |
| Special Features Internal 1: None |
| Special Features Internal 2: None |
| Packaging: Single pack |
| Option Type: Standard |
Main Specification:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
CHARACTERISTIC FEATURES:
Constant operating torque over a wide speed range
Smooth running over the entire speed range
High starting torque
High efficiency
High return pressure without the use of drain line (High pressure shaft seal)
Long life under extreme operating conditions
High radial and axial bearing capacity
Robust and compact design
Suitable for a wide varie
| Pos.1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
| Code | 排量 Disp. | 法兰 Flange | 轴键 Output shaft | 油口Port and drain port | Rotation direction | Paint | Unusually function | ||||||
| Omit | 315 400 500 630 800 1000 | 4 W | 4-Ø18 Square-flangeØ200,pilot Ø160 × 11 4-Ø18 Wheel-flange Ø224,pilot Ø180 × 10 | A BD B C T T1 | Shaft 050,parallel key 14 × 9 × 70 Shaft 053.975,spined key 16-DP8/16 Shaft 053.975,spined key 16-DP8/16 Shaft 057.15,parallel key 12.7 × 12.7 × 57.15 Cone shaft O60,parallel key B16 × 10 × 32 Cone shaft O60,parallel key 14.308 × 14.308 × 50.8 | D M S G M5 S1 | G1 Manifold 4 × M12,G1/4 M33 × 2 Manifold 4 × M12,M14 × 1.5 1-5/16-12UN,9/16-18UNF G1,G1/4 M33 × 2,M14 × 1.5 1-5/16-12UN(18),7/16-20UNF(12) | 0mt R | Standard Opposite | 0 0mt B S | No paint Blue Black Silver grey | 0mt | Standard |
| Note:When the table is used,please fill the code of left rows in dash area and give us,which the code information is consists of construction,displacement,mounting flange,output shaft and ports. If the specification is not in the table or you have specific requirements,please contact us. | |||||||||||||
