| Quantity: | |
|---|---|
BMT500-4FDB
Xeriwell or Others
| Products: | Hydraulic Orbital Motor | Model No.: | BMT500-4FDB |
|---|---|---|---|
| Apply To: | DAEWOO, DOOSAN | Replace: | K1022753A |
| Alternative: | OMT 500 VHD 151B2270 | Shaft: | 38.1 Mm |
| Teeth: | 17 Teeth | Displacement: | 500 Ml/r |
| Flange: | 4 - 14 Mounting | Pilot: | 125mm |
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

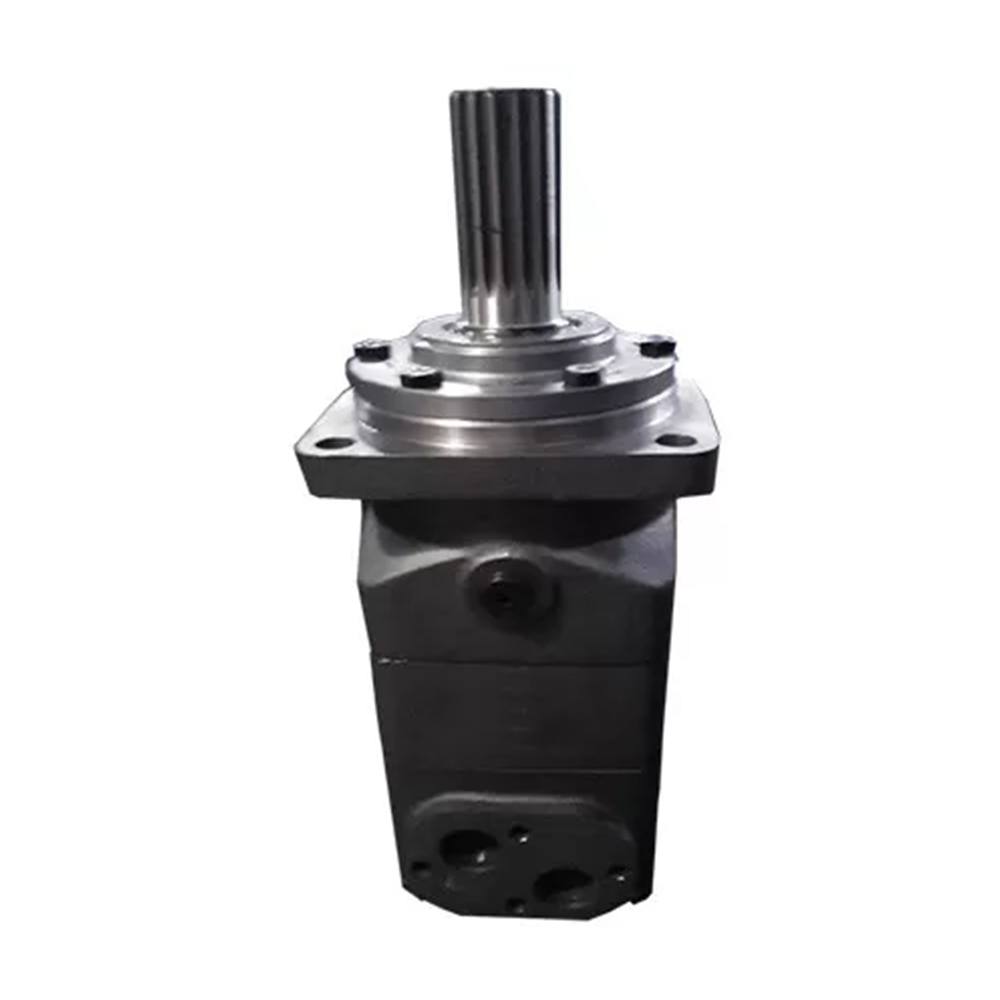

DAEWOO DOOSAN Drive Motor OEM K1022753A OMT 500 VHD 151B2270
BMT500-4FDB is a replacement motor to DAEWOO DOOSAN OEM K1022753A
BMT500-4FDB is a replacement motor to OMT 500 VHD 151B2270
Details:
Model number:BMT500-4FDB
Displacement: 500 = 500 ml/r
Flange: 4 = 4-14mm square flange, pilot 125mm x 9mm
Shaft: F = 38.1 mm shaft, splined tooth 17-DP12/24
Oil port: D = G 3/4 manifold mount, 4-M10, drain G 1/4
Color: B = Black
Introduction:
Xeriwell strong at replacement motor of many makes, these hydrulic drive motors, hydraulic orbit motors widely used on DAEWOO, DOOSAN, , KOMATSU, CATER, HYUNDAI, JUNJIN, SANNY, and many more.
Xeriwell also strong at replacement motor of , Eaton Char-lynn, Parker, M+S, White, Brevini, Rexroth, and many more.
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

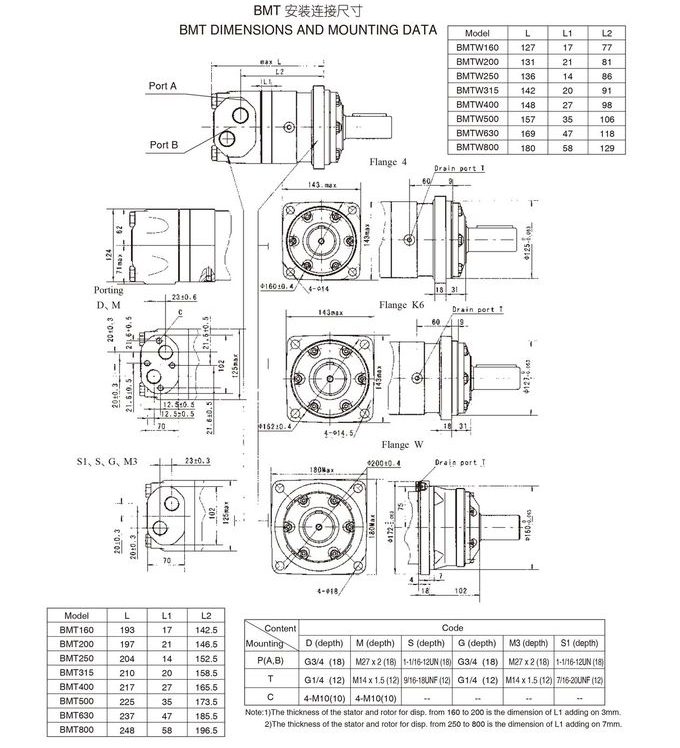

| Model | L | L1 | L2 |
| BMTW160 | 127 | 17 | 77 |
| BMTW200 | 131 | 21 | 81 |
| BMTW250 | 136 | 14 | 86 |
| BMTW315 | 142 | 20 | 91 |
| BMTW400 | 148 | 27 | 98 |
| BMTW500 | 157 | 35 | 106 |
| BMTW630 | 169 | 47 | 118 |
| BMTW800 | 180 | 58 | 129 |
| Model | L | L1 | L2 |
| BMT160 | 193 | 17 | 142.5 |
| BMT200 | 197 | 21 | 146.5 |
| BMT250 | 204 | 14 | 152.5 |
| BMT315 | 210 | 20 | 158.5 |
| BMT400 | 217 | 27 | 165.5 |
| BMT500 | 225 | 35 | 173.5 |
| BMT630 | 237 | 47 | 185.5 |
| BMT800 | 248 | 58 | 196.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) |
| T | G1/4 （12） | M14 x 1.5 (12) | 9/16-18UNF (12) | G1/4 （12） | M14 x 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
| Note:1)The thickness of the stator and rotor for disp. from 160 to 200 is the dimension of L1 adding on 3mm. 2)The thickness of the stator and rotor for disp. from 250 to 800 is the dimension of L1 adding on 7mm. | ||||||
