| Quantity: | |
|---|---|
101S, OSPC
Xeriwell or Others
| Model: | Hydraulic Steering Control Units | Oil Port: | G1/2" |
|---|---|---|---|
| Style: | PV Priority Valve | Shock Valve: | 22Mpa |
| Displacement: | 200cc, 315cc, 400cc ON | Applications: | Used For Kinds Of Tractors, Brands Like , , , MF, MTZ Etc. |
| Highlight: | power steering valve,power steering control unit | ||

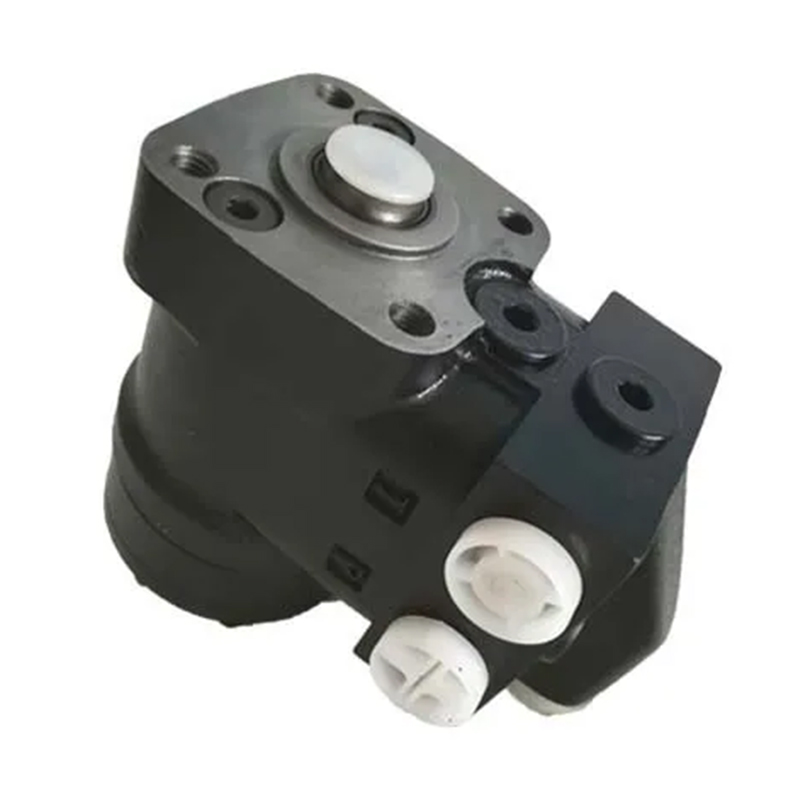

Hydraulic Power Steering Nonstandard priority valve for Forklift Tractor
Introduction:
* 101s Priority valve is a fixed differential reducing components, and supporting the sue of load sensing hydraulic steering orbital;
* Regardless of the load sensing steerig system load pressure and pump flow changes;
* the priority valve can maintain supply steering flow is always equal to the product of steering wheel speed and steering displacement, to ensure the steering required flow.

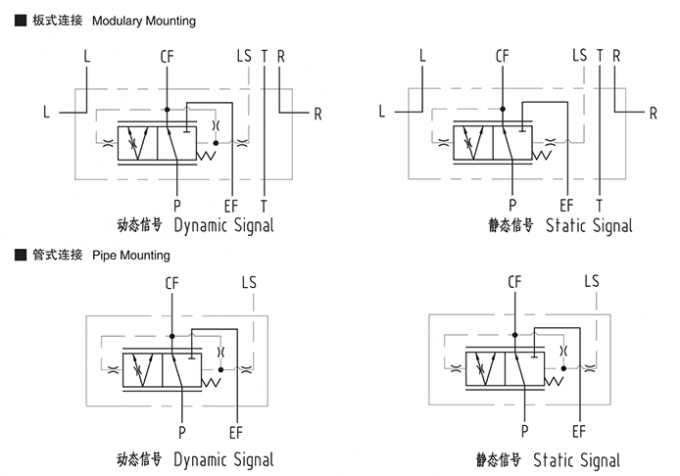

* We have Modulary mounting and Pipe mounting two kinds.
Features
* The function of the 101 series same with OSPC, M+S HKUS and Eaton-Charlynn 45 Series;
* Including integrated valve (relief valve and checkproof valve);
* 101S Hydraulic steering unit is widely used in the steering control system:such as the steering system of many kinds of industrial and agricultural,mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
* We produce the products match with the OEM number of all machines.
Specifications:
| Parameters | Series: 101s similar to OSPC | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Applications:
Widely used in agricultural machinery, Forklift, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery, mining machinery and other low-speed heavy vehicles. Brands like , , MF, , Fiat, Class, CAT, Hitachi, Yamaha, , Daewoo and Sumitomo.
With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.
