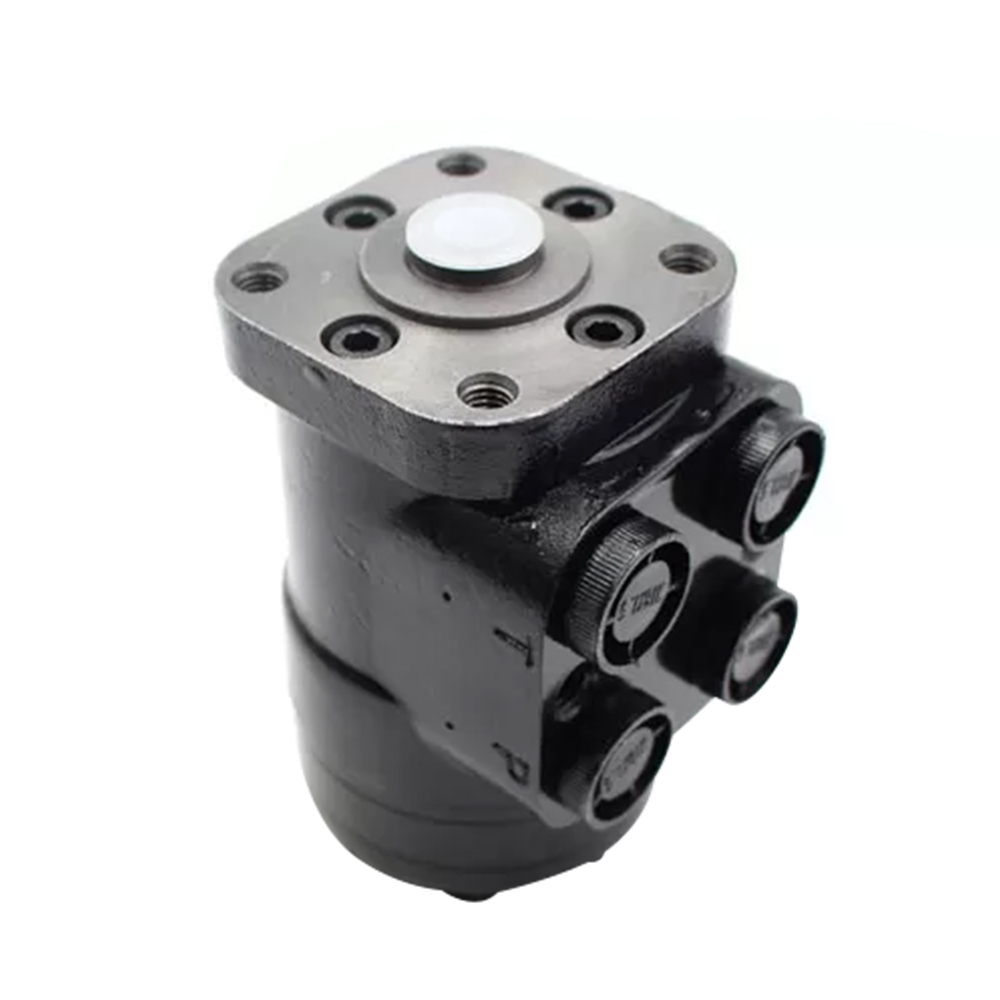

| Features: | Big Loader OEM Code Number | Product Name: | Wheel Loader Forklifts Hydraulic Steering Unit |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50cc - 2000cc |
| Application: | Big Loader,Forklifts | Model Number: | BZZ1-125-B-D |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||
BZZ Hydraulic Steering Unit Eaton hydraulic parts forlift hydraulic power unit marine hydraulic steering
BZZ series hydraulic steering unit is consisted of one pair of rotary valve and one pair of
gerotor. Via the steering column, the steering unit links the steering wheel, when the steering
wheel rotates, the oil flows out of the supply pump of the steering system , through the rotary
valve and the gerotor , to the cylinder’s port left or right ( depend upon the rotation direction).
The gerotor supplies the oil to the steering cylinder in proportion to the angular rotation of the
steering wheel. If the oil flow out of the supply pump of the steering system is too small, the
steering unit can work as the manual pump.
Orbit motors have a wide application in power steering systems, among others in: trucks,
construction machines, combines, tractors, forage harvesters.
Hydrolider brand orbit motors are characterized by reliability and diligence of perfomance.
They are guaranteeing precise and effortless machine control.
The offer includes many types of orbitroles: ON (open center, non-reaction),
OR (open center, reaction), CN (closed center, non-reaction) and LS (load sensing).
Additionally, there is available the wide assortment of hydraulic accessories among others complete steering columns,
milled rollers and many more
| Hydraulic Steering Units |
| BZZ1 Series |
| BZZ2 Series |
| BZZ3 Series |
| BZZ5 Series |
| Xeriwell | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 | 1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Xeriwell | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON | 240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Xeriwell | Fiat OEM | Fiat |
| 101s 100 ON | (5140383) / 5143319/ 2WD HKUS100/ON OSPC100/ON | 100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
| 主要技术参数 Main Specification | ||||||
| 型 号 Type | 排 量 Displacement (mL/r) | 长 度 Length L(mm) | 方向盘允许最高转速 Max. input speed (rpm) | 最大入口压力 Max. input pressure (MPa) | 最大连续背压 Max. cont. back pressure (MPa) | 最大动力转向扭矩 Max. power steering torque (N·m) |
| BZZ5-E 50* | 50 | 140 | 100 | 16 | 1.6 | <5 |
| BZZ5-E 63* | 63 | 141 | ||||
| BZZ5-E 80* | 80 | 142.5 | ||||
| BZZ5-E 100* | 100 | 145 | ||||
| BZZ5-E 125* | 125 | 148 | ||||
| BZZ5-E 160* | 160 | 153 | ||||
| BZZ5-E 200* | 200 | 158 | ||||
| BZZ5-E 250* | 250 | 164 | ||||
| BZZ5-E 280* | 280 | 169 | 75 | |||
| BZZ5-E 315* | 315 | 174 | ||||
| BZZ5-E 400* | 400 | 184 | ||||
| BZZ5-E 500* | 500 | 197 | 60 | |||
| BZZ5-E 630* | 630 | 216 | ||||
| BZZ5-E 800* | 800 | 236 | ||||
| BZZ5-E 1000* | 1000 | 262 | ||||
| 类别 Category | 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V | LS油口 Port LS |
| 油口代码 Ports Code | （缺省） (omit) | M20×1.5 | M10 | M12 | M12×1.5 |
| A | M18×1.5 | M10 | M12 | M12×1.5 | |
| B | G1/2 | M10 | M10×1 | G1/4 | |
| C | 3/4-16UNF O-ring | 3/8-16UNC | 3/8-24UNF | 7/16-20UNF O-ring | |
| D | M20×1.5 O-ring | M10 | M12 | M12×1.5 O-ring | |
| E | M18×1.5 O-ring | M10 | M12 | M12×1.5 O-ring | |
| G | M22×1.5 | M10 | M12 | M12×1.5 | |
| Q | M22×1.5 O-ring | M10 | M12 | M12×1.5 O-ring | |
| U | G1/2 O-ring | M10 | M10×1 | G1/4 O-ring | |
| M | 3/4-16UNF O-ring | M10 | M12 | 7/16-20UNF O-ring | |
| I | 3/4-16UNF O-ring | M10 | M10 | 7/16-20UNF O-ring | |
| N | 3/4-16UNF O-ring | M10×1.25 | M10 | 7/16-20UNF O-ring | |
| R | P,T：M22×1.5 A,B：M18×1.5 | M10 | M12 | M12×1.5 | |
| S | P,T：M22×1.5 O-ring A,B：M18×1.5 O-ring | M10 | M12 | M12×1.5 | |
