| Product: | Heavy Duty Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Feature: | Replace OMT, M+S MT, Eaton 10000 Series | Power: | Hydraulic System |
| Certificate: | CE | Place Of Origin: | China |
| Highlight: | large hydraulic motor,hydraulic lift motor | ||

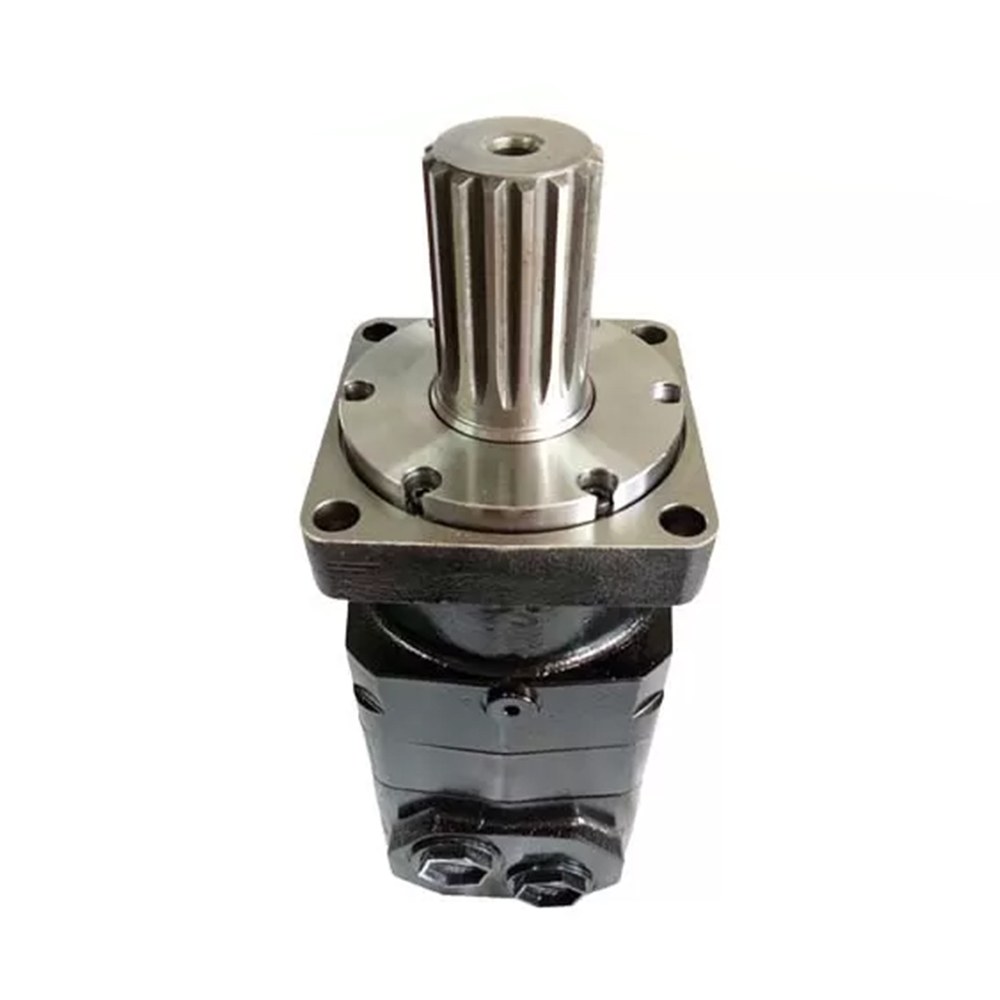

BMV/OMT/10K Series Heavy Duty Orbital Motor For Soil Compactor, skid loader
Features:
1. Compact in design with disc valving motor and geroler type
2. Orbital motor for heavy applications
3. Totally interchangeable with , Eaton,and M+S etc.
4. Shaft with taper roller bearings ensures high static and dynamic bearing capacity.
5. Orbit kit with rollers - Separate integrated valve
6. High volumetric and mechanical efficiency
7. High pressure capacity shaft seal design
8. Design and manufacturing of the spline and drives give the motor durability
9. Wide variety of mounting flanges, shafts,ports and speed provides design flexibility
10. Direction of shaft rotation and speed can be controlled easily and smoothly
11. Best combination of high efficiency and ecnomy in medium duty applications
Applicaions:
The BMV orbital motor can widely use for the following machines:
* Soil Compactor
* skid loader
* Food Processing
* drilling rig machine
* transport mixer
* log splitter
* waste plant conveyors
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Model Crossing:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | BOSCH | |
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | ||
| BMM | MM | OMM | MGX | |||||
| MLHK | J SERIES | - | - | - | BGM | |||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | |
| TE | ||||||||
| HP | H SERIES | DH | MG | RS | TB | |||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | ||
| HR | S,T SERIES | DS | RE | TF | ||||
| MLHRW, RW | W SERIES | OMEW | ||||||
| BMH/BM4 | MH | OMH | ||||||
| MLHH | ME | |||||||
| HW, HWF | RE | TG | ||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | ||||
| HPR | ||||||||
| MLHS | 2000 SERIES | ME | RE | |||||
| BMT/BM6 | MT | OMT | MGT, GMT | |||||
| MLHT | 6000 SERIES | MJ | HT | |||||
| MTM | TMT | |||||||
| BMV | MV | OMV | MGV, GMV | |||||
MLHV | 10000 SERIES |
| 型号Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 |
| L | 217 | 224 | 232 | 244 | 255 | 271 |
| L1 | 20 | 27 | 35 | 47 | 58 | 74 |
| L2 | 161.5 | 168.5 | 176.5 | 188.5 | 199.5 | 215.5 |
| 型号Type | BMVW 315 | BMVW 400 | BMVW 500 | BMVW 630 | BMVW 800 | BMVW 1000 |
| L | 148.5 | 155.5 | 163.5 | 175.5 | 186.5 | 202.5 |
| L1 | 20 | 27 | 35 | 47 | 58 | 74 |
| L2 | 93.5 | 100.5 | 108.5 | 120.5 | 131.5 | 147.5 |
| 注：1、转定子厚度为：L1+7 Note:The thickness of the stator and rotor is the dimension of L1adding on 7mm. | ||||||
| Pos.1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
| Code | Displace- ment | Flange | Output shaft | Ports and drain port | Rotation direction | Paint | Unusually function | ||||||
| Omit | 315 400 500 630 800 1000 | 4 W | 4-Ø18 Square-flangeØ200,pilot Ø160 × 11 4-Ø18 Wheel-flange Ø224,pilot Ø180 × 10 | A BD B C T T1 | Shaft Ø50,parallel key 14 × 9 × 70 Shaft Ø53.975,splined key 16-DP8/16 Shaft Ø53.975,splined key 16-DP8/16 Shaft Ø57.15,parallel key 12.7 × 12.7 × 57.15 Cone shaft Ø60,parallel key 16 × 10 × 32 Cone shaft Ø60,parallel key 14.308 × 14.308 × 50.8 | D M S G M5 S1 | G1 Manifold 4 × M12,G1/4 M33 × 2 Manifold 4 × M12,M14 × 1.5 1-5/16-12UN,9/16-18UNF G1,G1/4 M33 × 2,M14 × 1.5 1-5/16-12UN(18),7/16-20UNF(12) | 0ml R | Standard Opposite | 00 Onil B S | No paint Blue Black Silver grey | 0mt | Standard |
| Note:When the table is used,please fill the code of left rows in dash area and give us,which the code information is consists of construction,displacement,mounting flange,output shaft and ports. If the specification is not in the table or you have specific requirements,please contact us. | |||||||||||||
