| Quantity: | |
|---|---|
BMSY-125-E2-D-SU
Xeriwell or Others
| Item: | Hydraulic Motor | Type: | Low Speed High Torque |
|---|---|---|---|
| Flange: | 2 Hole, Rhomb | Shaft: | Cylindrical |
| Highlight: | 2 bolt flange Hydraulic Motor,25.4mm shaft Hydraulic Motor | ||

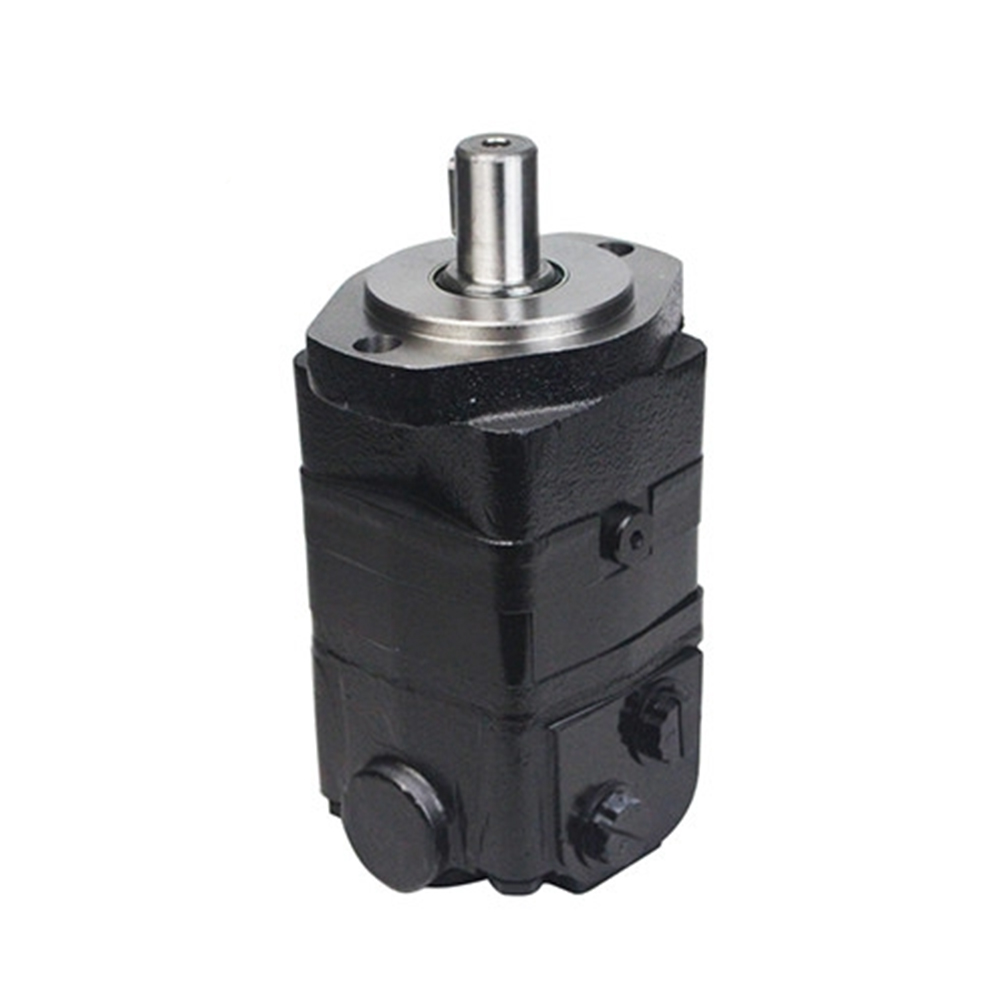

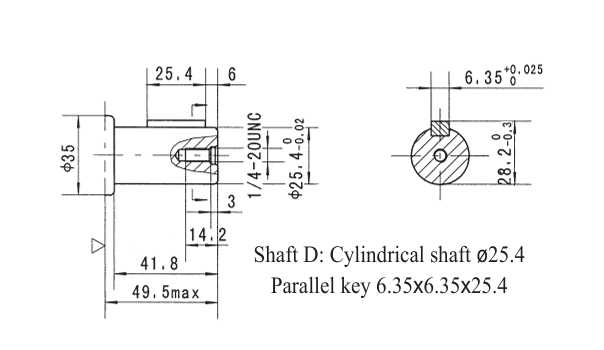

BMSY Hydraulic Motor, BMSY-125-E2-D-SU, 125 ml/r, 2 bolt flange, 25.4mm shaft, 7/8-14 UNF port, standard rotation
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
BMSY
BMSYS
160
BMSY
BMSYS
80
BMSY
BMSYS
100
BMSY
BMSYS
125
BMSY
BMSYS
200
BMSY
BMSYS
250
BMSY
BMSYS
315
BMSY
BMSYS
400
BMSY
BMSYS
475
More flange, shaft, oil ports, displacement can be provided as below:

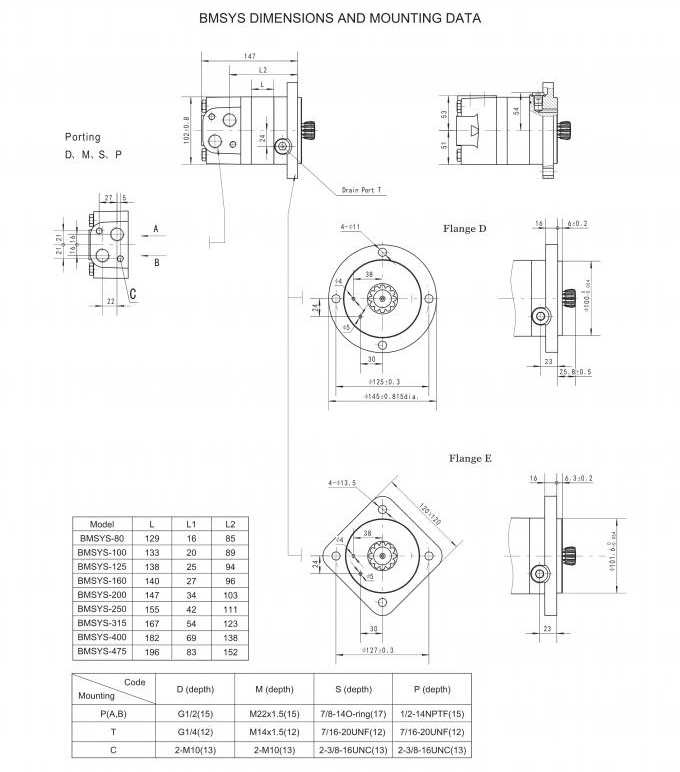

| Model | L | L1 | L2 |
| BMSYS-80 | 129 | 16 | 85 |
| BMSYS-100 | 133 | 20 | 89 |
| BMSYS-125 | 136 | 25 | 94 |
| BMSYS-160 | 140 | 27 | 96 |
| BMSYS-200 | 147 | 34 | 103 |
| BMSYS-250 | 155 | 42 | 111 |
| BMSYS-315 | 167 | 54 | 123 |
| BMSYS-400 | 182 | 69 | 138 |
| BMSYS-475 | 196 | 83 | 152 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) |
| P(A,B) | G1/2(15) | M22x1.5(15) | 7/8-14O-ring(17) | 1/2-14NPTF(15) |
| T | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
| C | 2-M10(13) | 2-M10(13) | 2-3/8-16UNC(13) | 2-3/8-16UNC(13) |

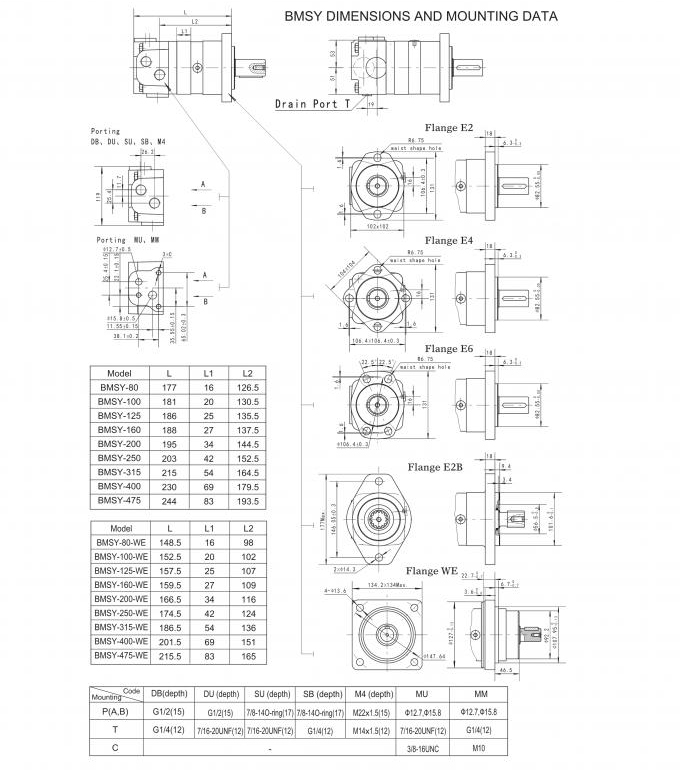

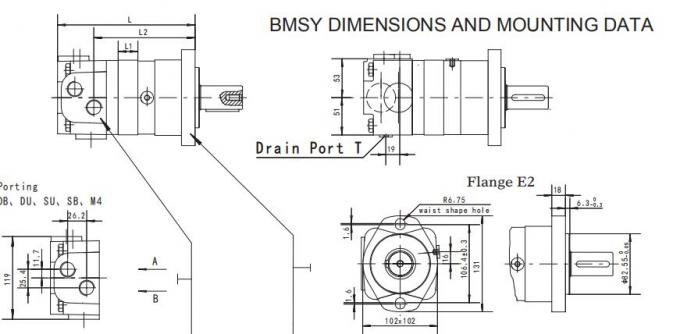

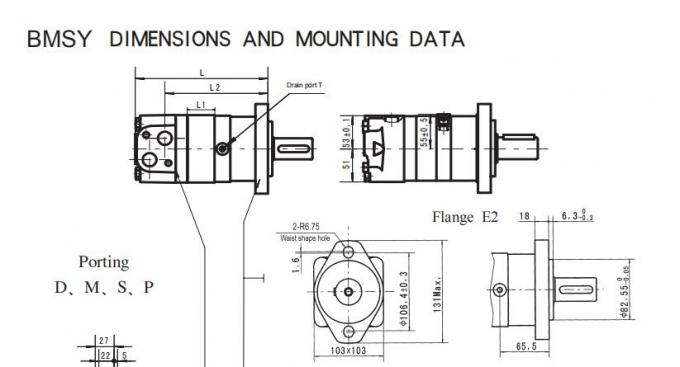

| Model | L | L1 | L2 |
| BMSY-80 | 177 | 16 | 126.5 |
| BMSY-100 | 181 | 20 | 130.5 |
| BMSY-125 | 186 | 25 | 135.5 |
| BMSY-160 | 188 | 27 | 137.5 |
| BMSY-200 | 195 | 34 | 144.5 |
| BMSY-250 | 203 | 42 | 152.5 |
| BMSY-315 | 215 | 54 | 164.5 |
| BMSY-400 | 230 | 69 | 179.5 |
| BMSY-475 | 244 | 83 | 193.5 |
| Model | L | L1 | L2 |
| BMSY-80-WE | 148.5 | 16 | 98 |
| BMSY-100-WE | 152.5 | 20 | 102 |
| BMSY-125-WE | 157.5 | 25 | 107 |
| BMSY-160-WE | 159.5 | 27 | 109 |
| BMSY-200-WE | 166.5 | 34 | 116 |
| BMSY-250-WE | 174.5 | 42 | 124 |
| BMSY-315-WE | 186.5 | 54 | 136 |
| BMSY-400-WE | 201.5 | 69 | 151 |
| BMSY-475-WE | 215.5 | 83 | 165 |
| Mounting Code | DB(depth) | DU(depth) | SU(depth) | SB(depth) | M4(depth) | MU | MM |
| P(A,B) | G1/2(15) | G1/2(15) | 7/8-140-ring(17) | 7/8-140-ring(17) | M22x1.5(15) | φ12.7φ0.5.8 | φ12.7φ0.5.8 |
| T | G1/4(12) | 7/16-20UNF(12) | 7/16-20UNF(12) | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | G1/4(12) |
| C | - | 3/8-16UNC | M10 | ||||
