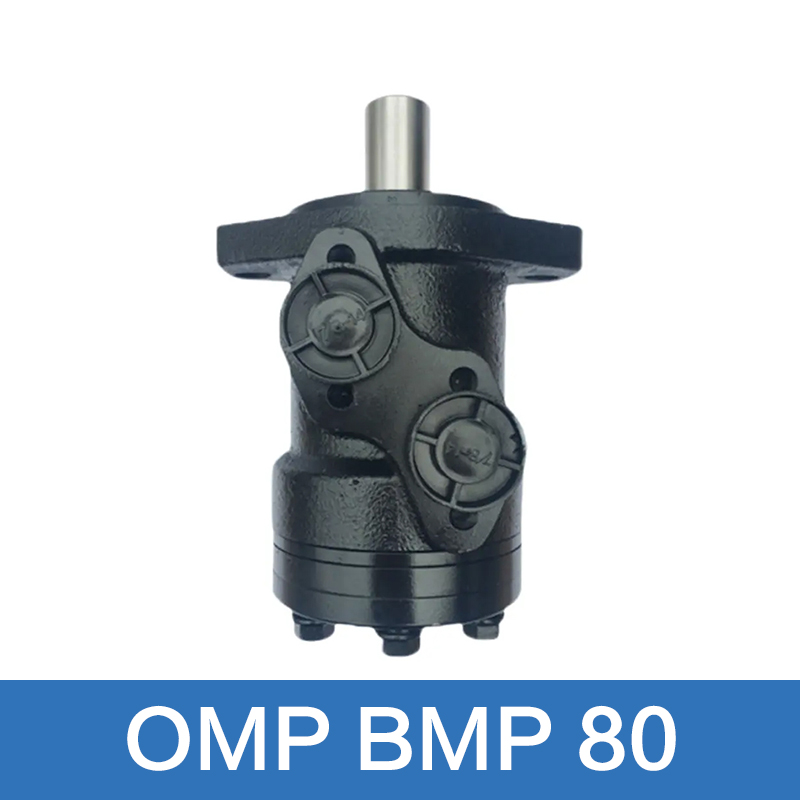

BMP OMP 80 Orbital Small Hydraulic Motor Danfoss Symbol

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • bmp omp 80


BMP OMP 80 Orbital Small Hydraulic Motor Danfoss Symbol Product Introduction


BMP    Technical Data
Type BMP
BMPH
BMPW
80
Geometric displacement(cm>/rev. 77.7
Max.speed  (rpm) cont. 770
int. 960
Max.torque  (N ·m) cont. 146
int. 186
peak 218
Max.output  (kW) cont. 10.0
int. 12.0
Max.pressure
drop         (MPa)
cont. 14
int. 17.5
peak 22.5
Max.flow  (Lmin) cont. 60
int. 75
Weight (kg) 5.7
*Continuous  pressure:Max.value of operating  motor continuously
*Intemittent pressure:Max.vaue of operating motor in 6 seconds per minute.
*Peak pressure:Max.value of operating motor in 0.6 second per minute.




BMP OMP 80 Orbital Hydraulic Motor catalogue pdf manual diagram

orbital motor assembly



4123
