| Quantity: | |
|---|---|

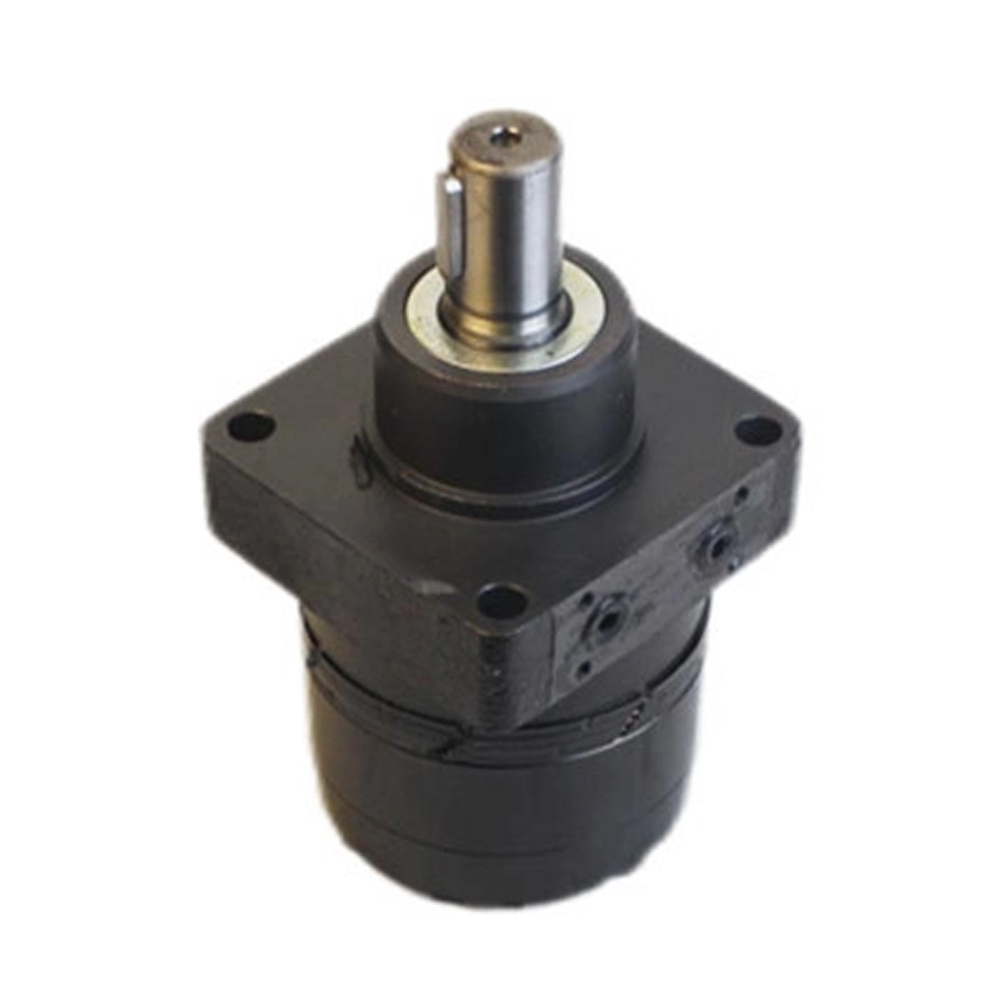

BMER-2-475
Xeriwell or Others
| Item: | Torqmotor,lsht Motor | OEM #: | TG0475 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 475 Ml/r |
| Mounting Flange: | Wheel Flange Manifold Ports | Shaft Type: | 32mm Key Shaft |
| Highlight: | LSHT Motor TG0475 Series,BMER-2-475 LSHT Motor,BMER-2-475 High Torque Hydraulic Motor | ||
Xeriwell supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function.
this type of motors are widely used on lown mower machines, tractor mower machines, mathing the brand Exmark/Toro/Scag/Hustler...
Details specifications:
| Series: | TG |
| Shaft: | φ32mm key shaft, |
| Rotation: | Reverse Standard |
| Displacement (cm3/rev): | 0475 |
| Mounting: | Wheel, Standard |
| Geometric Displacement: | 475cm3/rev (29.1 in3/rev) |
| Maximum Speed: | 237 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 76 lpm (20 gpm) / 114 lpm (30 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 138 bar (2000 PSID) / 207 bar (3000 PSID) |
| Maximum Supply Pressure: | 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: | 887 Nm (7853 lb-in) / 1372Nm (12145 lb-in) |
| Maximum Performance: | 28 KW (38HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in) |
Specificaion:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
PARKER Hydraulic Motors
TB
TE
TF
TG
TJ
