102, 102s
Xeriwell or Others
| Product Name: | Hydraulic Direction Control Pump | Feature: | Buit-in Relief Valve And Check Valve |
|---|---|---|---|
| Relieve Valve: | 16Mpa | Shock Valve: | 22Mpa |
| Displacement: | 80cc, 100cc, 125cc, 160cc, 200cc, 315cc, 400cc | Color: | Black Or Silver |
| Highlight: | power steering valve,hydraulic steering gear | ||

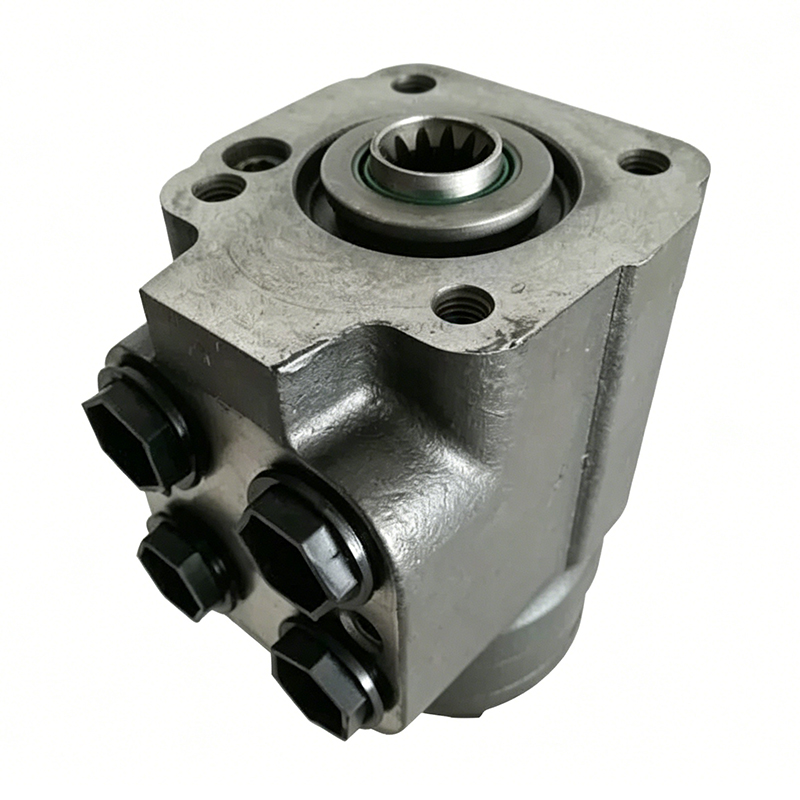

Hydraulic Power Steering 102s Series Replace HKUS For Tractor
Features:
1. The function of the 102s series same with OSPC, M+S HKUS and Eaton-Charlynn 45 Series;
2. Including integrated valve (relief valve and checkproof valve);
3. 102s Hydraulic steering unit is widely used in the steering control system:such as the steering system of many kinds of industrial and agricultural,mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
4. We produce the products match with the OEM number of all machines.
Specifications:
| Type | Displacement (ml/r) | Rated Flow (l/min) | Max input pressure (Mpa) | Max cont back pressure(Mpa) | Normal Input Torque | weight(KG) |
| 102S-80 | 80 | 8 | 17.5 | 2.5 | <2.5 | 5.6 |
| 102S-100 | 100 | 10 | 17.5 | 2.5 | <2.5 | 5.7 |
| 102S-125 | 125 | 13 | 17.5 | 2.5 | <2.5 | 5.9 |
| 102S-160 | 160 | 16 | 17.5 | 2.5 | <2.5 | 6 |
| 102S-200 | 200 | 20 | 17.5 | 2.5 | <3 | 6.2 |
| 102S-250 | 250 | 25 | 17.5 | 2.5 | <3 | 6.5 |
| 102S-280 | 280 | 28 | 17.5 | 2.5 | <3 | 6.6 |
| 102S-315 | 315 | 32 | 17.5 | 2.5 | <3 | 6.9 |
| 102S-400 | 400 | 40 | 17.5 | 2.5 | <3 | 7.2 |
Applications:
Its role is to increase the power steering wheel steering transmission to the transmission mechanism and change the direction of transmission.
Widely used in agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low-speed heavy vehicles.
With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.
