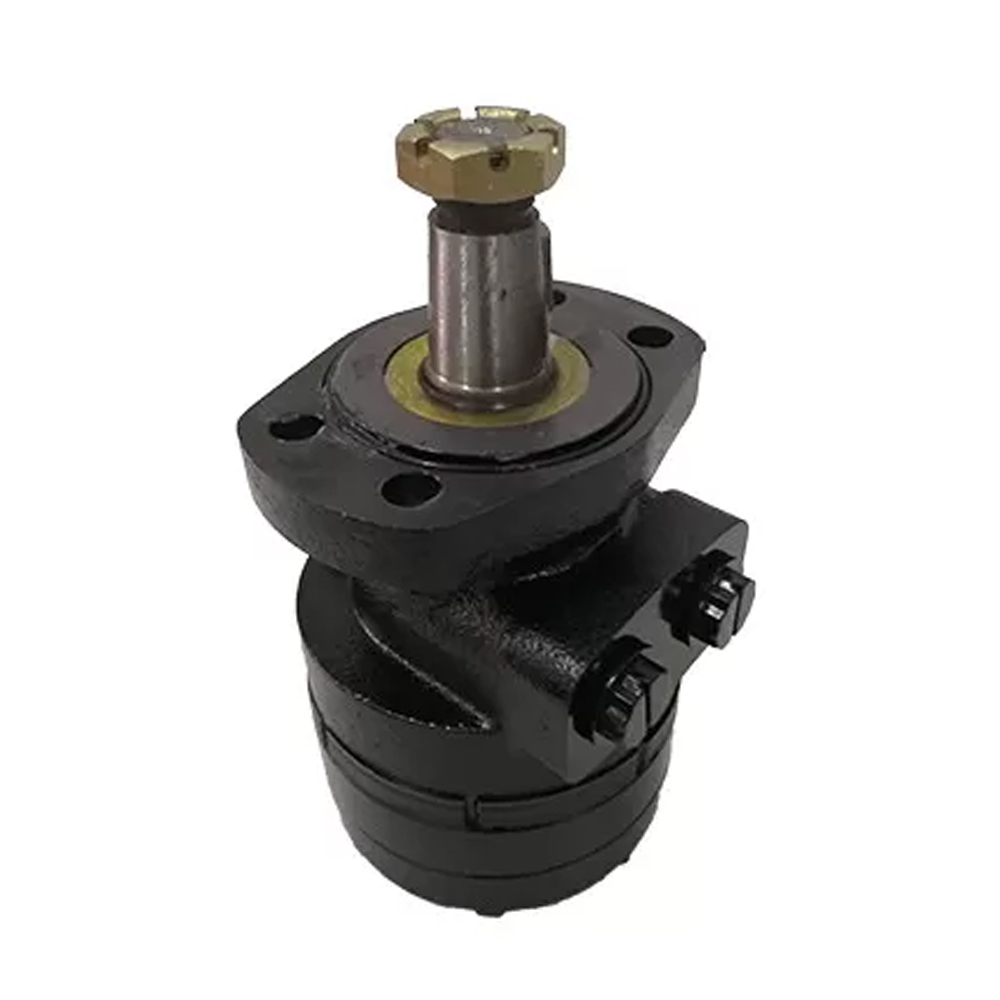

White RE1807030X Hydraulic Wheel Motor Replacement 4 Bolts Flagne

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMER-300MST4B
Brand:
Xeriwell or Others

Product Description

Features:	White RE Replacement	Product:	Hydraulic Motor
Model No.:	BMER-300MST4B	Displacement:	300 Cm3/rev
Flagne:	4 Bolts	Shaft:	31.75 Cone Shaft
Ports:	7/8-14 O-ring	Speed Cont.:	250 Rpm
Speed Int.:	315 Rpm	Torque Cont.:	810 N*m
Highlight:	slow speed high torque motor , lsht hydraulic motor

White Hydraulic Motor, White RE1807030X Hydraulic Motor Replacement

Quick details:

1, BMER-300MST4B

2, White RE1807030X replacement

3, displacement 300 cm3/rev

4, 7/8-14 O-ring ports

5, 31.75 Cone shaft

Main Specificaion：

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

Xeriwell - a hydraulic firm, new leader in hydraulic based in China, the company's main activities are serve global hydraulic market, now we support Southeast Asia, Middle-east, Europe, North America, South America, production and trade. Production of low speed high torque motors comparable with / White, Parker, Eaton Char lynn, M+S, and many more.

The company's business lines are:

- manfacture of hydraulic components

- production of hydraulic orbit motors comparable with , Eaton, M+S, etc.

- production of hydraulic steering units comparable with , Eaton, M+S, etc.

- production of hydraulic piston pump comparable with Rexroth A4VSO, A10VSO, A4VG, etc.

- production of hydraulic gear pump according to the model shown in the drawings

- production of hydraulic cylinder according to the model shown in the drawings

- hydraulic service, trade of hydraulic components

- sales Monoblock valves, and other mobile hydraulics

- disaccembly, repair and installation of hydraulic systems

- pump repair, redistribution

- serve Industrial, Automation, High Pressure Hydraulic System Build, Mobile, Transport, Agricultural, Construction, Mining, Marine, etc.

- widely used in , Ford , , , Komatsu, , Hitachi, Heli, Liebherr and others.

Our company's professional products, will help to enrich your business lines, help to share you bigger market.

Our company's specialists will help you to choose the most suitable options and bring you more profit.
