| Quantity: | |
|---|---|
CBN / CBT
Xeriwell or Others
| Features: | Parker,Rexroth,Caproni | Product Name: | Hydraulic Double Gear Pump |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 06, 08, 10, 12, 14, 16, 20, 25, 28, 30 Ml/r |
| Application: | Agriculture Tractor | Model Number: | CBN-F / CBT-E |
| Highlight: | high pressure gear pump,small gear pump | ||

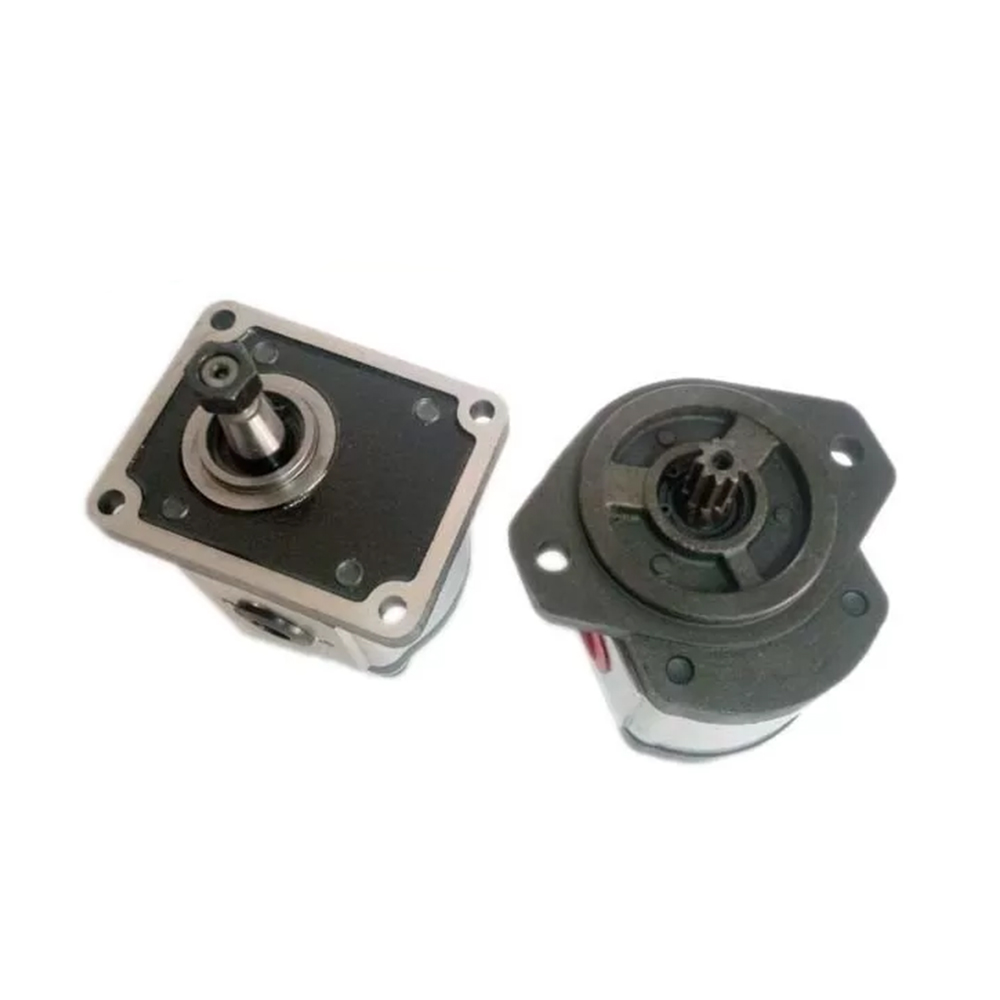

Hydraulic Gear Pump Single / Double Hydraulic Pump For Tractor / Combine Harvester
► Characteristic Features
1. Hydraulic Gear pump CBN-F3 series gear pump hydraulic system power element.
2. The pump uses a high-precision gears, high strength aluminum alloy shell, float bushings
3. It has a simple structure, light weight, high efficiency, low noise, and reliable.
4. Replace and Match famous brand Parker,Rexroth,Caproni .
5. Tractor and Combine Harvester oil hydraulic pump OEM number code.
► Specification
| 性能参数/SPECIFICATIONS CBN-3series | |||||
| 型号 Model | 理论排量 Theo.disp(ml/r) | 额定压力 | 转速 | ||
| 额定Rated | 最高Max | 额定Rated | 最高Max | ||
| CBN-E/F304 | 4 | 20 | 25 | 2500 | 3000 |
| CBN-E/F306 | 6 | ||||
| CBN-E/F308 | 8 | ||||
| CBN-E/F310 | 10 | ||||
| CBN-E/F312 | 12 | ||||
| CBN-E/F316 | 16 | ||||
| CBN-E/F318 | 18 | ||||
| CBN-E/F320 | 20 | ||||
| CBN-E/F325 | 25 | ||||
| CBN-E/F328 | 28 | ||||
| CBN-E/F330 | 30 | 16 | 20 | ||
► Application
1. Agricultural machinery
2. Construction machinery
3. Industrial machinery
4. Automobiles
5. Hydraulic systems
