| Quantity: | |
|---|---|
101S
Xeriwell or Others
| Product Name: | Hydraulic Steering Control Pumps | Oil Port: | G1/2" |
|---|---|---|---|
| Relieve Valve: | 16Mpa | Shock Valve: | 22Mpa |
| Displacement: | 200cc, 315cc, 400cc ON | Applications: | Used For , MF, , Fiat, Class, MTZ Etc. |
| Highlight: | hydraulic steering control unit,hydrostatic steering unit | ||

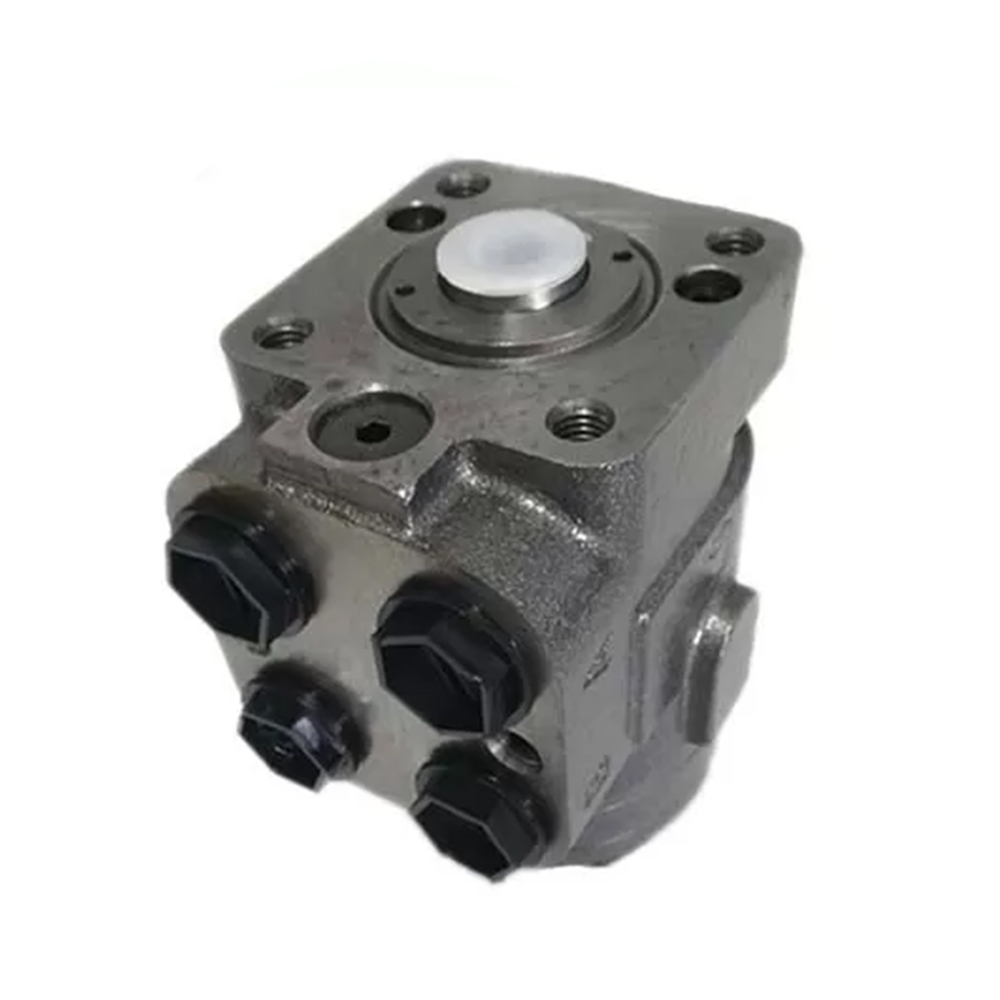

Hydraulic Steering Unit 060 Series For , , Fiat , MTZ Tractor
Product Description:
060 integral series power steering units
060 series PSU incorporated the inlet check valve, safety valve, internal check
valve, cylinder port shock valve and anti-cavitation valve. The design is more
compact and convenient.
Features:
Incorporated five valves into the PSU, So it is more compact and convenient
Low hydraulic noise
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Displacement: 50~500 ml/r
Main specification data:
Max. System pressure --------16MPa
Max. Back pressure -----------2.1MPa
Input torque--------------------1.7~2.5Nm
Max. System operating temperature--------93º C
Recommended oil filtration--------ISO 19/16
Function of the incorporated valve:
Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder
side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.
| displacement (ml/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 |
| L(mm) | 137.5 | 139.5 | 139.5 | 142 | 150 | 150 | 155 | 161 | 171 | 181 | 193 |
| 排量（ml/r） | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 |
| 长度（L） | 130.5 | 132.5 | 132.5 | 135 | 138 | 143 | 148 | 154 | 164 | 174 | 186 |
Applications:
Its role is to increase the power steering wheel steering transmission to the transmission mechanism and change the direction of transmission.
Widely used in , shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low-speed heavy vehicles.
With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.
