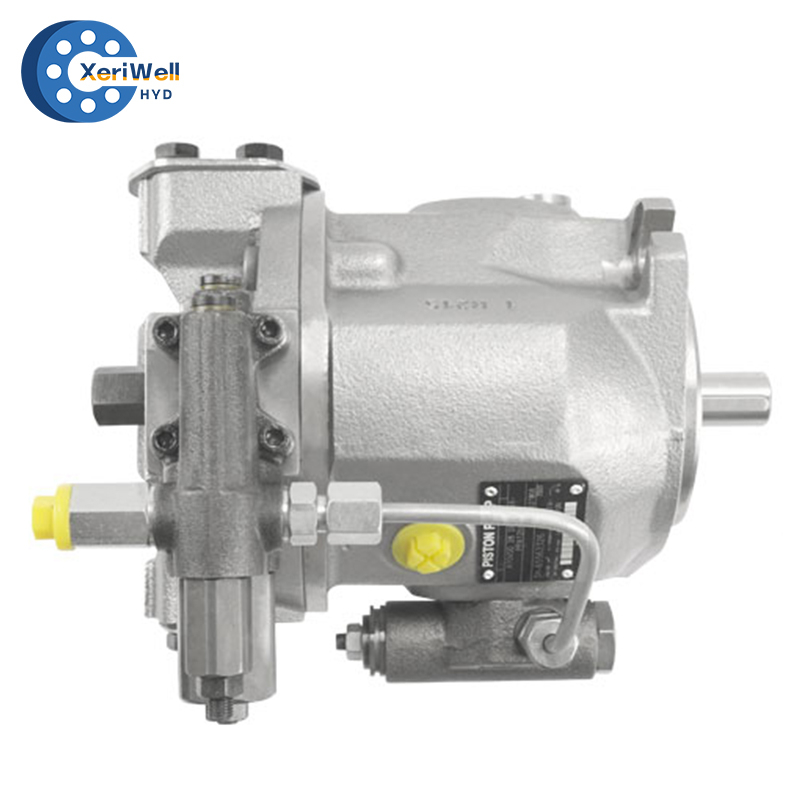

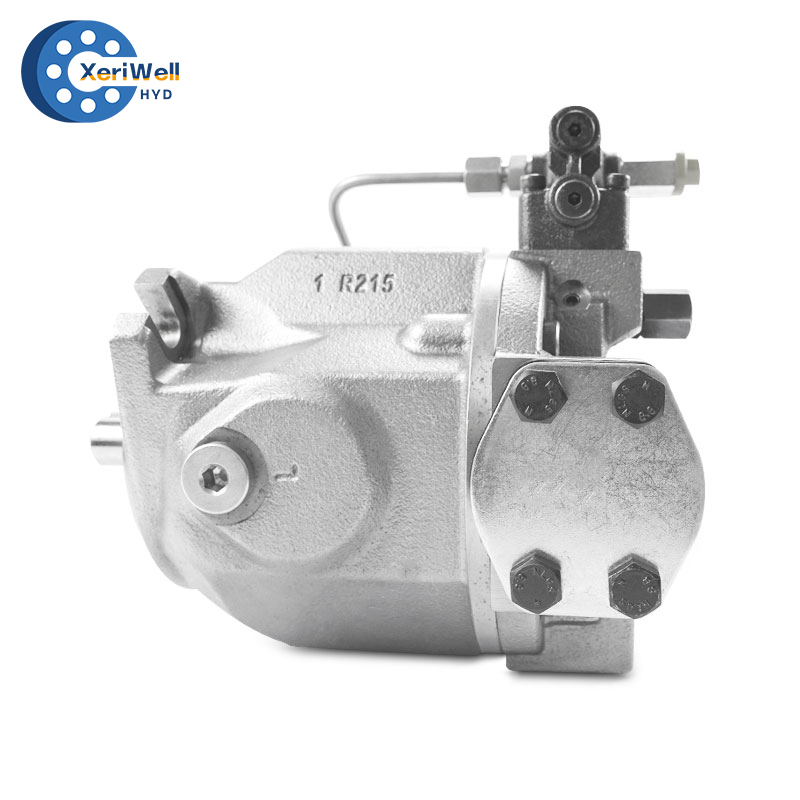

Rexroth A10VSO is a piston pump that belongs to high-performance, high reliability, and high-precision hydraulic pumps. It is widely used in multiple fields, such as industry, agriculture, transportation, etc.
Rexroth A10VSO pump adopts a swash plate axial piston structure and has a closed loop hydrostatic transmission system. The flow rate is directly proportional to the driving speed and displacement, and can be infinitely variable. As the swash plate swing angle changes, the flow rate increases from 0 to maximum. When the swash plate swings in the middle position, it can smoothly change the direction of liquid flow. This type of pump is widely used in various fields such as metallurgy, machine tools, chemical engineering, etc., and has been widely praised for its excellent cost-effectiveness.

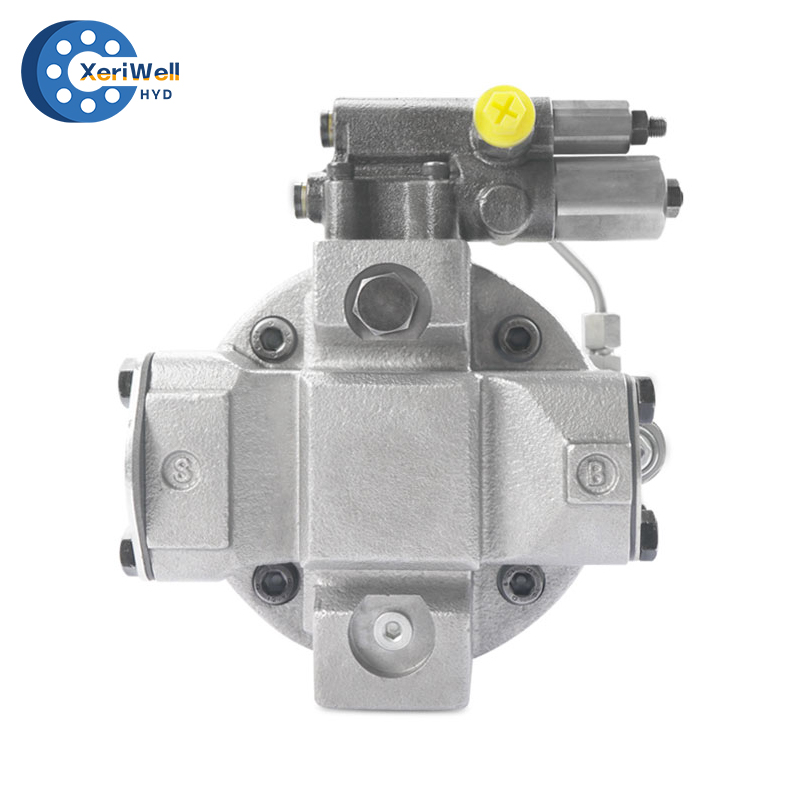

The structure of A10VSO pump includes drive shaft, thrust plate, control piston, control valve, pressure side, oil distribution plate, oil suction side, cylinder body, plunger, plunger slide shoe, rocker, pre pressure chamber, and return piston. The advantages of A10VSO pump include high efficiency, reliability, and long service life. At the same time, it has multiple variable modes and is easy to cooperate with different control and regulation systems to achieve different control and regulation functions.
In addition, the A10VSO pump also has a built-in pressure cut-off valve, which can provide higher safety and protection in case of overload. Each high-pressure side is equipped with two relief valves to prevent overloading of the hydrostatic transmission device. The high-pressure relief valve also serves as an oil replenishment valve.

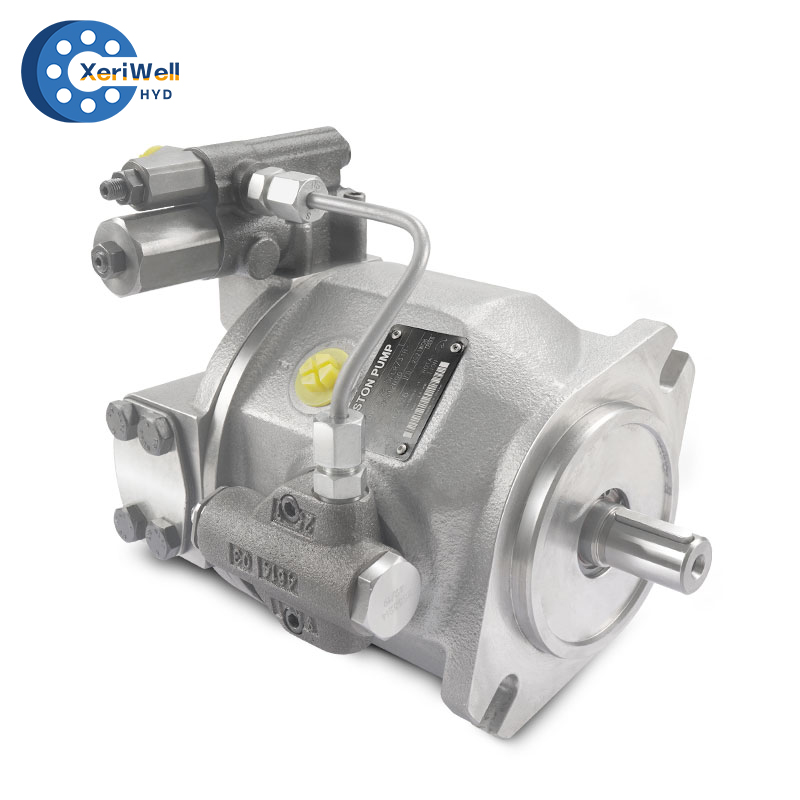

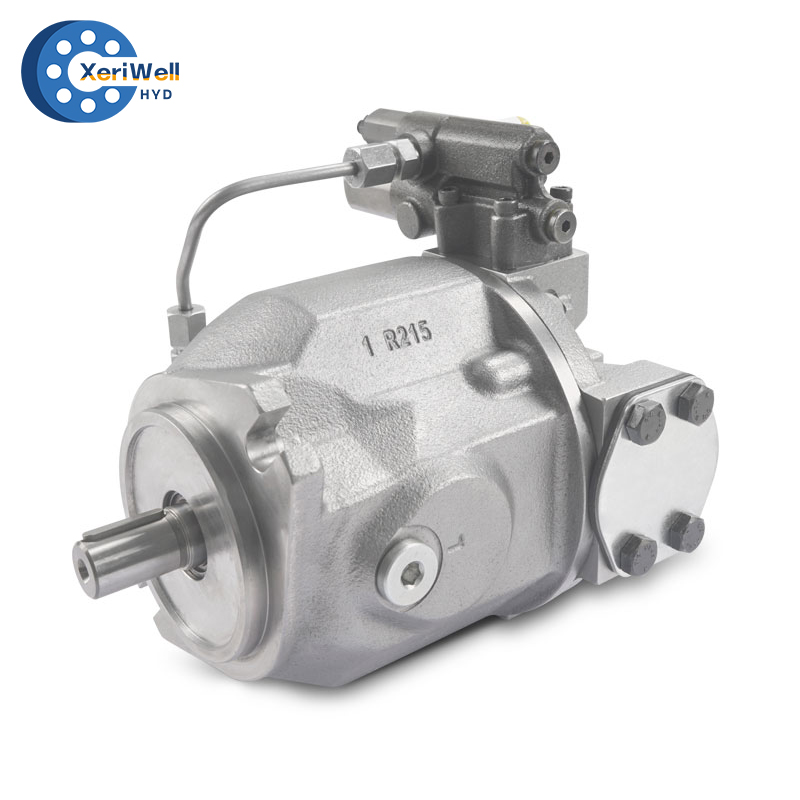

Rexroth Axial Piston Variable Pump A10VSO Series 31
- All-purpose medium pressure pump
- Sizes: A10VSO18, 28, 45, 71, 88, 100 and 140
- Nominal pressure 280 bar
- Maximum pressure 350 bar
- Open circuit
Rexroth Axial Piston Variable Pump A10VSO Series 32
- Sizes: A10VSO45, 71, 100, 140 and 180
- Nominal pressure 280 bar
- Maximum pressure 350 bar
- For industrial application areas
- Open circuit

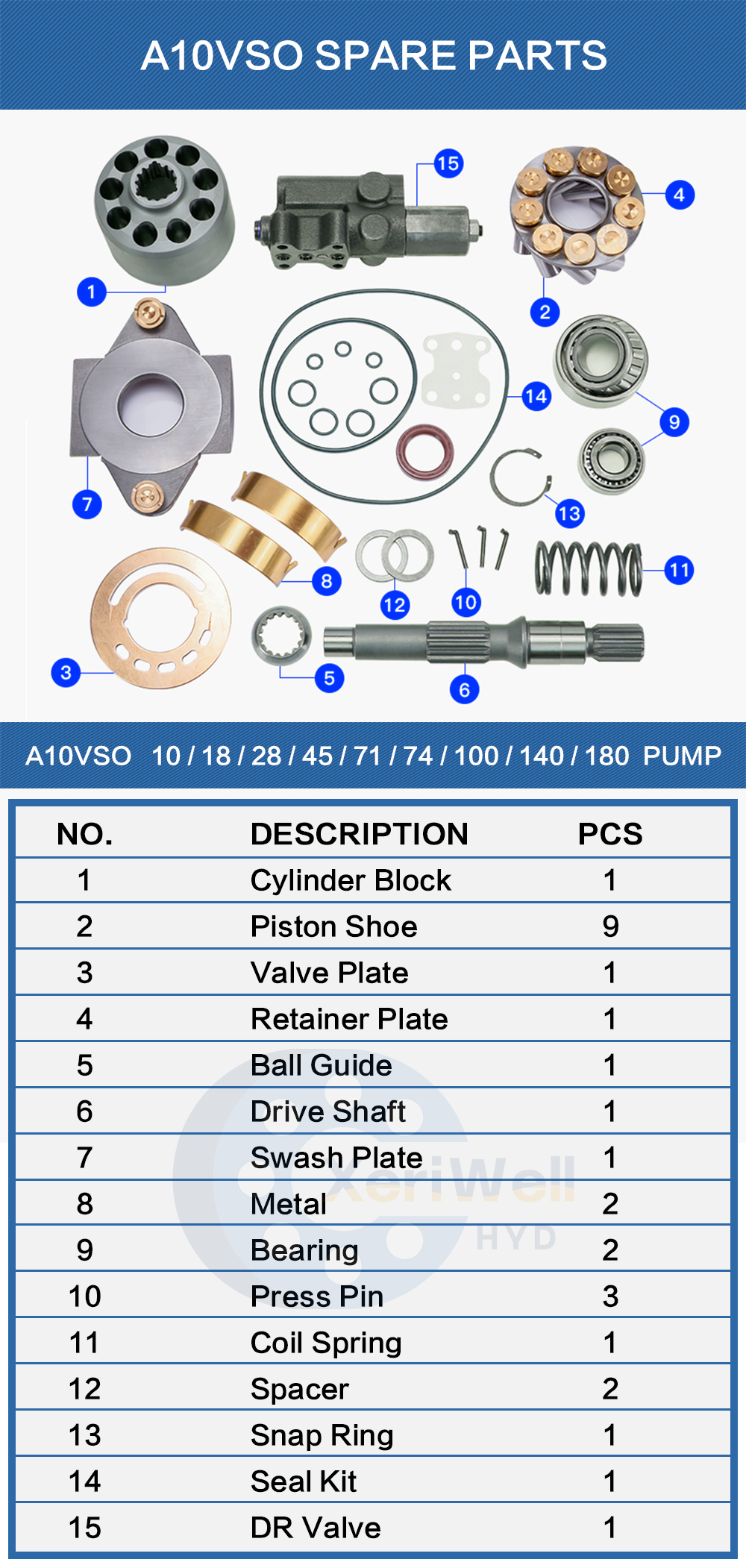

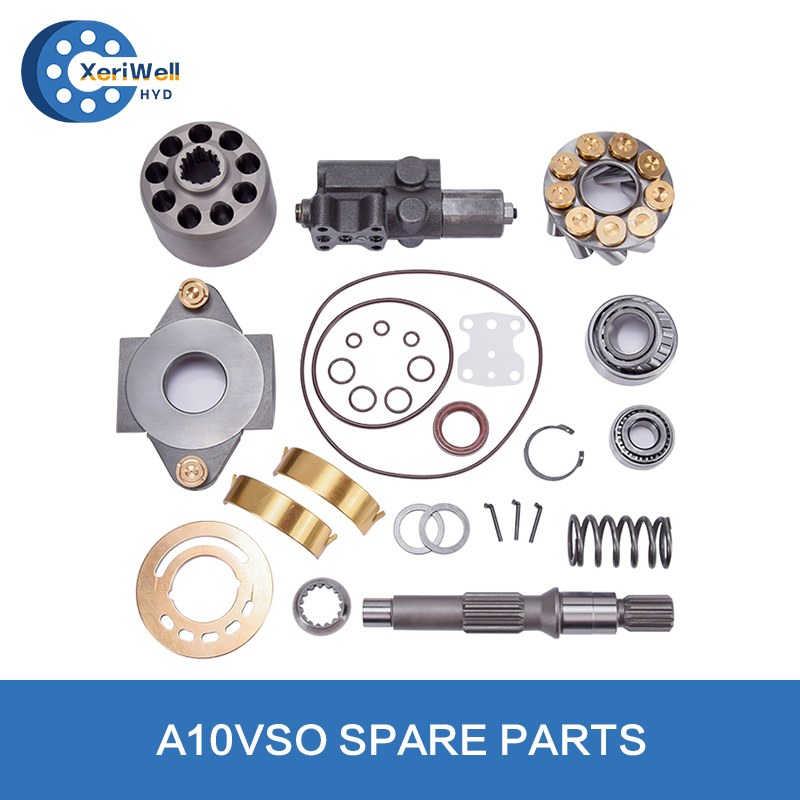

Rexroth A10VSO 10/18/28/45/71/74/88/100/140/180 Hydraulic Pump Spare parts list:

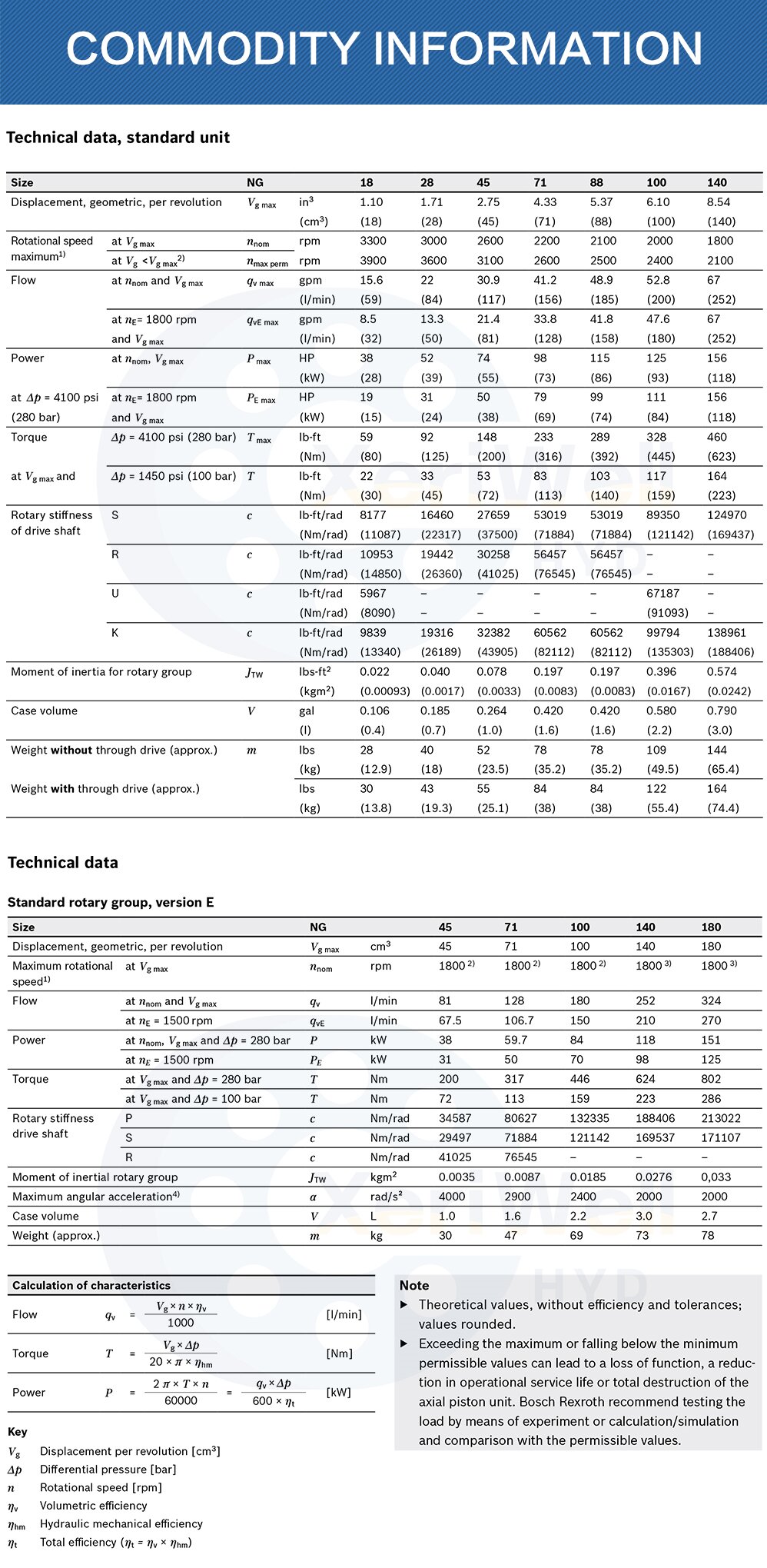

| Technical data,standard unit | ||||||||||
| Size | NG | 18 | 28 | 45 | 71 | 88 | 100 | 140 | ||
| Displacement,geometric,per revolution | Vgmax | in3 | 1.1 | 1.71 | 2.75 | 4.33 | 5.37 | 6.1 | 140 | |
| (cm3) | (18) | (28) | (45) | (71) | (88) | (100) | (140) | |||
| Rotational speed maximum1) | at Vgmax | nnom | rpm | 3300 | 3000 | 2600 | 2200 | 2100 | 2000 | 1800 |
| at Vg<Vg max2) | nmax perm | rpm | 3900 | 3600 | 3100 | 2600 | 2500 | 2400 | 2100 | |
| Flow | at nnomand Vgmax | qvmax | gpm | 15.6 | 22 | 30.9 | 41.2 | 48.9 | 52.8 | 67 |
| (l/min) | (59) | (84) | (117) | (156) | (185) | (200) | (252) | |||
| at nE= 1800 rpm and Vgmax | qvEmax | gpm | 8.5 | 13.3 | 21.4 | 33.8 | 41.8 | 47.6 | 67 | |
| (l/min) | (32) | (50) | (81) | (128) | (158) | (180) | (252) | |||
| Power | at nnom,Vgmax | Pmax | HP | 38 | 52 | 74 | 98 | 115 | 125 | 156 |
| (kW) | (28) | (39) | (55) | (73) | (86) | (93) | (118) | |||
| at Δp = 4100 psi (280 bar) | at nE= 1800 rpm and Vgmax | PE max | HP | 19 | 31 | 50 | 79 | 99 | 111 | 156 |
| (kW) | (15) | (24) | (38) | (69) | (74) | (84) | (118) | |||
| Torque | Δp = 4100 psi (280 bar) | Tmax | lb-ft | 59 | 92 | 148 | 233 | 289 | 328 | 460 |
| (Nm) | (80) | (125) | (200) | (316) | (392) | (445) | (623) | |||
| at Vg maxand | Δp = 1450 psi (100 bar) | T | lb-ft | 22 | 33 | 53 | 83 | 103 | 117 | 164 |
| (Nm) | (30) | (45) | (72) | (113) | (140) | (159) | (223) | |||
| Rotary stiffness of drive shaft | S | c | lb-ft/rad | 8177 | 16460 | 27659 | 53019 | 53019 | 89350 | 124970 |
| (Nm/rad) | (11087) | (22317) | (37500) | (71884) | (71884) | (121142) | (169437) | |||
| R | c | lb-ft/rad | 10953 | 19442 | 30258 | 56457 | 56457 | – | – | |
| (Nm/rad) | (14850) | (26360) | (41025) | (76545) | (76545) | – | – | |||
| U | c | lb-ft/rad | 5967 | – | – | – | – | 67187 | – | |
| (Nm/rad) | (8090) | – | – | – | – | (91093) | – | |||
| K | c | lb-ft/rad | 9839 | 19316 | 32382 | 60562 | 60562 | 99794 | 138961 | |
| (Nm/rad) | (13340) | (26189) | (43905) | (82112) | (82112) | (135303) | (188406) | |||
| Moment of inertia for rotary group | JTW | lbs-ft2 | 0.022 | 0.04 | 0.078 | 0.197 | 0.197 | 0.396 | 0.574 | |
| (kgm2) | (0.00093) | (0.00170) | (0.00330) | (0.00830) | (0.00830) | (0.01670) | (0.02420) | |||
| Case volume | V | gal | 0.106 | 0.185 | 0.264 | 0.420 | 0.420 | 0.580 | 0.790 | |
| (l) | (0.4) | (0.7) | (1.0) | (1.6) | (1.6) | (2.2) | (3.0) | |||
| Weight without through drive (approx.) Weight with through drive (approx.) | m | lbs | 28 | 40 | 52 | 78 | 78 | 109 | 144 | |
| (kg) | (12.9) | (18.0) | (23.5) | (35.2) | (35.2) | (49.5) | (65.4) | |||
| lbs | 30 | 43 | 55 | 84 | 84 | 122 | 164 | |||
| (kg) | (13.8) | (19.3) | (25.1) | (38.0) | (38.0) | (55.4) | (74.4) | |||
| Technical data Standard rotary group,version E | ||||||||
| Size | NG | 45 | 71 | 100 | 140 | 180 | ||
| Displacement,geometric,per revolution | Vg max | cm³ | 45 | 71 | 100 | 140 | 180 | |
| Maximum rotational speed1) | Vg max | nnom | rpm | 18002) | 18002) | 18002) | 18003) | 18003) |
| Flow | at nnomand Vg max | qv | l/min | 81 | 128 | 180 | 252 | 324 |
| at nE= 1500 rpm | qvE | l/min | 67.5 | 106.7 | 150 | 210 | 270 | |
| Power | at nnom,Vg maxand Δp = 280 bar | P | kW | 38 | 59.7 | 84 | 118 | 151 |
| at nE= 1500 rpm | PE | kW | 31 | 50 | 70 | 98 | 125 | |
| Torque | at Vg maxand Δp = 280 bar | T | Nm | 200 | 317 | 446 | 624 | 802 |
| at Vg maxand Δp = 100 bar | T | Nm | 72 | 113 | 159 | 223 | 286 | |
| Rotary stiffness drive shaft | P | c | Nm/rad | 34587 | 80627 | 132335 | 188406 | 213022 |
| S | c | Nm/rad | 29497 | 71884 | 121142 | 169537 | 171107 | |
| R | c | Nm/rad | 41025 | 76545 | – | – | – | |
| Moment of inertial rotary group | JTW | kgm² | 0.0035 | 0.0087 | 0.0185 | 0.0276 | 0,033 | |
| Maximum angular acceleration4) | α | rad/s⊃2; | 4000 | 2900 | 2400 | 2000 | 2000 | |
| Case volume | V | L | 1 | 1.6 | 2.2 | 3 | 2.7 | |
| Weight (approx.) | m | kg | 30 | 47 | 69 | 73 | 78 | |
