A10VNO
Xeriwell or Others

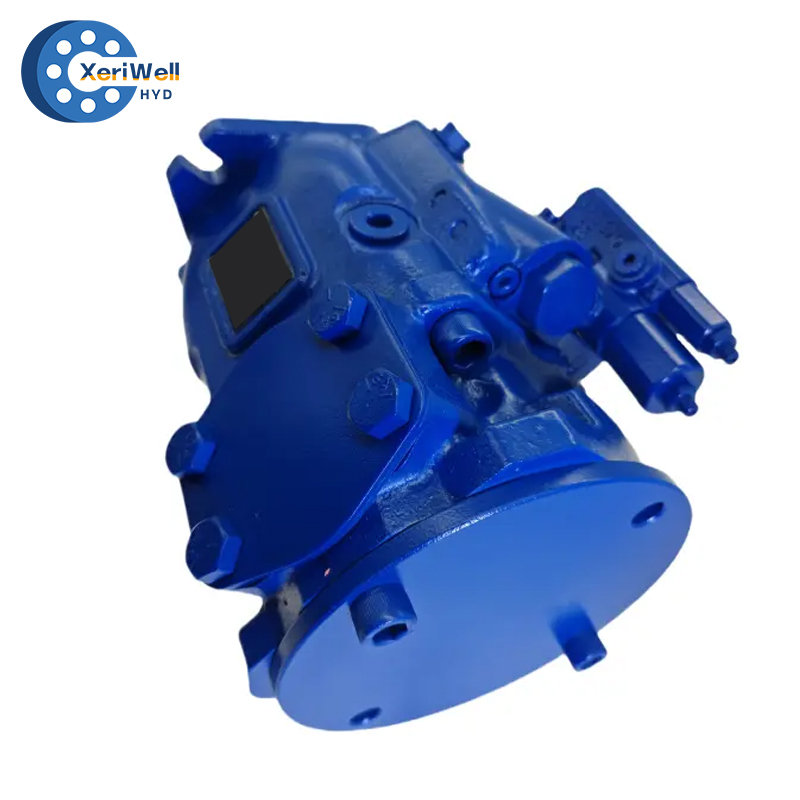

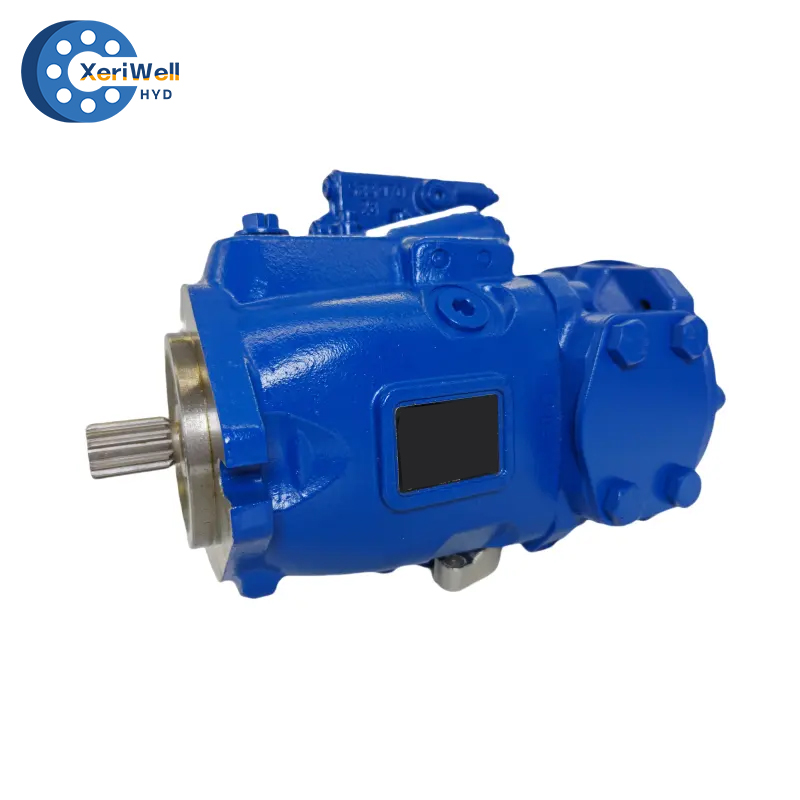

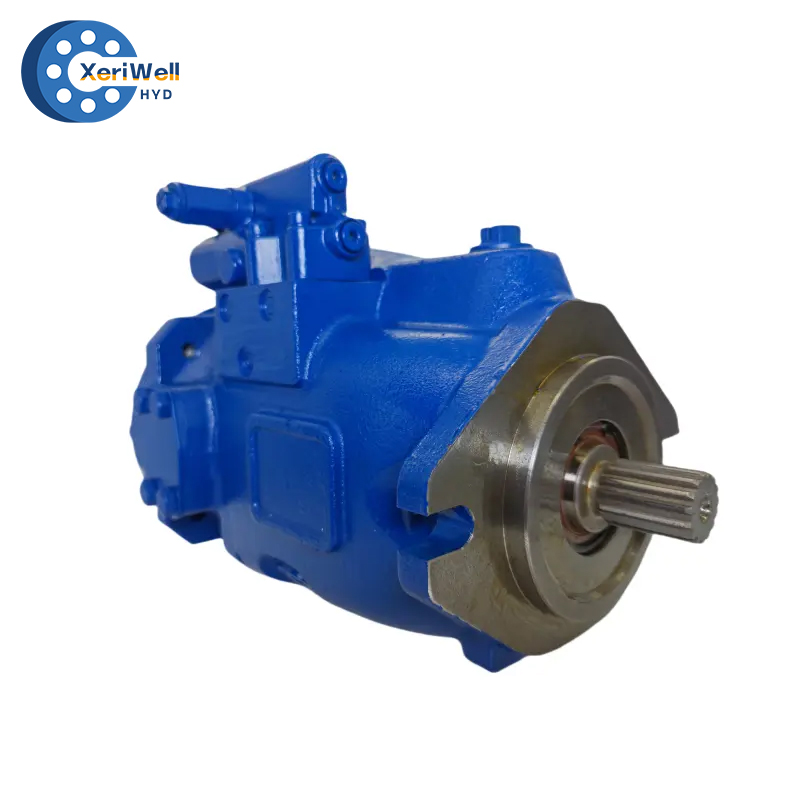

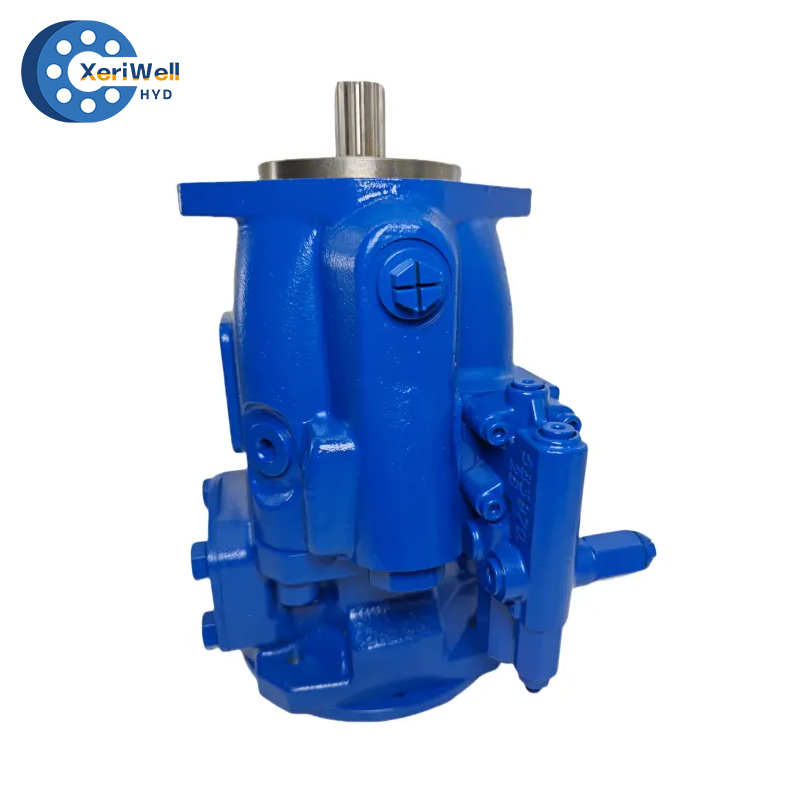

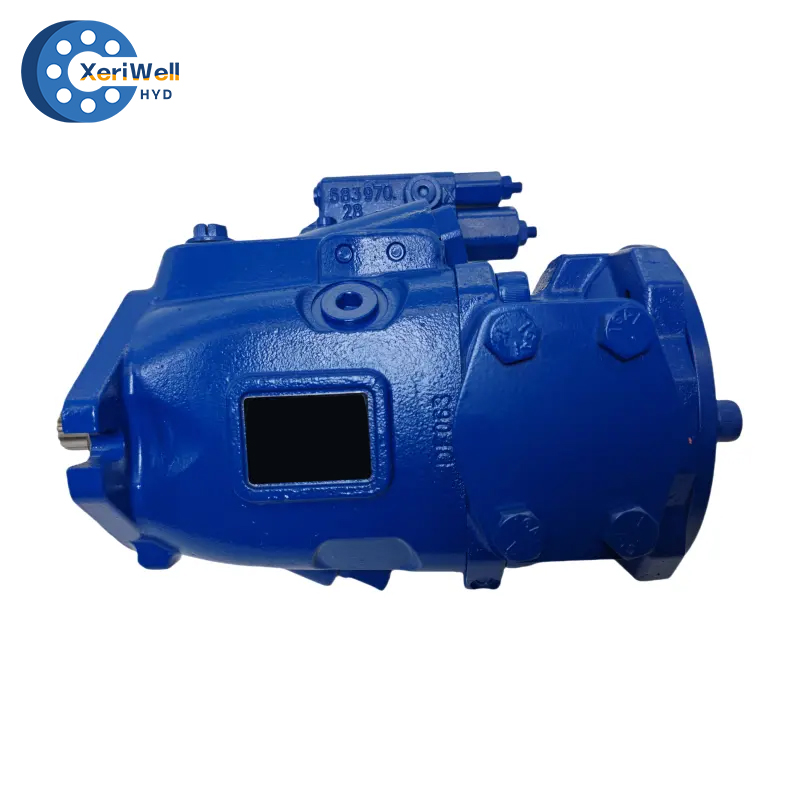

The A10VNO pump is an axial piston variable pump. It's designed to be used in open circuits.
Features:
1) Axial piston variable pump in swashplate design for hydrostatic drives in open circuits
2) Flow is proportional to drive speed and displacement. It can be infinitely varied by adjustment of the swashplate.
3) High power to weight ratio-small dimensions
4) Low noise level
5) Permissible continuous pressure 210 bar
6) Axial and radial loading of drive shaft possible
7) Pressure and flow control
8) Short response times
9) Well proven A10-technology
10) Extreme small mounting dimensions
11) Cost effective alternative to fixed displacement pumps
12) Costs -optimized design
Type: A10VNO28, A10VNO45, A10VNO63, A10VNO85

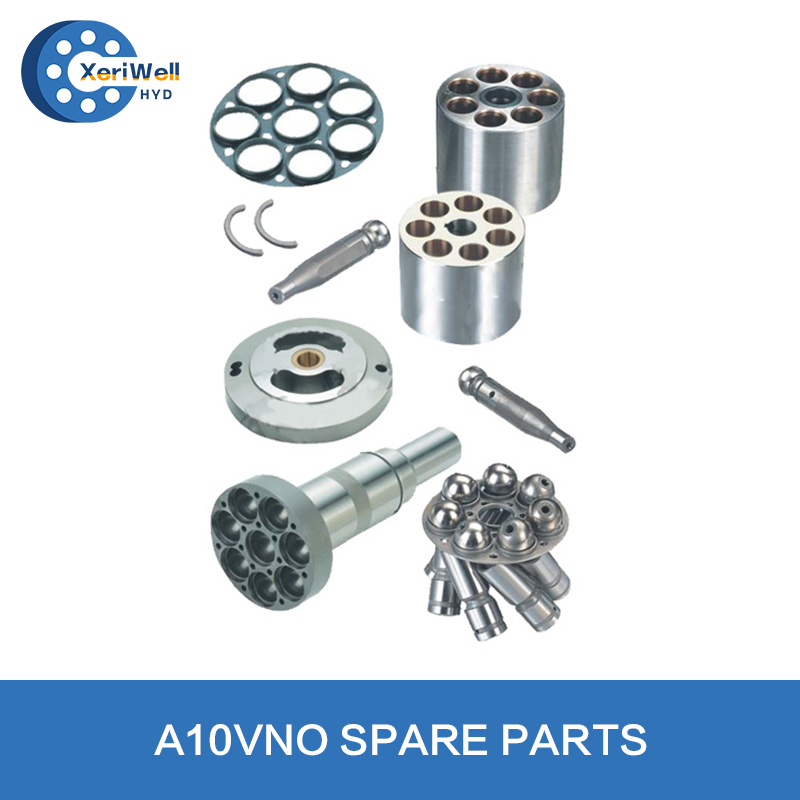

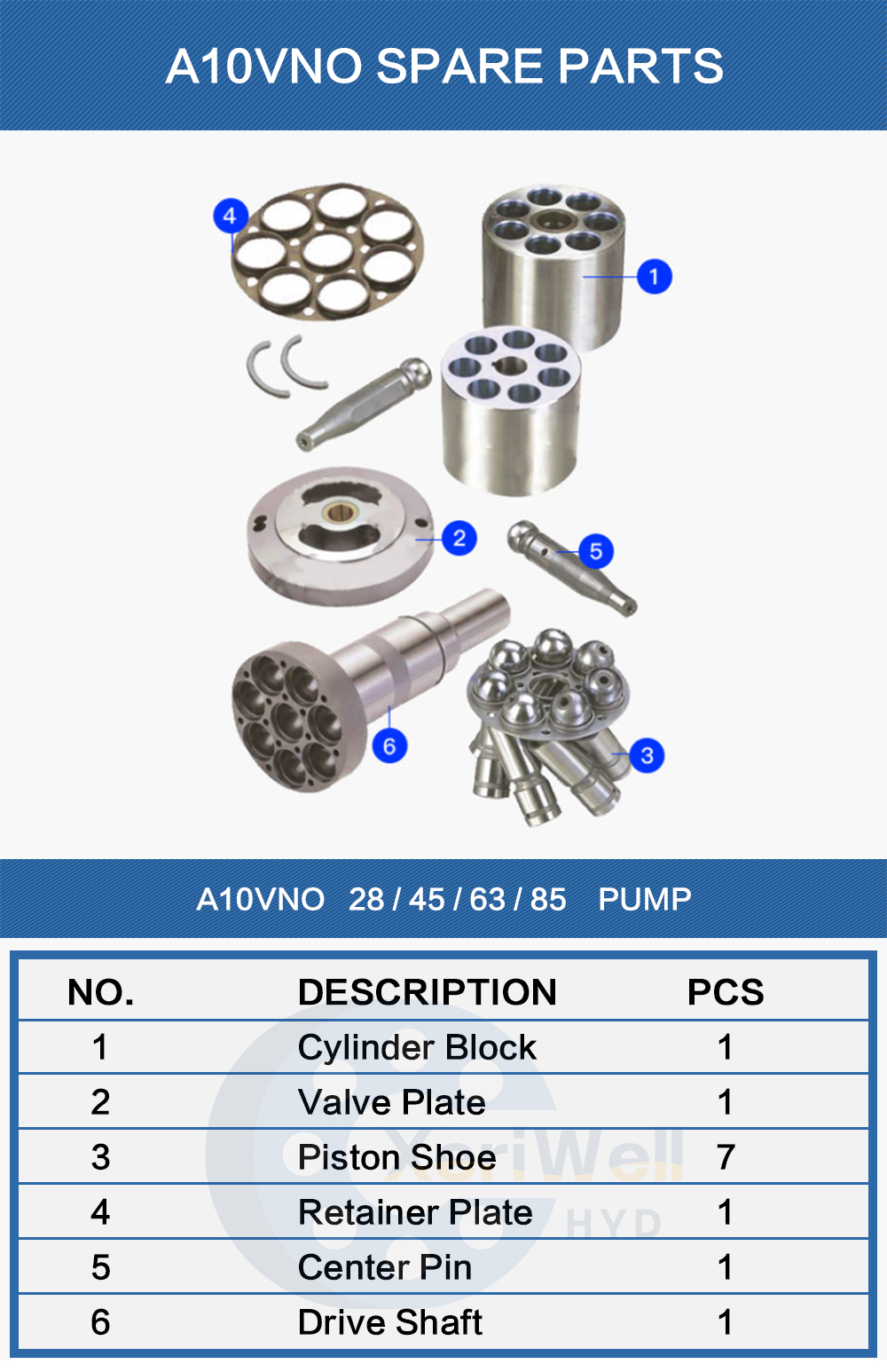

REXROTH A10VNO 28/45/63/85 Hydraulic Pump spare parts list:
| Table of values (theoretical values,without considering efficiencies and tolerances;values rounded) | ||||||||
| Size | 28 | 45 | 63 | 85 | ||||
| Displacement | Vg max | cm³ | 28 | 45 | 63 | 85 | ||
| Speed2) max. at Vg max | n0 max 11) | min-1 | 3200 | 2900 | 2700 | 2700 | ||
| Flow at n0 max | qV0 max 11) | L/min | 90 | 131 | 170 | 230 | ||
| Power at n0 max | Δp = 210 bar | P0 max 11) | kW | 31 | 46 | 59 | 80 | |
| Torque at Vg max | Δp = 210 bar | Tmax | Nm | 94 | 150 | 210 | 284 | |
| Torsional stiffness | Wellenende R | c | Nm/rad | 14800 | 26500 | 40500 | 69400 | |
| Moment of inertia rotary group | JTW | kgm2 | 0,001 | 0,002 | 0,004 | 0,006 | ||
| Angular acceleration,max.2) | α | rad/s2 | 6800 | 4900 | 3500 | 2500 | ||
| Case volume | V | L | 0,25 | 0,3 | 0,5 | 0,8 | ||
| Weight (with press. control) | m | kg | 11,5 | 14 | 18 | 22 | ||
| 1)self priming with absolute pressure of 1 bar at inlet port S 2)−These values are valid for conditions between the min. required .and the max. permissible drive speeds. For external sources of excitation (eg. diesel engine 2-8 fold rotary frequency,cardan shaft 2-fold rotary frequency). − The limit is valid for a single pump. − The load carrying capacity of the connecting parts must be taken into consideration. Caution:Exceeding these limits can lead to a loss of operatabiliy,reduction of service life or complete destruction of the axial piston unit. The permissible values can be calculated | ||||||||
