Hydraulic Steering Unit 101S Orbitrol OEM AL41631 for Tractor
101S Hydraulic Steering Unit can replace and M + S, apply it in the agricultural machinery of , Massey Ferguson, Kubota, Fiat, , Ford, Claas, David Brown and Deuts. Our steering unit can match with the OEM number of all machines, for example: OEM AL41631 match with OSPC-125 CN, Xeriwell 101S= OPSC.
Features:
101S series hydraulic steering control unit
1. The same function of the 101 series
2. Including integrated valve (relief valve shock valve, check valve, suction valve), Shock valve pressure settings is 6 MPa higher than relief valve
3. Replace (OSPC), M+S (HKUS/4) series.
4. Different oil port, different types of mounting, different color can choose.
5. Many kinds of displacement, can suitable for any hydraulic systems.
Applications:
101S Hydraulic steering unit is widely used in the steering control system, such as the steering system of many kinds of industrial and agricultural, mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
Main Specifications:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |

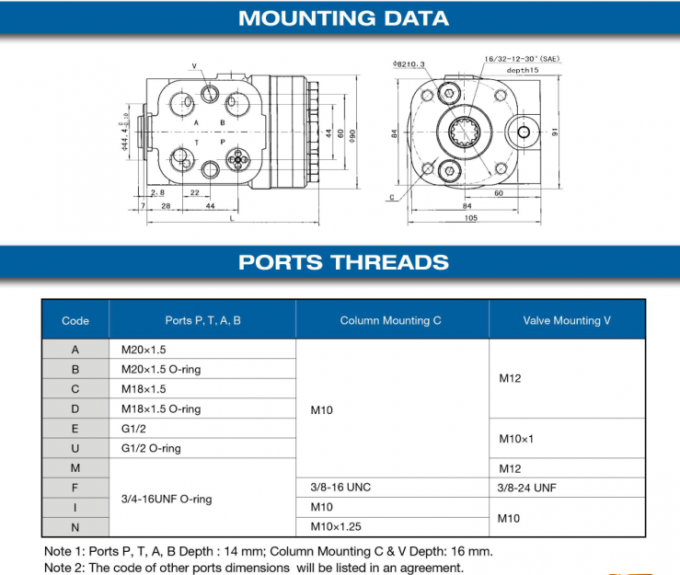

101S Dimensions and Mounting Data
PORTS THREADS | ||||
| Code | Ports P,T,A,B | Column Mounting C | Valve Mounting V | |
| A | M20×1.5 | M10 | M12 | |
| B | M20×1.5 O-ring | |||
| C | M18×1.5 | |||
| D | M18×1.5 O-ring | |||
| E | G1/2 | M10×1 | ||
| U | G1/2 O-ring | |||
| M | 3/4-16UNF O-ring | M12 | ||
| F | 3/8-16 UNC | 3/8-24 UNF | ||
| I | M10 | M10 | ||
| N | M10×1.25 | |||
| Note 1:Ports P,T,A,B Depth:14 mm;Column Mounting C &V Depth:16 mm. Note 2:The code of other ports dimensions will be listed in an agreement. | ||||
