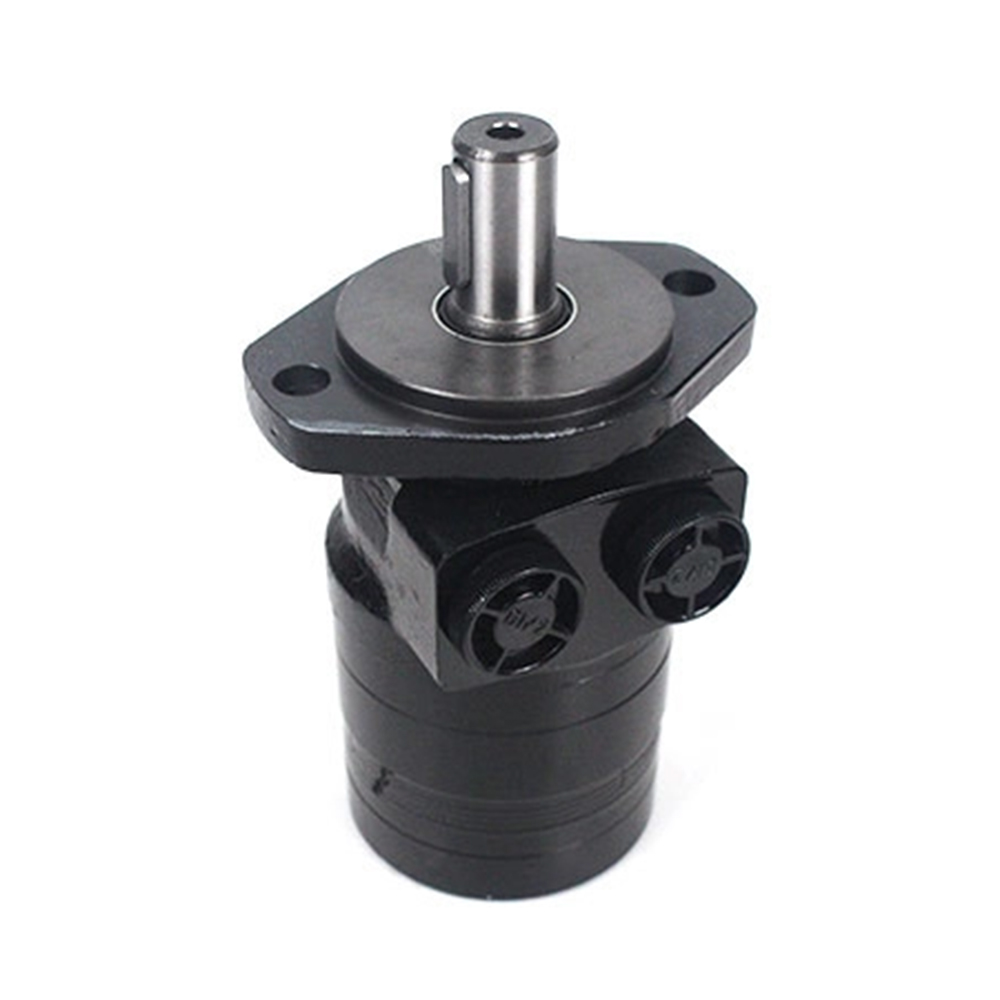

Parker Torque Motor TE Series Orbital Motor 130cc SAE 2 Bolt Flange With 25mm Key Shaft

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BME2

  • Xeriwell or Others

Item:TorqmotorOEM #:TE0125
Manufacturer:Xeriwell
Displacement:125ml/r
Mounting Flange:SAE-2 BOLT FLANGEShaft Type:25mm Keyed
Highlight:

SAE 2 Bolt Flange Orbital motor

,

130cc Orbital motor

,

25mm Key Shaft Orbital motor


Parker Torque Motor TE Series Orbital motor,130cc, SAE 2 bolt flange with 25mm key shaft

Details specifications

Series:TE
Shaft:25mm Straight Key shaft
Rotation:Standard
Displacement (cm3/rev):0125
Mounting:SAE "A" 2 Bolt
Ports:G1/2
Geometric Displacement:125 cm3/rev (10 in3/rev)
Maximum Speed:441rev/min
Maximum Oil Flow (continuous / intermittent):45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent):140 bar (2030 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure:200 bar (2900 PSID)
Maximum Torque - Continuous / Intermittent:245 Nm / 335 Nm
Maximum Performance:14.1 KW (23.4 HP)
Minimum Starting Torque - Continuous / Intermittent:245 Nm / 335Nm (3637 lb in)
