| Quantity: | |
|---|---|
BMJ-65-WS-T3
Xeriwell or Others
| Product: | Wheel Motor | Model No.: | BMJ-65-WS-T3 |
|---|---|---|---|
| Displacement: | 65cc | Flange: | Wheel Mount |
| Shaft: | 31.75 Mm Conshaft | Port: | 7/8-14 O-ring |
| Highlight: | parker tj wheel mount hydraulic motor,65 ml/r wheel mount hydraulic motor,taper shaft wheel mount hydraulic motor | ||

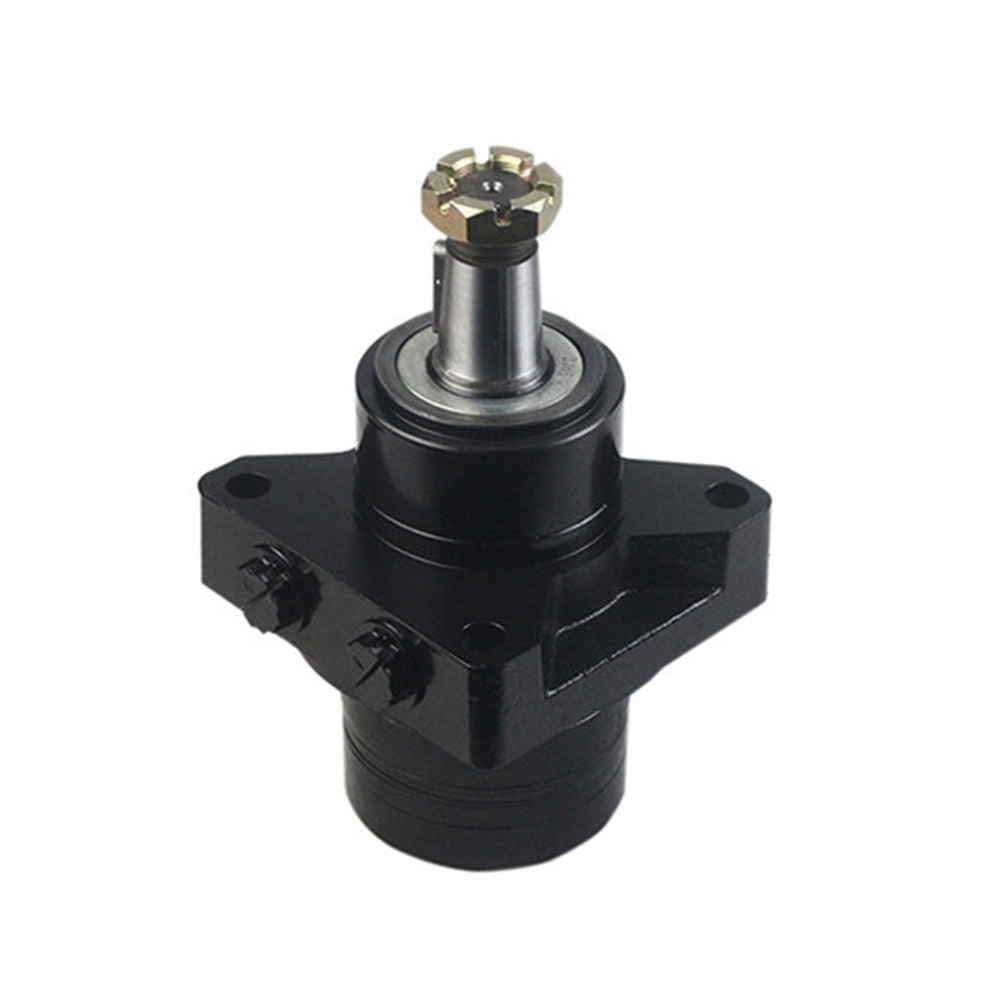

Parker TJ series replacement motor from China manufacturer Xeriwell, 65 ml/r, wheel flange, Taper shaft
Quick review:
Xeriwell BMJ-65 = Parker TJ065 apply to Turf equipment
Also BMJ series with more mounting and shaft apply to Scissors lifts, Boom lifts, mowers, Greens mowers, Sand trap rakes, Railroad maintenance equipment, Industrial sweepers and floor polishers, Skid steer attachments and many more.
Specification:
BMJ-65-WS-T3
- Displacement: 65cc
- Flange : 4-13.5 Wheel flange, pilot 82.55*7
- Ports: 7/8-14 O-ring
- Shaft: cone-shaft 31.75mm
Specification:
| Type | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | BMJ | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Displacement (cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N• m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max.pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
More BMER series to match Parker TF series
More Parker replacement motor available:
TE
TB
TC
TF
TG
TJ
TK
