| Quantity: | |
|---|---|
BMTE-250
Xeriwell or Others
| Type: | HEAVY DUTY TORQMOTOR | Model No.: | BMTE250 |
|---|---|---|---|
| Max Speed: | Cont.500/int.600 Rpm | Max Torque: | Cont.730/int.880 N.M |
| Max Output: | Cont.34.5/int.40kw | Max Pressure: | Cont.20mpa/int.24mpa |
| Highlight: | Parker TK0250 High Torque Motor,1/4' Key Straight Shaft Parker Motor,High Torque Parker Motor | ||

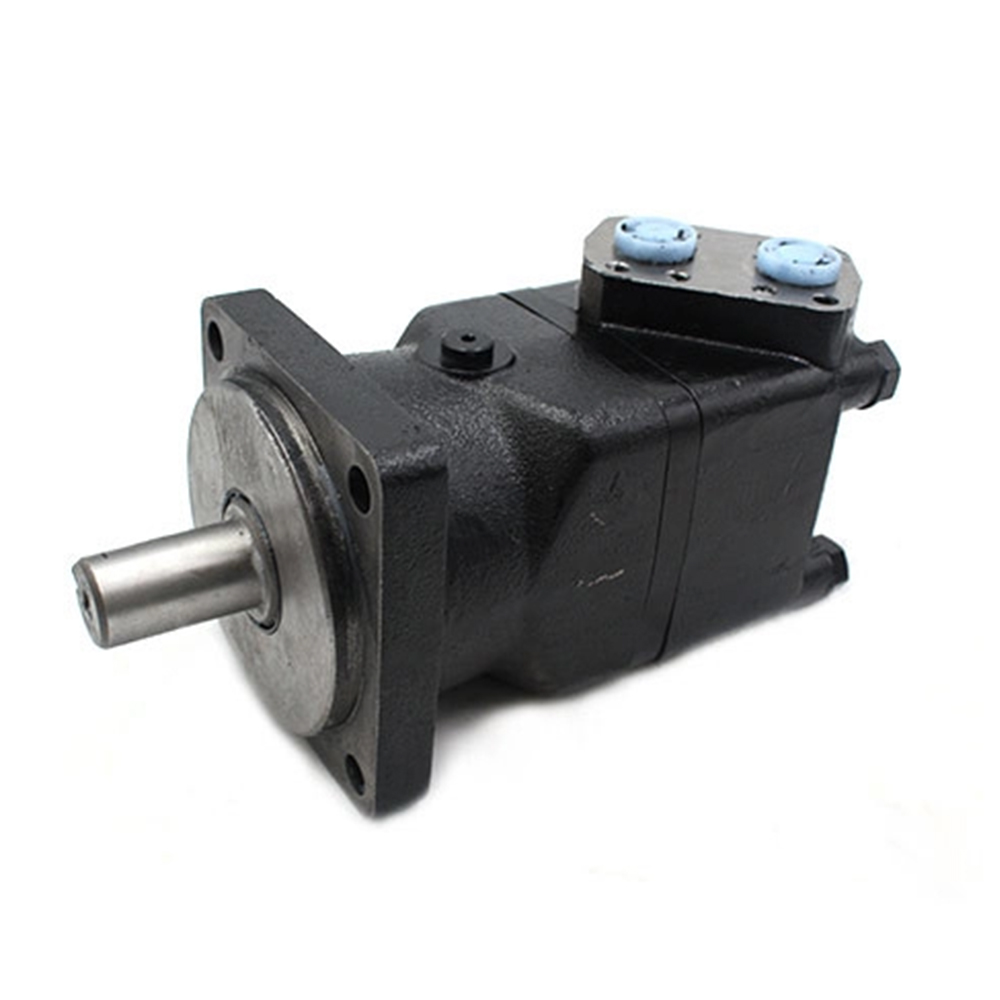

Parker TK0250 High torque motor, 1 1/4' key straight shaft ,3/4 inch side ports heavy duty motor
Xeriwell hydraulic supply the BMTE motors, matching PARKER TK series motors
that is BMTE-0250=TK0250
Details:
- Displacement: 250cc
- Shaft: 31.75mm key shaft
- Flange: 4-hole square flange φ161.9, pilot φ127x12
- Ports: 3/4 inch ports
Main spec.
| Type | BMTE 160 | BMTE 200 | BMTE 230 | BMTE 250 | BMTE 315 | BMTE 400 | BMTE 500 | BMTE 630 | BMTE 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
