| Quantity: | |
|---|---|
BMJ Wheel Motor
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | BMJ Mower Wheel Motor |
|---|---|---|---|
| Brand Name: | HANJIU | Model Number: | BMJ240 |
| Application: | Tiger , And Wildcat Mower | Advantage: | Match Parker TF Motor |
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||

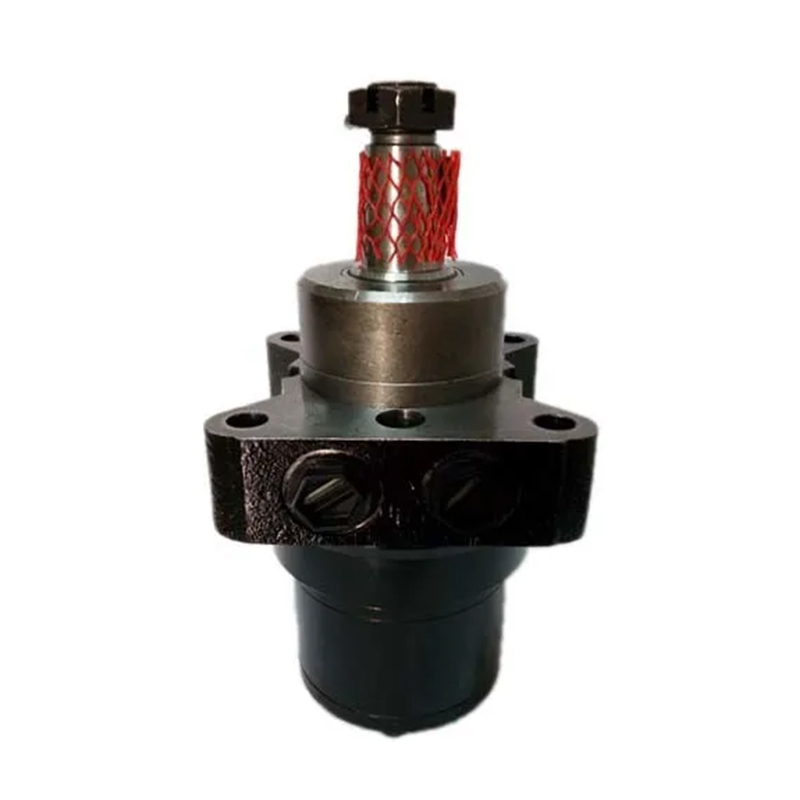

Tiger , Wildcat , Mower Wheel Motor Parker TF0240LS080AAFB TF0240LS080AAKY
Heavy-duty bearings
High volumetric efficiency
6-month parts and labor warranty, valid from the installation date by an authorized dealer
Direct drive design, no gears required
High starting torque
OEM Replacement Part For:
|
|
|
|
|
|
|
1. Characteristic Features
This BMJ Motor match than Parker wheel motor blows its competition away with its high volumetric efficiency, high starting torque, and heavy-duty bearings
No gears required - this motor is direct drive
Always make sure to replace the wheel motor and lines, flush the tanks, and install a new oil filter when installing a hydro pump - failing to do so may cause the hydro pump to fail
2. Specification
3. Application
1. lawn mowers
2. Combin Harvester
3. Hydraulic winch
4. Mining Equipment
5. Wheel traveling equipment

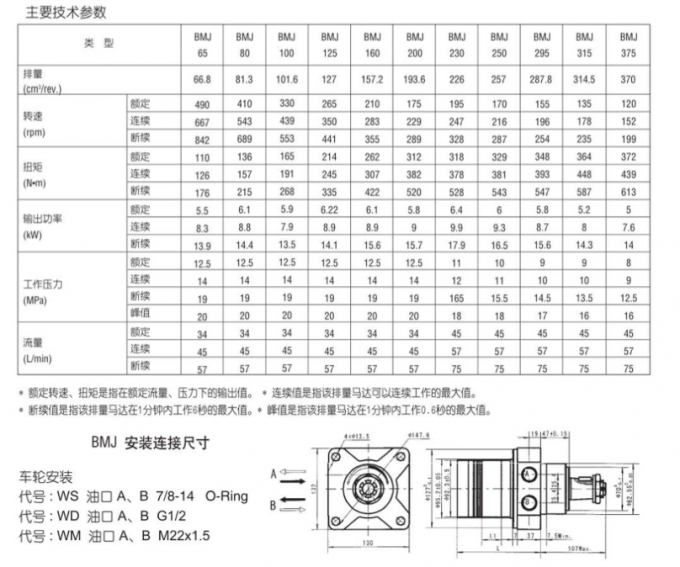

| 主要技术参数 | ||||||||||||
| 类 型 | BMJ 65 | BMJ 80 | BMJ 100 | BMJ 125 | BMJ 160 | BMJ 200 | BMJ 230 | BMJ 250 | BMJ 295 | BMJ 315 | BMJ 375 | |
| 排量(cm3/rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| 转速(rpm) | 额定 | 490 | 410 | 330 | 265 | 210 | 175 | 195 | 170 | 155 | 135 | 120 |
| 连续 | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 | |
| 新续 | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| 扭矩(N•m) | 额定 | 110 | 136 | 165 | 214 | 262 | 312 | 318 | 329 | 348 | 364 | 372 |
| 连续 | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 | |
| 新续 | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| 输出功率(kW) | 额定 | 5.5 | 6.1 | 5.9 | 6.22 | 6.1 | 5.8 | 6.4 | 6 | 5.8 | 5.2 | 5 |
| 连续 | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 | |
| 新续 | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| 工作压力(MPa) | 额定 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 10 | 9 | 9 | 8 |
| 连续 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 | |
| 新续 | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| 峰值 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| 流量(L/min) | 额定 | 34 | 34 | 34 | 34 | 34 | 34 | 45 | 45 | 45 | 45 | 45 |
| 连续 | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 | |
| 新续 | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
| * 额定转速、扭矩是指在额定流量、压力下的输出值。 * 连续值是指该排量马达可以连续工作的最大值。 * 新续值是指该排量马达在1分钟内工作8秒的最大值。* 峰值是指该排量马达在1分钟内工作0.6秒的最大值。 | ||||||||||||
