| Quantity: | |
|---|---|
BM series
Xeriwell or Others
| Item: | Low Speed High Torque Hydraulic Motor | Type: | Low Speed, High Torque |
|---|---|---|---|
| Displacement: | 8 Ml/r - 1000 Ml/r | Speed: | 10 Rpm - 2000 Rpm |
| Out Put Power: | 3.2 KW - 43 KW | Option: | Parker, Danfoss, Eaton, White |
| Highlight: | Parker Low Speed High Torque Hydraulic Motor,Danfoss Low Speed High Torque Hydraulic Motor,Eaton Low Speed High Torque Hydraulic Motor | ||

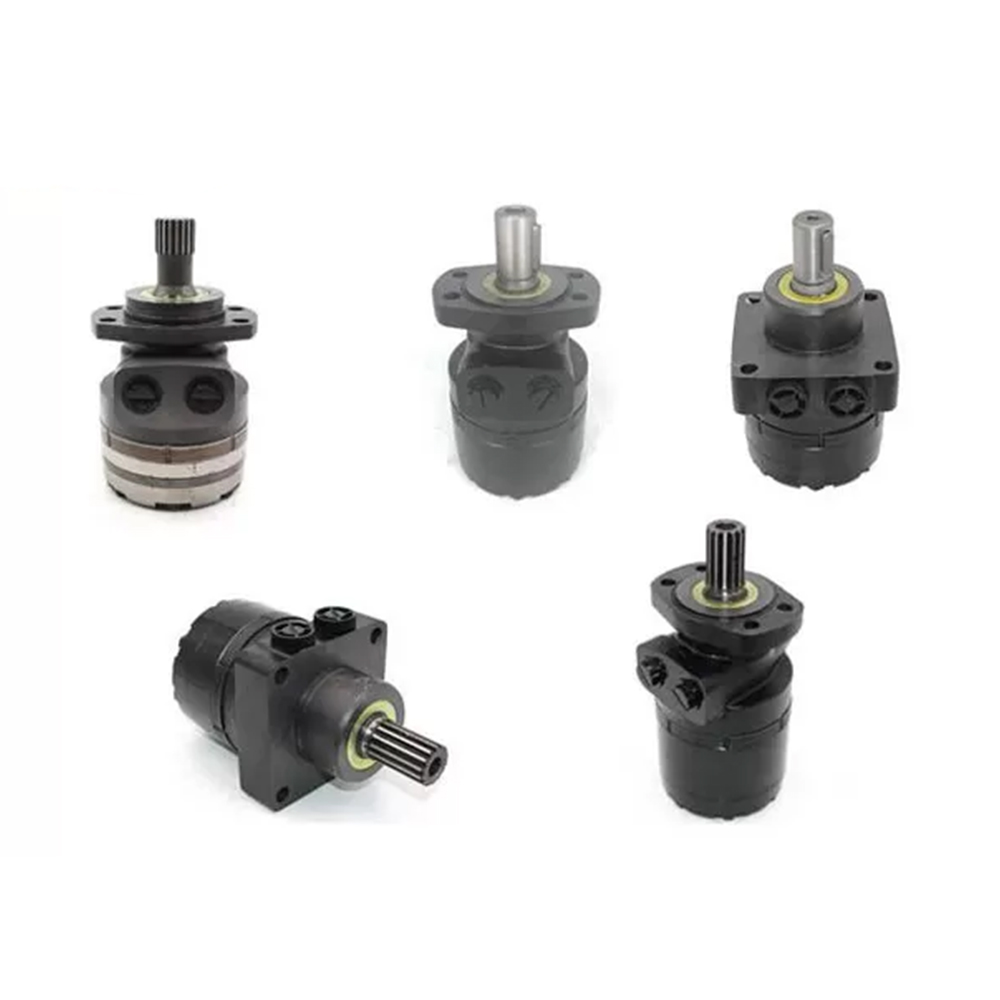

Low speed high torque hydraulic motor Parker, Danfoss, Eaton, White Replacement
Character of Low Speed High Torque Hydraulic Motor:
Low speed and high torque hydraulic motor has the advantages of small size, simple structure, good low speed stability, large torque, insensitive to external environment pollution, high safety, low impact resistance and inertia. Our manufacturing, distribution, export of hydraulic motors belong to low speed and high torque hydraulic motors
| Axial Distributor Type Motor |
| BMMSeries Hydraulic Motor ---------------------------------------3-9 |
| BMP Series Hydraulic Motor -------------------------------------10-23 |
| BMR Series Hydraulic Motor -------------------------------------24-35 |
| BMH Series Hydraulic Motor -------------------------------------36-42 |
| Disc Distributor Type Motor |
| BMS Series Hydraulic Motor -------------------------------------43-58 |
| BMT Series Hydraulic Motor -------------------------------------59-72 |
| BMV Series Hydraulic Motor -------------------------------------73-79 |
| BMK2 Series Hydraulic Motor ----------------------------------80-87 |
| BMK6 Series Hydraulic Motor ---------------------------------88-95 |
| BMER Series Hydraulic Motor ------------------------------ 96-104 |
BM series hydraulic motor features:
1. Its structure is simple, low speed and stability is good, and the power per unit weight is much larger than other types of hydraulic motors;
2. Small volume, light weight, 8-1000ml/r displacement, wide rotation speed range;
3. advanced shaft seal design, superior back bearing capacity;
4. Strong short-term overload capacity and large output torque;
5. There are two types of axial flow distribution and end flow distribution, with a wide range of use.
| Specification Data of Hydraulic Motors | |||||
| Displacement | Max. operating pressure | Speed range | Max. output power | ||
| Distribution type | Model | (cm3/rev.) | (MPa) | (rpm) | (kW) |
| Axial distribution | BMM | 8~50 | 14 | 30-1950 | 3.2 |
| BMP | 36~400 | 16.5 | 30~879 | 10 | |
| BMR | 36~375 | 20 | 30~970 | 15 | |
| BMH | 200~500 | 20 | 30~430 | 17 |
| Specification Data of Hydraulic Motor | |||||
| Displacement | Max. operating pressure | Speed range | |||
| Distribution type | Model | (cm3/rev.) | (MPa) | (rpm) | (kW) |
| Disc distribution | BMS | 80~375 | 22.5 | 30~800 | 20 |
| BMS | 80~475 | 22.5 | 8~800 | 24 | |
| BMT | 160~800 | 24 | 30~705 | 35 | |
| BMV | 315~800 | 28 | 10~446 | 43 |
We work with hydraulic motor dealers, hydraulic equipment manufacturers, and hydraulic motor users from all over the world They use our low speed high torque hydraulic motor directly replace low speed high torque hydrualic motor of Parker, Danfoss, Eaton, White, Brevini, M+S
Our combined strength will give both paties big advantages
Whatever hydraulic motor you need, welcome to send your list of requirements
We will match and provide for you
