| Quantity: | |
|---|---|
BZZ
Xeriwell or Others
| Product Name: | General Steering Components Steering Units | Feature: | Check Valve, External Valve Block Option |
|---|---|---|---|
| Technology: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing | Oil Port: | G1/2" |
| Displacement: | 50cc-1000cc | Application: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Highlight: | power steering valve,power steering control unit | ||

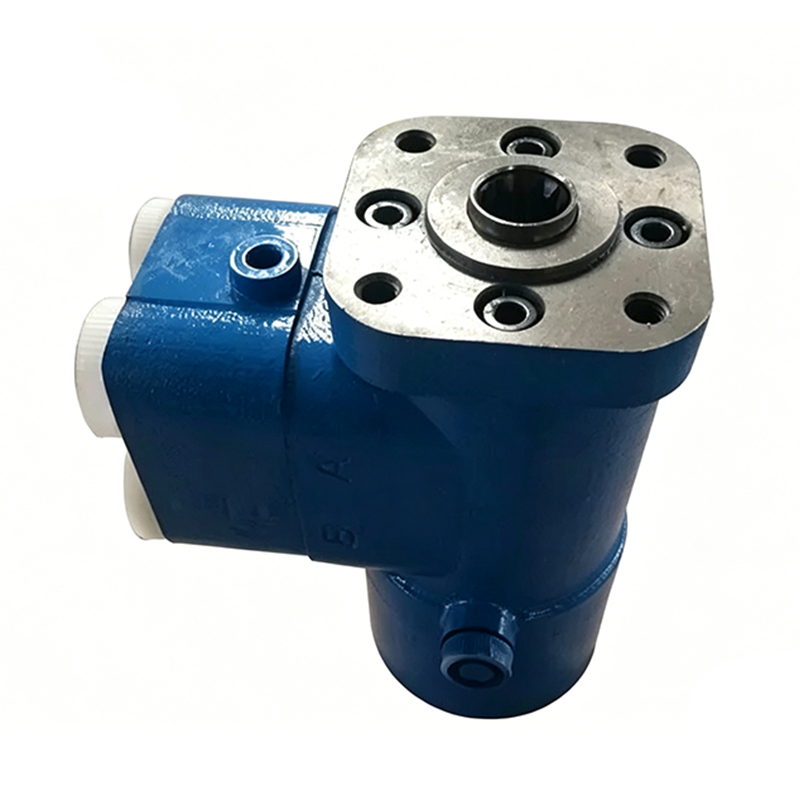

Zoomlion Steering Unit
Specifications:

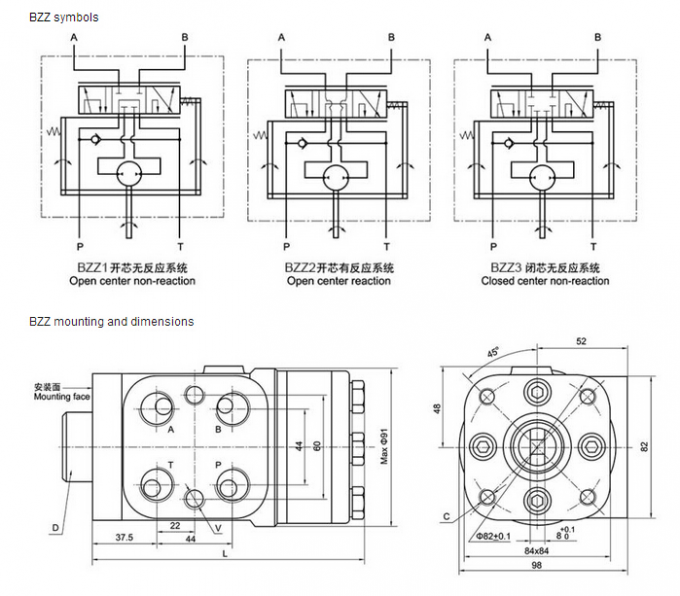

BZZ1 = Open center, no reaction
BZZ2 = Open center, reaction
BZZ3 = Close center, no reaction
BZZ5T = Load sensing
displacement from 50cc - 1000cc
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.
We provide include but not limited the below:
| 1 | Steering Units | BZZ1-E100 B | BZZ1-E100 B |
| 2 | Steering Units | BZZ3-E200 B | BZZ3-E200 B |
| 3 | Steering Units | BZZ1-E250 B | BZZ1-E250 B |
| 4 | Steering Units | BZZ3-E250B | BZZ3-E250B |
| 5 | Steering Units | BZZ1-E315 B | BZZ1-E315 B |
| 6 | Steering Units | BZZ3-E400 B | BZZ3-E400 B |
| 7 | Steering Units | BZZ1-E500 B | BZZ1-E500 B |
| 8 | Steering Units | BZZ1-E630 B | BZZ1-E630 B |
| 9 | Steering Units | BZZ1-E1000 B | BZZ1-E1000 B |
| 10 | Hyd. Motor | BMS-200-E4-B-D00 | BM5-5-I-6-A-2-F |
| 11 | Hyd. Motor | BMS-315-E4-B-D00 | BM5-7-I-6-A-2-F |
| 12 | Hyd. Motor | BMR-080-2C-D00 | BM2-2-D-2-A-2-F |
| 13 | Hyd. Motor | BMR-100-2C-D00 | BM2-3-D-2-A-2-F |
| 14 | Hyd. Motor | BMR-125-2C-D00 | BM2-A-D-2-A-2-F |
| 15 | Hyd. Motor | BMR-160-2C-D00 | BM2-4-D-2-A-2-F |
| 16 | Hyd. Motor | BMR-315-2E-M00 | BM2-7-D-4-B-1-F |
| 17 | Steering Units | 102S-5T-100-16-F | 101S-5T-100-16-F |
| 18 | Steering Units | 102S-5T-160-16-F | 101S-5T-160-16-F |
| 19 | Steering Units | 102S-5T-200-16-F | 101S-5T-200-16-F |
| 20 | Steering Units | 102S-5T-250-16-F | 101S-5T-250-16-F |
| 21 | Steering Units | 102S-5T-315-16-F | 101S-5T-315-16-F |
| 22 | Steering Units | 102S-5T-400-16-F | 101S-5T-400-16-F |
| 23 | Steering Units | 102S-5T-500-16-F | 101S-5T-500-16-F |
| 24 | Steering Units | 102S-5T-630-16-F | BZZ-5T-630-16-F |
| 25 | Steering Units | 102S-5T-800-16-F | BZZ-5T-800-16-F |
Advantages:
The advantages of the hydraulic steering control units:
1. Low cost, reliable.
2. No load reaction on the steering wheel comfortable.
3. Manual operation available when the pump doesnt work.
4. Low control torque, continuous operation.
5. According to the system, different function and pressure level valves available.
Specification:
| Type | Displacement (mL/r) | Flow (L/min) | Max.input pressure (MPa) | Max. cont. back pressure (MPa) | Length (mm) |
| BZZ (1.2.3)–E50 * | 50 | 4 | 16 | 2.5 | 140 |
| BZZ(1.2.3) –E63 * | 60 | 5 | 141 | ||
| BZZ(1.2.3) –E80 * | 80 | 6 | 142.5 | ||
| BZZ(1.2.3) –E100 * | 10 | 7.5 | 145 | ||
| BZZ(1.2.3) –E125 * | 125 | 9.5 | 148 | ||
| BZZ (1.2.3)–E160 * | 160 | 12 | 153 | ||
| BZZ(1.2.3) –E200 * | 200 | 15 | 158 | ||
| BZZ (1.3)–E250 * | 250 | 19 | 164 | ||
| BZZ (1.3)–E280 * | 280 | 21 | 169 | ||
| BZZ (1.3)–E315 * | 315 | 24 | 174 | ||
| BZZ(1.3) –E400 * | 400 | 30 | 184 | ||
| BZZ (1.3)–E500 * | 500 | 38 | 197 | ||
| BZZ(1.3) –E630 * | 630 | 48 | 216 | ||
| BZZ (1.3)–E800 * | 800 | 60 | 236 | ||
| BZZ (1.3)–E1000 * | 10000 | 75 | 262 |
