BMSY-160-E4-B-EE-D
Xeriwell or Others
| Product: | Orbit Hydraulic Motor | Model No.: | BMSY-160-E4-B-EE-D |
|---|---|---|---|
| Displacement: | 160 Ml/r | Flange: | 4-hole Flange |
| Shaft: | 32 Mm | Port: | G 1/2 |
| Manufacturer: | Xeriwell | Rotation: | Standard |
| Highlight: | BMSY Series orbit hydraulic motor,160ml/R orbit hydraulic motor,BSP Port orbit motor | ||

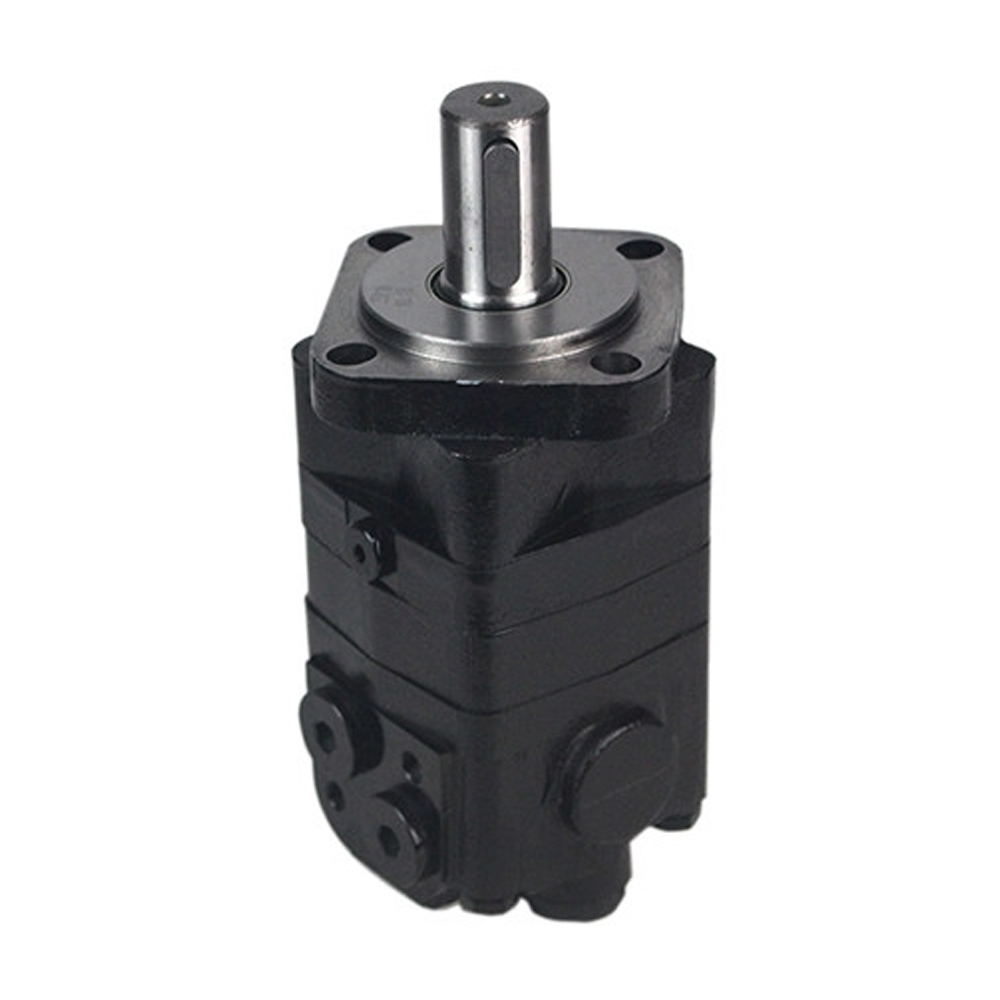

Orbital Motors BMSY Series 160ml/r 4-bolt Rhomb flange 32mm shaft BSP port 1/2 1/4
Quick review:
BMSY-160-E4-B-EE-D
| displacement | 160ml/r |
| flange | 4-bolt |
| pilot | 82.5*6.3 |
| shaft | 32mm straight |
| port | G 1/2, G1/4 |
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
