| Quantity: | |
|---|---|
OMT
Xeriwell or Others
| Item: | Torqmotor | OEM #: | OMT |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 100 - 500 Ml/r |
| Mounting Flange: | 4-hole | Shaft Type: | Keyed |
| Highlight: | omt orbit hydraulic motor,heavy applications orbit hydraulic motor,omt motor orbit hydraulic | ||
Quick review:
LSHT Torqmotors
Manufacturer: Xeriwell

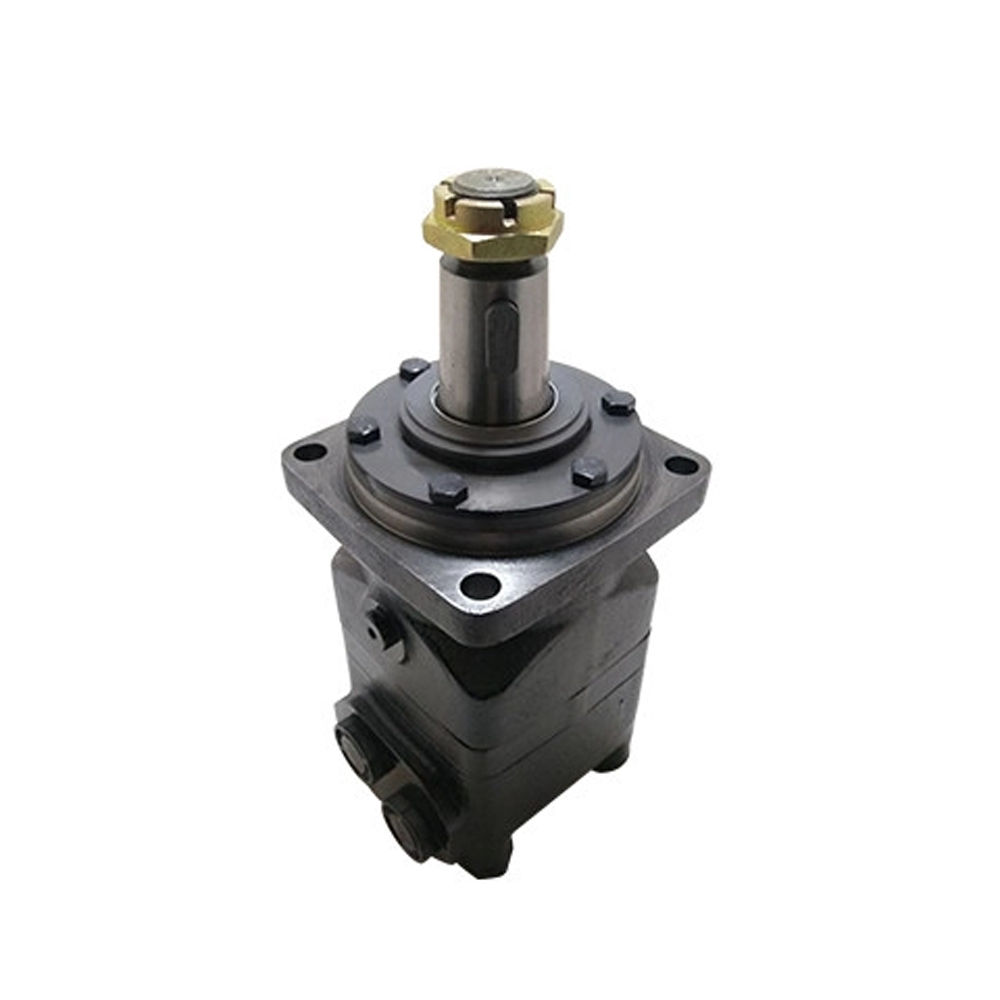

Orbital motor for heavy applications.Shaft with taper roller bearings ensures high static and dynamic bearing capacity.Orbit kit with rollers, separate integrated valve.High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
BMT is compatible with OMT.
We provide hydraulic system solutions for heavy applications.
Welcome to contact us for consultation.
Options available:
| Flange | ||
| 4 | 4-Ø14 Square-flangeØ160,pilotØ125×9 | BMT |
| K6 | 4-Ø14.5Square-flangeØ162,pilotØ127×9 | |
| W | 4-Ø18 Wheel-flangeØ200,pilotØ160×7 | |
| D | 4-Ø14 Circle-flange Ø160,pilot Ø125×8 | BMTS |
| E | 4-Ø14.5 Square-flange Ø162, pilot Ø127×10 | |
| Output Shaft | ||
| M | Shaft Ø40,parallel key 12×8×70 | BMT |
| G | Shaft Ø38.1,parallel key 9.52×9.52×57.15 | |
| F | Shaft Ø38.1,splined tooth 17-DP12/24 | |
| FD | Shaft Ø38.1,splined tooth 17-DP12/24 | |
| T | Cone-shaft 1:10 Ø45,parallel key B12×8×28 | |
| T1 | Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75 | |
| SL | shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64 | |
| G1 | shaftØ31.75,parallel key 7.96×7.96×40 | |
| F1 | Shaft Ø31.75,splined tooth 14-DP12/24 | |
| Omit | Short shaft 16-DP12/24 | BMTS |
| Port and Drain Port | ||
| D | G3/4 Manifold Mount,4-M10 , G1/4 | |
| M | M27×2 Manifold Mount,4-M10, M14×1.5 | |
| S | 1-1/16-12UN O-ring, 9/16-18UNF | |
| S1 | 1-1/16-12UN O-ring, 7/16-20UNF | |
| G | G3/4,G1/4 | |
| M3 | M27×2,M14×1.5 | |
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
