OMTS 500
Xeriwell or Others
| Features: | Replace Danfoss Eaton Char-lynn | Item: | Hydraulic Motor |
|---|---|---|---|
| Type: | Orbit Motor | PN: | OMTS 500 |
| Manufacturer: | Xeriwell | Origin: | China |
| Highlight: | OMTS 500 Danfoss Hydraulic Motor,Danfoss Hydraulic Motor Bearingless,Short Shaft Danfoss Hydraulic Motor | ||

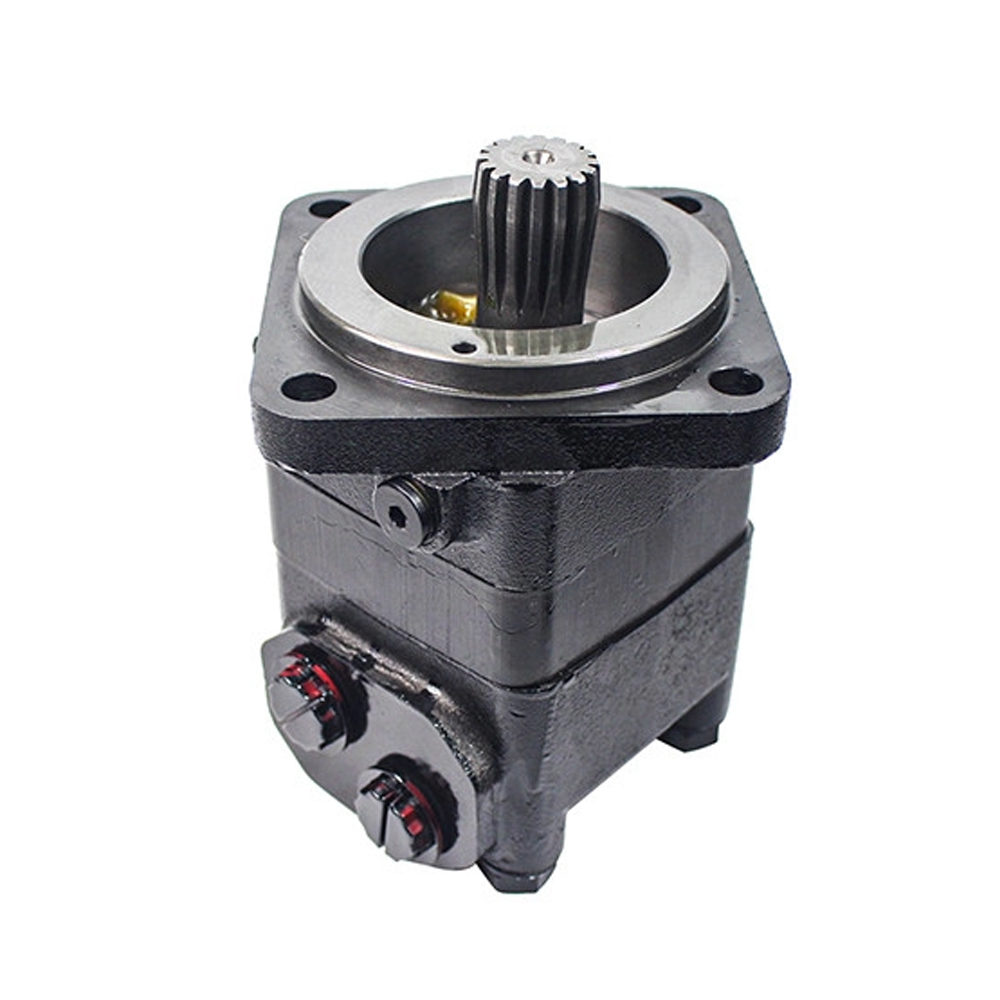

OMTS 500 Danfoss Hydraulic motor replacement, Bearingless, short shaft
Quick detail:
| Further information | |
| Output volume (cc/rev): | 523,6 |
| Shaft: | without output shaft |
| Max. speed (rpm): | 240 |
| Torque max. (Nm): | 1220 |
| Power max. (kW): | 26,5 |
| Pressure difference (bar): | 160 |
| Inlet pressure (bar): | 210 |
| Volume flow max. (l/min): | 125 |
| Motor version: | with check valves |
| Connection: | G 3/4" |
| Leak oil connection: | G 1/4" |
The shape, installation dimensions and application performance are the same as Danfoss
Images are representative only. Please verify with our technical experts as actual product may differ
Standard available
Specification:
OMS, OMT, and OMV are suitable for continuous operation under rough operating conditions: e.g. high pressure, thin oil, or frequent reversals. The tapered roller bearings on the output shaft make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency - even at high pressures, and good starting characteristics.
More Danfoss Hydraulic Motor OMSS replacement available
| Hydraulic motor OMTS 500 | hydraulic motor omr 50 | hydraulic motor omp 315 |
| Hydraulic motor OMTS 250 | hydraulic motor omr 80 | hydraulic motor omp 400 |
| Hydraulic motor OMTS 400 | hydraulic motor omr 100 | hydraulic motor oms |
| Hydraulic motor OMTS 160 | hydraulic motor omr 160 | hydraulic motor oms 80 |
| Hydraulic motor OMTS 315 | hydraulic motor omr 200 | hydraulic motor oms 100 |
| Hydraulic motor OMTS 200 | hydraulic motor omr 315 | hydraulic motor oms 125 |
| Hydraulic motor OMT 250 | hydraulic motor omr 375 | hydraulic motor oms 160 |
| Hydraulic motor OMT 200 | hydraulic motor omp 32 | hydraulic motor oms 200 |
| Hydraulic motor OMT 400 | hydraulic motor omp 40 | hydraulic motor oms 250 |
| Hydraulic motor OMT 315 | hydraulic motor omp 50 | hydraulic motor oms 315 |
| Hydraulic motor OMT 160 | hydraulic motor omp 80 | hydraulic motor oms 400 |
| Hydraulic motor OMT 250 | hydraulic motor omp 125 | hydraulic motor omh 315 |
| Hydraulic motor OMT 200 | hydraulic motor omp 160 | hydraulic motor omh 400 |
| Hydraulic motor OMT 500 | hydraulic motor omp 200 | hydraulic motor omh 500 |
| Hydraulic motor OMT 500 with PTO shaft | Hydraulic motor OMT 160 with PTO shaft | Hydraulic motor OMT 250 with PTO shaft |
| Hydraulic motor OMT 400 with PTO shaft | Hydraulic motor OMT 200 with PTO shaft | Hydraulic motor OMT 315 with PTO shaft |
