| Quantity: | |
|---|---|
BMT315
Xeriwell or Others
| Categories: | Hydraulic Heavy Motor | Name: | OMT315 |
|---|---|---|---|
| Max.output: | Cont.31.2kw/int.35kw | Max Torque: | Cont.1080N.m/int.1260N.m |
| Flange: | Square Flange | Shaft: | Straight Key Shaft |
| Highlight: | 151B2053 Hydraulic Motor,jaw crusher spare parts Hydraulic Motor,OMT315 Hydraulic Motor | ||

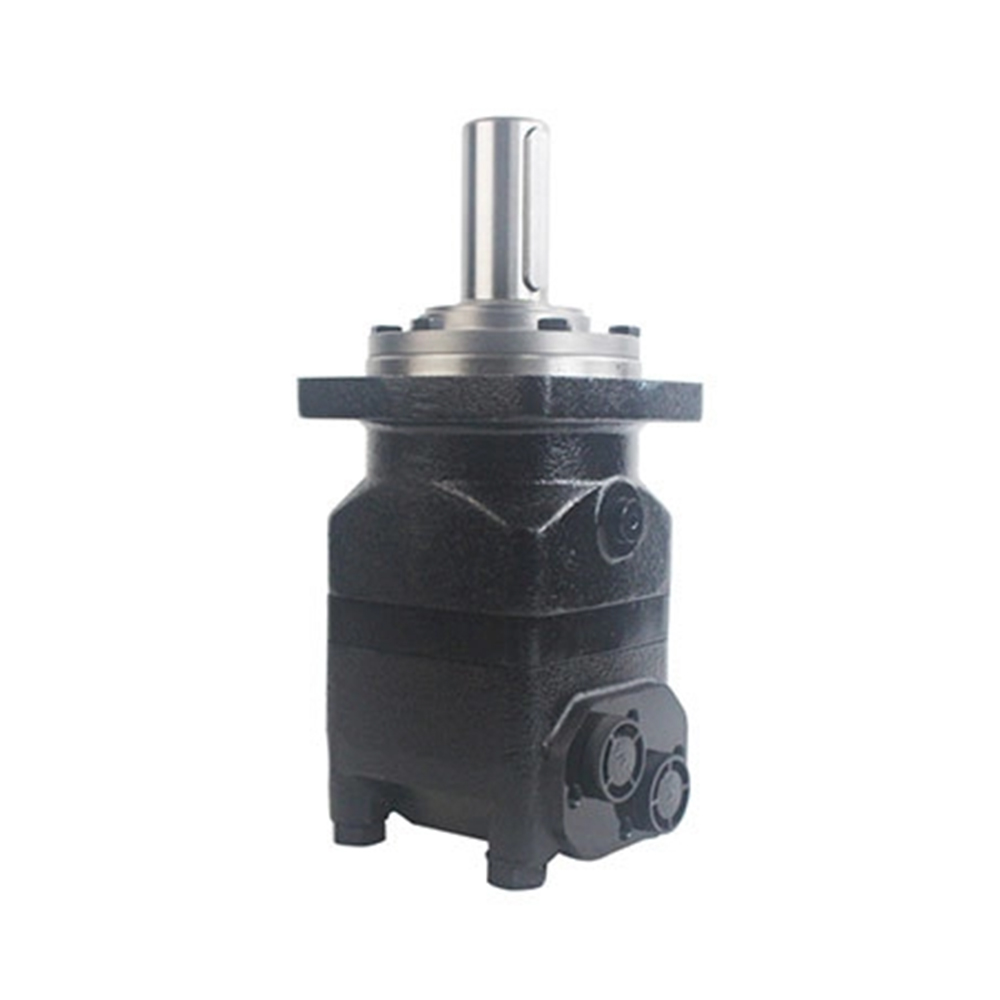

OMT315 Hydraulic Motor 151B2053--BMT-315-4-M-D for jaw crusher spare parts
Details
type code 151B2053=Hanjiu code BMT-315-4-M-D Which is widely used on jaw crusher
Output volume (cc/rev): 326.3
Shaft: φ40 straight key shaft, parallel key 12x8x70
max r.p.m.: 380
Torque max. (Nm): 950/1140
Power max. (kW): 30
Pressure difference (bar): 180
Inlet pressure (bar): 280
Volume flow max. (l/min): 125
Engine version: with non-return valves
Connection: G 3/4
Leakage oil connection: G 1/4
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
