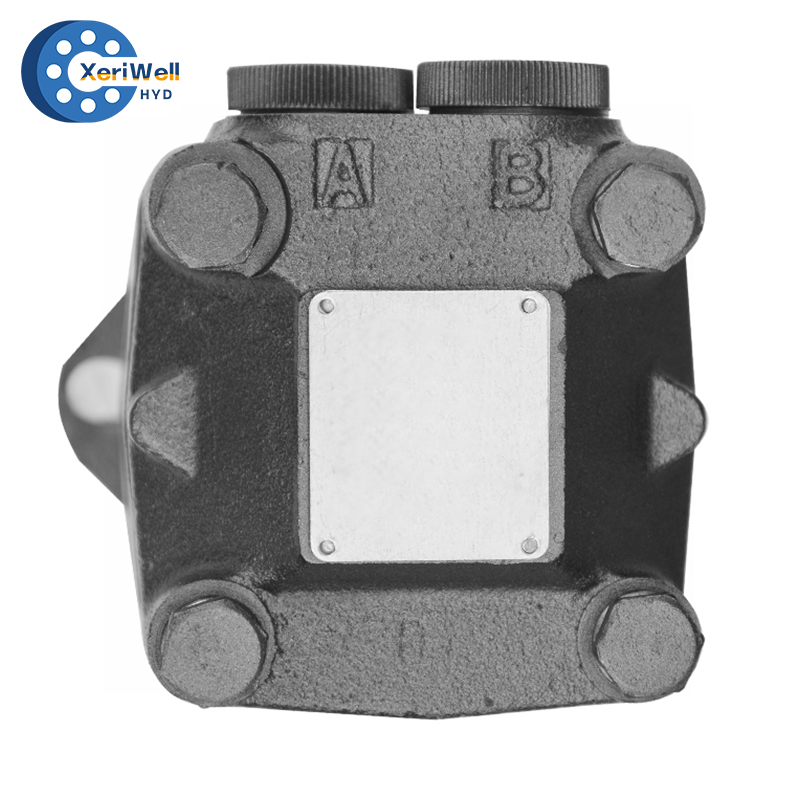

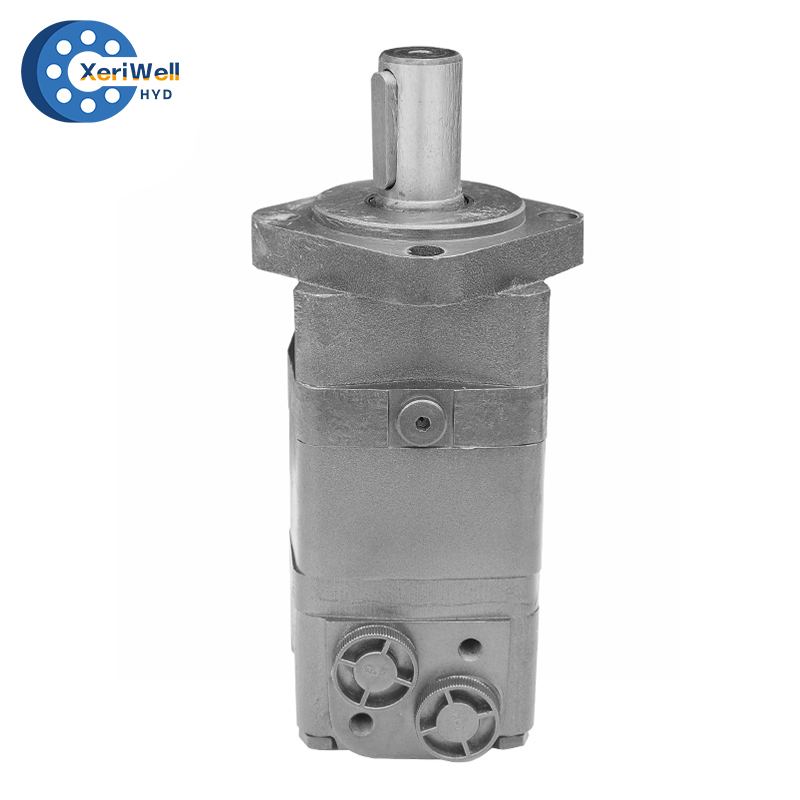

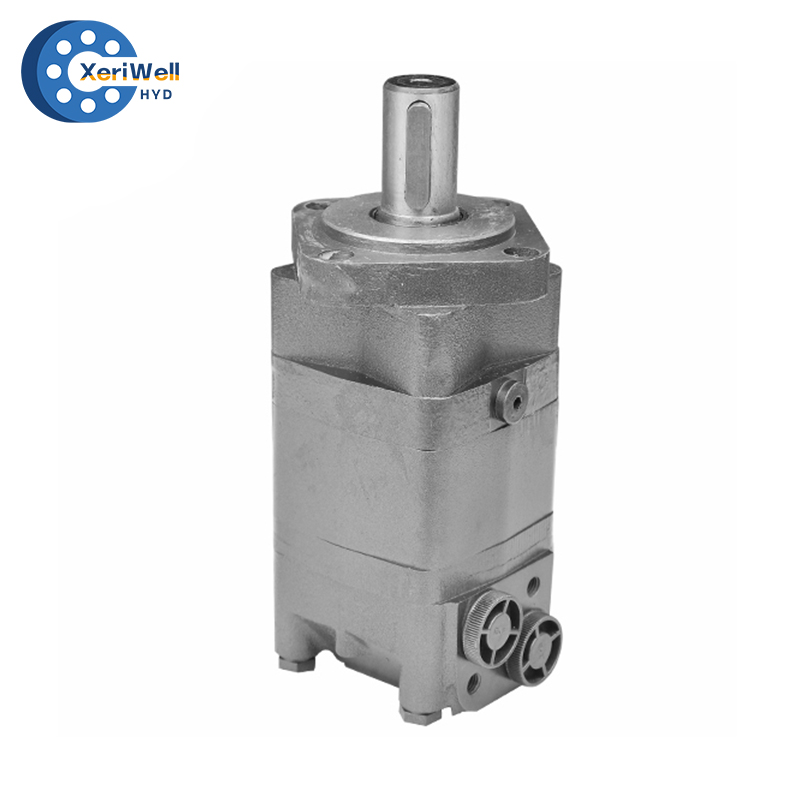

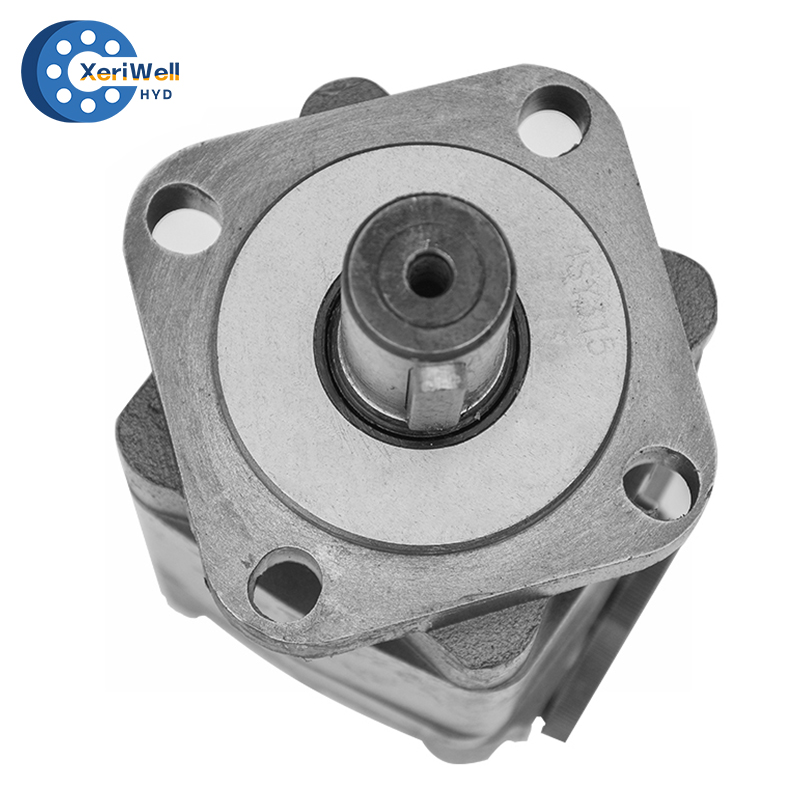

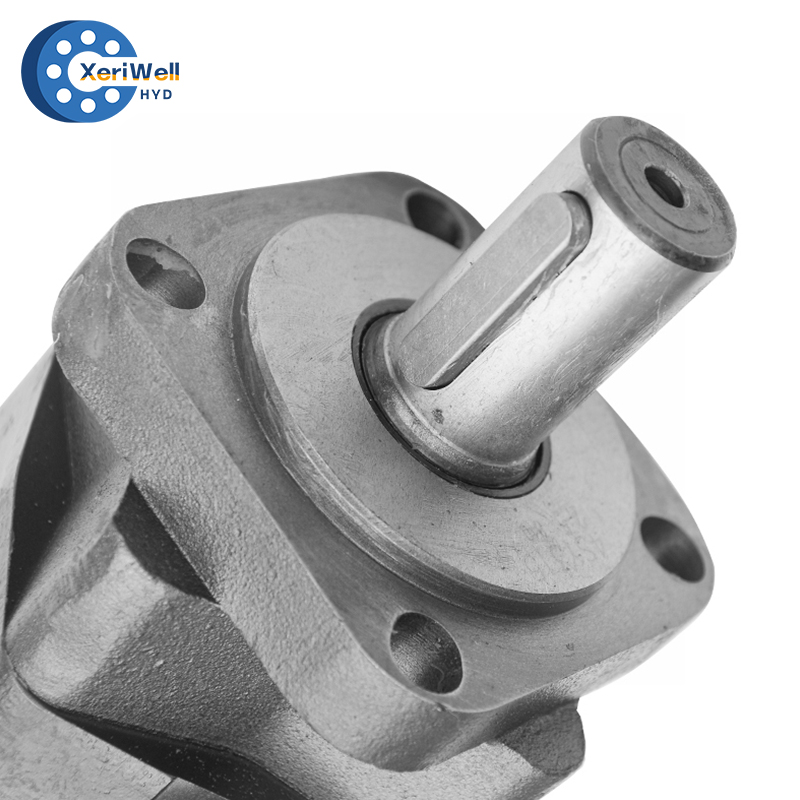

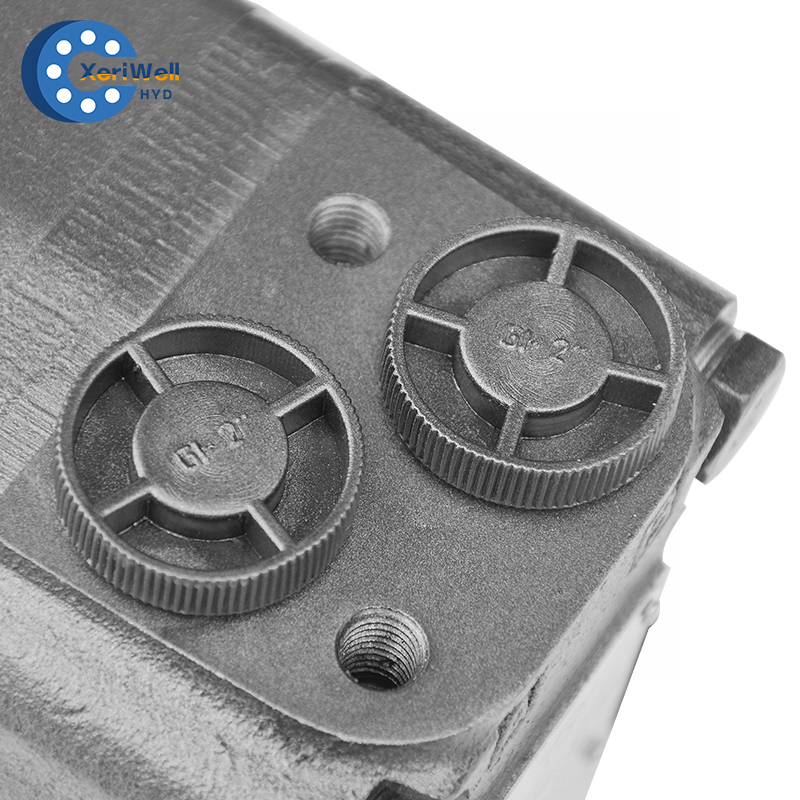

OMS BMS 80/100/125/160/200/250/315/400/475 Orbital Hydraulic motor technical data:
| BMS Technical Data | ||||||||||
| Type | BMSY BMSYS 80 | BMSY BMSYS 100 | BMSY BMSYS 125 | BMSY BMSYS 160 | BMSY BMSYS 200 | BMSY BMSYS 250 | BMSY BMSYS 315 | BMSY BMSYS 400 | BMSY BMSYS 475 | |
| Geometric displacement (cm3/rev.) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N*m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
| * Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute. | ||||||||||
