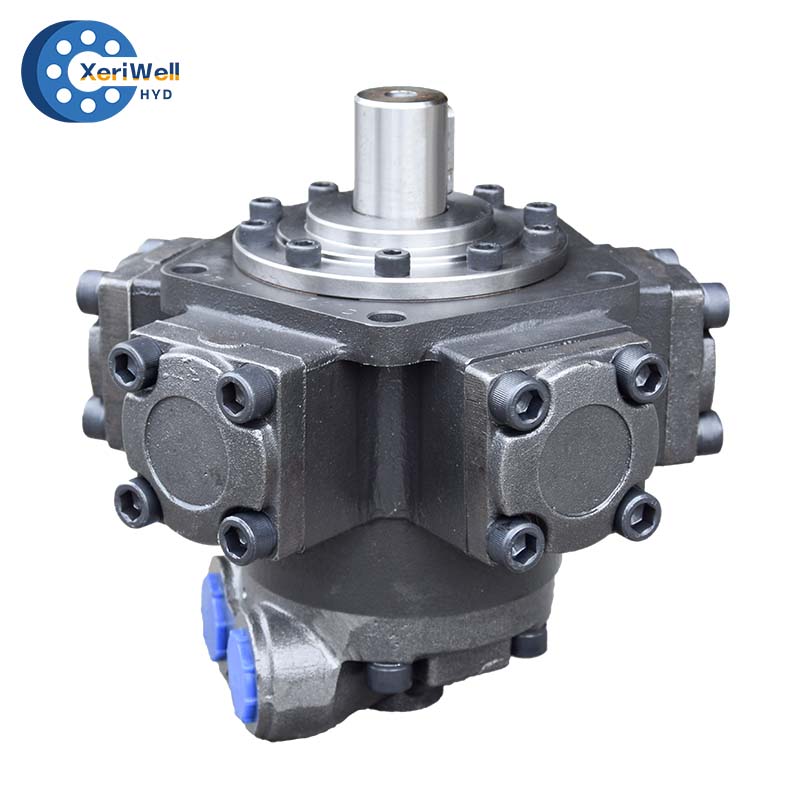

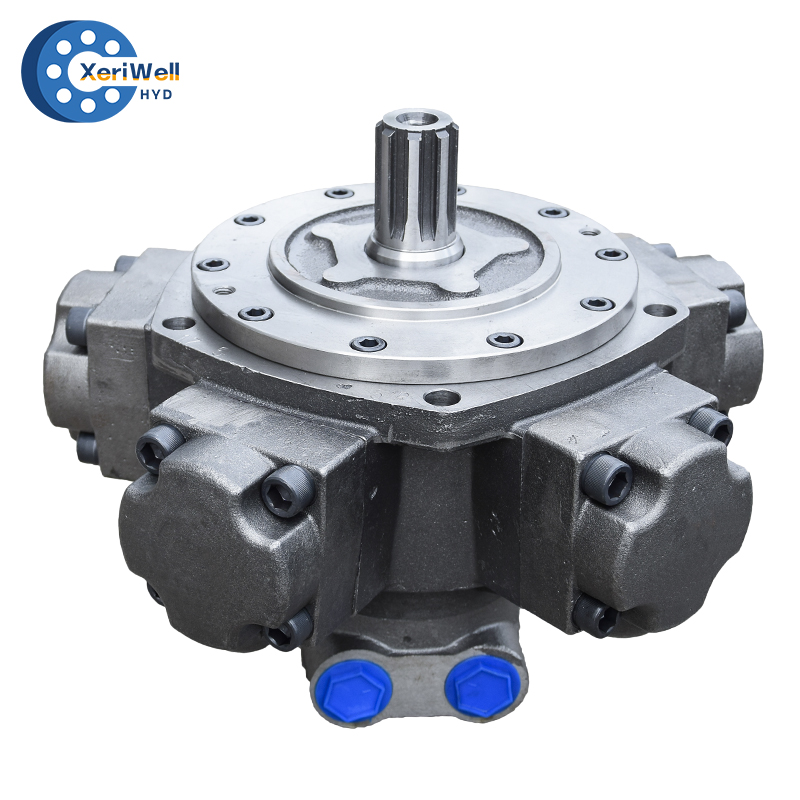

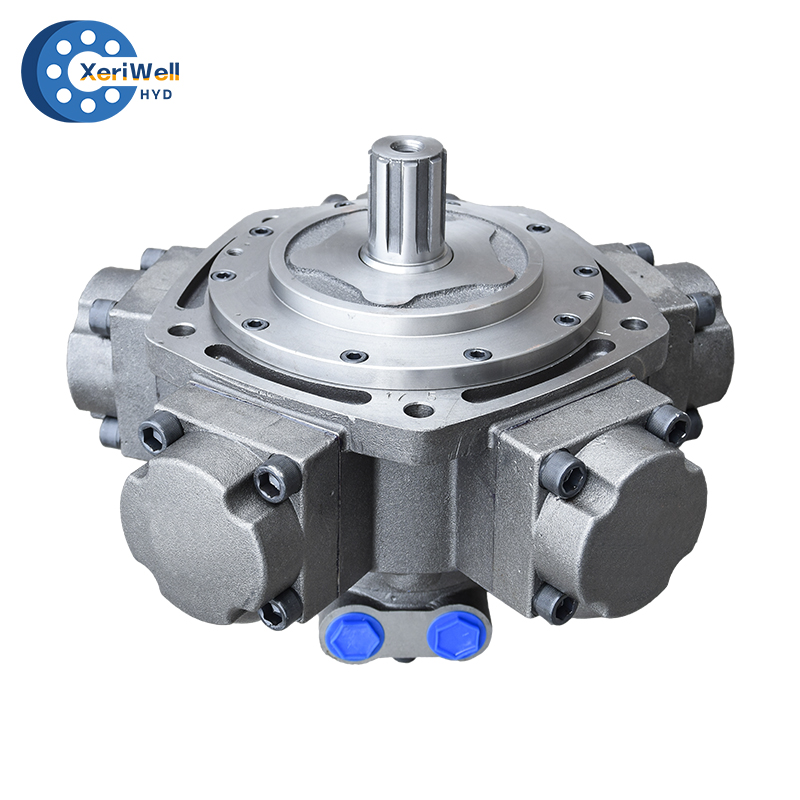

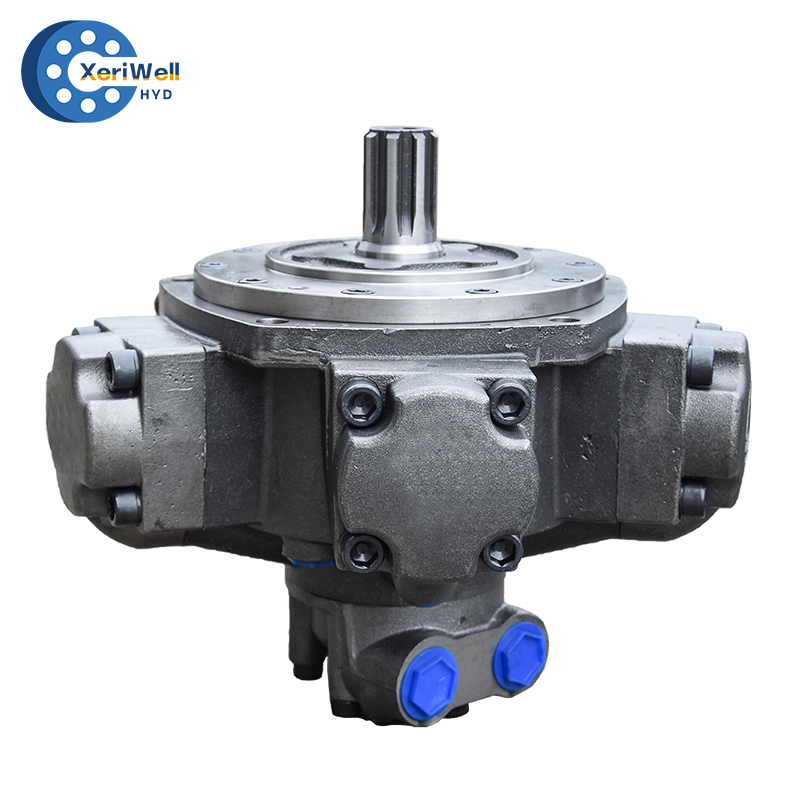

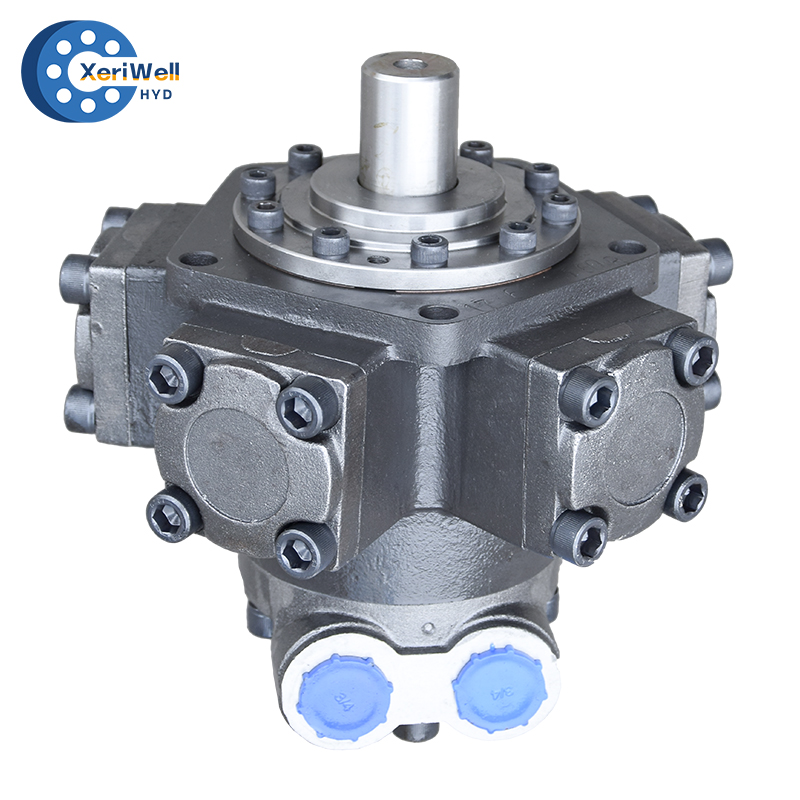

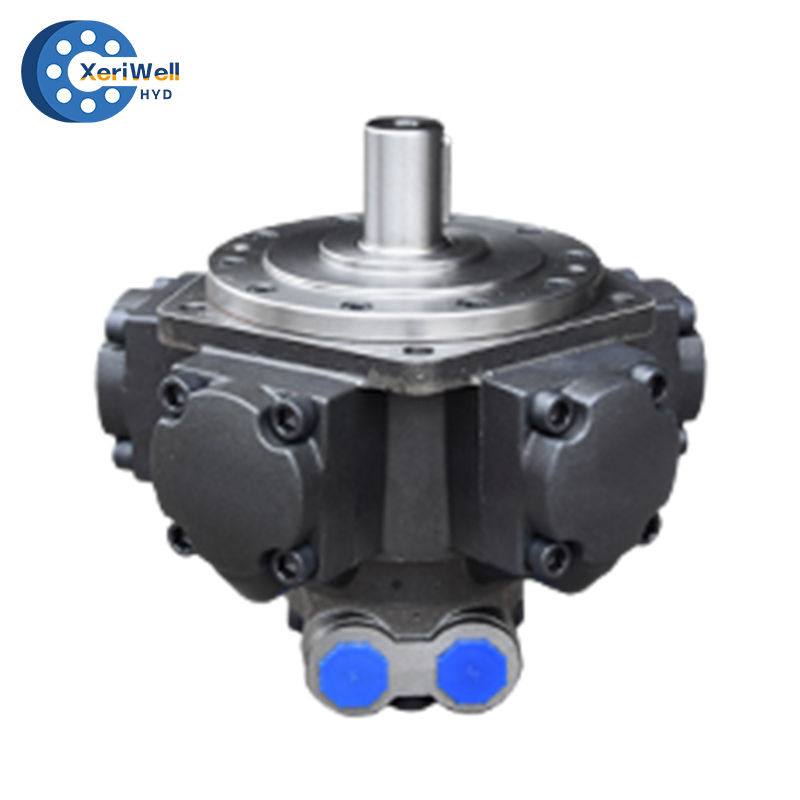

NHM Radial Piston Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	NHM01 NHM02 NHM03 NHM06 NHM08 NHM11 NHM16 NHM31 NHM70 NHM100
Spare Parts:	On sale
Availability:





Inquire Add to Basket

Product Description

NHM Radial Piston Hydraulic Motor Product Introduction

NHM series product is such kind of low speed high torque motor with crankshaft and connecting rod, produced in strict accordance with the technology and standard of Italy. Meanwhile, we also employ new technoloqy to improve the motor performance according to the market requirements.

The main features include:

1. Low noise due to an eccentric crankshaft and low excitation frequency of five-piston design;

2. Revolve steadily under very low speed due to high starting torque and good low-speed stability;

3. Good reliability and less leakage due to the patented flat compensation distributor, special sealing between piston and plunger bushing guarantees higher volumetrical effvciency;

4. High mechanical efficency due to roller bearing between crankshaft and connecting rod;

5. Reversible rotation, and the output shaft can bear certain extermal force from both radial and axial diredtions;

6. High power-mass ratio, small volume and light weight.

Type: NHM01, NHM02, NHM03, NHM06, NHM08, NHM11, NHM16, NHM31, NHM70, NHM100

NHM Radial Piston Hydraulic Motor catalogue pdf manual diagram

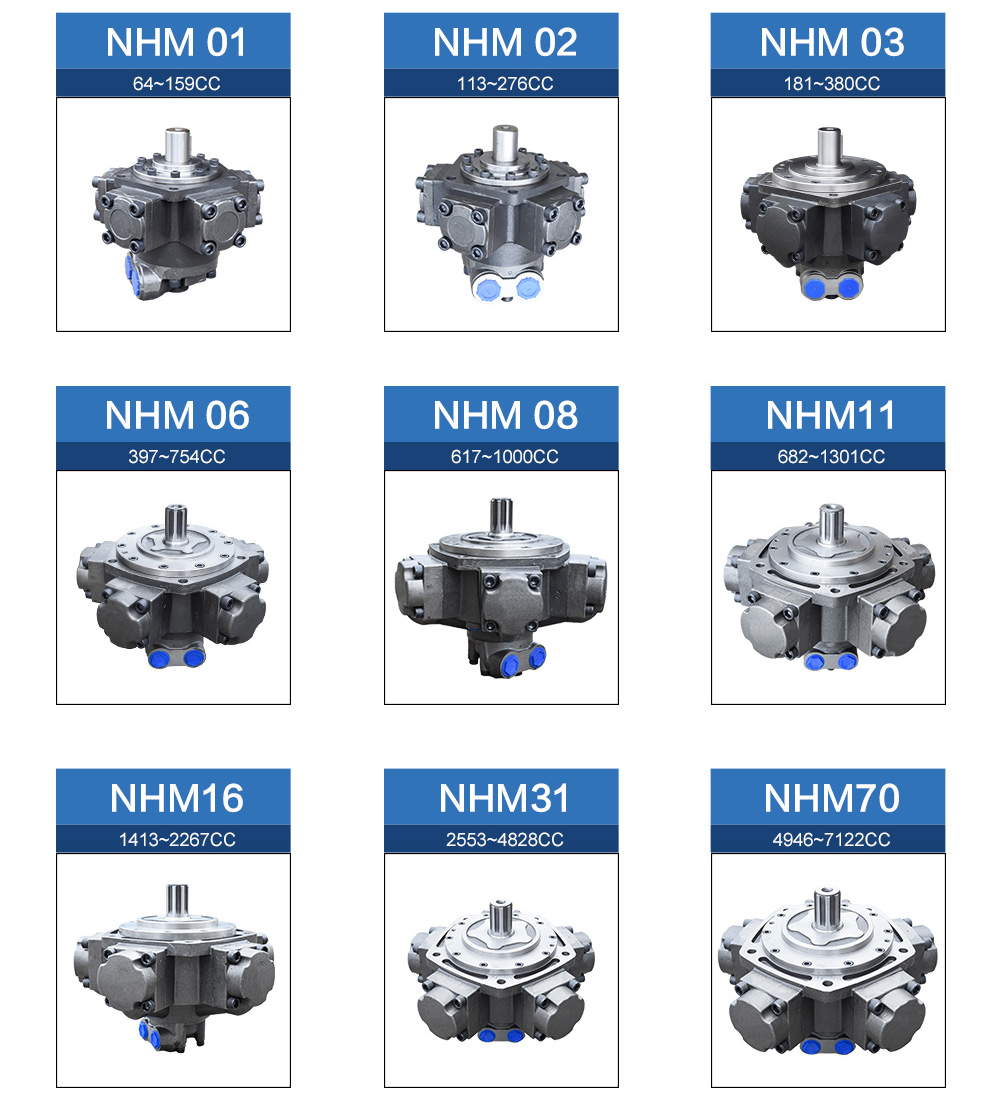

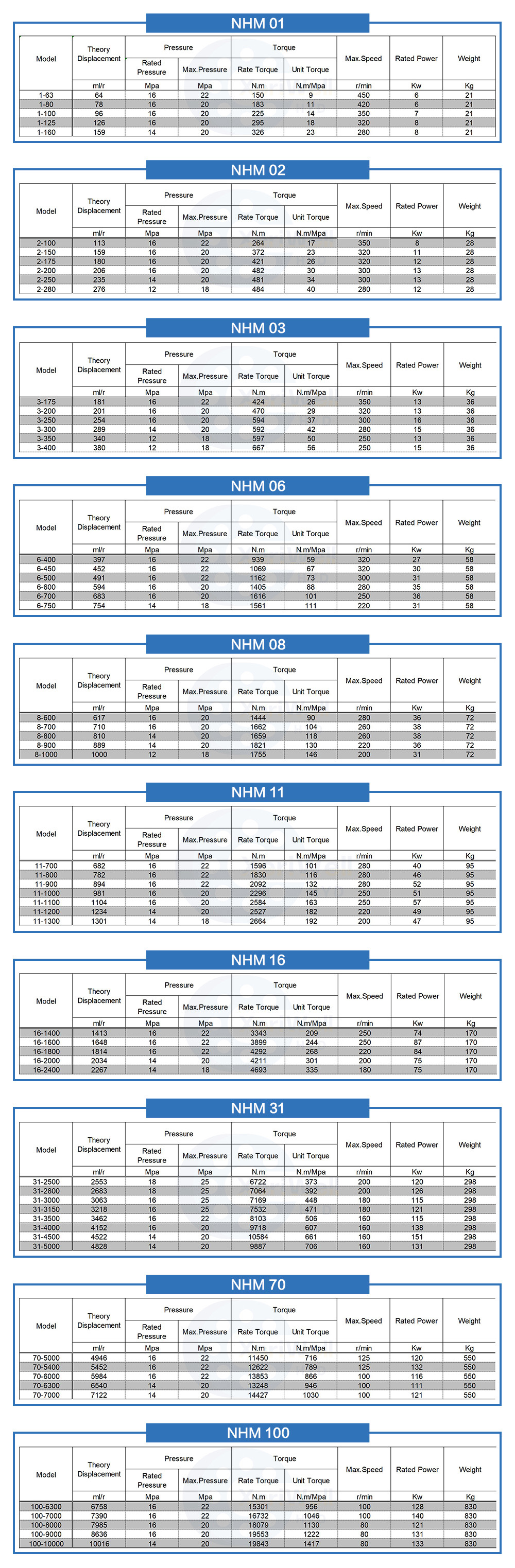

详情图_02 详情图_03

NHM 01
NHM 01
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
1-63	64	16	22	150	9	450	6	21
1-80	78	16	20	183	11	420	6	21
1-100	96	16	20	225	14	350	7	21
1-125	126	16	20	295	18	320	8	21
1-160	159	14	20	326	23	280	8	21

NHM 02
NHM 02
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
2-100	113	16	22	264	17	350	8	28
2-150	159	16	20	372	23	320	11	28
2-175	180	16	20	421	26	320	12	28
2-200	206	16	20	482	30	300	13	28
2-250	235	14	20	481	34	300	13	28
2-280	276	12	18	484	40	280	12	28

NHM 03
NHM 03
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
3-175	181	16	22	424	26	350	13	36
3-200	201	16	20	470	29	320	13	36
3-250	254	16	20	594	37	300	16	36
3-300	289	14	20	592	42	280	15	36
3-350	340	12	18	597	50	250	13	36
3-400	380	12	18	667	56	250	15	36

NHM 06
NHM 06
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
6-400	397	16	22	939	59	320	27	58
6-450	452	16	22	1069	67	320	30	58
6-500	491	16	22	1162	73	300	31	58
6-600	594	16	20	1405	88	280	35	58
6-700	683	16	20	1616	101	250	36	58
6-750	754	14	18	1561	111	220	31	58

NHM 08
NHM 08
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
8-600	617	16	20	1444	90	280	36	72
8-700	710	16	20	1662	104	260	38	72
8-800	810	14	20	1659	118	260	38	72
8-900	889	14	20	1821	130	220	36	72
8-1000	1000	12	18	1755	146	200	31	72

NHM 11
NHM 11
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
11-700	682	16	22	1596	101	280	40	95
11-800	782	16	22	1830	116	280	46	95
11-900	894	16	22	2092	132	280	52	95
11-1000	981	16	20	2296	145	250	51	95
11-1100	1104	16	20	2584	163	250	57	95
11-1200	1234	14	20	2527	182	220	49	95
11-1300	1301	14	18	2664	192	200	47	95

NHM 16
NHM 16
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
16-1400	1413	16	22	3343	209	250	74	170
16-1600	1648	16	22	3899	244	250	87	170
16-1800	1814	16	22	4292	268	220	84	170
16-2000	2034	14	20	4211	301	200	75	170
16-2400	2267	14	18	4693	335	180	75	170

NHM 31
NHM 31
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
31-2500	2553	18	25	6722	373	200	120	298
31-2800	2683	18	25	7064	392	200	126	298
31-3000	3063	16	25	7169	448	180	115	298
31-3150	3218	16	25	7532	471	180	121	298
31-3500	3462	16	22	8103	506	160	115	298
31-4000	4152	16	20	9718	607	160	138	298
31-4500	4522	14	20	10584	661	160	151	298
31-5000	4828	14	20	9887	706	160	131	298

NHM 70
NHM 70
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
70-5000	4946	16	22	11450	716	125	120	550
70-5400	5452	16	22	12622	789	125	132	550
70-6000	5984	16	22	13853	866	100	116	550
70-6300	6540	14	20	13248	946	100	111	550
70-7000	7122	14	20	14427	1030	100	121	550

NHM 100
NHM 100
Model	Theory Displacement	Pressure		Torque		Max.Speed	Rated Power	Weight
	Theory Displacement	Rated Pressure	MaxPressure	Rate Torque	Unit Torque	Max.Speed	Rated Power	Weight
	ml/r	Mpa	Mpa	N.m	N.m/Mpa	r/min	Kw	Kg
100-6300	6758	16	22	15301	956	100	128	830
100-7000	7390	16	22	16732	1046	100	140	830
100-8000	7985	16	20	18079	1130	80	121	830
100-9000	8636	16	20	19553	1222	80	131	830
100-10000	10016	14	20	19843	1417	80	133	830
