| Quantity: | |
|---|---|
BK2-1-550-EEB
Xeriwell or Others

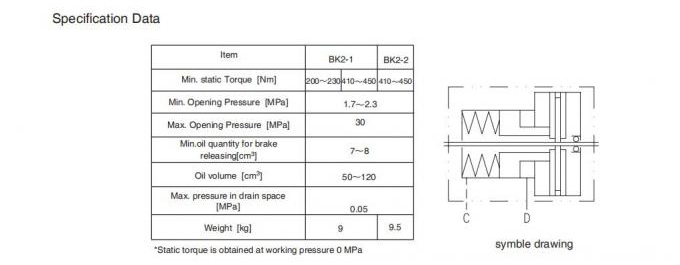

| Type: | Motorbrakes | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BK2-1-550-EEB | Min Static Torque: | 200 - 230 Nm, 410 - 450 Nm |
| Min Opening Pressure: | 1.7 - 2.3 MPa | Max Opening Pressure: | 30 MPa |
| Min Oil Qty For Brake Releasing: | 7 - 8 Cm3 | Oil Volume: | 50 - 120 Cm3 |
| Max Pressure In Drain Space: | 0.05 MPa | Application: | Loader, Wheel Loader, Front End Loaders, ... |
| Highlight: | large hydraulic motor,hydraulic lift motor | ||

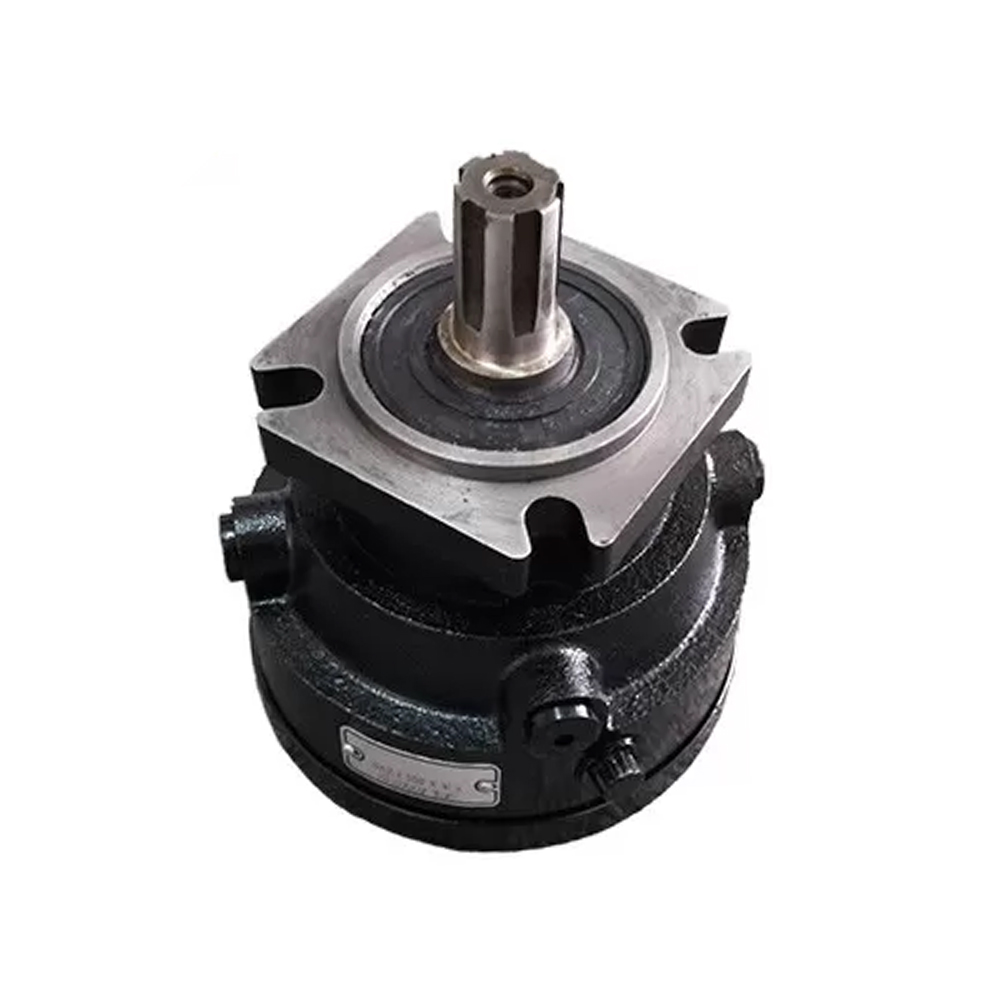

Multi-Disc Brake Hydraulic Drive Motors Off-highway Vehicles BK2 LB288
Quick details:
Model no. : BK2-1-550-EEB
Hydraulic Motorbrakes replace LB288 by M+S
Flange attachement to hydraulic motor type BMP, BMR, BMS, or MP, MR, MS, or OMP, OMR, OMS
ports: G 1/4''
shaft input / output shaft 25mm cylindrical with key A8 X 7X 32
square flange
OEM quality, made in China
optimised for small spaces
Quality level: top AAA, best in China
Delivery time: 21 work days
Shipping port: Any port of China
BK2 series brake is one kind of hydraulic wet disc brake. The brake force is caused by the spring, and hydraulic pressure releases the brake force.
Features as follows:
BK2 series adopts the special friction disc and high strength spring design
long life endurance, low noise, high braking reliability.
with 4 Drain port design , the brake can be used in different applications.
compact structure, easy mounting.
it can be used preferentially together with BMP, BMR, BMS series hydraulic Motor
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |
Instruction:
In order to make the BK2 series brake work under the best situation, we recommend the normal requirements as follows:
Assembly: 1st of all , we have to mount the brake BK2 with hydraulic motor, and then fill the brake with lubrication oil through the drain port, and then mount with other parts.
Fluid type:Mineral based-HM(GB/T763.2-87) (ISO6743/4) or HLP(DIN51524).
Temperature range:normal -20℃-90℃the best optimal situation 20℃-60℃
Viscosity range: 20~75mm2/s; the best optimal situation 42~74mm2/s at 40℃.
Filtration:nominal filtration of 25 micron, ISO code 20/16.
Maintenance: changed after the first 50~100h;then after every 500~1000h.
Applications:
BK2 series hydraulic brake stays in braking condition since delivery out of the factory.
During normal operation, there exists the braking force in the brake disc, only if the pressure of hydraulic system, that the brake links , is lower than the pressure required by the release of brake, the spring force shall keep the brake in braking condition.
BK2 series hydraulic brake is widely used in heavy duty machinery, such as engineering machinery, cranes, off-highway machinery vehicles, construction machinery, material handling machinery, agricultural machinery, mining, sanitation machinery, timber industries. They are also used in winches and in hydrostatic drive systems for automatization engines.
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Xeriwell' Hydraulics.
