BMER-2-475-FS-SW
Xeriwell or Others
| Item: | Low Speed High Torque Motor | OEM #: | BMER-2-475-FS SW |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 475 Ml/r |
| Mounting Flange: | 6-hole Wheel Flange | Shaft Type: | 6B Spline |
| Highlight: | lsht parker tg motor,6b shaft parker tg motor,tg0475 lsht motor | ||

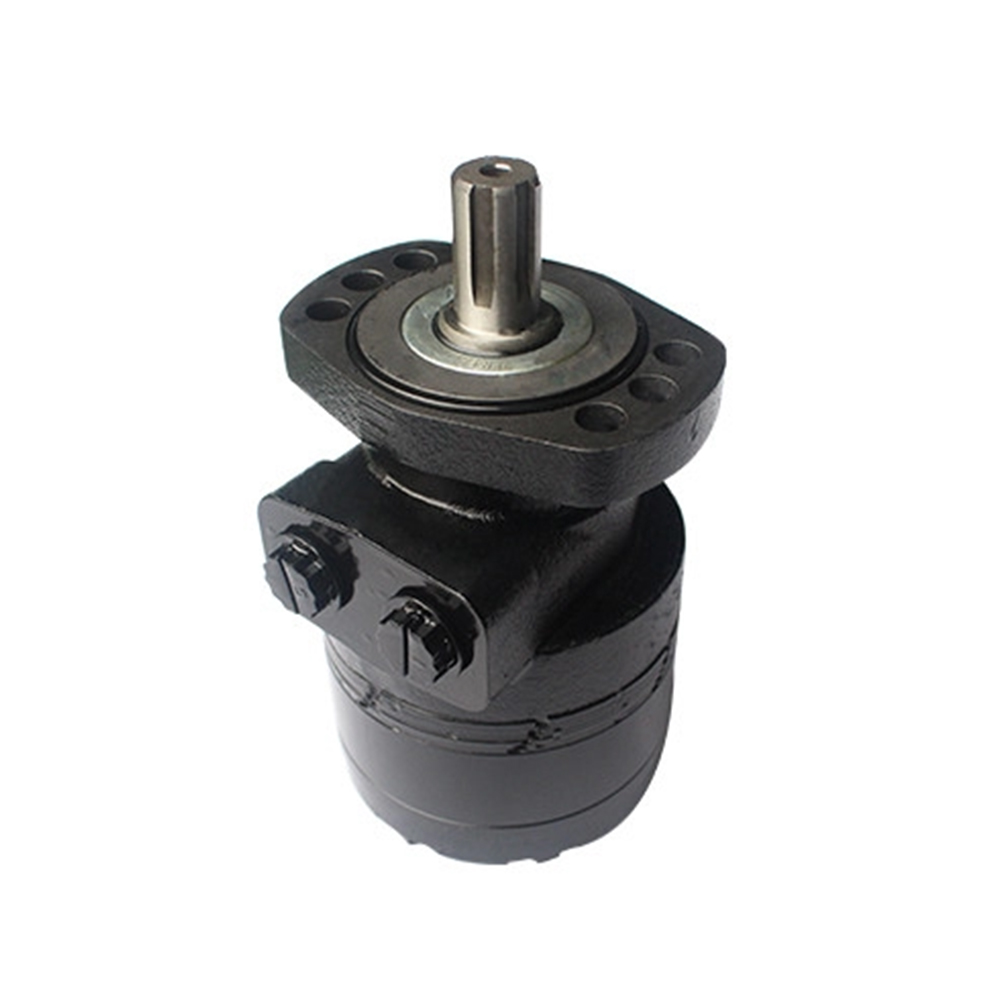

This is a Parker TG aftermarket motor, which same as Parker TG series on form, fit and application.
BMER 0475 = TG 0475
| Motor Series BMER | cm3/rev in3/rev | rev/min | cont / int* l/min g/min | cont / int* bar psid | max bar psig | cont / int* Nm lb-in | max KW HP | cont / int* Nm lb-in |
| BMER 0475 | 477 29.1 | 237 | 76 114 20 30 | 138 207 2000 3000 | 300 4350 | 887 1372 7853 12145 | 28 38 | 740 1120 6549 9909 |
BMER Features : Zero leak commutation valve, For greater, more consistent volumetric efficiency. Roller vane rotor set reduces friction and internal leakage, maintaining efficiency throughout the life of the motor, No check valves needed, no extra plumbing. Wide choice of displacement range, flange and shaft options. Greater efficiency in systems design to suit your application
Customers from North America, Latin America and Europe use Xeriwell's BMER motor as a high-quality alternative to Parker's TG motor. Our quality is excellent, and our price is more favorable to dealers and users. We are currently the new brand with the highest quality and price advantage in the market.
Xeriwell BMER has excellent strength and durability among high-performance motors. The core torque link of the BMER series powertrain is an ultra-heavy component that includes a unique spline geometry. The robust structure always allows transmission of more than 13,000 lb-in of torque. The entire powertrain is constantly cleaned in a cool high-flow fluid to ensure a long life. The roller blades and sealed commutator maintain high efficiency and provide smooth low-speed performance.
If you are looking for a better supplier, please contact me. I provide detailed motors of TG series motors, as well as TE, TJ, TF, TB, TC, TJ series motors.
| Item: | Low Speed High Torque Motor | OEM #: | BMER-2-475-FS SW |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 475 Ml/r |
| Mounting Flange: | 6-hole Wheel Flange | Shaft Type: | 6B Spline |
| Highlight: | lsht parker tg motor,6b shaft parker tg motor,tg0475 lsht motor | ||
This is a Parker TG aftermarket motor, which same as Parker TG series on form, fit and application.
BMER 0475 = TG 0475
| Motor Series BMER | cm3/rev in3/rev | rev/min | cont / int* l/min g/min | cont / int* bar psid | max bar psig | cont / int* Nm lb-in | max KW HP | cont / int* Nm lb-in |
| BMER 0475 | 477 29.1 | 237 | 76 114 20 30 | 138 207 2000 3000 | 300 4350 | 887 1372 7853 12145 | 28 38 | 740 1120 6549 9909 |
BMER Features : Zero leak commutation valve, For greater, more consistent volumetric efficiency. Roller vane rotor set reduces friction and internal leakage, maintaining efficiency throughout the life of the motor, No check valves needed, no extra plumbing. Wide choice of displacement range, flange and shaft options. Greater efficiency in systems design to suit your application
Customers from North America, Latin America and Europe use Xeriwell's BMER motor as a high-quality alternative to Parker's TG motor. Our quality is excellent, and our price is more favorable to dealers and users. We are currently the new brand with the highest quality and price advantage in the market.
Xeriwell BMER has excellent strength and durability among high-performance motors. The core torque link of the BMER series powertrain is an ultra-heavy component that includes a unique spline geometry. The robust structure always allows transmission of more than 13,000 lb-in of torque. The entire powertrain is constantly cleaned in a cool high-flow fluid to ensure a long life. The roller blades and sealed commutator maintain high efficiency and provide smooth low-speed performance.
If you are looking for a better supplier, please contact me. I provide detailed motors of TG series motors, as well as TE, TJ, TF, TB, TC, TJ series motors.
