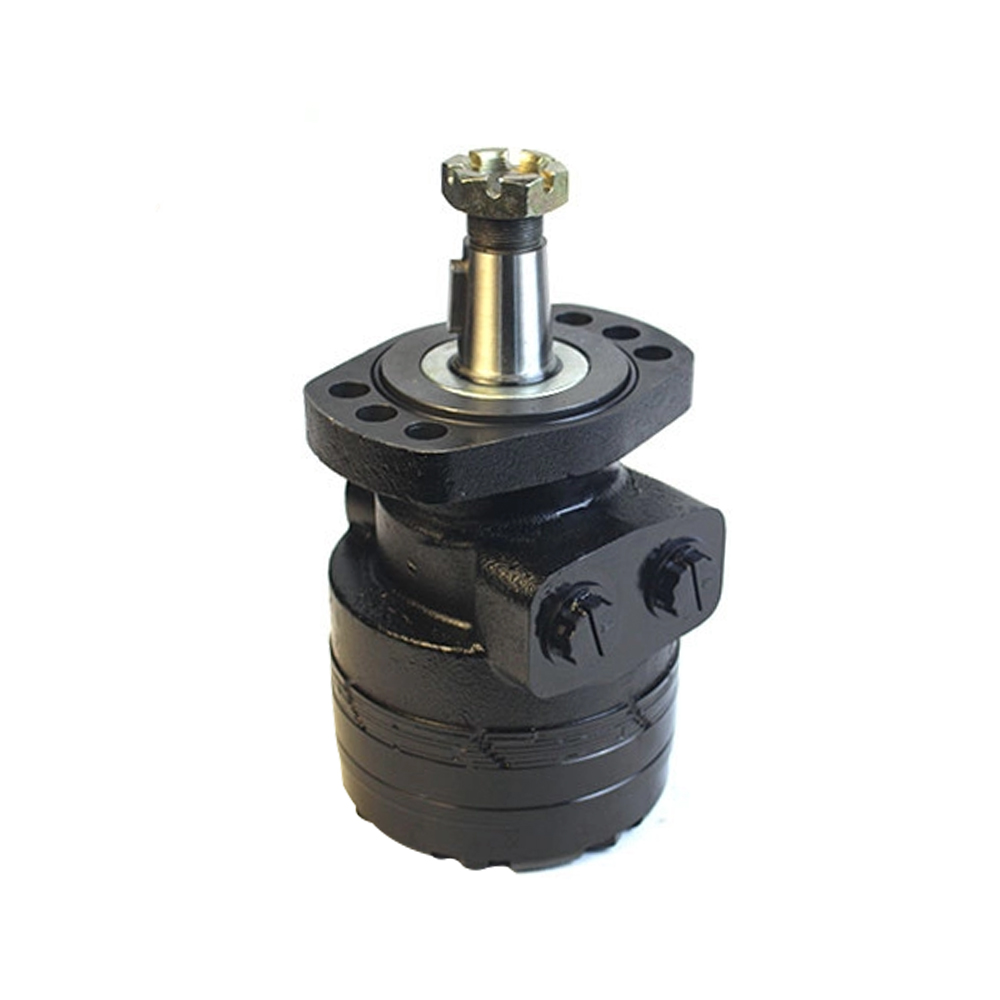

TG0195
Xeriwell or Others
| Item: | Torqmotor | OEM #: | TG0195ES080AANT |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 195 Ml/r |
| Mounting Flange: | 7/8-14 SAE | Shaft Type: | 1 1/4” Tapered Shaft |
| Highlight: | torqmotor hydraulic motor TG0195ES080AANT,torqmotor hydraulic motor TG0195 Series,LSHT hydraulic motor TG0195 Series | ||
Xeriwell supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function,
same specification, 100% interchangeable.
Details specifications
| Series: | TG |
| Shaft: | 1 1/4”Tapered shaft,31.75mm |
| Rotation: | Reverse Timed Manifold |
| Displacement (cm3/rev): | 0195 |
| Mounting: | 6bolts Manifold Standard |
| Geometric Displacement: | 195cm3/rev (11.9 in3/rev) |
| Maximum Speed: | 477 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 76 lpm (20 gpm) / 95 lpm (25 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 207 bar (3000 PSID) / 276 bar (4000 PSID) |
| Maximum Supply Pressure: | 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: | 556 Nm (4919 lb-in) / 753Nm (6663 lb-in) |
| Maximum Performance: | 33 KW (45HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 451Nm (3989 lb-in) / 611 Nm (5408 lb-in) |
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
