| Type: | |
|---|---|

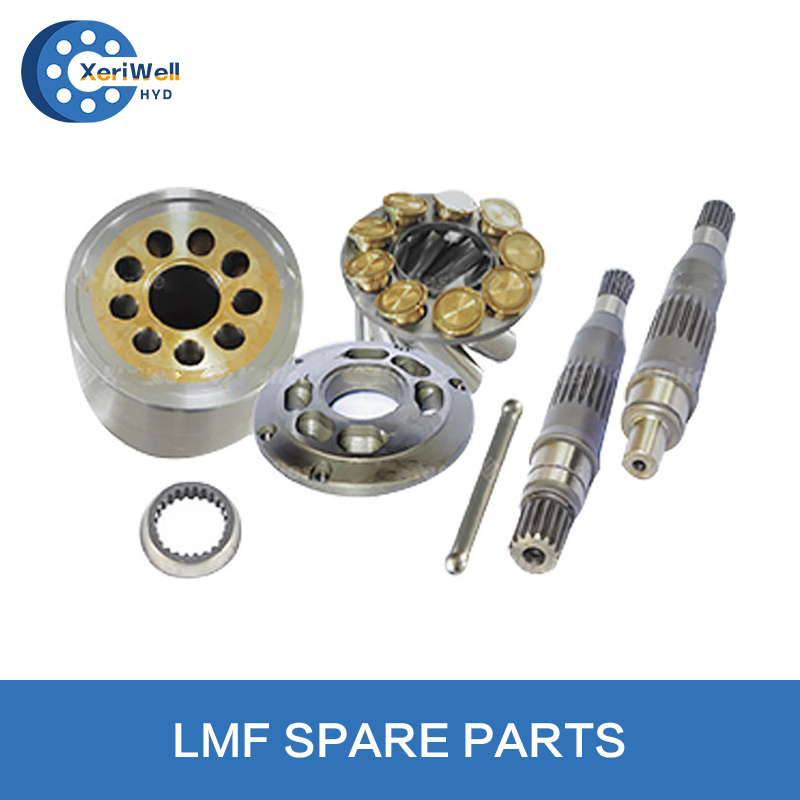

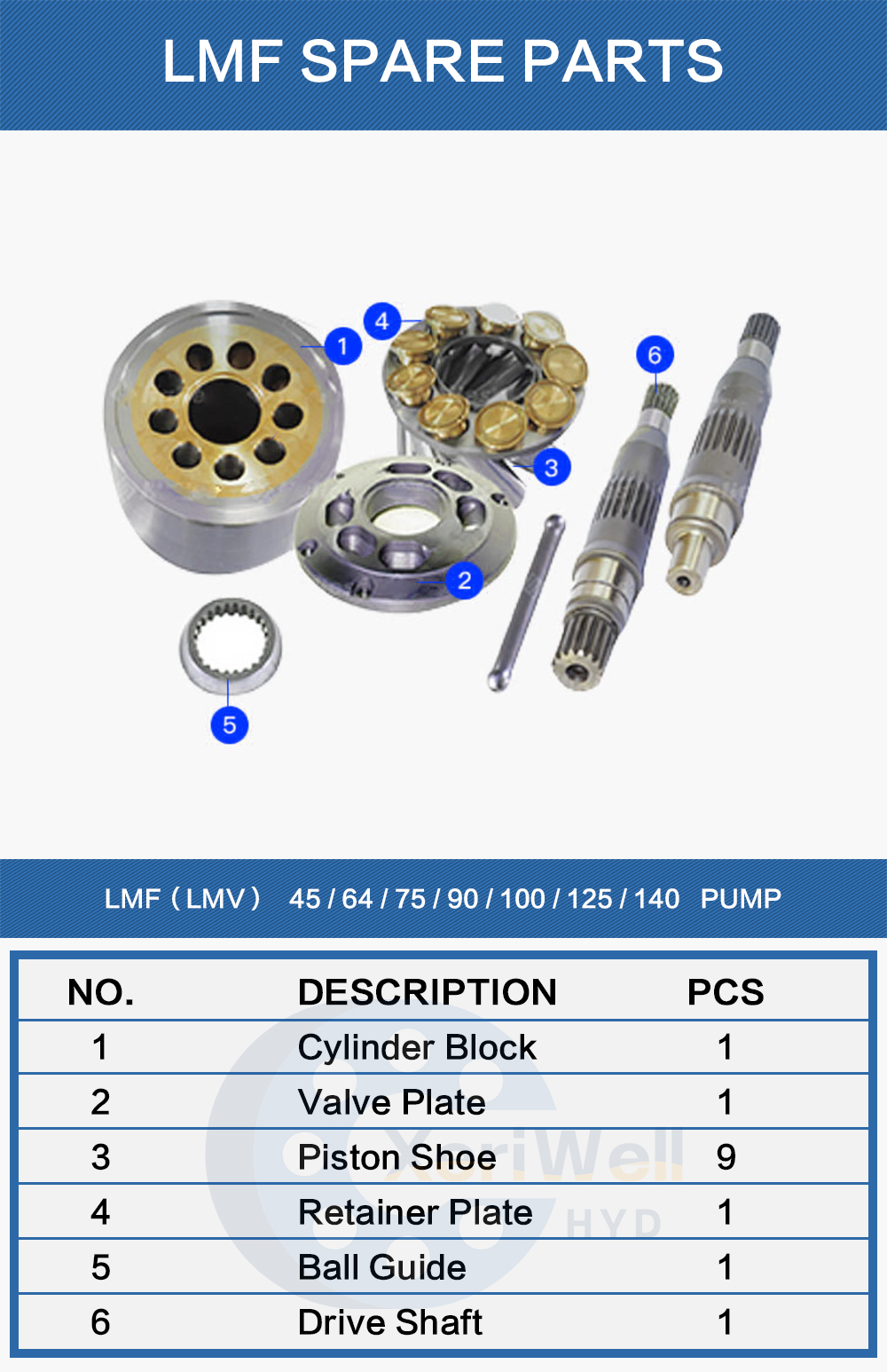

| spare parts avaliable: | |
| Quantity: | |

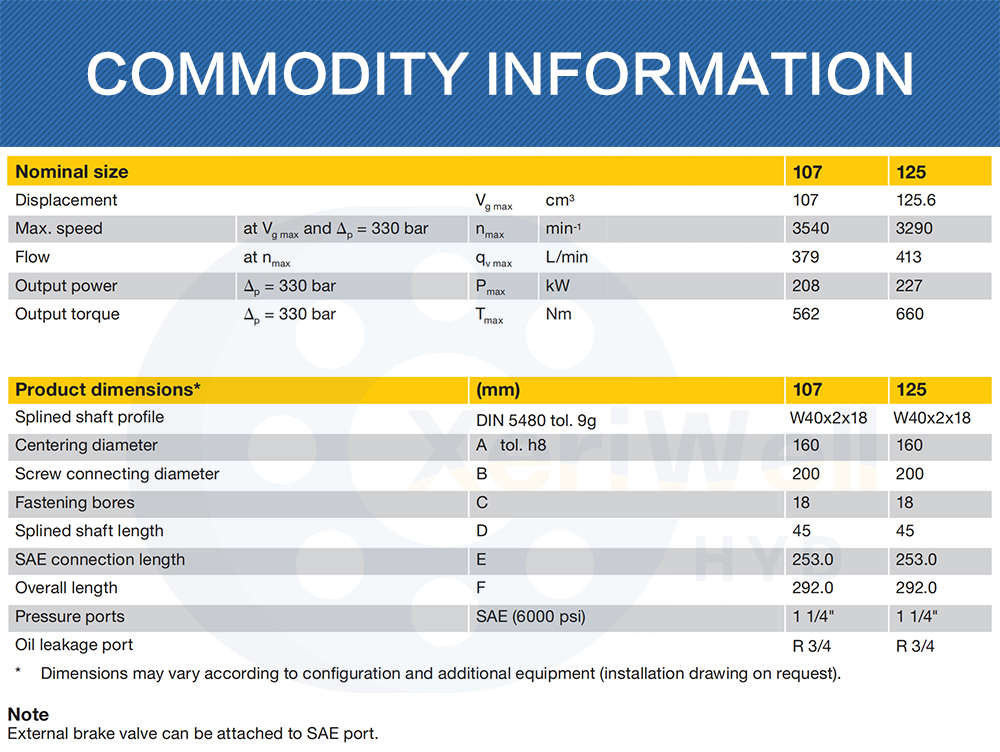

| Nominal size | 107 | 125 | |||
| Displacement | Vg max | cm3 | 107 | 125.6 | |
| Max. speed | at Vg maxand Δp= 330 bar | nmax | min-1 | 3540 | 3290 |
| Flow | at nmax | qv max | L/min | 379 | 413 |
| Output power | Δp= 330 bar | Pmax | kW | 208 | 227 |
| Output torque | Δp= 330 bar | Tmax | Nm | 562 | 660 |
| Product dimensions* | (mm) | 107 | 125 | ||
| Splined shaft profile | DIN 5480 tol. 9g | W40x2x18 | W40x2x18 | ||
| Centering diameter | A tol. h8 | 160 | 160 | ||
| Screw connecting diameter | B | 200 | 200 | ||
| Fastening bores | C | 18 | 18 | ||
| Splined shaft length | D | 45 | 45 | ||
| SAE connection length | E | 253 | 253 | ||
| Overall length | F | 292 | 292 | ||
| Pressure ports | SAE (6000 psi) | 1 1/4" | 1 1/4" | ||
| Oil leakage port | R 3/4 | R 3/4 | |||
| * Dimensions may vary according to configuration and additional equipment (installation drawing on request). | |||||
| Note External brake valve can be attached to SAE port. | |||||
