FMV
Xeriwell or Others

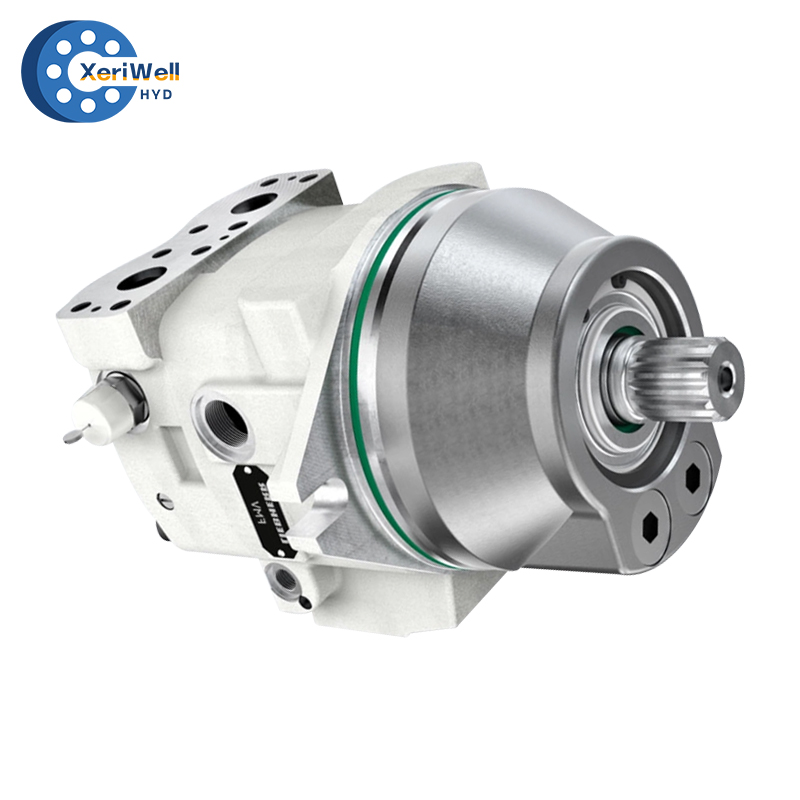

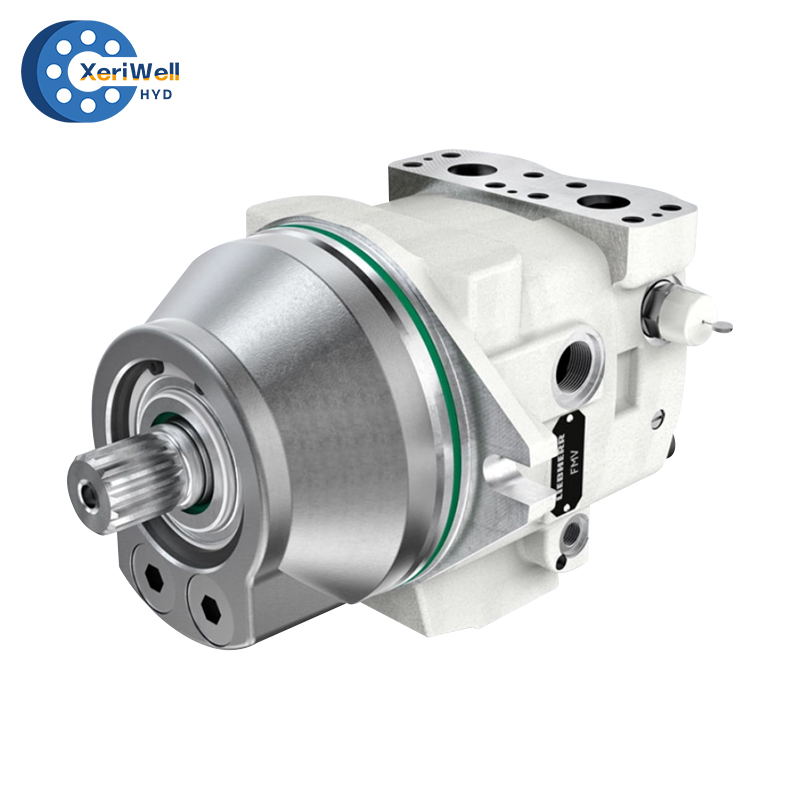

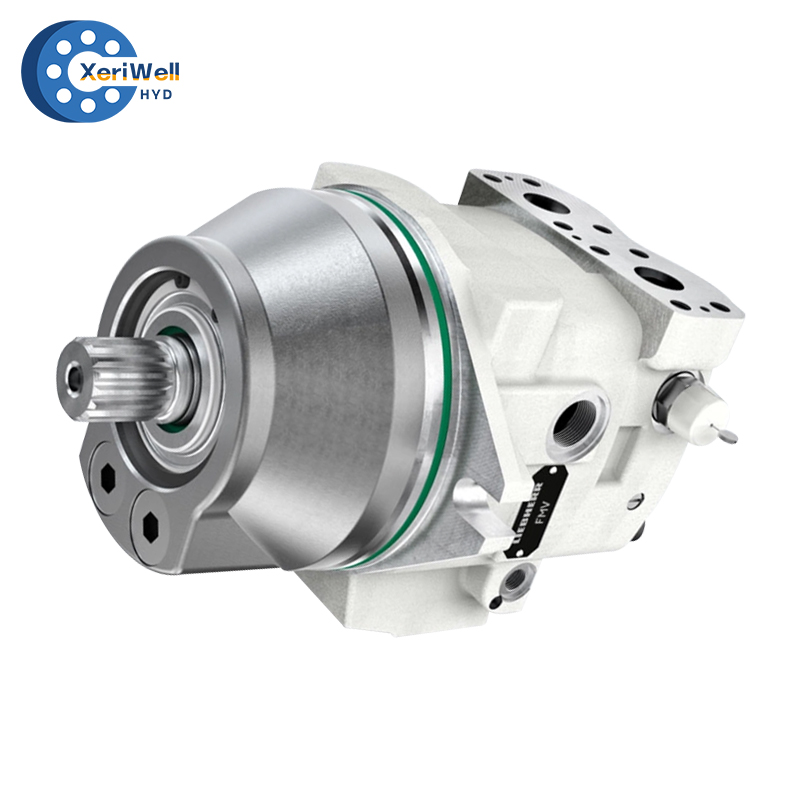

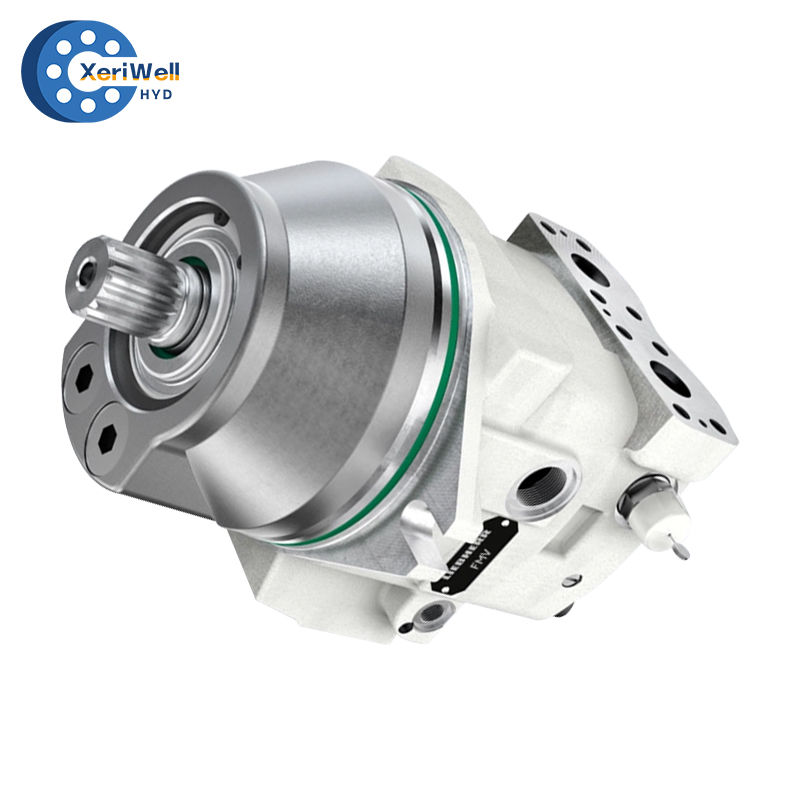

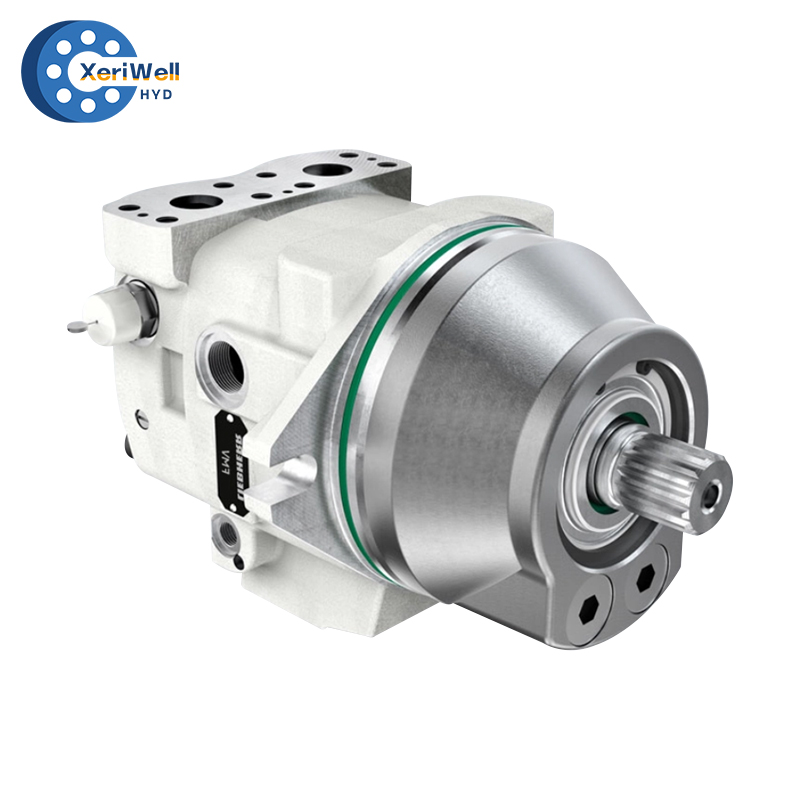

FMV plug-in motors have a swashplate design and are available for the open circuits. They convince with their compact and robust design. The engine is regulated by means of a two-point control via the operating pressure.
Type: FMV075, FMV100, FMV140, FMV165, FMV250
LIEBHERR FMV High Speed Hydraulic Motor catalogue pdf manual diagram

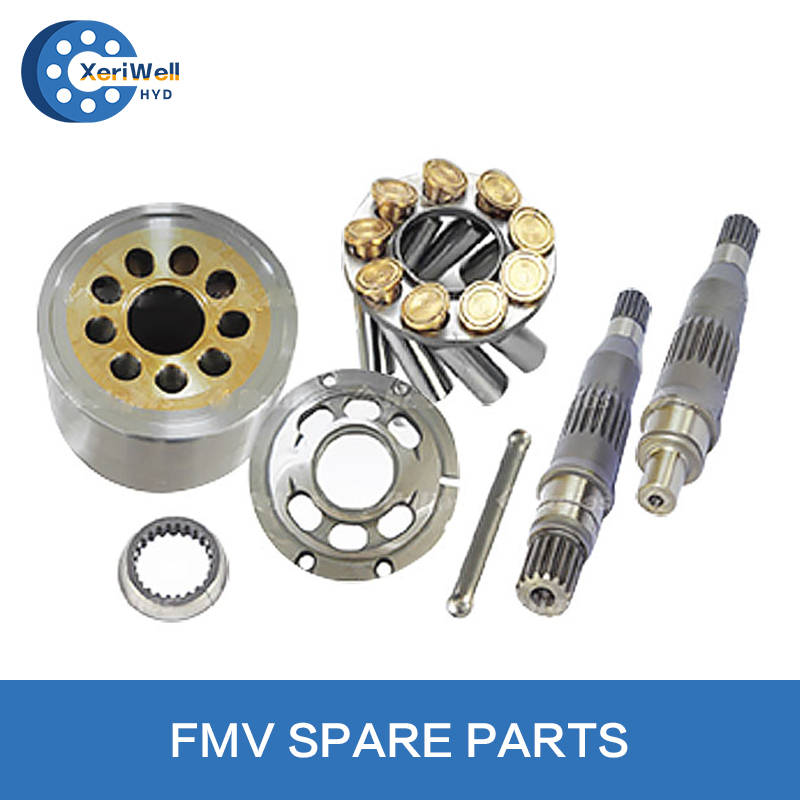

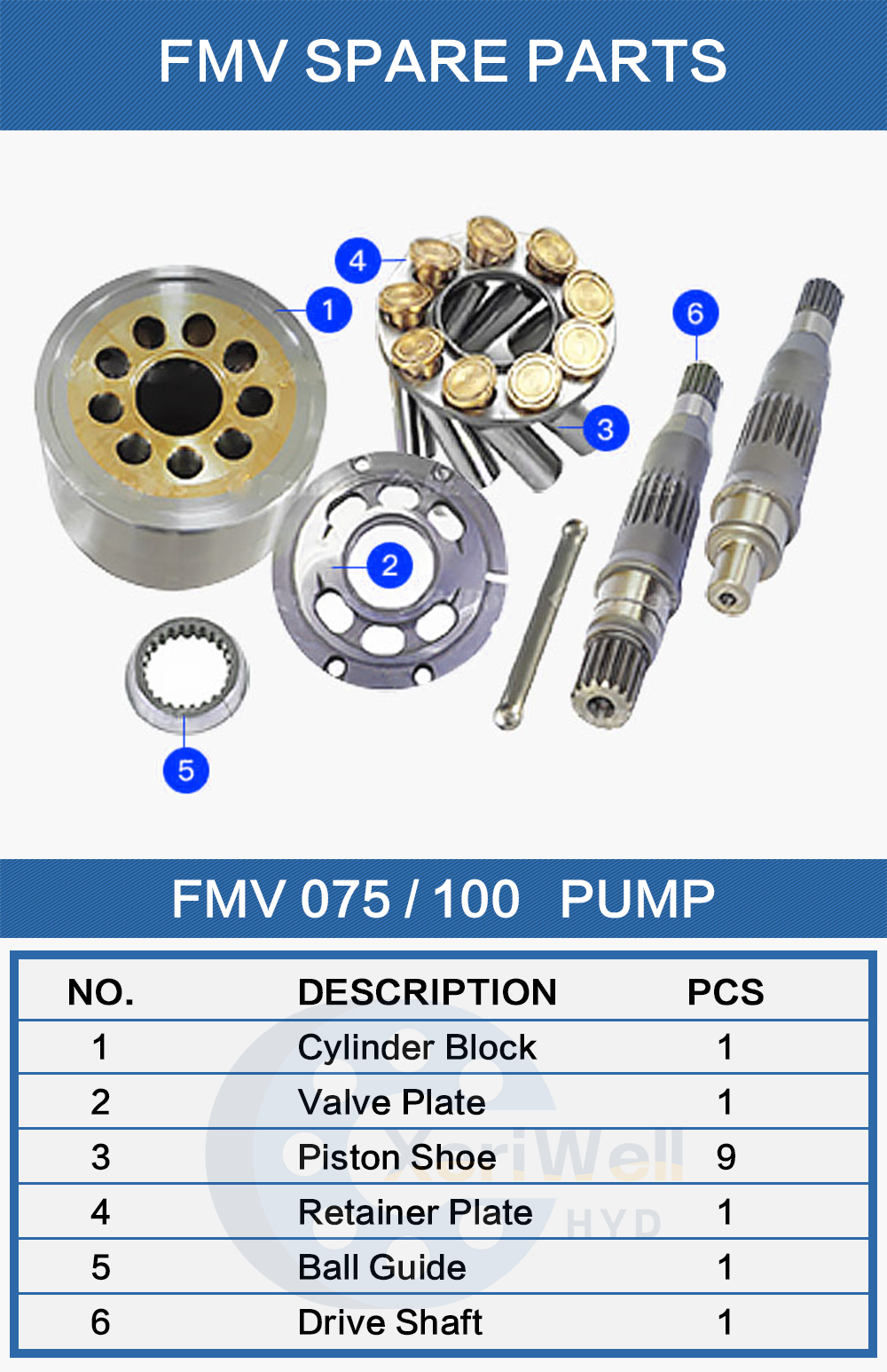

LIEBHERR FMV 075/100/140/165/250 High Speed Hydraulic Motor spare parts list:

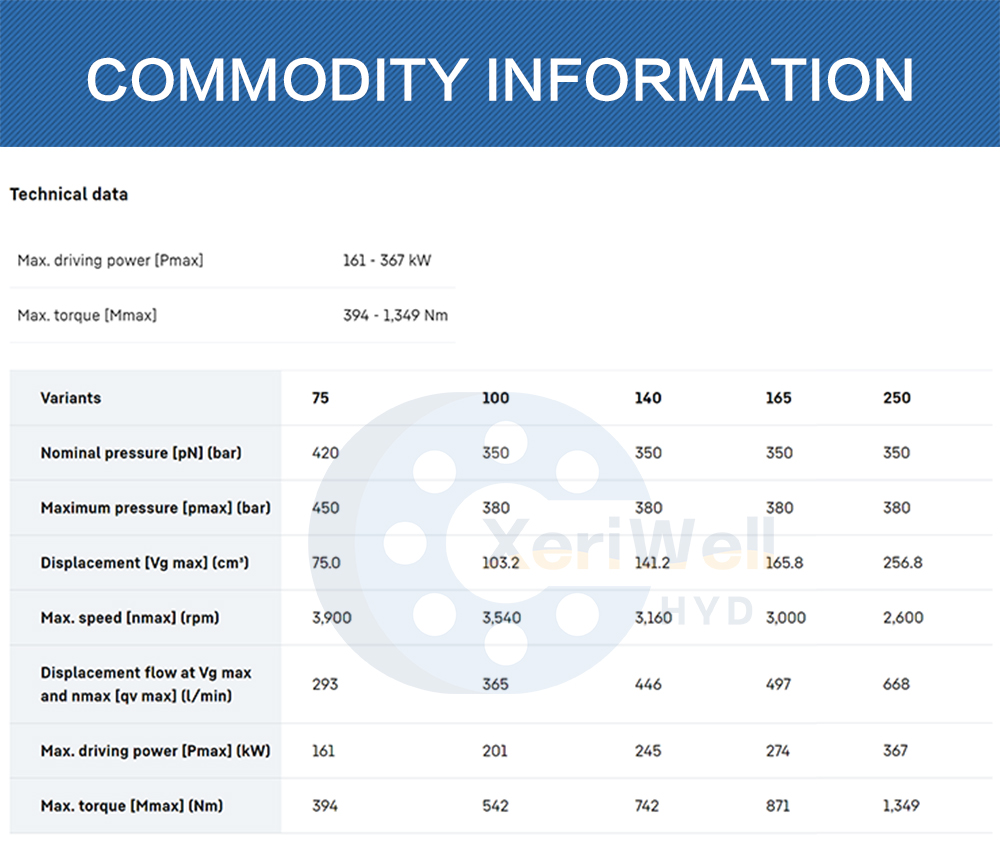

| Technical data | |||||
| Max. driving power [Pmax] 161 - 367 kW | |||||
| Max. torque [Mmax] 394 - 1,349 Nm | |||||
| Variants | 75 | 100 | 140 | 165 | 250 |
| Nominal pressure [pN] (bar) | 420 | 350 | 350 | 350 | 350 |
| Maximum pressure [pmax] (bar) | 450 | 380 | 380 | 380 | 380 |
| Displacement [Vg max] (cm2) | 75 | 103.2 | 141.2 | 165.8 | 256.8 |
| Max. speed [nmax] (rpm) | 3900 | 3540 | 3160 | 3000 | 2600 |
| Displacement flow at Vg max and nmax [qv max] (l/min) | 293 | 365 | 446 | 497 | 668 |
| Max. driving power [Pmax] (kW) | 161 | 201 | 245 | 274 | 367 |
| Max. torque [Mmax] (Nm) | 394 | 542 | 742 | 871 | 1349 |
