Metallurgical Melting and Casting(Non-ferrous metals) Internal-Guided Casting Machine Hydraulic System

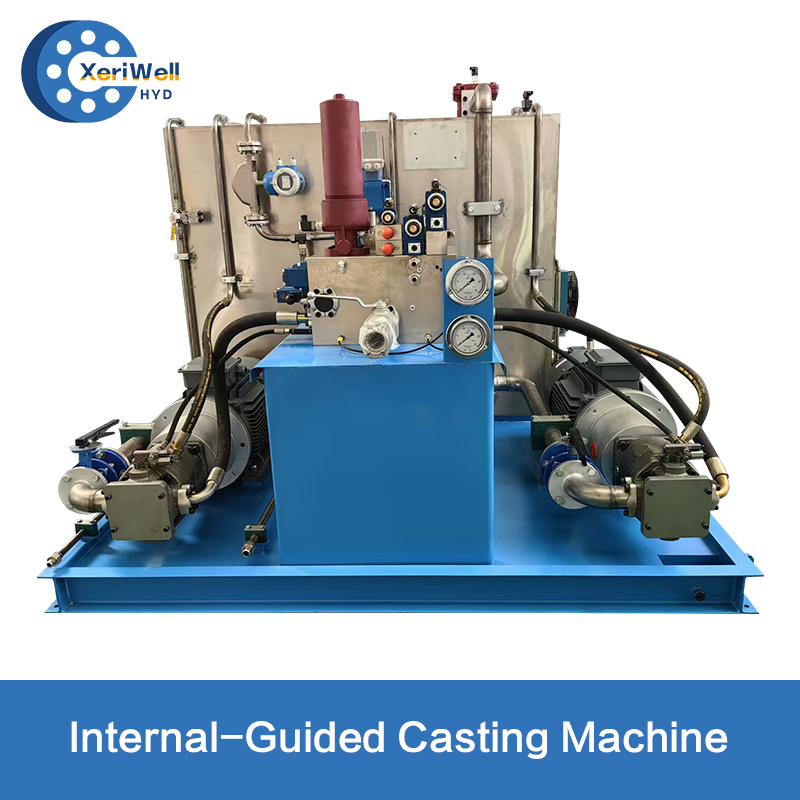

Internal-Guided Casting Machine Metallurgical Melting and Casting(Non-ferrous metals) Hydraulic System

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Brand:
Xeriwell or Others

Product Description

系统详情_01 系统详情_02 系统详情_03 系统详情_04 系统详情_05 系统详情_06 系统详情_07

系统通用详情_01 系统通用详情_02 系统通用详情_03 系统通用详情_04

系统通用详情_05 系统通用详情_06 系统通用详情_07 系统通用详情_08

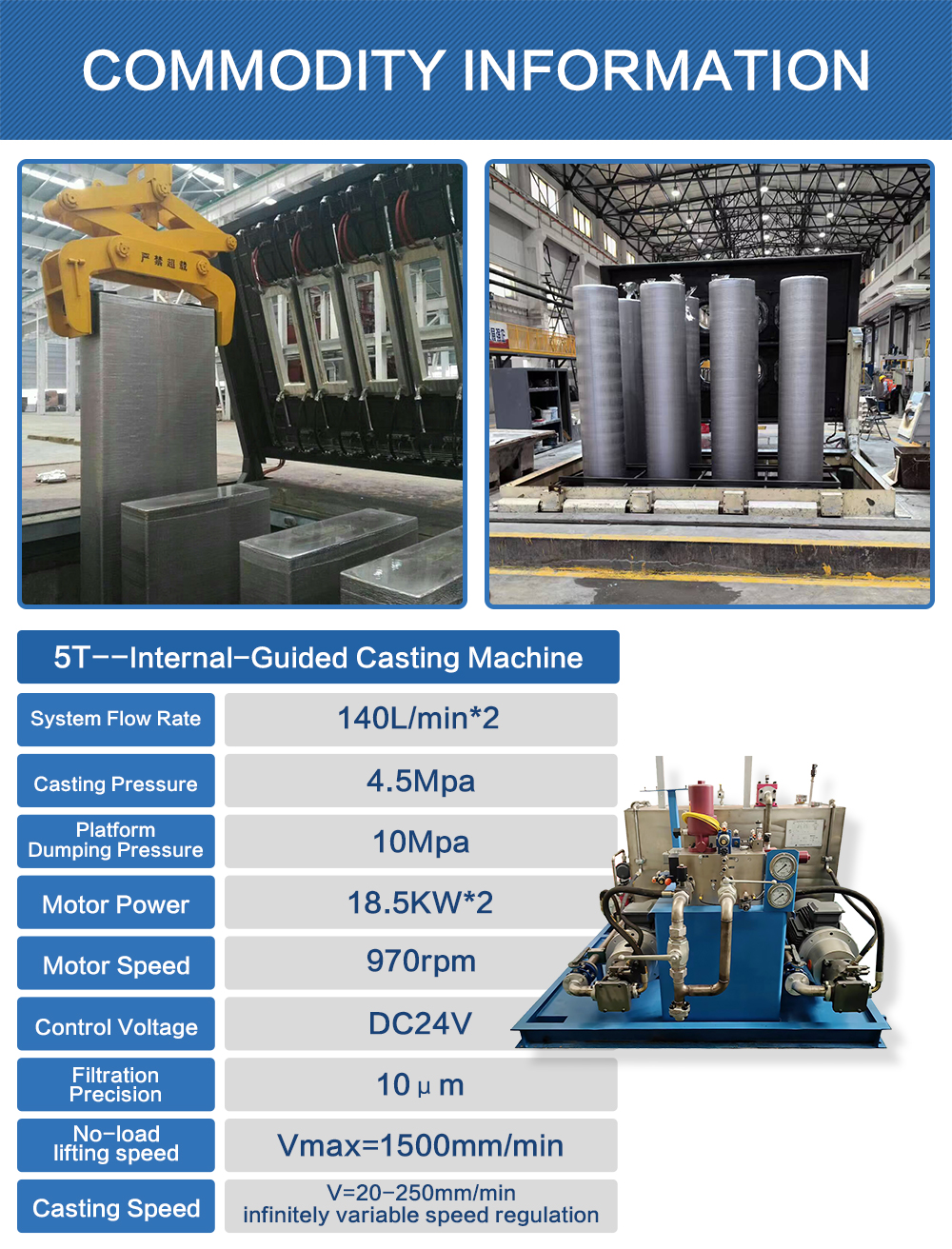

5T--Internal-Guided Casting Machine
5T--Internal-Guided Casting Machine
System Flow Rate	140L/min*2
Casting Pressure	4.5Mpa
Platform Dumping Pressure	10Mpa
Motor Power	18.5KW*2
Motor Speed	970rpm
Control Voltage	DC24V
Filtration Precision	10um
No-load lifting speed	Vmax=1500mm/min
Casting Speed	V=20-250mm/min infinitely variable speed regulation

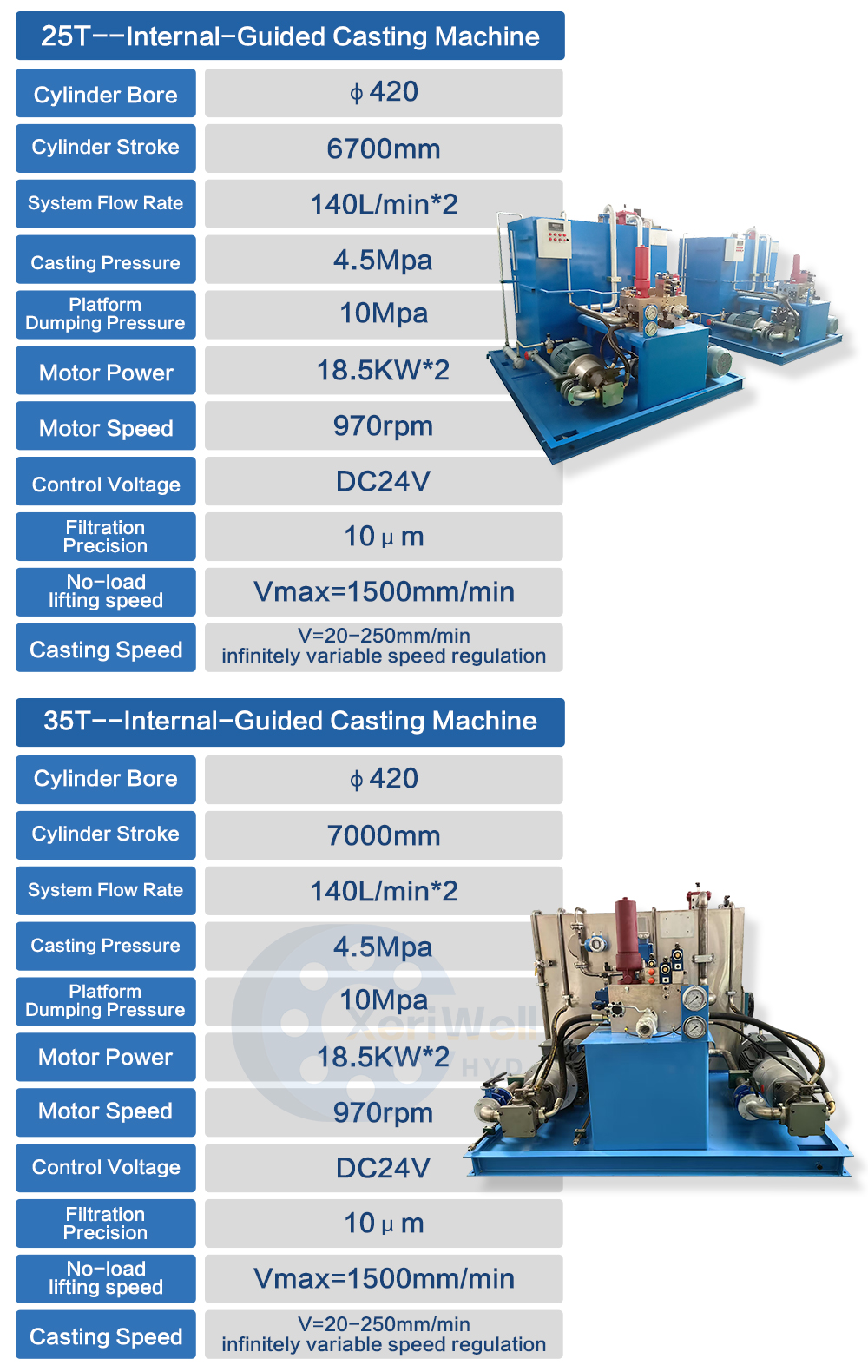

25T--Internal-Guided Casting Machine
25T--Internal-Guided Casting Machine
Cylinder Bore	ф 420
Cylinder Stroke	6700mm
System Flow Rate	140L/min*2
Casting Pressure	4.5Mpa
Platform Dumping Pressure	10Mpa
Motor Power	18.5KW*2
Motor Speed	970rpm
Control Voltage	DC24V
Filtration Precision	10 μ m
No-load lifting speed	Vmax=1500mm/min
Casting Speed	V=20-250mm/min infinitely variable speed regulation

35T--Internal-Guided Casting Machine
35T--Internal-Guided Casting Machine
Cylinder Bore	ф 420
Cylinder Stroke	7000mm
System Flow Rate	140L/min*2
Casting Pressure	4.5Mpa
Platform Dumping Pressure	10Mpa
Motor Power	18.5KW*2
Motor Speed	970rpm
Control Voltage	DC24V
Filtration Precision	10 μ m
No-load lifting speed	Vmax=1500mm/min
Casting Speed	V=20-250mm/min infinitely variable speed regulation

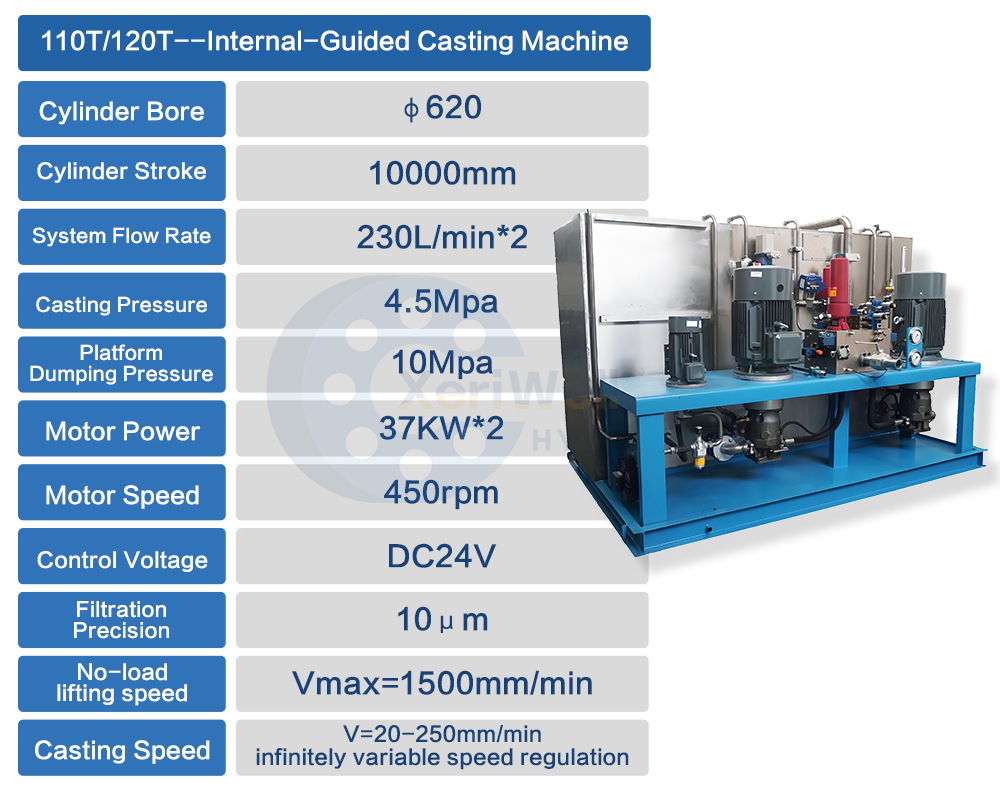

110T/120T--Internal-Guided Casting Machine
Cylinder Bore	φ620
Cylinder Stroke	10000mm
System Flow Rate	230L/min*2
Casting Pressure	4.5Mpa
Platform Dumping Pressure	10Mpa
Motor Power	37KW*2
Motor Speed	450rpm
Control Voltage	DC24V
Filtration Precision	10μm
No-load lifting speed	Vmax=1500mm/min
Casting Speed	V=20-250mm/min infinitely variable speed regulation
