| Quantity: | |
|---|---|
BMR
Xeriwell or Others
| Type: | BMR LSHT Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMR315 | Power: | Hydraulic Oil |
| Displacement: | 50ml/r, 80ml/r, 100ml/r, 125ml/r, 160ml/r, 200ml/r, 250ml/r, 315ml/r, 400ml/r, 500ml/r | Weight: | 9.5 Kgs |
| Feature: | Replace OMR, M+S MR, EATON S Series | Application: | Plastic, Agricultural, Forestry, Industrial, Etc. |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

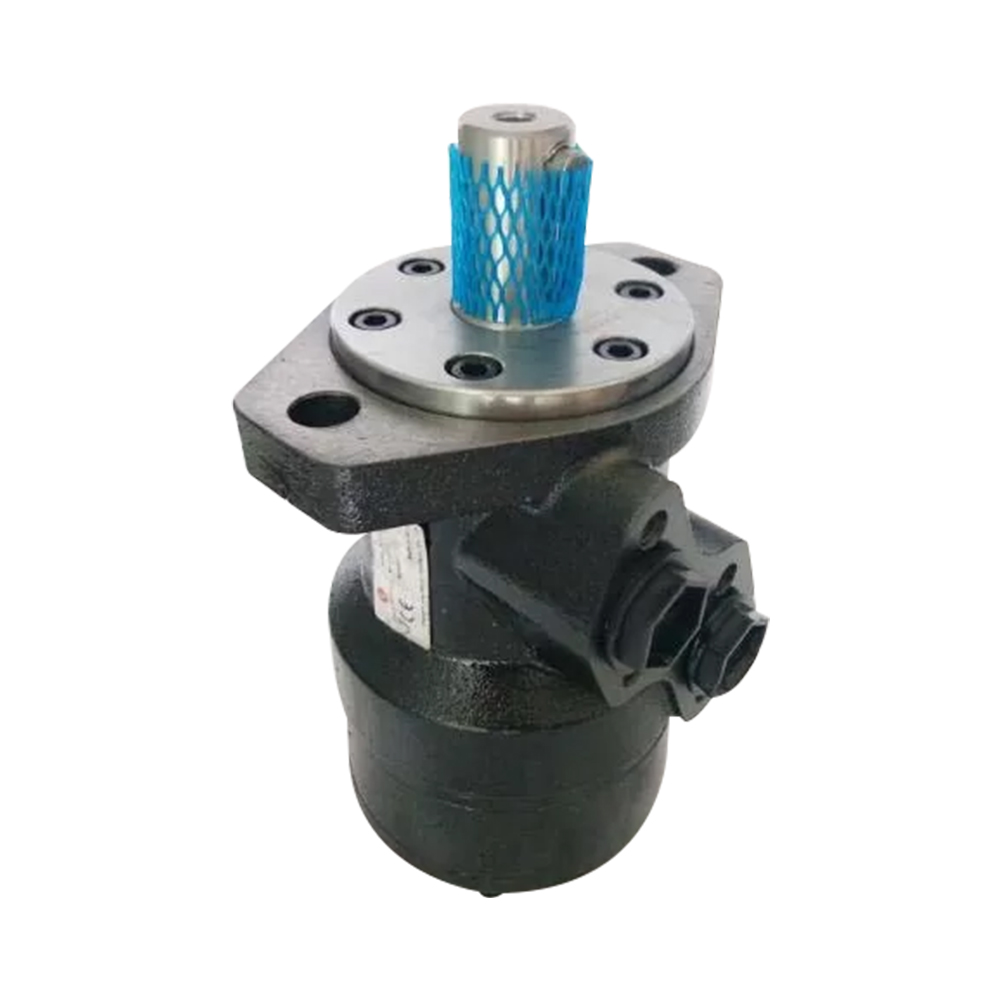

Low Speed High Torque Hydraulic Motor BMR 200 25MM A2 1 / 2 SP HS
Introduction:
A hydraulic motor is an actuator of a hydraulic system that converts hydraulic pressure energy supplied by a hydraulic pump into the mechanical energy (torque and speed) of its output shaft. Liquid is the medium that transmits force and movement.
Hydraulic motors, also known as oil motors, are mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, shipbuilding machinery, petrochemicals, and port machinery.
- Displacement: 200cc
- Flange: 2-hole, SAE-A, distance 106mm, Ø centring 82.50mm
- Shaft: Ø25.4mm, cylindrical
- Ports: G1/2 (inlet and outlet) G1/4 (drain)
- PNP speed of rotation sensor (35 impulsion per rev)
| Technical data for BMR Hydraulic Orbital Motors |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Specifications:
| hydraulic orbit motor | BMP-50 |
| hydraulic orbit motor | BMP-80 |
| hydraulic orbit motor | BMP-100 |
| hydraulic orbit motor | BMP-160 |
| hydraulic orbit motor | BMP-200 |
| hydraulic orbit motor | BMP-250 |
| hydraulic orbit motor | BMP-315 |
| hydraulic orbit motor | BMP-400 |
| hydraulic orbit motor | BMR-50 |
| hydraulic orbit motor | BMR-80 |
| hydraulic orbit motor | BMR-100 |
| hydraulic orbit motor | BMR-160 |
| hydraulic orbit motor | BMR-200 |
| hydraulic orbit motor | BMR-315 |
| hydraulic orbit motor | BMR-375 |
| hydraulic orbit motor | BMS-125 |
| hydraulic orbit motor | BMS-200 |
| hydraulic orbit motor | BMS-250 |
| hydraulic orbit motor | BMS-375 |
