BMT-250-K6-F-S
Xeriwell or Others

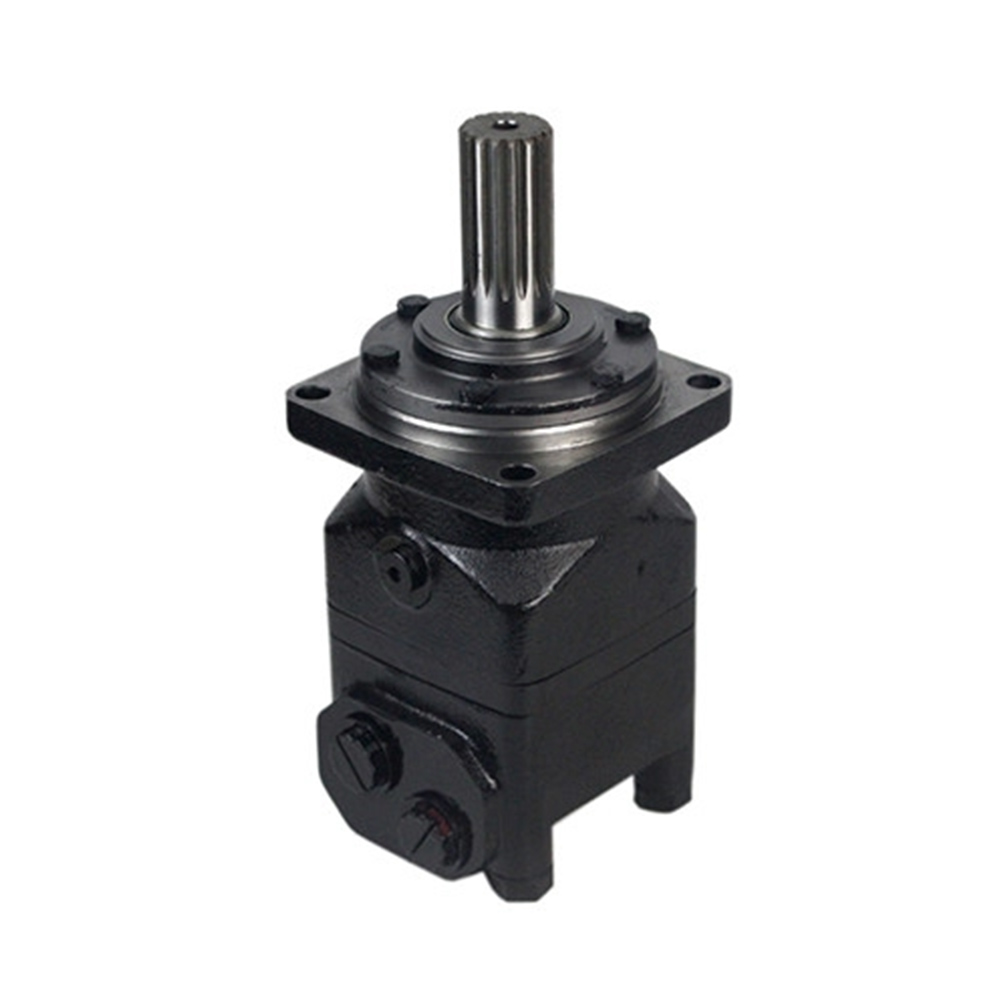

| Item: | Orbital Hydraulic Motor | Model Number: | BMT-250-K6-F-S |
|---|---|---|---|
| Size: | 250 Ml/r | Brand: | Xeriwell |
| Highlight: | BMT-250-K6-F-S orbit hydraulic motor,Replace OMS 250 orbit hydraulic motor,BMT-250-K6-F-S orbit motor | ||
Hydraulic Motors, BMT-250-K6-F-S, replace OMS 250, M+S MS 250
Quick review:
Xeriwell BMT = Char-Lynn 6000, Danfoss OMT/OMTS, M+S MLHT
Model Number:
BMT-250-K6-F-S
Quick detail:
| Product | Orbital Hydraulic Motor |
| Model No. | BMT-250-K6-F-S |
| Size | 250 ml/r |
| Flange | 4-Ø14 Square-flangeØ162, pilotØ127×9 |
| Shaft | Shaft Ø38.1 |
| Rotation | standard |
| Port | 1-1/16-12 un o-ring |
| Color | Black |
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

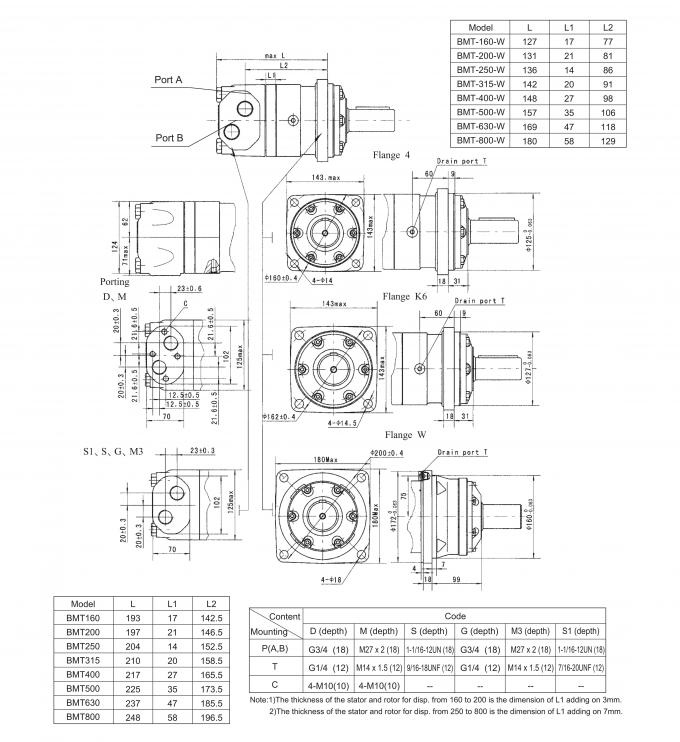

| Model | L | L1 | L2 |
| BMT160 | 193 | 17 | 142.5 |
| BMT200 | 197 | 21 | 146.5 |
| BMT250 | 204 | 14 | 152.5 |
| BMT315 | 210 | 20 | 158.5 |
| BMT400 | 217 | 27 | 165.5 |
| BMT500 | 225 | 35 | 173.5 |
| BMT630 | 237 | 47 | 185.5 |
| BMT800 | 248 | 58 | 196.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) |
| T | G1/4 （12） | M14 x 1.5 (12) | 9/16-18UNF (12) | G1/4 （12） | M14 x 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
