BMT 630
Xeriwell or Others
| Features: | High Torque | Product: | High Torque Hydraulic Motor |
|---|---|---|---|
| Type: | BMT Series | Applications: | Mining & Drilling Equipment |
| Used On: | Hydraulic System | Rotary: | Left & Right |
| Highlight: | hydraulic rotation motor,hydraulic pump motor | ||

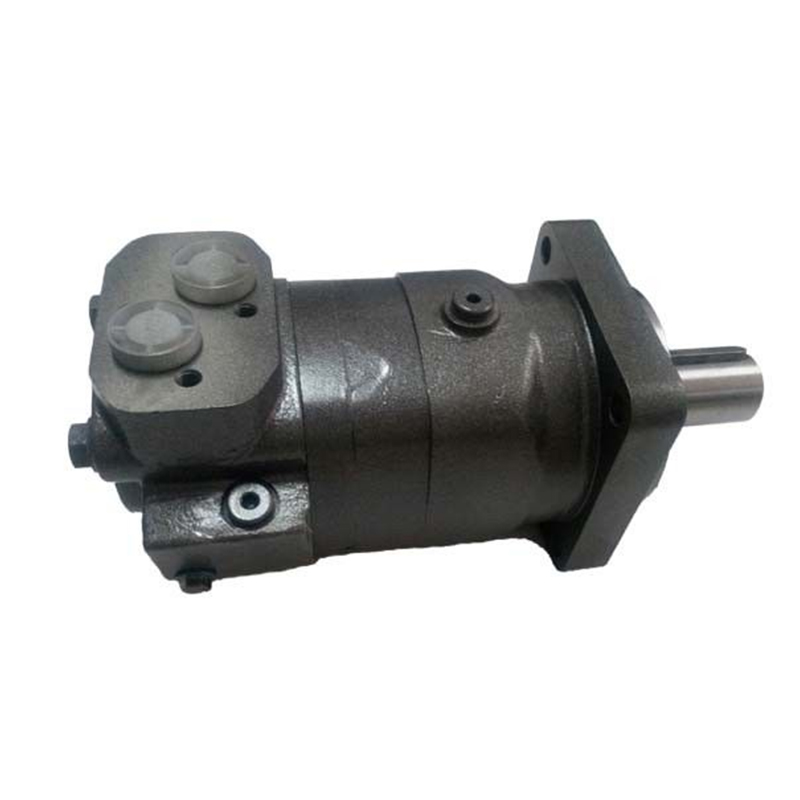

Low RPM Hydraulic Motor BMT 630ml/r For Mining & Drilling Equipment
Xeriwell produce and supply hydraulic motors to kind of mining drilling equipments.
totally we have 7 type motors available, for heavy duty drilling work, we recommend our BMS, BMT, BMV series.
These motors used on:
rock drill rig,
multipurpose drill rig,
coring investigation drill rig,
soil investigation drill rig,
piling grouting drill rig,
jet grounting drill rig,
water well drill rig,
| Flange | ||
| 4 | 4-Ø14 Square-flangeØ160,pilotØ125×9 | BMT |
| K6 | 4-Ø14.5Square-flangeØ162,pilotØ127×9 | |
| W | 4-Ø18 Wheel-flangeØ200,pilotØ160×7 | |
| D | 4-Ø14 Circle-flange Ø160,pilot Ø125×8 | BMTS |
| E | 4-Ø14.5 Square-flange Ø162, pilot Ø127×10 | |
| Output Shaft | ||
| M | Shaft Ø40,parallel key 12×8×70 | BMT |
| G | Shaft Ø38.1,parallel key 9.52×9.52×57.15 | |
| F | Shaft Ø38.1,splined tooth 17-DP12/24 | |
| FD | Shaft Ø38.1,splined tooth 17-DP12/24 | |
| T | Cone-shaft 1:10 Ø45,parallel key B12×8×28 | |
| T1 | Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75 | |
| SL | shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64 | |
| G1 | shaftØ31.75,parallel key 7.96×7.96×40 | |
| F1 | Shaft Ø31.75,splined tooth 14-DP12/24 | |
| Omit | Short shaft 16-DP12/24 | BMTS |
| Port and Drain Port | ||
| D | G3/4 Manifold Mount,4-M10 , G1/4 | |
| M | M27×2 Manifold Mount,4-M10, M14×1.5 | |
| S | 1-1/16-12UN O-ring, 9/16-18UNF | |
| S1 | 1-1/16-12UN O-ring, 7/16-20UNF | |
| G | G3/4,G1/4 | |
| M3 | M27×2,M14×1.5 | |
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Substitute Reference substance
MOTOR CROSS REFERENCE TABLE | ||||||||
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
