| Quantity: | |
|---|---|
BMM32
Xeriwell or Others
| MODE TYPE: | BMM8,12.5,20,32,40,50cc | POWER: | HYDRAULIC OIL |
|---|---|---|---|
| FEATURE: | MATCH THAN OMM | APPLICATION: | HYDRAULIC |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
High Pressure Hydraulics Motor 151G0006 , 151G0029 OMM32 / BMM32 / CharLynn 129
Xeriwell professional manufacturer produce Hydraulic Orbital Motors,our motors match and Eaton motor series.
Which type and How many pieces you will need?

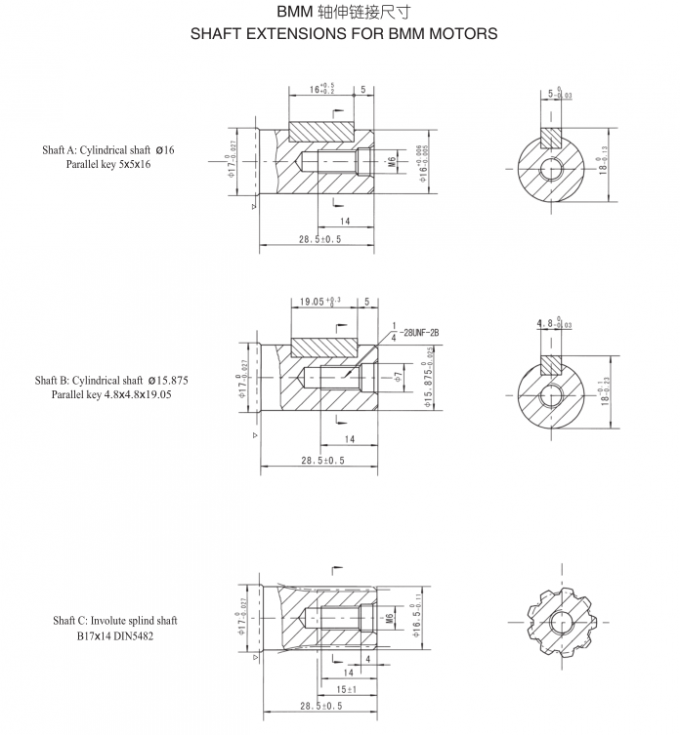

BMM32 match than OMM 151G0006 :

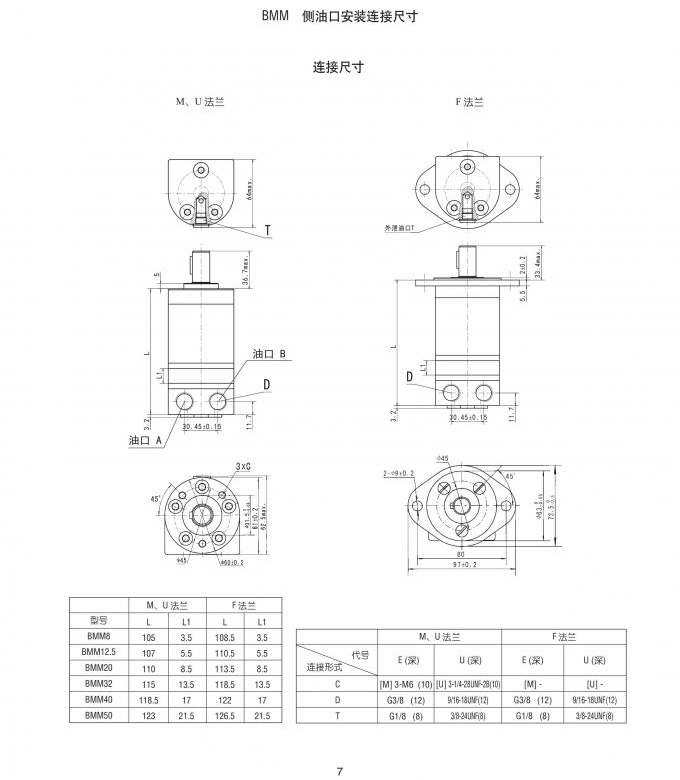

1. Oil Port : G3/8"
2. Drain Port : G1/8"
3. Screw : M6
4. Shaft : 16mm
5. Key : 5x5x16mm
6. Side oil port.
7. Displacement : 32cc
BMM32 match than OMM 151G0029 :
1. Oil Port : 9/16-18UNF
2. Drain Port : 3/8-24UNF
3. Screw : 1/4-28UNF
4. Shaft : 15.875mm
5. Key : 4.8x4.8x19.05mm
6. Side oil port.
7. Displacement : 32cc
Other type code number we can do :
| OMM / BMM | ||||||
| 151G-0040 | 151G-0001 | 151G-0002 | 151G-0003 | 151G-0277 | 151G-0037 | 151G-0211 |
| 151G-0041 | 151G-0004 | 151G-0005 | 151G-0006 | 151G-0279 | 151G-0013 | 151G-0211 |
| 151G-0048 | 151G-0031 | 151G-0032 | 151G-0033 | - | - | - |
| 151G-0049 | 151G-0034 | 151G-0035 | 151G-0036 | - | 151G-0094 | - |
| 151G-0046 | 151G-0024 | 151G-0025 | 151G-0026 | - | - | 151G-0211 |
| 151G-0047 | 151G-0027 | 151G-0028 | 151G-0029 | - | - | 151G-0211 |
Xeriwell HYDRAULIC BMM DETAILS:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
