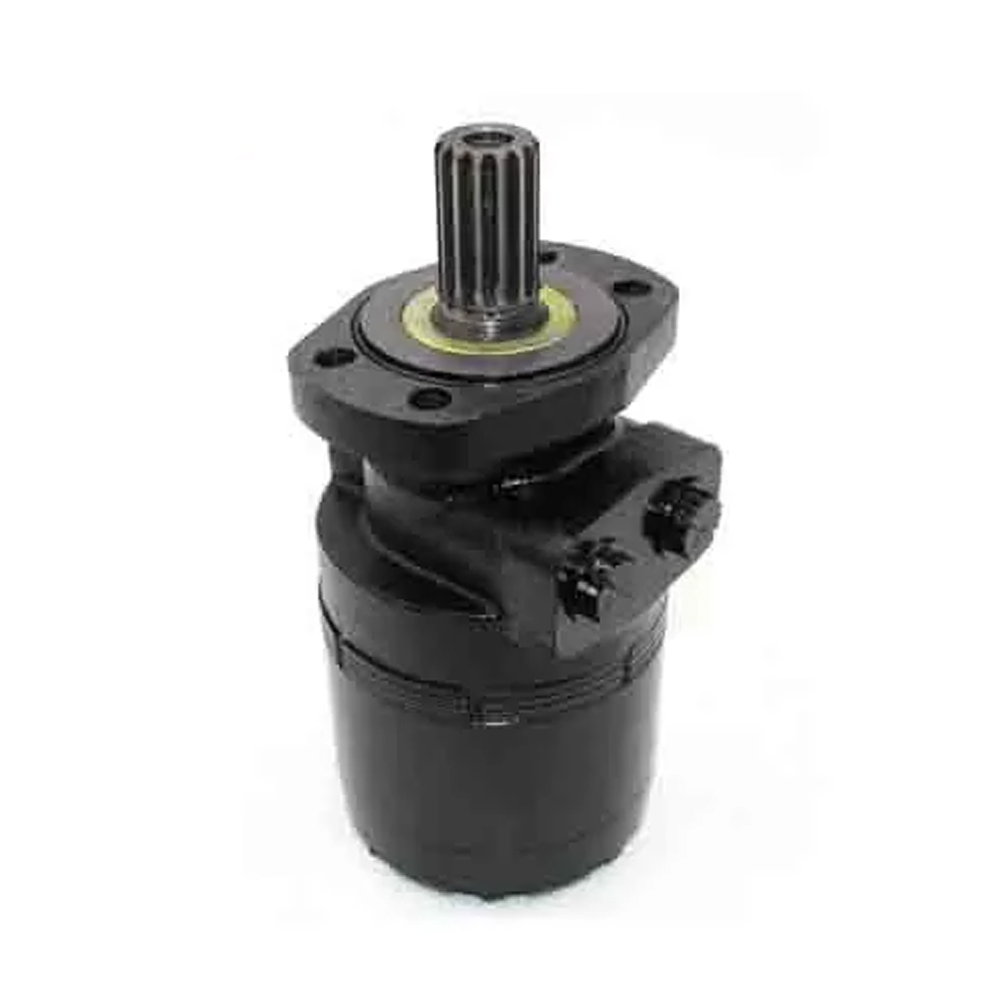

Heavy Duty LSHT Motor Parker Replace For Hydraulic Systems Of Earth Moving

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMER-750
Brand:
Xeriwell or Others

Product Description

Features:	Replace Parker, Eaton	Item:	LSHT Hydraulic Motor
Model:	BMER	Application:	Earth Moving, Road Construction, Forestry, Agricultural
Cm3/r:	118 Cm3 - 745 Cm3	Rpm Cont.:	100 Rpm - 360 Rpm
Torque Cont.:	325 Nm - 1050 Nm	Flow L/min:	45 L - 57 L
Highlight:	slow speed high torque motor , lsht hydraulic motor

Heavy duty LSHT motor Parker replace for Hydraulic Systems of earth moving, road construction, forestry, agricultural

Quick detail :

BMER-750 replace Parker TE, TF, TG, TJ ,Eaton, , M+S

	BMER-750
Displacement cm3/rev.	745
Speed rpm	100
Torque Nm	1050
Output kw	8.0
Pressure MPa	10.5
Flow L/min	75

Low speed high torque motor :

Low speed high torque hydraulic motor are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power. Hydraulic motors provide the force and supply the motion to move an external load.

Charactor of BMER series motors :

BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Characteristic features:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.

* The output shaft adapts in needle roller bearings that permit high axial and radial forces.The can offers capacities of high pressure and high torque in the wide of applications.

* Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.

* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster thanshaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.

More Hydraulic Motors :

We provide BMM, BMP, BMR, BMH, BMS, BMSS, BMT, BMTS, BMV series

They are all widely apply to Hydraulic Fluid Systems , Fluid Power Manufacturers, Hydraulic Systems Solutions, Fluid Power Solutions

They are all compatible with Parker TE, TF, TG, TJ, OMM, OMP, OMR, OMH, OMS, OMT, OMV, Eaton S, T, J, W, 2K, 4K, 6K, 10K

Distributor type	Model	displacement cm3/rev.	max. operating pressure MPa	Speed range	Max. output power
Axial distributor	BMM	8-50	14	10-1950	3.2
Axial distributor	BMP	36-400	16.5	30-879	10
Axial distributor	BMR	36-400	20	30-970	15
Axial distributor	BMH	200-750	20	30-430	17

Distributor type	Model	displacement cm3/rev.	max. operating pressure MPa	Speed range	Max. output power
Disc distributor	BMS	80-375	22.5	30-800	20
Disc distributor	BMS	80-475	22.5	8-800	24
Disc distributor	BMT	160-800	24	30-705	35
Disc distributor	BMV	315-800	28	10-446	43

Manufacture introduce :

Xeriwell manufactures machine parts and components

The Company offers hydraulic motors, control valves, joysticks, pumps and accessories

Xeriwell supplies their parts to Hydraulic Resellers, Hydraulic Distributors, Hydraulic Machines Manufacturers, Hydraulic Training,

Hydraulic Fluid Tech Research, Hydraulic Repairing, Fluid Power Manufacturers, Hydraulic Systems Solutions, Fluid

主要技术参数 Main Specifcaion
主要技术参数 Main Specifcaion
类型 Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
排量： Geometric displacement (cm3/rev.)		80.6	100.8	125	157.2	200	252	314.5	370
最大转速 Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
最大转速 Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
最大扭矩 Max. torque (N•m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	656	645
	peak	260	320	400	472	650	690	740	751
最大功率 Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
最大功率 Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
工作压力差 Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
最大流量 Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
最大流量 Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
最高进油压力 Max. inlet pressure(MPa)	cont.	25	25	25	25	25	25	25	25
最高进油压力 Max. inlet pressure(MPa)	int.	30	30	30	30	30	30	30	30
重量 Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6
* Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute.

Main Specificaion
Main Specificaion
类型 Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
排量 Geometric displacement (cm3/rev.)		333	419	518	666	801	990
最大转速 Max. speed (rpm)	cont.	510	500	400	320	250	200
最大转速 Max. speed (rpm)	int.	630	600	480	380	300	240
最大扭矩 Max. torque (N•m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
最大功率 Max. output (kW)	cont.	38	47	47	40	33	28.6
最大功率 Max. output (kW)	int.	46	56	56	56	44	40
工作压力差 Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
最大流量 Max. flow (L/min)	cont.	160	200	200	200	200	200
最大流量 Max. flow (L/min)	int.	200	240	240	240	240	240
重量 Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6
• Continuous pressure:Max. value of operating motor continuously. • Intermittent pressure:Max. value of operating motor in 6 seconds per minute. • Peak pressure:Max. value of operating motor in 0.6 second per minute.

类型 Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
排量 Geometric displacement (cm3/rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
最大转速 Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
最大转速 Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
最大扭矩 Max. torque (N▪m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
最大功率 Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
最大功率 Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
工作压力差 Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
最大流量 Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
最大流量 Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
最大进油□压力 Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
重量 Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25
• Continuous pressure:Max. value of operating motor continuously. • Intermittent pressure:Max. value of operating motor in 6 seconds per minute. • Peak pressure:Max. value of operating motor in 0.6 second per minute.
