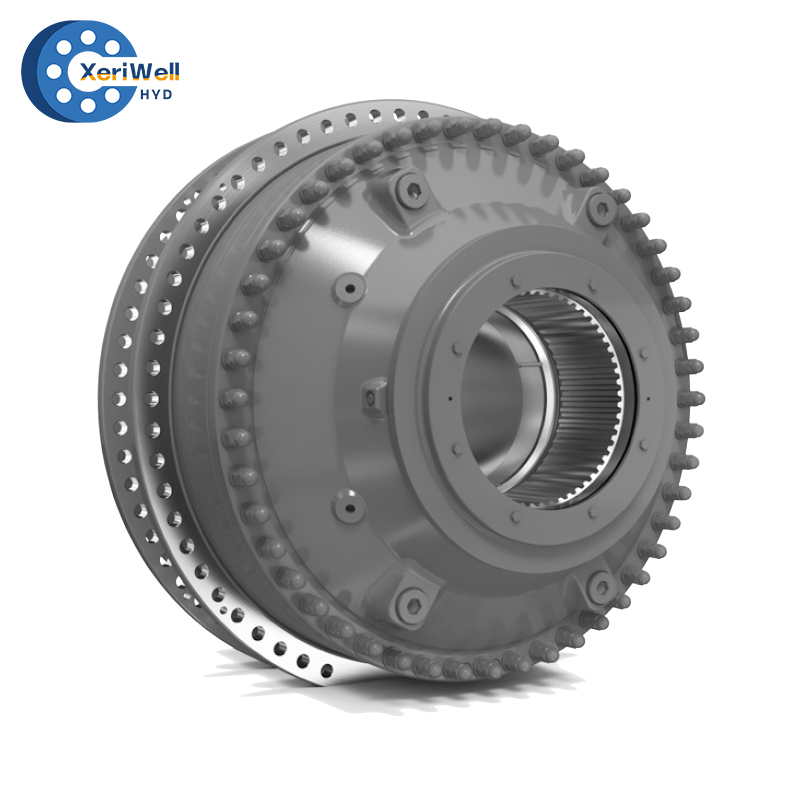

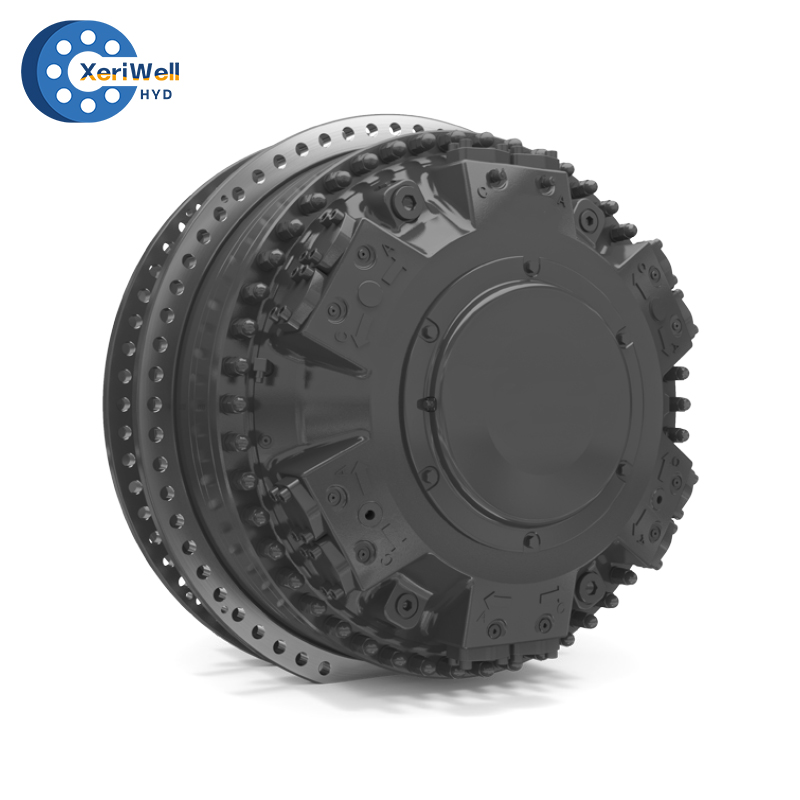

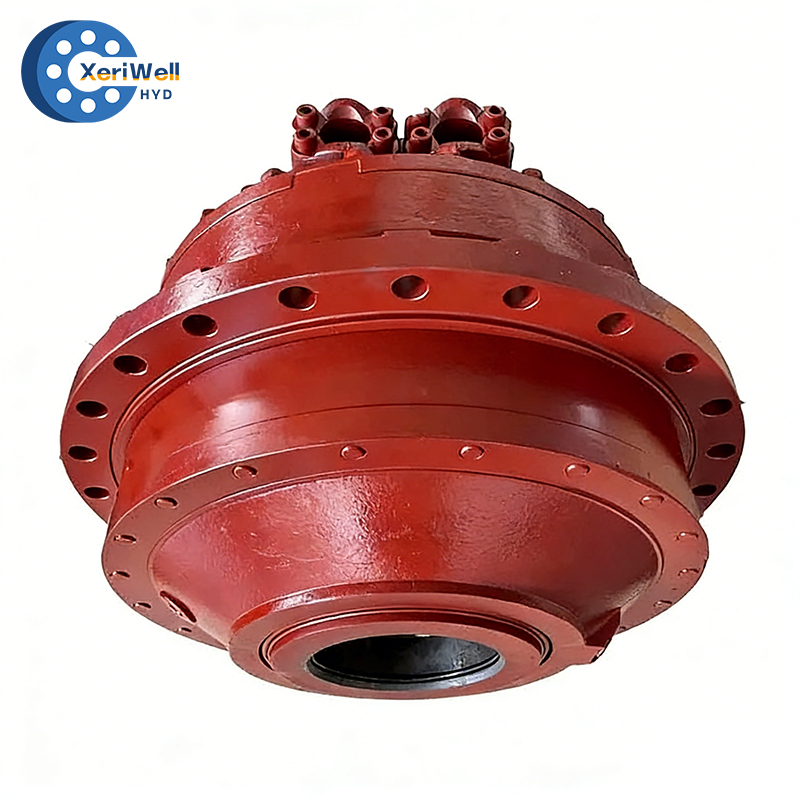

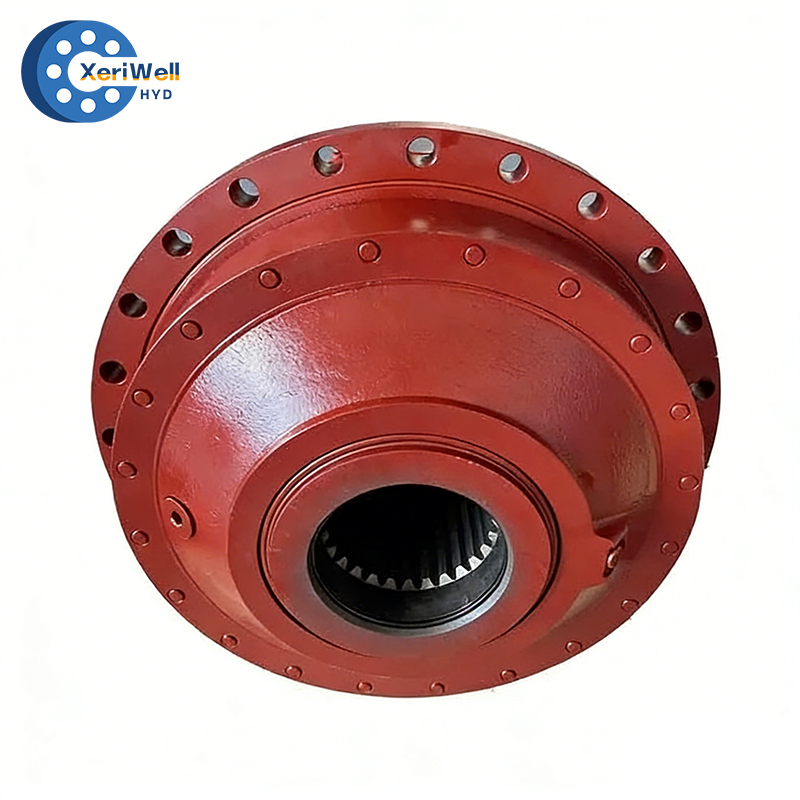

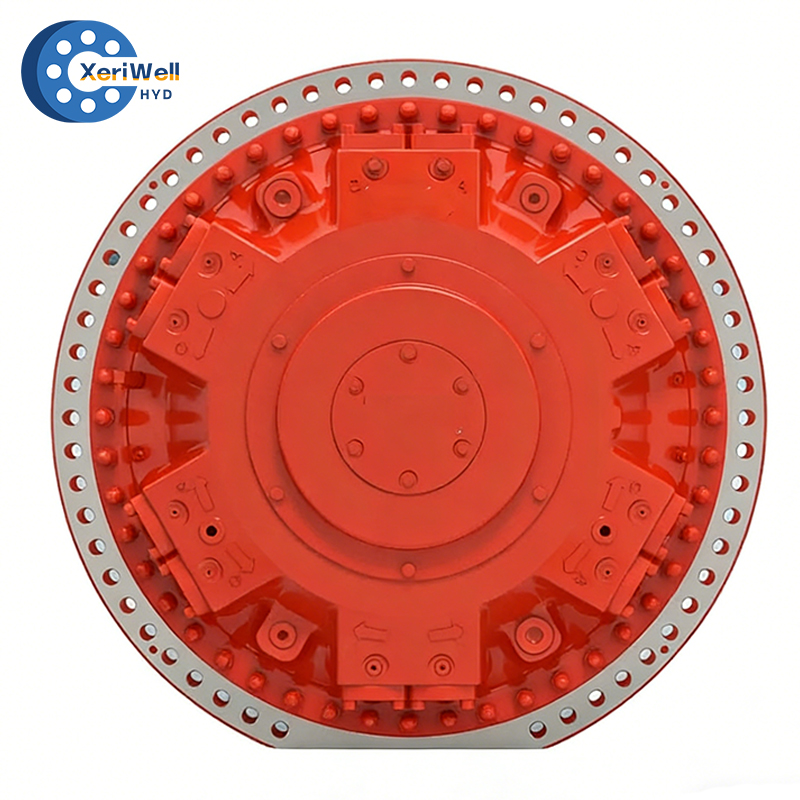

CBM
Xeriwell or Others
| Table 3:General data (metric) | ||||||
| Frame size | ||||||
| CBm 2000 | CBm 3000 | CBm 4000 | CBm 5000 | CBm 6000 | ||
| Type of mounting | See section 9:Mounting alternatives | |||||
| Port connections | See section 3.2:Port connections | |||||
| External loads | See section 4.14:Permissible external loads | |||||
| Hydraulic fluids | See section 4.5:Hydraulic fluids | |||||
| Pressure | ||||||
| Maximum operating pressure | bar | 3503) | 3503) | 350 | 350 | |
| Maximum peak pressure1) | bar | 420 | 420 | 420 | 420 | |
| Charge pressure | bar | See section 4.4:Recommended charge pressure | ||||
| Maximum case pressure | bar | 3 | 3 | 3 | 3 | |
| Maximum case peak pressure2) | bar | 8 | 8 | 8 | 8 | |
| Temperature limits of case drain oil | ||||||
| Seal type:NBR (Nitrile) | ||||||
| Seal type:FPM (Viton) | Minimum | °C | -35 | -35 | -35 | -35 |
| Maximum | °C | 70 | 70 | 70 | 70 | |
| Minimum | °C | -20 | -20 | -20 | -20 | |
| Maximum | °C | 100 | 100 | 100 | 100 | |
| Oil volume in motor case | l | 50 | 60 | 70 | 80 | |
| Moment of inertia for rotary group | ||||||
| Motor with splines | kg·m2 | 215 | 322 | 415 | 499 | |
| Motor with shrink disc coupling C | kg·m2 | 262 | 359 | - | - | |
| Motor with shrink disc coupling E | kg·m2 | 246 | - | - | - | |
| Weight | ||||||
| Motor with splines | kg | 4100 | 5000 | 5800 | 6700 | |
| Motor with shrink disc coupling C | kg | 4650 | 5500 | - | - | |
| Motor with shrink disc coupling E | kg | 4500 | - | - | - | |
| 1)Peak pressure 420 bar maximum,allowed to occur up to 10 000 times. 2)Momentary pressure spikes <0.1 s of up to 8 bar are permitted. 3)Pressure limitations in some nominal motor sizes see Table 5 | ||||||
