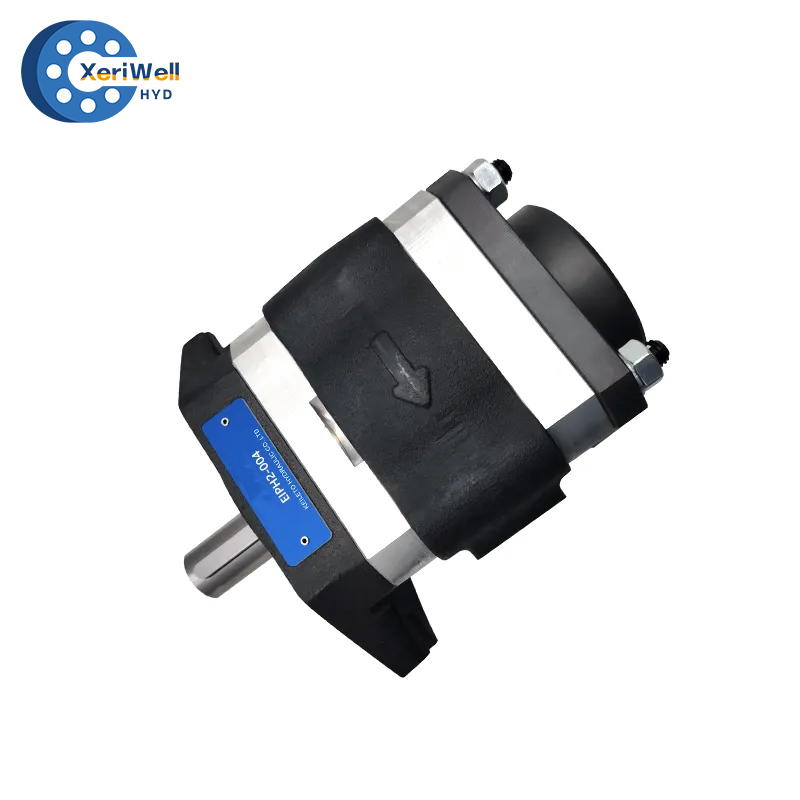

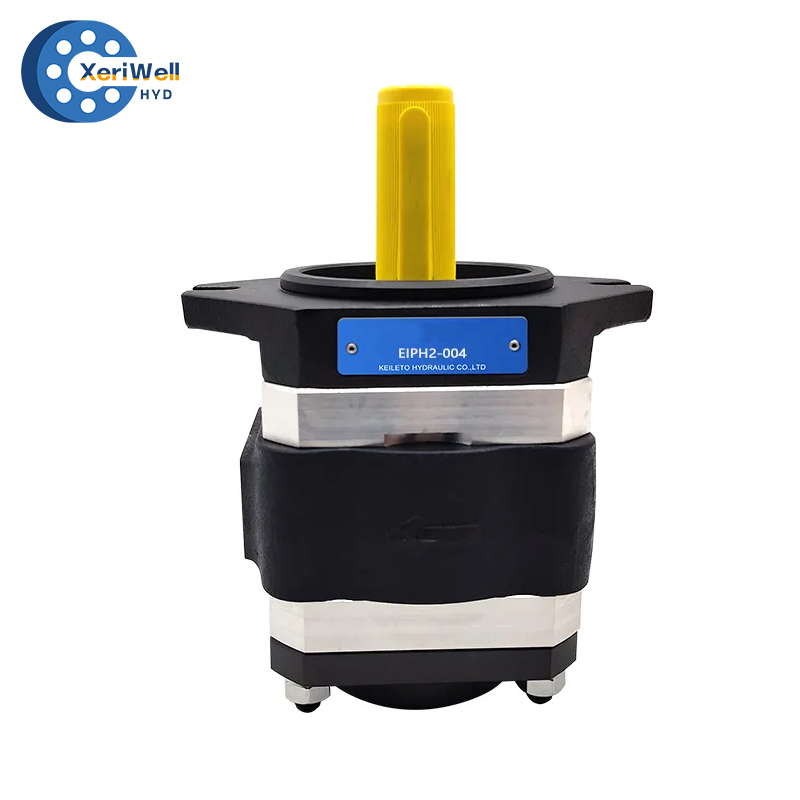

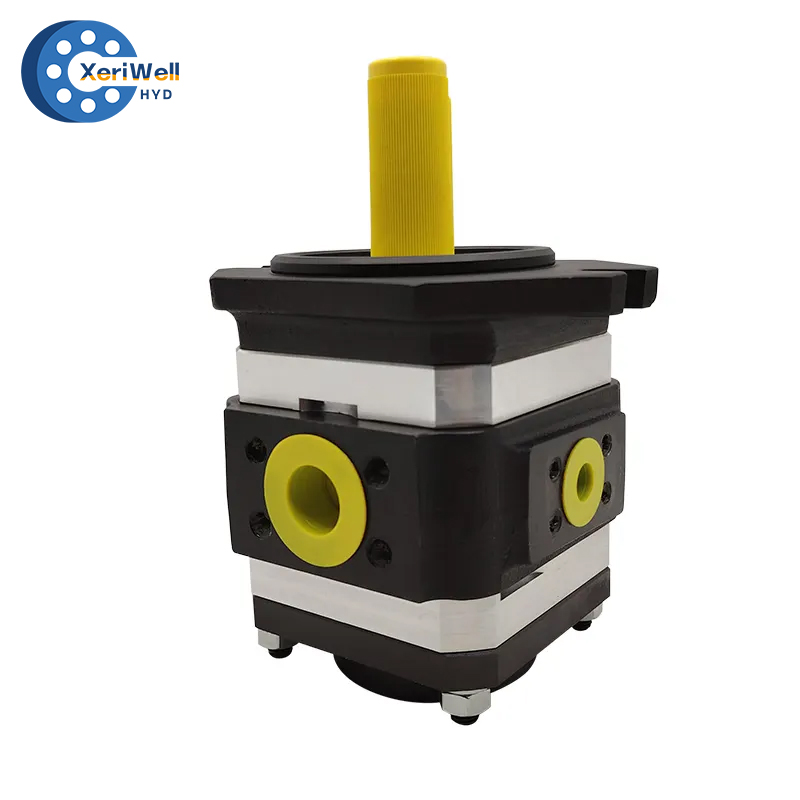

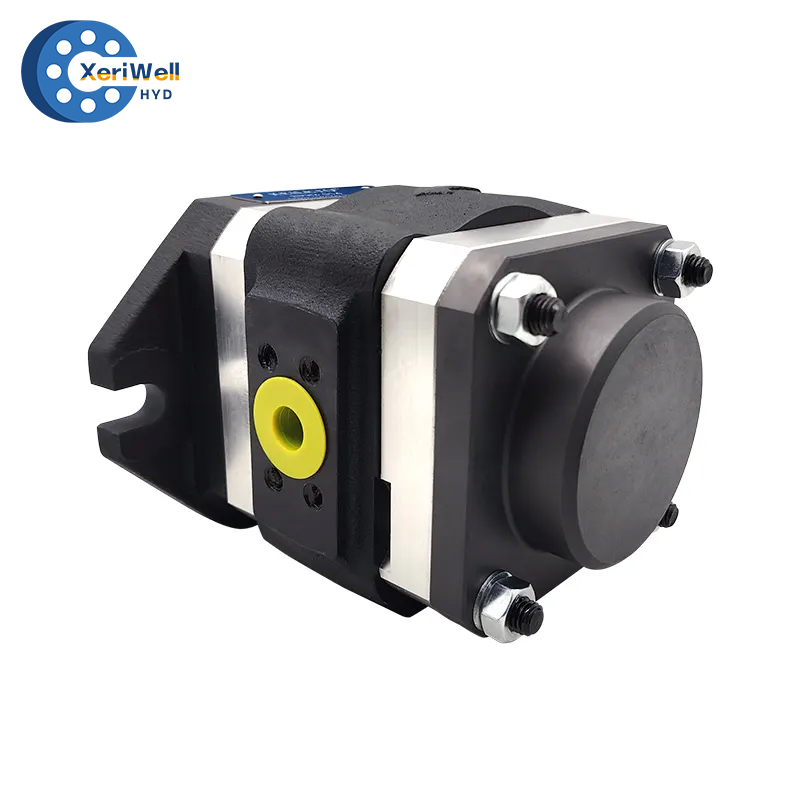

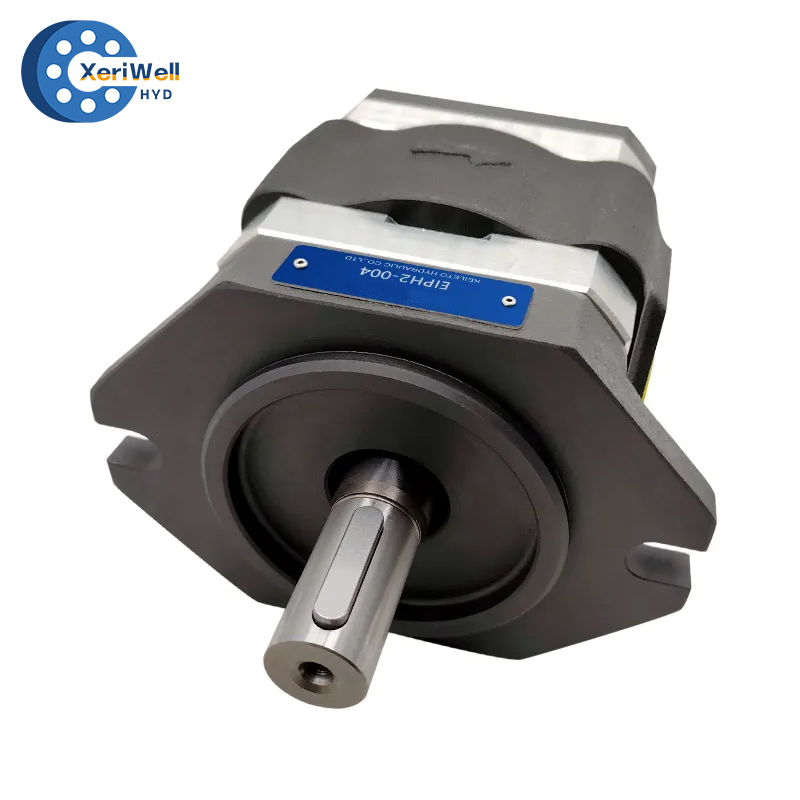

ECKERLE EIPH Hydraulic Gear Pump

Name: ECKERLE EIPH Hydraulic Gear Pump
Brand: Xeriwell or Others
SKU: 563899427
Rating: 5.0 (12 reviews)

Pictures are for display only, please contact us to choose the right product for you.

详情图

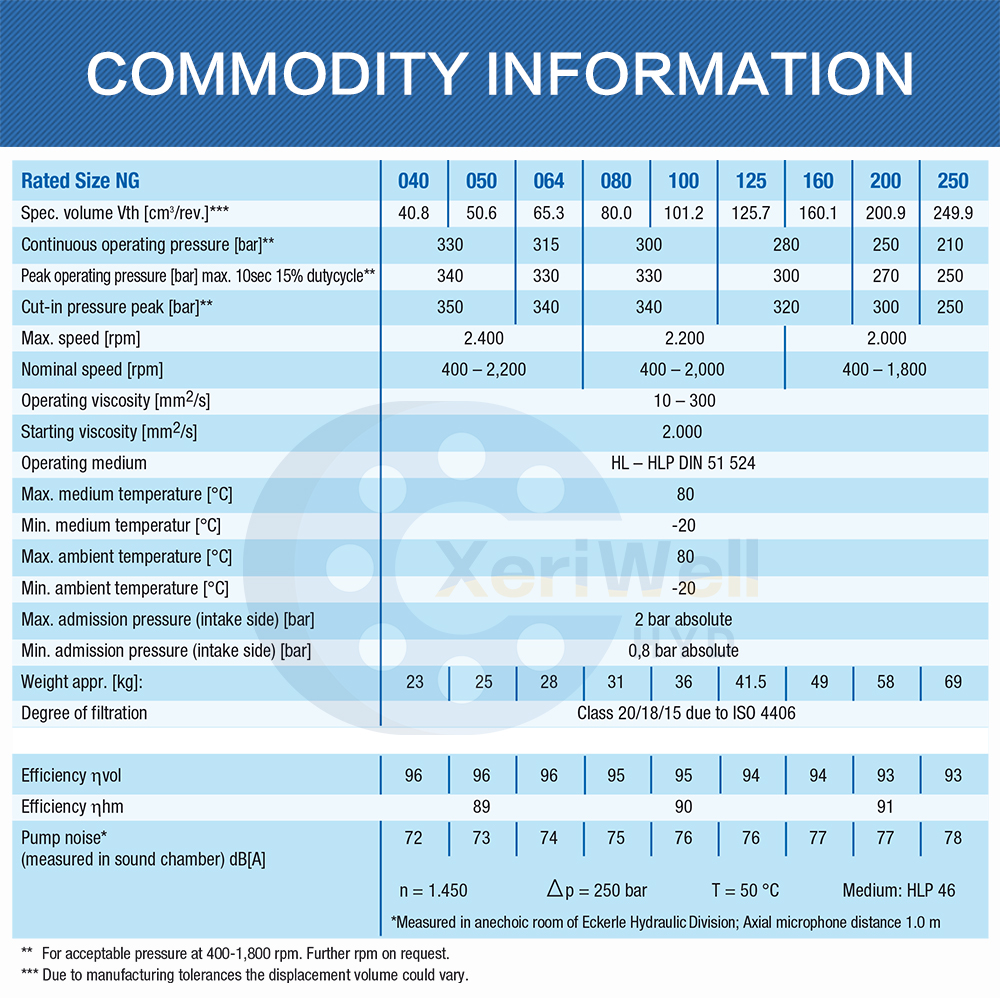

Rated Size NG	40	50	64	80	100	125	160	200	250
Spec. volume Vth [cm3/rev.]***	40.8	50.6	65.3	80	101.2	125.7	160.1	200.9	249.9
Continuous operating pressure [bar]**	330		315	300		280		250	210
Peak operating pressure [bar] max. 10sec 15% dutycycle**	340		330	330		300		270	250
Cut-in pressure peak [bar]**	350		340	340		320		300	250
Max. speed [rpm]	2.400			2.200			2.000
Nominal speed [rpm]	400 – 2,200			400 – 2,000			400 – 1,800
Operating viscosity [mm2/s]	10 – 300
Starting viscosity [mm2/s]	2.000
Operating medium	HL – HLP DIN 51 524
Max. medium temperature [°C]	80
Min. medium temperatur [°C]	-20
Max. ambient temperature [°C]	80
Min. ambient temperature [°C]	-20
Max. admission pressure (intake side) [bar]	2 bar absolute
Min. admission pressure (intake side) [bar]	0,8 bar absolute
Weight appr. [kg]:	23	25	28	31	36	41.5	49	58	69
Degree of filtration	Class 20/18/15 due to ISO 4406

Efficiency ηvol	96	96	96	95	95	94	94	93	93
Efficiency ηhm	89			90			91
Pump noise*	72	73	74	75	76	76	77	77	78
(measured in sound chamber) dB[A]	n = 1.450 △p = 250 bar T = 50 °C Medium:HLP 46
	*Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m
For acceptable pressure at 400-1,800 rpm. Further rpm on request. * Due to manufacturing tolerances the displacement volume could vary.

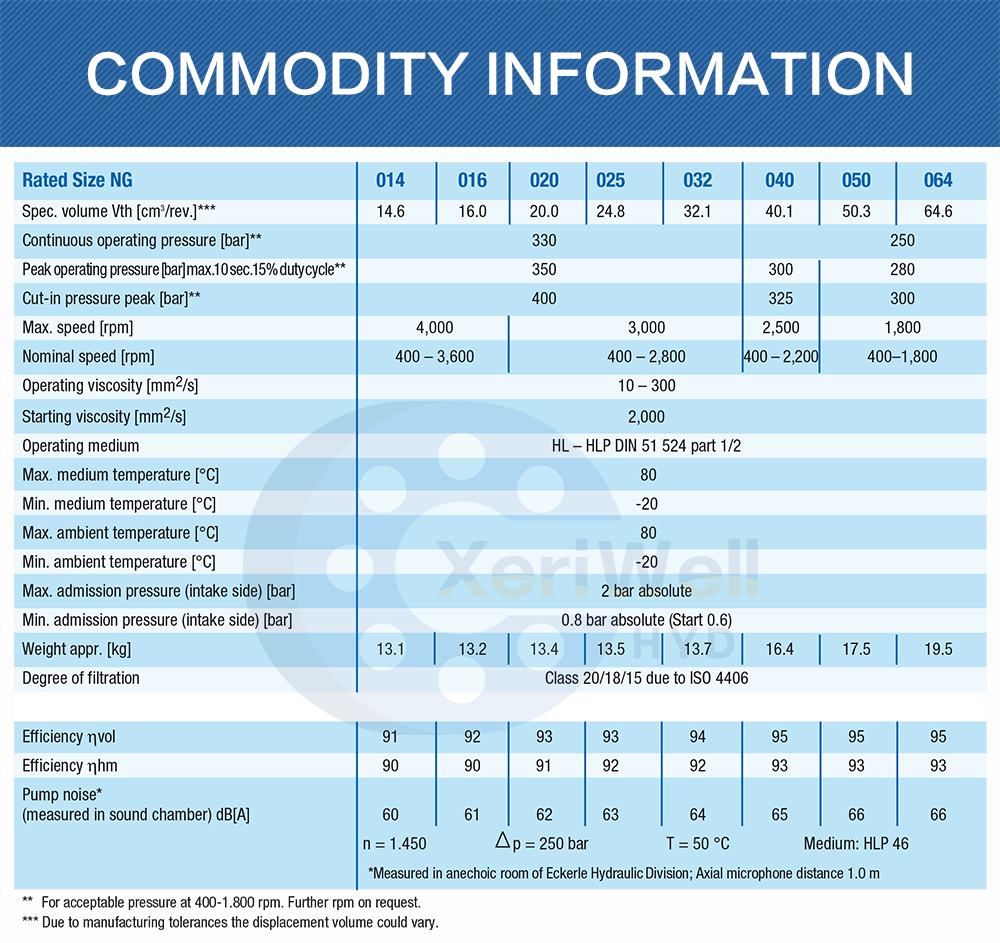

Rated Size NG	14	16	20	25	32	40	50	64
Spec. volume Vth [cm3/rev.]***	14.6	16	20	24.8	32.1	40.1	50.3	64.6
Continuous operating pressure [bar]**	330					250
Peak operating pressure [bar]max.10 sec.15% dutycycle**	350					300	280
Cut-in pressure peak [bar]**	400					325	300
Max. speed [rpm]	4000		3000			2500	1800
Nominal speed [rpm]	400 – 3,600		400 – 2,800			400 – 2,200	400–1,800
Operating viscosity [mm2/s]	10 – 300
Starting viscosity [mm2/s]	2000
Operating medium	HL – HLP DIN 51 524 part 1/2
Max. medium temperature [°C]	80
Min. medium temperature [°C]	-20
Max. ambient temperature [°C]	80
Min. ambient temperature [°C]	-20
Max. admission pressure (intake side) [bar]	2 bar absolute
Min. admission pressure (intake side) [bar]	0.8 bar absolute (Start 0.6)
Weight appr. [kg]	13.1	13.2	13.4	13.5	13.7	16.4	17.5	19.5
Degree of filtration	Class 20/18/15 due to ISO 4406

Efficiency ηvol	91	92	93	93	94	95	95	95
Efficiency ηhm	90	90	91	92	92	93	93	93
Pump noise* (measured in sound chamber) dB[A]	60	61	62	63	64	65	66	66
Pump noise* (measured in sound chamber) dB[A]	n = 1.450 △p = 250 bar T = 50 °C Medium:HLP 46 *Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m
For acceptable pressure at 400-1.800 rpm. Further rpm on request. * Due to manufacturing tolerances the displacement volume could vary.

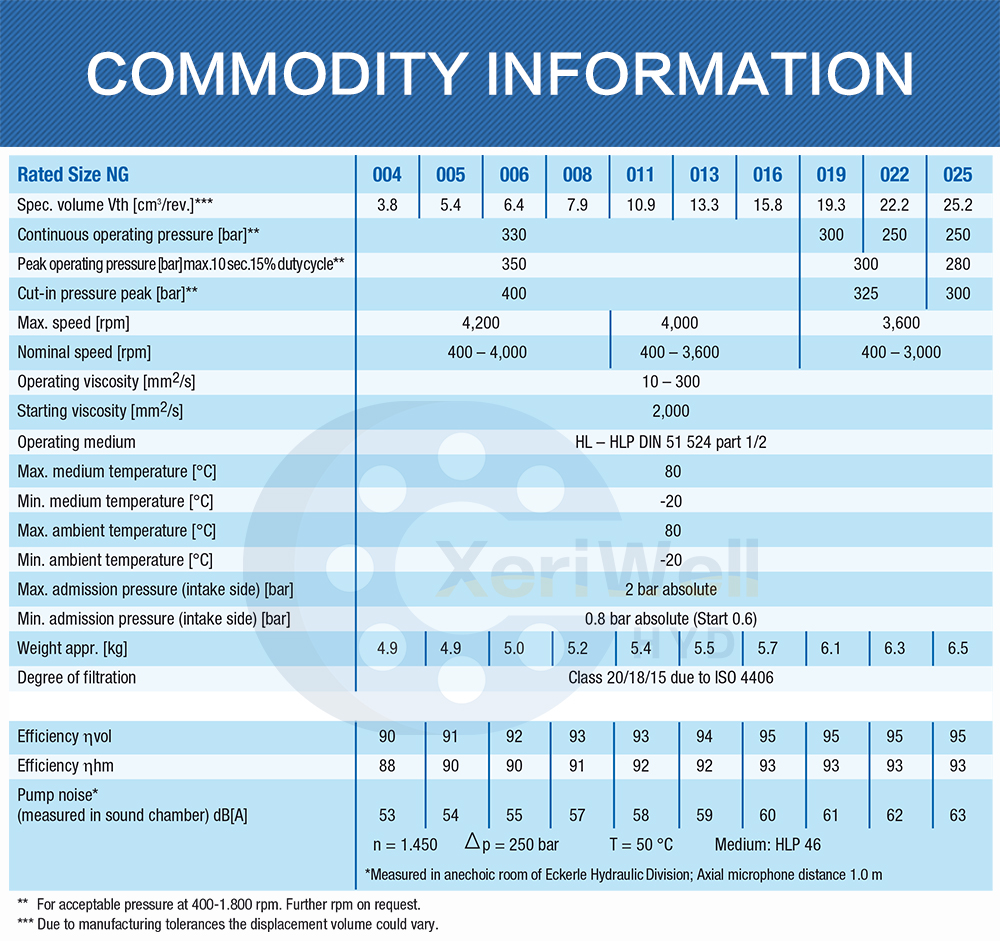

Rated Size NG	4	5	6	8	11	13	16	19	22	25
Spec. volume Vth [cm3/rev.]***	3.8	5.4	6.4	7.9	10.9	13.3	15.8	19.3	22.2	25.2
Continuous operating pressure [bar]**	330							300	250	250
Peak operating pressure [bar]max.10 sec.15% dutycycle**	350							300		280
Cut-in pressure peak [bar]**	400							325		300
Max. speed [rpm]	4200				4000			3600
Nominal speed [rpm]	400 – 4,000				400 – 3,600			400 – 3,000
Operating viscosity [mm2/s]	10 – 300
Starting viscosity [mm2/s]	2000
Operating medium	HL – HLP DIN 51 524 part 1/2
Max. medium temperature [°C]	80
Min. medium temperature [°C]	-20
Max. ambient temperature [°C]	80
Min. ambient temperature [°C]	-20
Max. admission pressure (intake side) [bar]	2 bar absolute
Min. admission pressure (intake side) [bar]	0.8 bar absolute (Start 0.6)
Weight appr. [kg]	4.9	4.9	5	5.2	5.4	5.5	5.7	6.1	6.3	6.5
Degree of filtration	Class 20/18/15 due to ISO 4406

Efficiency ηvol	90	91	92	93	93	94	95	95	95	95
Efficiency ηhm	88	90	90	91	92	92	93	93	93	93
Pump noise* (measured in sound chamber) dB[A]	53	54	55	57	58	59	60	61	62	63
Pump noise* (measured in sound chamber) dB[A]	n = 1.450 △p = 250 bar T = 50 °C Medium:HLP 46 *Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m
For acceptable pressure at 400-1.800 rpm. Further rpm on request. * Due to manufacturing tolerances the displacement volume could vary.
