T6 T7 series treple
Xeriwell or Others

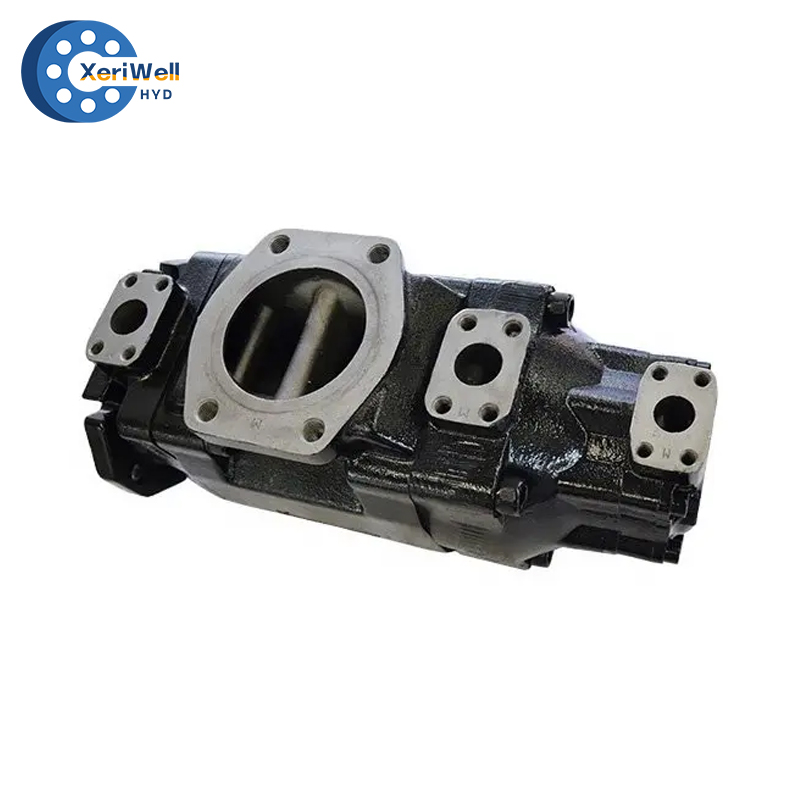

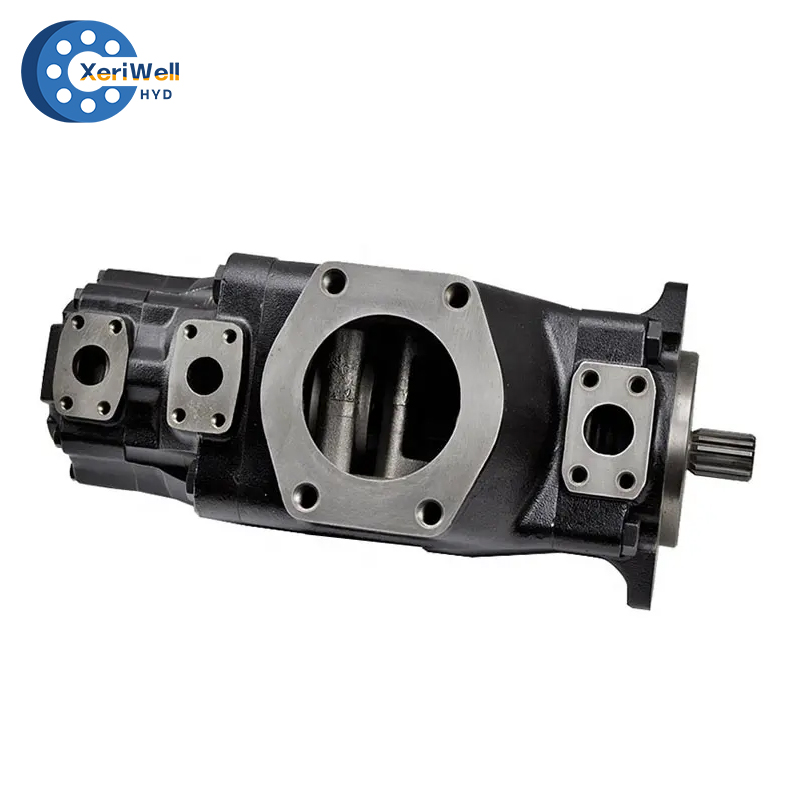

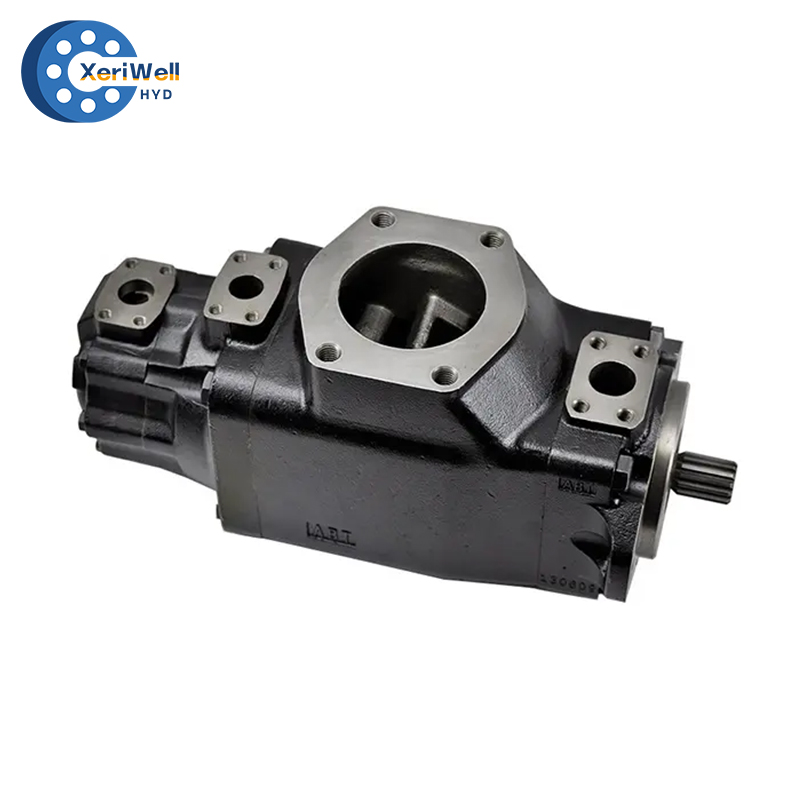

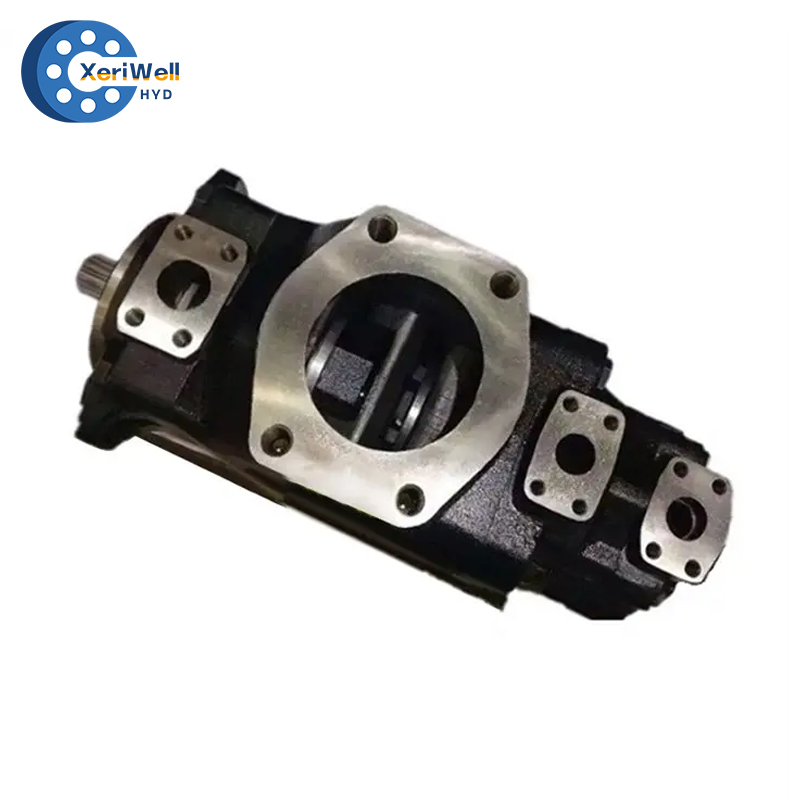

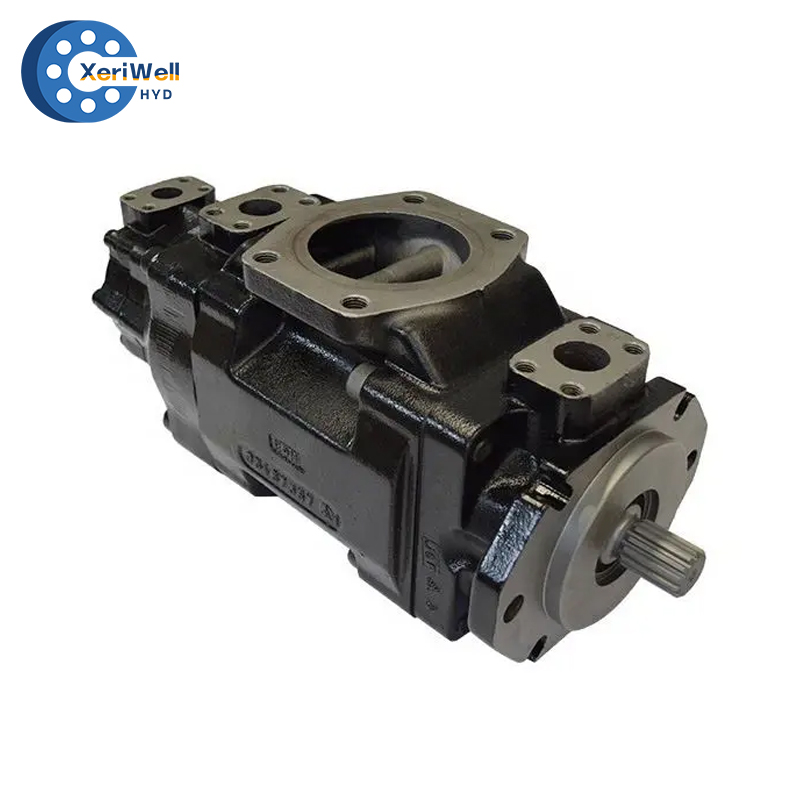

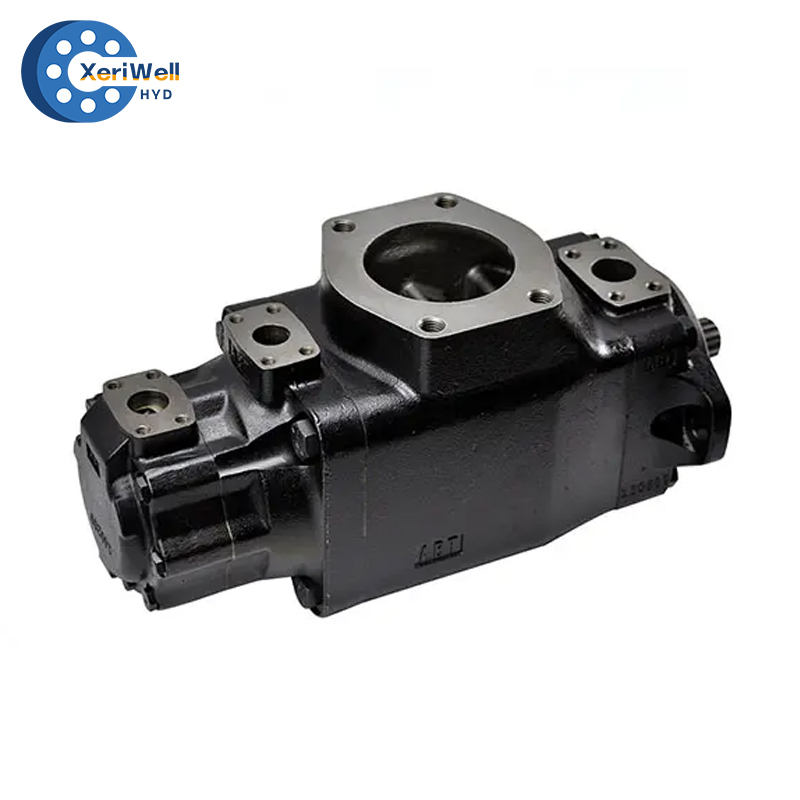

The Denison T6, T67, and T7 Series triple vane pumps are advanced hydraulic pumps designed to power complex systems requiring multiple hydraulic circuits. By integrating three independent pumping sections into a single compact housing, these pumps deliver exceptional performance, reduce system complexity, and optimize space usage, making them ideal for demanding industrial and mobile applications.
Key Features:
1) Triple-Circuit Functionality: Combines three separate hydraulic circuits, enabling efficient operation of multiple functions simultaneously while reducing the need for additional components.
2) Compact Design: Integrates three pumping elements in one unit, saving valuable installation space and simplifying hydraulic system layouts.
3) High Pressure Capability: Operates at pressures up to 320 bar, ensuring reliable performance under demanding conditions.
4) Ease of Maintenance: Features modular cartridge kits for each pumping section, allowing for quick replacements and servicing without disassembling the entire unit.
5) Customizable Configurations: Offers a wide range of displacement combinations and porting options to meet specific application requirements.
The Denison T6, T67, and T7 Series triple vane pumps deliver exceptional reliability, efficiency, and flexibility, providing a streamlined solution for complex hydraulic systems with multiple power demands.

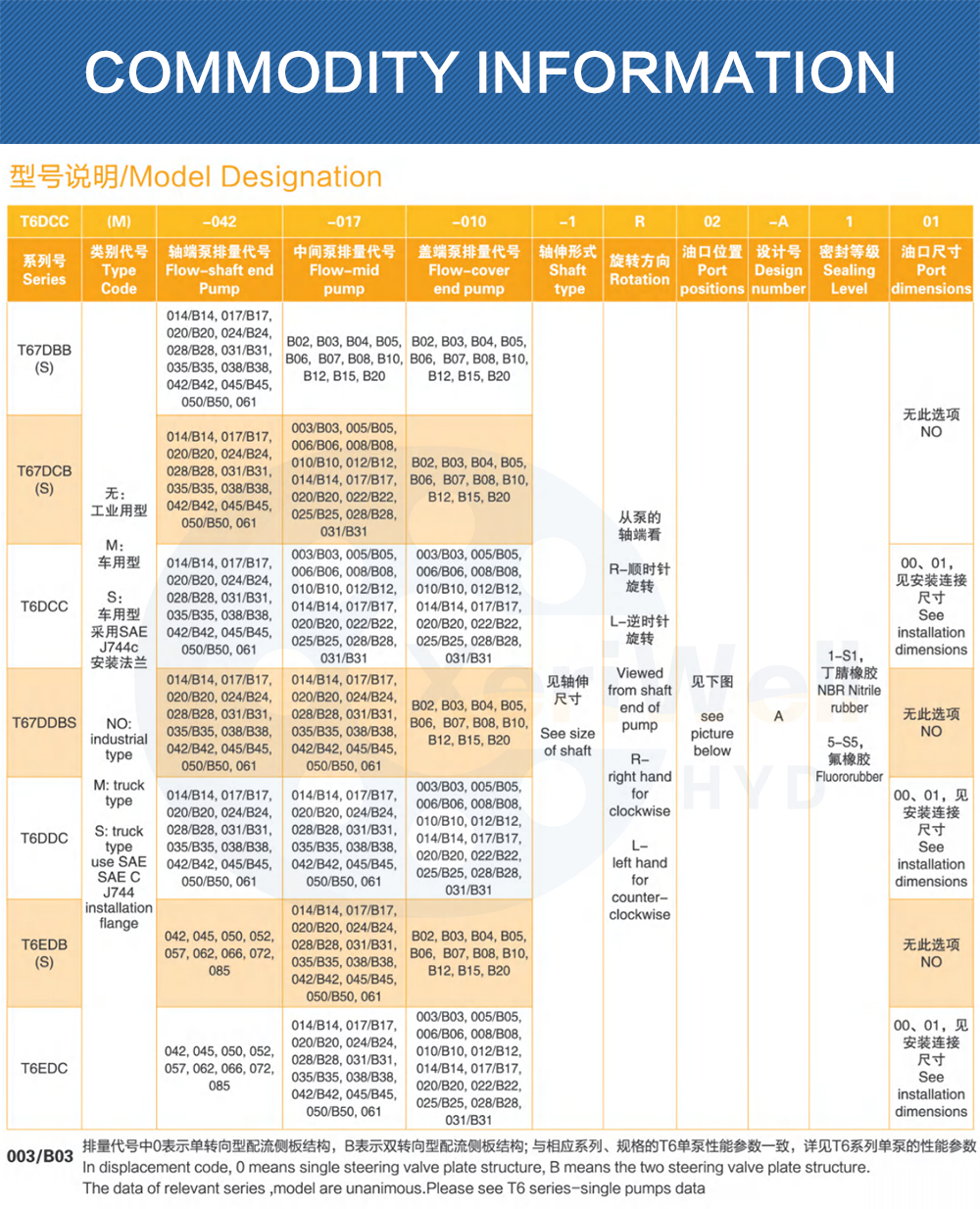

| 型号说明/Model Designation | ||||||||||
| T6DCC | (M) | −042 | −017 | −010 | −1 | R | 2 | −A | 1 | 1 |
| 系列号 Series | 类别代号 Type Code | 轴端泵排量代号 Flow–shaft end Pump | 中间泵排量代号 Flow–mid pump | 盖端泵排量代号 Flow–cover end pump | 轴伸形式 Shaft type | 旋转方向 Rotation | 油口位置 Port positions | 设计号 Design number | 密封等级 Sealing Level | 油口尺寸 Port dimensions |
| T67DBB (S) | 无： 工业用型 M： 车用型 S： 车用型 采用SAE J744c安装法兰 NO： industrial type M:truck type S:truck type use SAE SAE C J744 installation flange | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15,B20 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15,B20 | 见轴伸尺寸 See size of shaft | 从泵的轴端看 R–顺时针旋转 L–逆时针旋转 Viewed from shaft end of pump R– right hand for clockwise L– left hand for counter– clockwise | 见下图 see picture below | A | 1–S1，丁腈橡胶NBR Nitrile rubber 5–S5，氟橡胶Fluororubber | 无此选项 NO |
| T67DCB (S) | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | 003/B03,005/B05,006/B06,008/B08,010/B10,012/B12,014/B14,017/B17,020/B20,022/B22,025/B25,028/B28,031/B31 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15,B20 | |||||||
| T6DCC | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | 003/B03,005/B05,006/B06,008/B08,010/B10,012/B12,014/B14,017/B17,020/B20,022/B22,025/B25,028/B28,031/B31 | 003/B03,005/B05,006/B06,008/B08,010/B10,012/B12,014/B14,017/B17,020/B20,022/B22,025/B25,028/B28,031/B31 | 00、01，见安装连接尺寸 See installation dimensions | ||||||
| T67DDBS | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15,B20 | 无此选项 NO | ||||||
| T6DDC | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | 003/B03,005/B05,006/B06,008/B08,010/B10,012/B12,014/B14,017/B17,020/B20,022/B22,025/B25,028/B28,031/B31 | 00、01，见安装连接尺寸 See installation dimensions | ||||||
| T6EDB (S) | 042,045,050,052,057,062,066,072,085 | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15,B20 | 无此选项 NO | ||||||
| T6EDC | 042,045,050,052,057,062,066,072,085 | 014/B14,017/B17,020/B20,024/B24,028/B28,031/B31,035/B35,038/B38,042/B42,045/B45,050/B50,061 | 003/B03,005/B05,006/B06,008/B08,010/B10,012/B12,014/B14,017/B17,020/B20,022/B22,025/B25,028/B28,031/B31 | 00、01，见安装连接尺寸 See installation dimensions | ||||||
| 003/B03 排量代号中0表示单转向型配流侧板结构，B表示双转向型配流侧板结构;与相应系列、规格的T6单泵性能参数一致，详见T6系列单泵的性能参数 In displacement code，0 means single steering valve plate structure，B means the two steering valve plate structure. The data of relevant series,model are unanimous.Please see T6 series–single pumps data | ||||||||||
